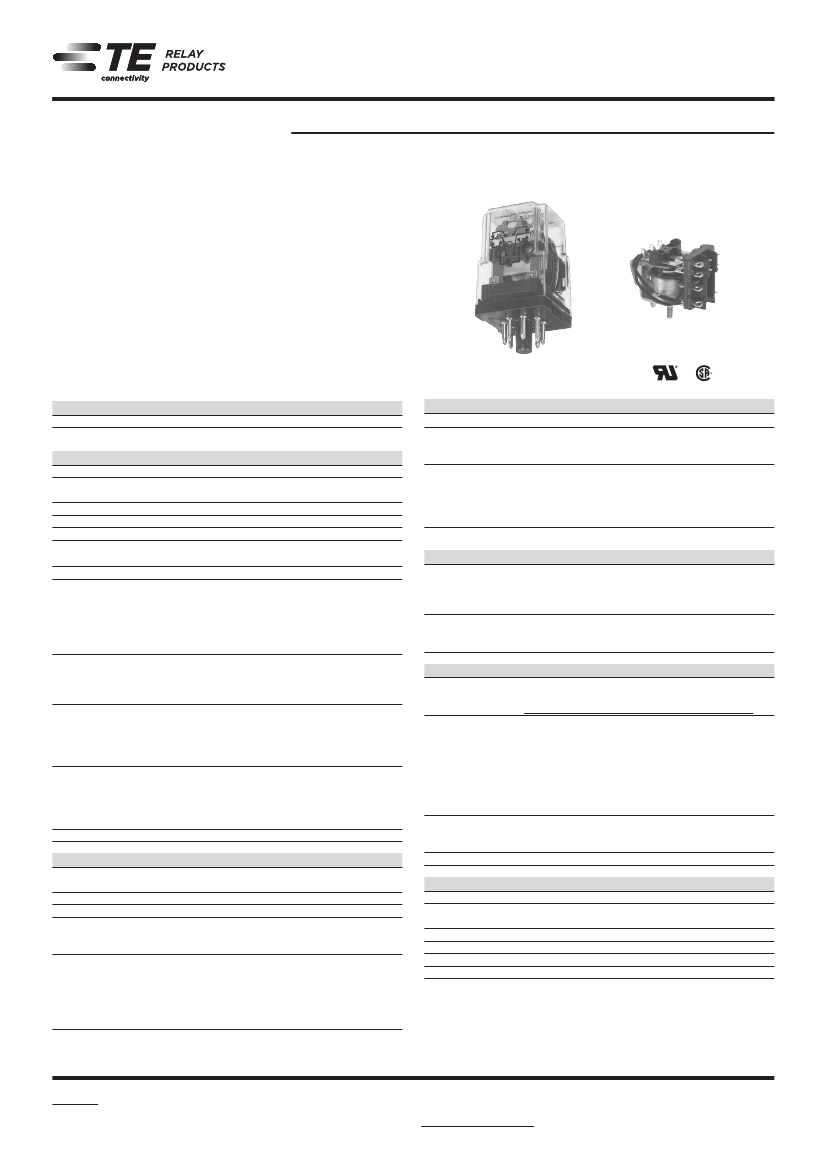

General Purpose
Panel/Plug-in Relays
KRPA Series Panel Plug-in Relay
n
n
n
n
Potter & Brumfield
5 to 10A current capability
Contact arrangements of 1, 2 and 3 form C (CO)
Octal type termination for quick installation
Indicator lamp available on certain models
Typical applications
Baggage handling, lighting, inspection equipment, marine.
Approvals
Coil Data (continued)
Coil versions, AC coil
Coil
Rated
code
voltage
VAC
6
6
12
12
24
24
120
120
240
240
Operate
voltage
VAC
5.1
10.2
20.4
102.0
204.0
Coil
resistance
Ω±15%
6
24
85
2250
9110
Rated coil
power
VA
2.01
2.02
2.02
2.1
2.1
UL E22575; CSA LR15734
Technical data of approved types on request.
Contact arrangement
Rated voltage
Rated current
Contact material
Min. recommended contact load
Frequency of operation
Contact ratings
Type
Load
UL 508
KRPA, Ag
5A, 120VAC
3A, 240VAC
1/10HP, 120VAC
1/6HP, 240VAC
KRPA, AgCdO
10A, 240VAC
1/3HP, 120VAC
1/2HP, 240VAC
KA, Ag
5A, 120VAC
3A, 240VAC
1/10HP, 120VAC
1/6HP, 240VAC
KA, AgCdO
10A, 120VAC
6A, 240VAC
1/6HP, 120VAC
1/3HP, 240VAC
Mechanical endurance
Contact Data
1 form C (CO), 2 form C (CO), 3 form C (CO)
240VAC
10A
Ag
AgCdO
100mA, 12VDC 300mA, 12VDC
360 ops./hour
360 ops./hour
Cycles
100x10
3
100x10
3
1x10
3
1x10
3
100x10
3
1x10
3
1x10
3
All figures are given for coil without preenergization, at ambient temperature +23°C.
Insulation Data
Initial dielectric strength
between open contacts
between contact and coil
between adjacent contacts
Initial insulation resistance
between insulated elements
1000V
rms
1000V
rms
1000V
rms
KRPA: 1000MΩ
KA: 100MΩ
Other Data
10x10
6
ops.
6 to 220VDC
6 to 240VAC
Class B
Coil Data
Material compliance: EU RoHS/ELV, China RoHS, REACH, Halogen content
refer to the Product Compliance Support Center at
www.te.com/customersupport/rohssupportcenter
Ambient temperature
DC coil
KRPA: -45ºC to 70ºC
KA: -45ºC to 85ºC
AC coil
KRPA: -45ºC to 55ºC
KA: -45ºC to 70ºC
Category of environmental protection
IEC 61810
RTI - dust protected KRPA and
RT0 - open style KA
Terminal type
KRPA: 8- or 11-pin octal-type plug
KA: solder terminals
Weight
85g
Packaging/unit
tray/25 pcs., box/150pcs.
Coil voltage range
Accessories
Product Code
27E891
27E892
27E122
27E123
Coil insulation system according UL
Coil versions, DC coil
Coil
Rated
Operate
Coil
Rated coil
code
voltage
voltage
resistance
power
VDC
VDC
Ω±10%
W
6
6
4.5
32
1.15
12
12
9.0
120
1.2
24
24
18.0
472
1.25
48
48
36.0
1800
1.3
110
110
82.5
10000
1.2
–
220
Use 110V relay with 10KΩ, 5W resistor in series
All figures are given for coil without preenergization, at ambient temperature +23°C.
For details see datasheet
Sockets and Accessories, KRPA Relays
Description
Two pole DIN socket (use 20C318 clip)
Three pole DIN socket (use 20C318 clip)
Two pole track mount socket (use 20C318 clip)
Three pole track mount socket (use 20C318 clip)
07-2015, Rev. 0715
www.te.com
© 2015 Tyco Electronics Corporation,
a TE Connectivity Ltd. company.
Catalog and product specification according
to IEC 61810-1 and to be used only together
with the ‘Definitions’ section.
Catalog and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Catalog product data, ‘Definitions’ section,
application notes and all specifications are
subject to change.
1
General Purpose
Panel/Plug-in Relays
KRPA Series Panel Plug-in Relay
(Continued)
Potter & Brumfield

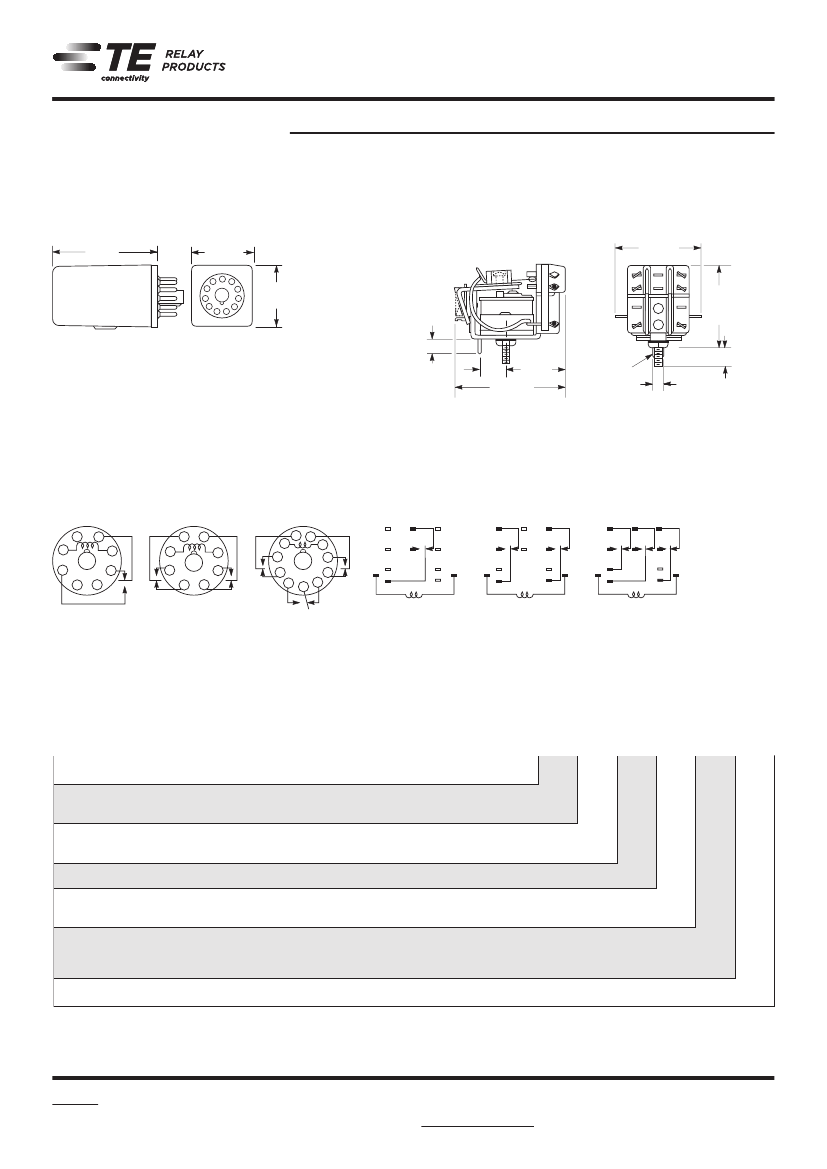

Dimensions
KRPA
2.0 MAX.
(50.8)
1.406 MAX.
(35.71)
KA
1.468 MAX.
(37.29)
1.406 MAX.
(35.71)
.25
(6.4)
1.06 MAX.
.44
(26.9)
(11.2)
1.92 MAX.
(48.8)
1 STUD
#6-32
THREAD
.15
(3.8)
Terminal assignment
KRPA
1 form C
8
7
6
5
4
1
2
3
7
6
5
4
KRPA
2 form C
8
1
2
3
KRPA
3 form C
10
9
8
7
6
5
11 1
2
3
4
KA
1 form C
KA
2 form C
KA
3 form C
Product code structure
Type
Typical product code
KRPA
-5
A
Y
1.375 MAX.
(34.93)
.312
(7.92)
-120
KRPA
Enclosed relay with octal-style plug
KA
Open style relay with solder terminals
Contact arrangement and rating
5
1 form C (CO)
11
2 form C (CO)
14
3 form C (CO)
Coil Input
A
AC, 50/60Hz
D
DC
Contact material and indicator lamp option
Y
Ag, no indicator lamp
G
AgCdO, no indicator lamp
N
AgCdO, with indicator (Code N only available with relay type KRPA)
Options
Leave blank
no additional options
F
Au flashed contacts
P
Push to test button
(Options F and P only available with relay type KRPA)
Coil voltage
Coil code: please refer to coil versions table
2
07-2015, Rev. 0715
www.te.com
© 2015 Tyco Electronics Corporation,
a TE Connectivity Ltd. company.
Catalog and product specification according
to IEC 61810-1 and to be used only together
with the ‘Definitions’ section.
Catalog and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Catalog product data, ‘Definitions’ section,
application notes and all specifications are
subject to change.
General Purpose
Panel/Plug-in Relays
KRPA Series Panel Plug-in Relay
(Continued)
Product Code
KA-5AG-120
KA-5AY-120
KA-5DG-6
KA-5DG-12
KA-5DG-110
KA-11AG-120
KA-11AY-6
KA-11AY-24
KA-11AY-120
KA-11DG-12
KA-11DG-24
KA-11DG-110
KA-14AG-120
KA-14AY-120
KA-14DG-24
KA-14DG-110
KRPA-5AG-24
KRPA-5AG-120
KRPA-5DG-6
KRPA-5DG-12
KRPA-5DG-24
KRPA-5DY-12
KRPA-5DY-24
KRPA-11AG-6
KRPA-11AG-12
KRPA-11AG-24
KRPA-11AG-120
KRPA-11AG-240
KRPA-11AN-12
KRPA-11AN-24
KRPA-11AN-120
KRPA-11AN-240
KRPA-11AY-6
KRPA-11AY-12
KRPA-11AY-24
KRPA-11AY-120
KRPA-11AY-240
KRPA-11DG-6
KRPA-11DG-12
KRPA-11DG-24
KRPA-11DG-48
KRPA-11DG-110
KRPA-11DG-125
KRPA-11DG-24
KRPA-11DG-48
KRPA-11DN-12
KRPA-11DN-24
KRPA-11DN-110
KRPA-11DY-12
KRPA-11DY-24
KRPA-14AG-12
KRPA-14AG-24
KRPA-14AG-120
KRPA-14AG-240
KRPA-14AN-24
KRPA-14AN-120
KRPA-14AN-240
KRPA-14AY-24
KRPA-14AY-120
KRPA-14AY-240
KRPA-14DG-12
KRPA-14DG-24
KRPA-14DG-48
KRPA-14DG-110
KRPA-14DG-125
KRPA-14DN-24
KRPA-14DY-24
07-2015, Rev. 0715
www.te.com
© 2015 Tyco Electronics Corporation,
a TE Connectivity Ltd. company.
Potter & Brumfield
Arrangement
1 form C, 1 CO
Contact Material
AgCdO
Ag
AgCdO
Coil
120VAC
6VDC
12VDC
110VDC
120VAC
6VAC
24VAC
120VAC
12VDC
24VDC
110VDC
120VAC
24VDC
110VDC
24VAC
120VAC
6VDC
12VDC
24VDC
12VDC
24VDC
6VAC
12VAC
24VAC
120VAC
240VAC
12VAC
24VAC
120VAC
240VAC
6VAC
12VAC
24VAC
120VAC
240VAC
6VDC
12VDC
24VDC
48VDC
110VDC
125VDC
24VDC
48VDC
12VDC
24VDC
110VDC
12VDC
24VDC
12VAC
24VAC
120VAC
240VAC
24VAC
120VAC
240VAC
24VAC
120VAC
240VAC
12VDC
24VDC
48VDC
110VDC
125VDC
24VDC
Option
Open style
Part Number
7-1393099-1
7-1393099-3
7-1393099-9
7-1393099-7
7-1393099-6
3-1393099-6
4-1393099-1
4-1393099-0
3-1393099-9
4-1393099-3
4-1393099-5
4-1393099-2
5-1393099-0
5-1393099-4
5-1393099-7
5-1393099-5
9-1393104-9
9-1393104-8
1393105-5
1393105-3
1393105-4
1393105-6
1393105-7
2-1393104-8
2-1393104-4
1-1393105-2
2-1393104-5
2-1393104-7
3-1393104-1
3-1393104-3
3-1393104-2
3-1393104-4
3-1393104-9
3-1393104-5
3-1393104-7
3-1393104-6
3-1393104-8
4-1393104-7
4-1393104-3
4-1393104-5
4-1393104-6
4-1393104-2
4-1393104-4
4-1393104-5
4-1393104-6
5-1393104-0
5-1393104-1
4-1393104-9
5-1393104-6
5-1393104-7
6-1393104-4
6-1393104-7
6-1393104-5
6-1393104-8
7-1393104-4
7-1393104-3
7-1393104-5
7-1393104-8
7-1393104-7
7-1393104-9
8-1393104-2
8-1393104-4
8-1393104-5
8-1393104-1
8-1393104-3
9-1393104-0
9-1393104-3
2 form C, 2 CO
Ag
AgCdO
3 form C, 3 CO
Ag
AgCdO
1 form C, 1 CO
None
Ag
2 form C, 2 CO
AgCdO
Indicator
Ag
None
AgCdO
Indicator
Ag
3 form C, 3 CO
AgCdO
None
Indicator
Ag
None
AgCdO
Ag
Catalog and product specification according
to IEC 61810-1 and to be used only together
with the ‘Definitions’ section.
Indicator
None
Catalog and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Catalog product data, ‘Definitions’ section,
application notes and all specifications are
subject to change.
3
