74HCT4066NB datasheet, PDF - EEWORLD Datasheet

74HCT4066NB: DescriptionIC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDIP14, Multiplexer or Switch; CategoryAnalog mixed-signal IC The signal circuit; File Size273KB，12 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

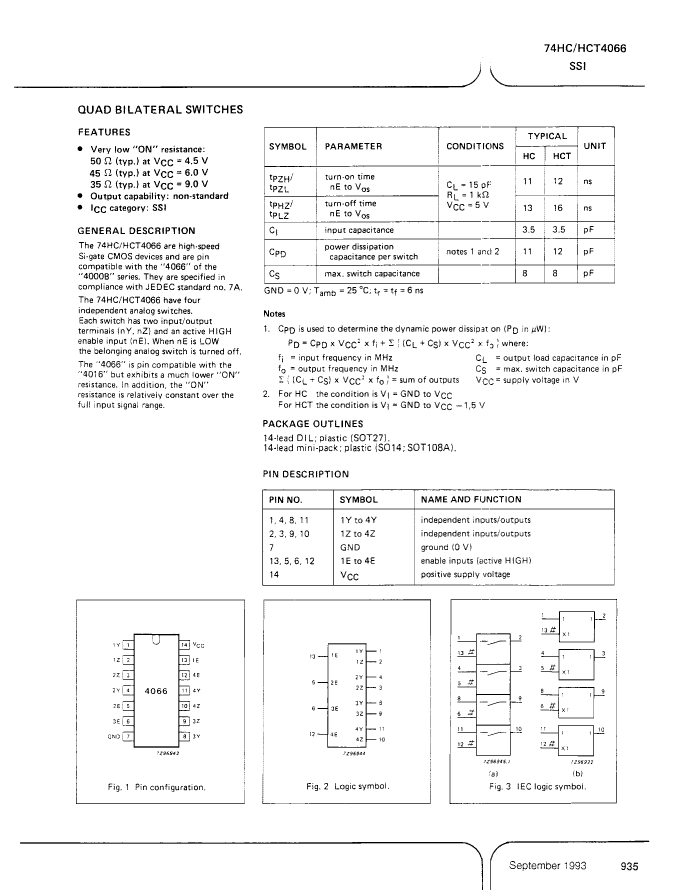

74HCT4066NB Overview

IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDIP14, Multiplexer or Switch

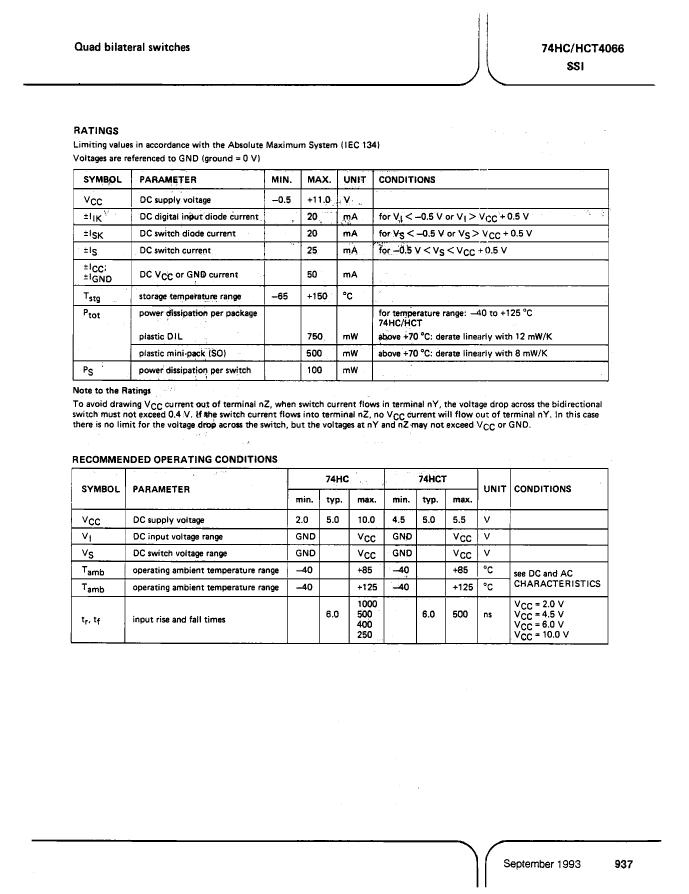

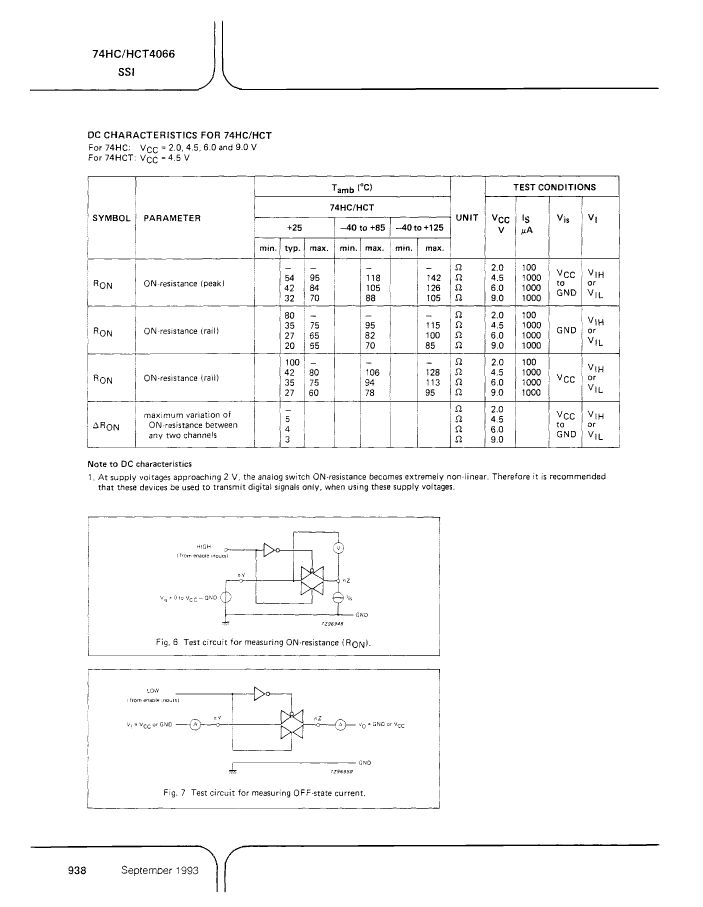

Parameter Name	Attribute value
package instruction	DIP,
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-PDIP-T14
length	19.025 mm
Number of channels	1
Number of functions	4
Number of terminals	14
Nominal off-state isolation	50 dB
On-state resistance matching specifications	5 Ω
Maximum on-state resistance (Ron)	95 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	4.2 mm
Maximum supply current (Isup)	0.04 mA
Nominal supply voltage (Vsup)	5 V
surface mount	NO
Maximum disconnect time	35 ns
Maximum connection time	24 ns
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

	74HCT4066NB	74HC4066NB
Description	IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDIP14, Multiplexer or Switch	IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDIP14, Multiplexer or Switch
package instruction	DIP,	DIP,
Reach Compliance Code	unknown	unknown
Analog Integrated Circuits - Other Types	SPST	SPST
JESD-30 code	R-PDIP-T14	R-PDIP-T14
length	19.025 mm	19.025 mm
Number of channels	1	1
Number of functions	4	4
Number of terminals	14	14
Nominal off-state isolation	50 dB	50 dB
On-state resistance matching specifications	5 Ω	5 Ω
Maximum on-state resistance (Ron)	95 Ω	95 Ω
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified
Maximum seat height	4.2 mm	4.2 mm
Maximum supply current (Isup)	0.04 mA	0.08 mA
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	NO
Maximum disconnect time	35 ns	30 ns
Maximum connection time	24 ns	20 ns
technology	CMOS	CMOS
Temperature level	AUTOMOTIVE	AUTOMOTIVE
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
width	7.62 mm	7.62 mm
Base Number Matches	1	1
