Part Number

Search

336076-1

Description
0.250"(6.35mm) 快速连接 母头 14-17 AWG 压接 连接器 非绝缘
CategoryThe connector    connection terminal
File Size450KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

336076-1 Online Shopping

Suppliers Part Number Price MOQ In stock
336076-1 - - View Buy Now

336076-1 Overview

0.250"(6.35mm) 快速连接 母头 14-17 AWG 压接 连接器 非绝缘

336076-1 Parametric

Parameter NameAttribute value
category
MakerTE Connectivity
seriesE-SPRING
Packageroll
Terminal typestandard
genderfemale head
Tab width0.250"(6.35mm)
Tab thickness0.032"(0.81mm)
Tab length0.240"(6.10mm)
长度 - 总体0.669"(16.99mm)
Terminationcrimp
Wire gauge14-17 AWG
insulationnon-insulated
Installation typefree hanging
characteristic-
color-
Contact materialbrass
触头表面处理-
Insulation layer diameter0.142"(3.61mm)
Basic product number336076
4

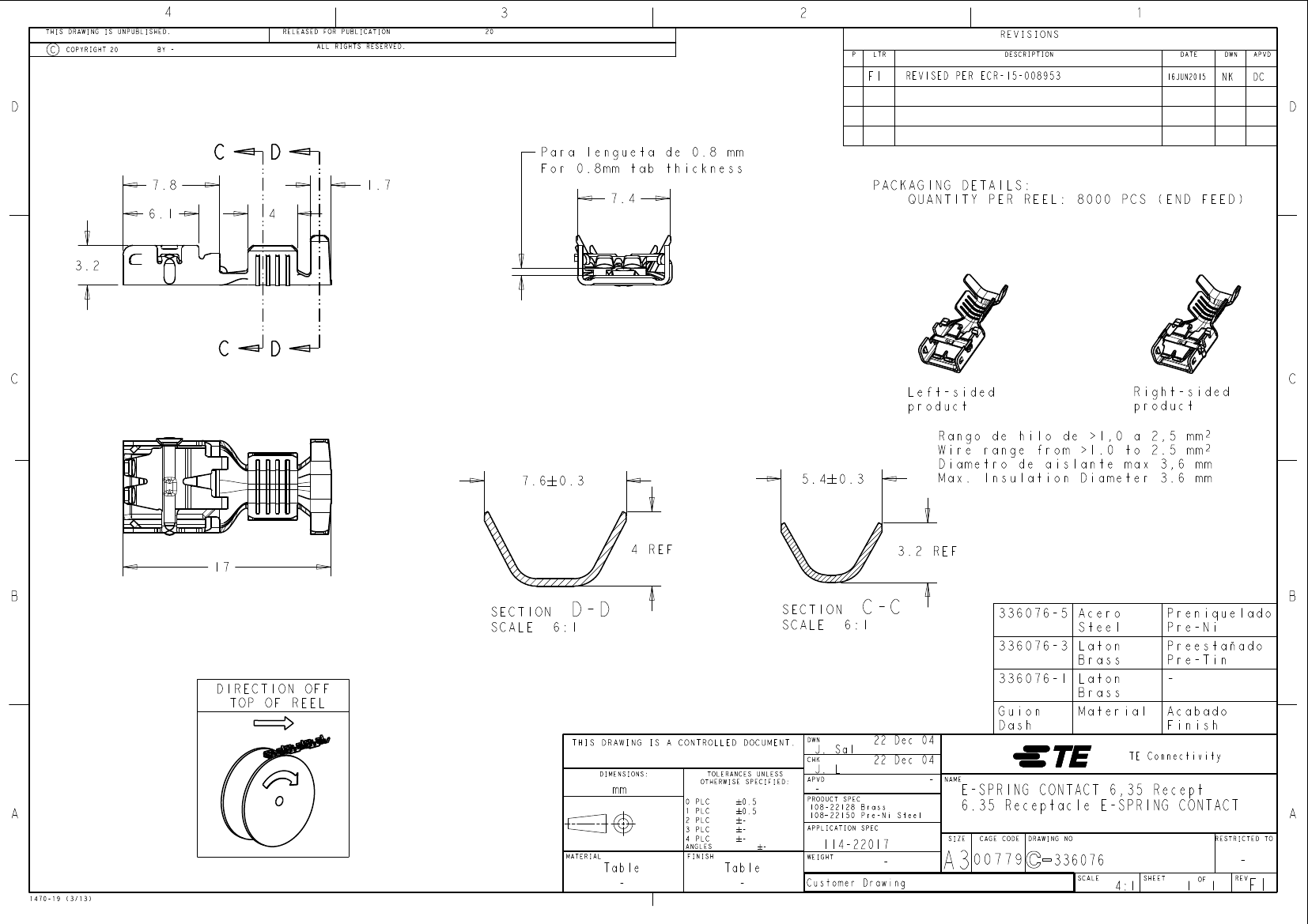

THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
BY -
ALL RIGHTS RESERVED.
20
3
2
REVISIONS
P
LTR
DESCRIPTION
1
DATE
DWN
APVD
C
COPYRIGHT
20
F1
REVISED PER ECR-15-008953
16JUN2015
NK
DC
D
Para lengueta de 0.8 mm
For 0.8mm tab thickness
7.4
D
7.8
6.1
4
1.7
PACKAGING DETAILS:
QUANTITY PER REEL: 8000 PCS (END FEED)
3.2
C
Left-sided
product
Right-sided
product
C
7.6
0.3
5.4
0.3
Rango de hilo de >1,0 a 2,5 mm²
Wire range from >1.0 to 2.5 mm²
Diametro de aislante max 3,6 mm
Max. Insulation Diameter 3.6 mm
17
4 REF
3.2 REF
B
D-D
SECTION
SCALE
6:1
DIRECTION OFF
TOP OF REEL
THIS DRAWING IS A CONTROLLED DOCUMENT.
SECTION
C-C
SCALE
6:1
336076 -5 Acero
Steel
336076 -3 Laton
Brass
336076 -1 Laton
Brass
Preniquelado
Pre-Ni
Preestañado
Pre-Tin
-
B
DWN
CHK
J. Sal
J. L
22 Dec 04
22 Dec 04
-
NAME
Guion
Dash
Material
Acabado
Finish
TE Connectivity
DIMENSIONS:
mm
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
APVD
A
MATERIAL
0
1
2
3
4
ANGLES
PLC
PLC
PLC
PLC
PLC
0.5
0.5
-
-
-
PRODUCT SPEC
-
108-22128 Brass
108-22150 Pre-Ni Steel
APPLICATION SPEC
-
E-SPRING CONTACT 6,35 Recept
6.35 Receptacle E-SPRING CONTACT
CAGE CODE
DRAWING NO
RESTRICTED TO
A
1470-19 (3/13)
Table
-
FINISH
-
Table
-
WEIGHT
114-22017
-
Customer Drawing
A3
00779
SIZE
336076
SCALE
4:1
SHEET
1
OF
1
REV
-
F1
