330022

Description
连接器 帽盖(盖) 用于 BNC 插孔
CategoryThe connector    RF connector/coaxial connector
File Size969KB,34 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

330022 Online Shopping

Suppliers Part Number Price MOQ In stock
330022 - - View Buy Now

330022 Overview

连接器 帽盖(盖) 用于 BNC 插孔

330022 Parametric

Parameter NameAttribute value
category
MakerTE Connectivity
series-
PackageBulk
Connector styleBNC
Accessory typecap (cover)
Supporting use/related productsBNC jack
Matrix material-
substrate surfacesilver
characteristicchain
colorsilver
center contact material-
中心触头表面处理-
Basic product number3300
RF Coax Connectors
BNC Connectors (50 ohm/75 ohm)
Product Facts
Bayonet lock coupling for
quick connect/disconnect
Various connectors available
in 50 and 75 ohm versions
Fully intermateable with
comparable BNC UG/U
connectors
Full range of Hex Crimp
and O Crimp Products for
common coaxial cables.
Low VSWR
Single crimp connectors
offer one crimping operation
for fast application
Twist-on connectors require
no special tooling for
application to the cable
Field serviceable (Category
A) connectors qualified to
MIL-C-39012
Field replaceable (Category
C) plugs with captivated
center contact
Field replaceable plugs can
be terminated with industry
standard tooling
Tarnish resistant Nickel
finish available
Choice of different dielectrics
Listed under the Component
Program of Underwriters
Laboratories Inc.,
File No. E81956
R

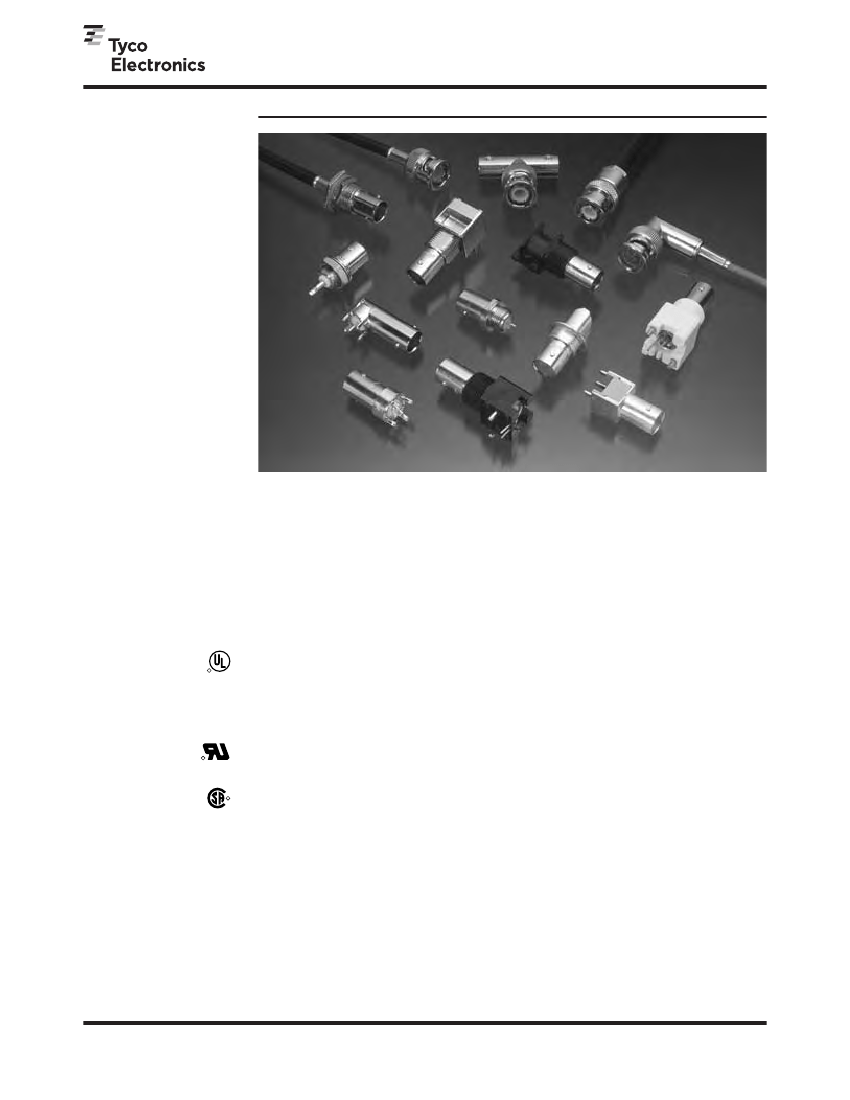

The Tyco Electronics BNC
RF connector family with
bayonet locking coupling
provides highly reliable,
quick connect/disconnect
coaxial connections.
Exclusive single and
O crimp terminations allow
positive insulation grip
and require no soldering,
providing terminations at
a very low overall applied
cost.
Available in both 50 and 75
ohm versions, these con-
PC Board soldered
connectors are recognized
under the Component
Program of Underwriters
Laboratories Inc.,
File No. E81956
R
nectors feature numerous
styles including cable plugs
and jacks, adapters and
printed circuit board con-
nectors. In addition to a
variety of crimp type termi-
nations, connectors are fur-
nished in field replaceable
and twist-on styles. These
connectors accept a wide
range of coaxial cables and
are intermateable with
industry standard connec-
tors designed to MIL-C-
39012 specifications.
Tyco Electronics can also
supply low cost alternatives
with an extensive commer-
cial type product line. A
lower cost consumer series
product offers the capability
to supply center contacts in
strip form and allow for auto-
mated center contact crimp
technology. All connectors
are designed around the
mil-specifications, but utilize
low-cost materials, offering
comparable mechanical
and electrical performance.
Certified by Canadian
Standards
Association
File No. LR 7189
Related Product Data
Product Specifications
108-1275 — BNC Ohm Terminators
108-12020 — BNC O Crimp
Connectors
108-12044 — BNC Commercial Hex
Crimp
108-12047 — BNC Commercial and
Hex Crimp Connectors
108-12074 — BNC Solder Jacks
108-12075 — BNC Connectors
(Category A)
108-12078 — BNC Commercial PCB
Panel-Mount Jacks
108-12002 — BNC Commercial
T Adapter
108-12095 — BNC Commercial 75
Ohm Connectors
108-12096 — BNC Commercial Feed-
Thru and Bulkhead
Adapters
108-12079 — BNC Commercial 50
Ohm Solder Jacks
108-12103 — BNC Commercial PCB
Press Fit Jacks
Application Specifications
114-12001 — BNC Commercial PCB
Jack Press Fit
Performance Specifications
Page 45
Material Specifications
— Page 46
Tooling
— Pages 266-268
Military Category
— All MIL type
O crimp connectors are Category B Type
(Tyco Electronics Crimp Tooling), unless
otherwise noted.
Packaging
— All MIL Type connectors
are packaged individually, all O crimp
connectors are bulk packaged and all Hex
crimp connectors are individually pack-
aged unless otherwise noted.
R
Between Series Adapters
For BNC Between Series Adapters, see
pages 251-260.
44
Catalog 1307191
Revised 3-07
www.tycoelectronics.com
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
