336075-1 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> connection terminal > 336075-1

Preview

336075-1: Description0.250"（6.35mm）快速连接母头 16-20 AWG 压接连接器非绝缘; CategoryThe connector connection terminal; File Size441KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

336075-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	336075-1	-	-	View	Buy Now

336075-1 Overview

0.250"（6.35mm）快速连接母头 16-20 AWG 压接连接器非绝缘

336075-1 Parametric

Parameter Name	Attribute value
category
Maker	TE Connectivity
series	E-SPRING
Package	roll
Terminal type	standard
gender	female head
Tab width	0.250"（6.35mm）
Tab thickness	0.032"（0.81mm）
Tab length	0.240"（6.10mm）
长度 - 总体	0.669"（17.00mm）
Termination	crimp
Wire gauge	16-20 AWG
insulation	non-insulated
Installation type	free hanging
characteristic	-
color	-
Contact material	brass
触头表面处理	-
Insulation layer diameter	0.118"（3.00mm）
Basic product number	336075

Preview

Download Datasheet

View All

4

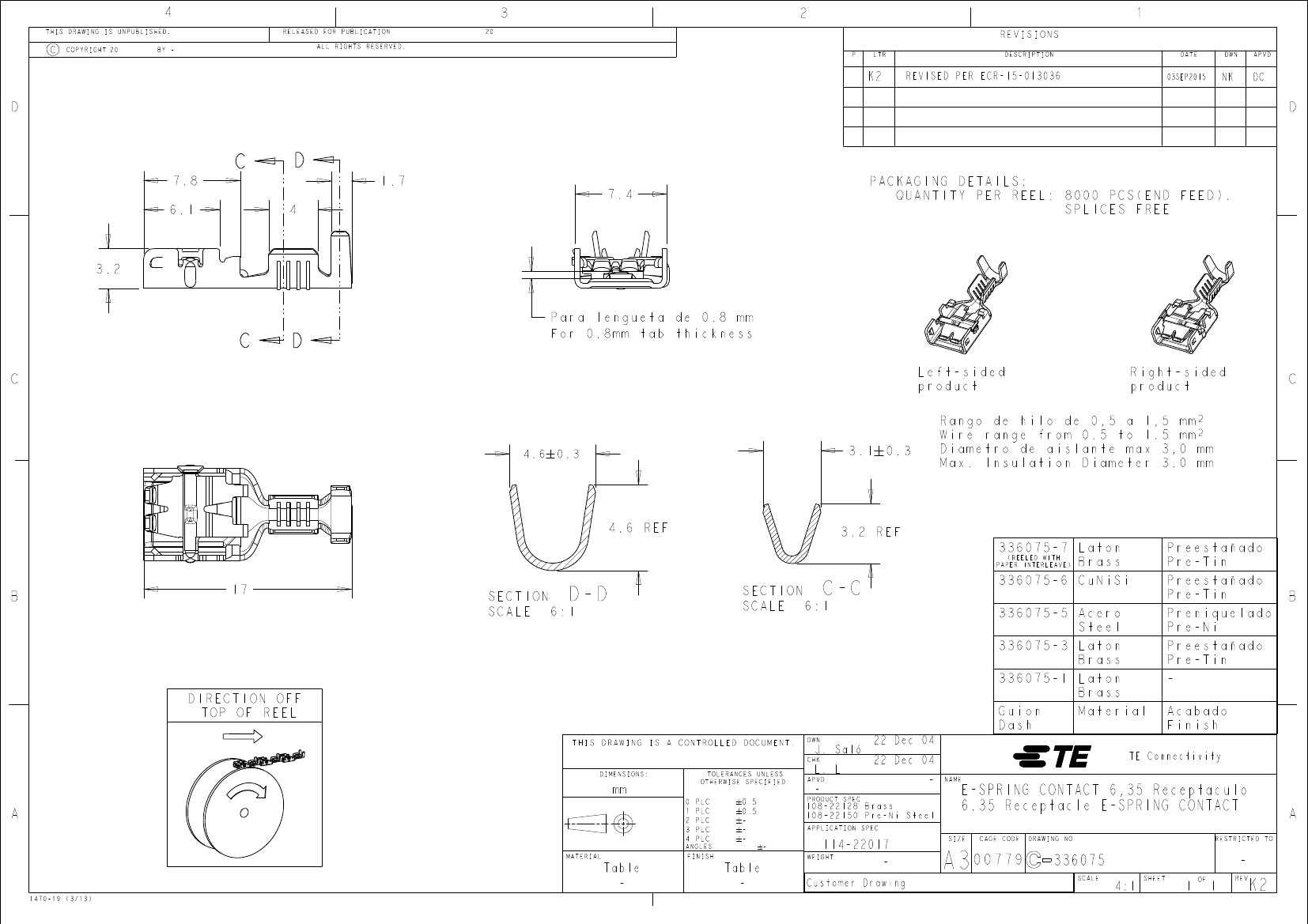

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

20

3

2

REVISIONS

P

LTR

DESCRIPTION

1

DATE

DWN

APVD

C

COPYRIGHT

20

K2

REVISED PER ECR-15-013036

03SEP2015

NK

DC

D

7.8

6.1

4

1.7

7.4

PACKAGING DETAILS:

QUANTITY PER REEL: 8000 PCS(END FEED).

SPLICES FREE

3.2

Para lengueta de 0.8 mm

For 0.8mm tab thickness

C

Left-sided

product

Right-sided

product

C

4.6

0.3

3.1

0.3

Rango de hilo de 0,5 a 1,5 mm²

Wire range from 0.5 to 1.5 mm²

Diametro de aislante max 3,0 mm

Max. Insulation Diameter 3.0 mm

4.6 REF

3.2 REF

336075-7

336075-6

336075-5

336075-3

336075-1

Guion

Dash

(REELED WITH

PAPER INTERLEAVE)

B

17

D-D

SECTION

SCALE

6:1

SECTION

C-C

SCALE

6:1

CuNiSi

Acero

Steel

Laton

Brass

Laton

Brass

Laton

Brass

Preestañado

Pre-Tin

Preniquelado

Pre-Ni

Preestañado

Pre-Tin

-

Preestañado

Pre-Tin

B

DIRECTION OFF

TOP OF REEL

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

CHK

DIMENSIONS:

Material

J. Saló

L. L

22 Dec 04

-

NAME

Acabado

Finish

TE Connectivity

mm

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

APVD

A

MATERIAL

0

1

2

3

4

ANGLES

PLC

0.5

-

108-22128 Brass

108-22150 Pre-Ni Steel

-

APPLICATION SPEC

PRODUCT SPEC

-

E-SPRING CONTACT 6,35 Receptaculo

6.35 Receptacle E-SPRING CONTACT

CAGE CODE

DRAWING NO

RESTRICTED TO

A

1470-19 (3/13)

Table

-

FINISH

-

Table

-

WEIGHT

114-22017

-

Customer Drawing

A3

00779

SIZE

336075

SCALE

4:1

SHEET

1

OF

1

REV

-

K2
