85AXA-120VAC: DescriptionPower/Signal Relay, DPST, Momentary, 15300mW (Coil), 20A (Contact), 28VDC (Contact), AC Input, AC/DC Output, Panel Mount; CategoryMechanical and electronic products relay; File Size182KB，3 Pages; ManufacturerStruthers-Dunn

Download Datasheet Parametric View All

85AXA-120VAC Overview

Power/Signal Relay, DPST, Momentary, 15300mW (Coil), 20A (Contact), 28VDC (Contact), AC Input, AC/DC Output, Panel Mount

85AXA-120VAC Parametric

Parameter Name	Attribute value
Maker	Struthers-Dunn
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	COIL OPERATE VOLTAGE(AC): 102 V, COIL RELEASE VOLTAGE(AC): 12 V
body width	76.2 mm
body height	67.9 mm
Body length or diameter	127.1 mm
Coil current (AC) maximum value	0.128 A
Coil power	15300 mW
Coil resistance	771 Ω
Maximum coil voltage (AC)	120 V
Coil/Input Power Type	AC
Contact (AC) maximum rated R load	20A@240VAC
Maximum contact current (AC)	20 A
Maximum contact current (DC)	20 A
Contact (DC) maximum rated R load	20A@28VDC
Maximum contact voltage (AC)	240 V
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	AC/DC
Electrical life	100000 Cycle(s)
Manufacturer's serial number	85
Installation features	PANEL MOUNT
operating hours	50 ms
Maximum operating temperature	60 °C
Minimum operating temperature	-20 °C
physical size	127.1mm x 76.2mm x 67.9mm
Relay action	MOMENTARY
Relay function	DPST
Relay type	POWER/SIGNAL RELAY
release time	50 ms
surface mount	NO
Termination type	SCREW
Base Number Matches	1

Preview

Download Datasheet

View All

Struthers-Dunn

407 East Smith Street - Suite B

Timmonsville, SC 29161 US

Phone:

(843) 346-4427 •

Fax:

(843) 346-4465

E-Mail:

info@struthers-dunn.com •

Web site:www.struthers-dunn.com

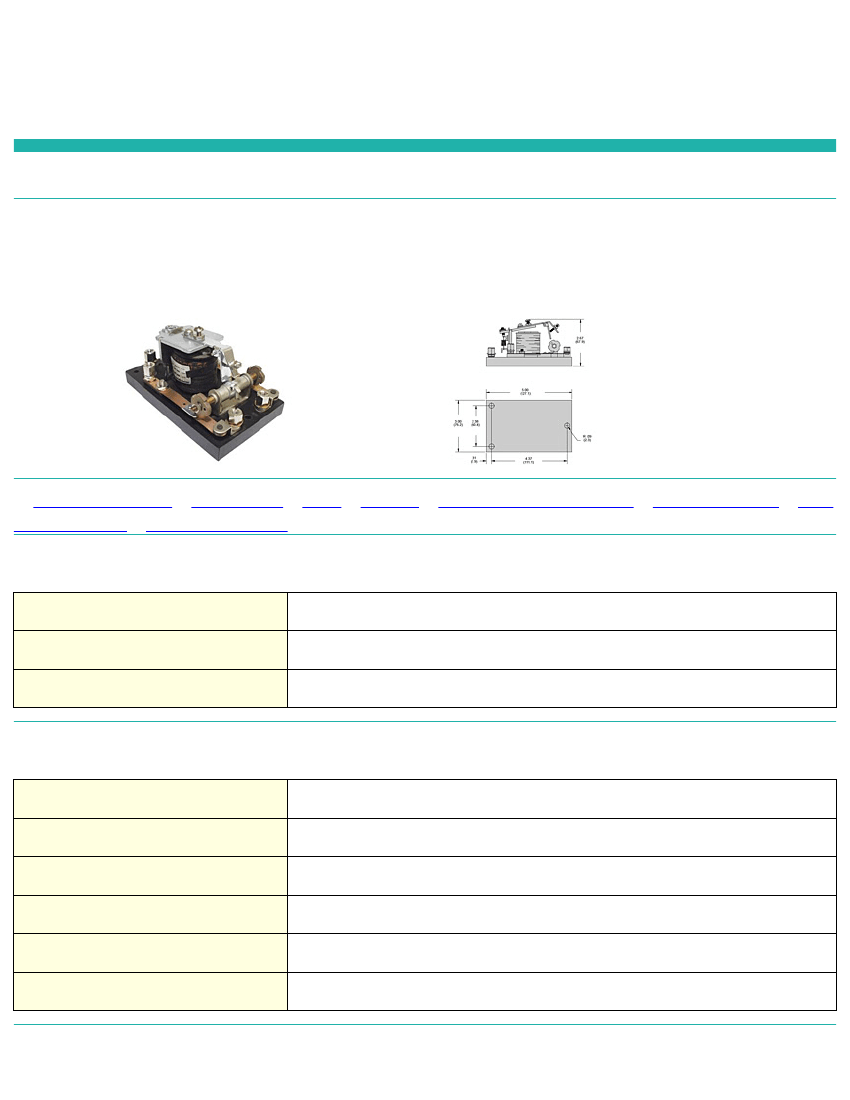

Item # 85AXA-120VAC, 85 Series - Screw Terminal Sequence Relays

The 85 series relay is a panel mounted, screw terminal, open style sequencing relay. This two pole relay has a single coil which operates a ratchet wheel. Control

cams, on the ratchet wheel shaft, step from one position to the next on each impulse to the coil. A 50 millisecond pluse will step the relay. Coils are for momentary duty

only. The 85 series may be supplied in any sequence up to 12 steps. Contacts are single throw.

For Additional Configuration please contact the manufacturer.

·

SPECIFICATIONS

·

CONTACTS

·

COIL

·

TIMING

·

DIELECTRIC STRENGTH

·

TEMPERATURE

·

LIFE

EXPECTANCY

·

MISCELLANEOUS

SPECIFICATIONS

Series

85

Contact Arrangement

AXA (1 - N.O &1 - N.C.)

Coil Voltage

120 VAC

CONTACTS

Contact Configuration

DPST

Contact Material

Fine Silver

Contact Rating

20 A

Contact Rating 120 / 240VAC Resistive

20 A

Contact Rating 28VDC Resistive

20 A

Contact Resistance, Initial

100 milliohms max at 6VDC

7/31/2013 | Page 1 of 3
