NTC Type SA
Interchangeable
Thermistors

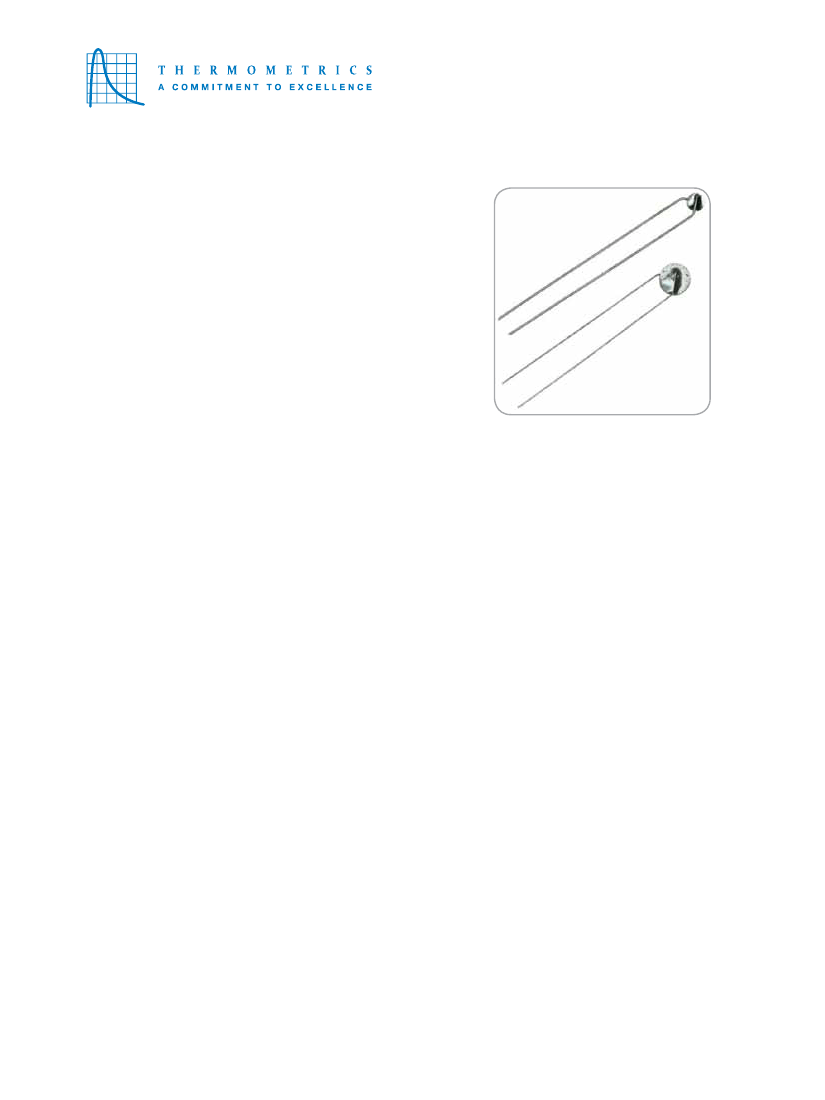

Interchangeable thermistor with bare lead-wires.
Features
• Low cost solid state sensor
• Standard ±1°C accuracy from 0°C to 120°C
• High sensitivity to changes in temperature
• Suitable for temperature measurement,
control and compensation
• Excellent mechanical strength
• Wide operating temperature range: -50°C to
150°C
• Suitable for PCB and probe mountings
• Available in a wide range of resistance values
• Also available with epoxy coating and on
tape and reel to EIA RS-468A for automatic
insertion
• Beta value (25ºC - 85ºC) = 4073k
• Material system D10.3
Amphenol
Advanced Sensors
Options
• Coated with fluid bed epoxy, e.g., “SC” suffix
• Tape and reel, e.g. ,“SR” suffix
• Coated and T&R, e.g. ,“SCR” suffix
1.5”min
• Other resistances in the range of 1 kW to 10W
•
Other tolerances, tolerances at other
temperatures
• Alternative lead lengths, lead materials,
insulations
Type Number
Ro@25°C
(Ohms)
1000
2000
2786
3000
3500
5000
7000
10000
A
(in.)
0.32
0.22
0.22
0.22
0.22
0.11
0.11
0.11
(mm)
8.13
5.59
5.59
5.59
5.59
2.79
2.79
2.79
(in.)
0.14
0.14
0.15
0.16
0.17
0.11
0.12
0.13
B
(mm)
3.56
3.56
3.81
4.06
4.32
2.79
3.05
3.30
(in.)
0.25
0.15
0.15
0.15
0.15
0.10
0.10
0.10
C
(mm)
6.35
3.81
3.81
3.81
3.81
2.54
2.54
2.54
D
(AWG)
24
24
24
24
24
26
26
26
d.c.
(mW/C)
3.5
2.5
2.5
2.5
2.5
1.0
1.0
1.0
t.c.
(sec.)
30
20
20
20
20
10
10
10
RL3005-574.0-103-SA
RL2005-1148-103-SA
RL2006-1600-103-SA
RL2007-1723-103-SA
RL2008-2010-103-SA
RL1003-2871-103-SA
RL1004-4019-103-SA
RL1005-5744-103-SA
Amphenol
Advanced Sensors
www.amphenol-sensors.com
© 2014 Amphenol Corporation. All Rights Reserved. Specifications are subject to change without notice.
Other company names and product names used in this document are the registered trademarks or
trademarks of their respective owners.
AAS-920-608A-03/2014
