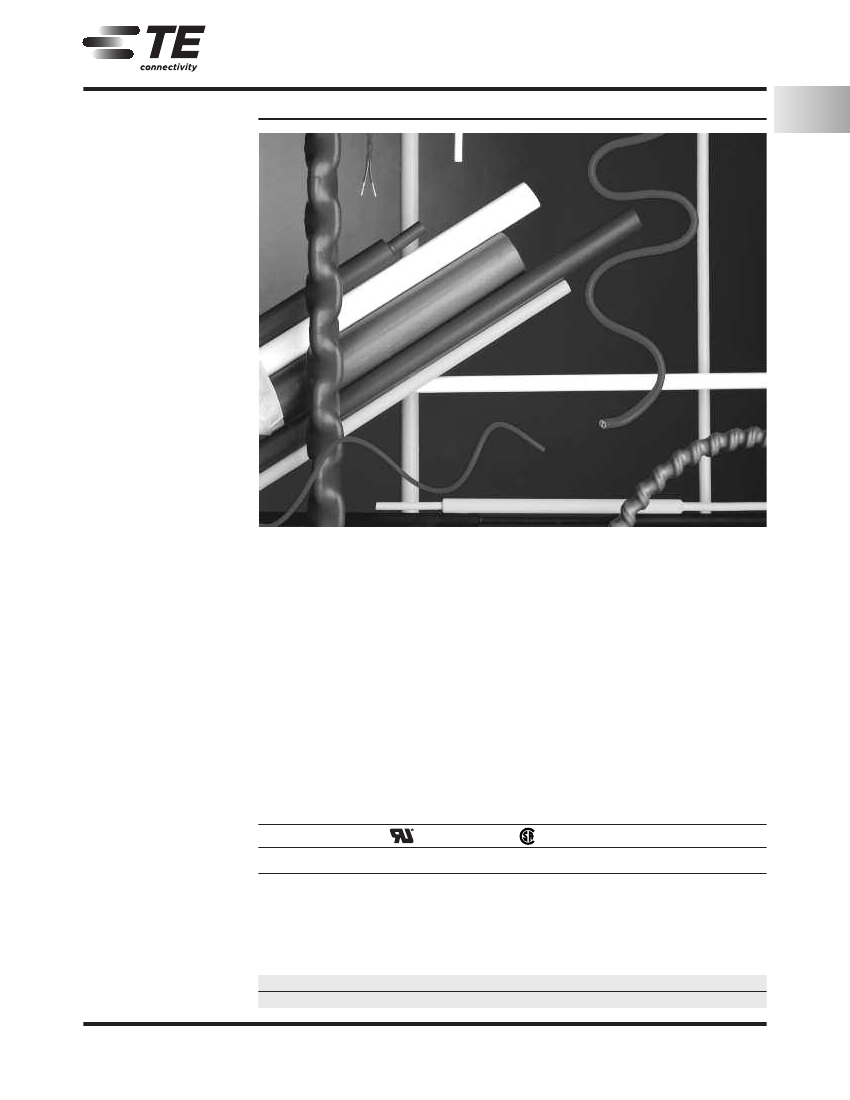

RAYCHEM Tubing Products
CGPT
General Purpose, Flame-
Retardant* Polyolefin
Tubing
Product Facts
2:1 and 3:1 shrink ratio
I
Very good chemical and
solvent resistance
I
Flexible
I
Excellent physical and
electrical performance
I
RoHS compliant
I
1
Heat-shrinkable Tubing
Applications
CGPT is a tough, flexible,
general purpose polyolefin
tubing with good resistance
to common fluids and
solvents and a high dielectric
strength. Its unique blend of
chemical, electrical, and
physical properties makes it
suitable for a wide range
of applications, including
electrical insulation, strain
relief, cable bundling, color-
coding and identification
of wires, cables, pipes,
and electrical and electronic
components, and mechani-
cal protection.
Specifications/Approvals
Series
CGPT
UL
E35586
600 V, 125°C
Installation
Minimum shrink
temperature: 80°C [176°F]
Minimum full recovery
temperature: 120°C [248°F]
Operating Temperature Range
-40°C to 135°C
[-40°F to 275°F]
CSA
®
Raychem
RW-2059
LR31929
600 V, 125°C
*Clear product (-X) is not flame-retardant.
Available in:
Americas
Europe
I
Asia Pacific
1-11
9-1773447-9
CIS WR 08/2011
te.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-475-6222
Mexico: 52-55-1106-0800
L. & S. America: 54-11-4733-2200
Germany: 49-6251-133-1999
China: 86-400-820-6015
Japan: 81-44-844-8013
UK: 44-800-267-666
RAYCHEM Tubing Products
CGPT
(Continued)
Product Dimensions
Size
2:1
1.2/06
1.6/0.8
2.4/1.2
3.2/1.6
4.8/2.4
6.4/3.2
9.5/4.8
12.7/6.4
19/9.5
25.4/12.7
32/16
38/19
51/26
76/38
102/51
3:1
1.5/0.5
3/1
6/2
9/3
12/4
18/6
24/8
39/13
1.2 [0.046]
1.6 [0.062]
2.4 [0.093]
3.2 [0.125]
4.8 [0.187]
6.4 [0.250]
9.5 [0.375]
12.7 [0.500]
19.0 [0.748]
25.4 [1.000]
32.0 [1.250]
38.0 [1.496]
51.0 [2.000]
76.0 [2.992]
102.0 [4.016]
1.5 [0.059]
3.0 [0.118]
6.0 [0.236]
9.0 [0.354]
12.0 [0.472]
18.0 [0.709]
24.0 [0.945]
39.0 [1.540]
0.6 [0.023]
0.8 [0.031]
1.2 [0.046]
1.6 [0.062]
2.4 [0.093]
3.2 [0.125]
4.8 [0.187]
6.4 [0.250]
9.5 [0.375]
12.7 [0.500]
16.0 [0.630]
19.0 [0.748]
26.0 [1.000]
38.0 [1.496]
51.0 [2.008]
0.5 [0.020]
1.0 [0.040]
2.0 [0.079]
3.0 [0.118]
4.0 [0.157]
6.0 [0.236]
8.0 [0.315]
13.0 [0.512]
0.45 ± 0.12 [0.018 ± 0.005]
0.45 ± 0.12 [0.018 ± 0.005]
0.50 ± 0.12 [0.019 ± 0.005]
0.50 ± 0.12 [0.019 ± 0.005]***
0.50 ± 0.12 [0.019 ± 0.005]***
0.65 ± 0.15 [0.026 ± 0.006]***
0.65 ± 0.15 [0.026 ± 0.006]***
0.65 ± 0.15 [0.026 ± 0.006]***
0.75 ± 0.15 [0.029 ± 0.006]***
0.90 ± 0.20 [0.035 ± 0.008]***
0.95 ± 0.20 [0.037 ± 0.008]
1.00 ± 0.20 [0.039 ± 0.008]***
1.15 ± 0.25 [0.045 ± 0.010]
1.25 ± 0.25 [0.049 ± 0.010]
1.40 ± 0.30 [0.055 ± 0.012]
0.45 ± 0.12 [0.018 ± 0.005]
0.55 ± 0.12 [0.022 ± 0.005]
0.65 ± 0.12 [0.026 ± 0.005]
0.75 ± 0.15 [0.030 ± 0.006]
0.75 ± 0.15 [0.030 ± 0.006]
0.85 ± 0.15 [0.033 ± 0.006]
1.00 ± 0.20 [0.039 ± 0.008]
1.15 ± 0.25 [0.045 ± 0.010]
Inside Diameter
Minimum Expanded
Maximum Recovered
as Supplied
After Heating
Recovered Wall Thickness**
After Heating
**Wall thickness will be less if tubing recovery is restricted during shrinkage.
Ordering Information
Black (-0), White (-9), Red (-2), Blue (-6), Yellow (-4), Brown (-1),
Grey (-8), Clear (-X), Yellow/Green (-45) as indicated by an ***
Nonstandard
Orange (-3), Green (-5), Violet (-7), in 2:1 sizes, 1.2/0.6 through 51/26 only.
Size selection
Always order the largest size that will shrink snugly over the component to be covered.
Special order sizes are available upon request.
Standard packaging**** On spools.
Ordering description
Specify product name, size and color (for example, CGPT 4.8/2.4-0).
****Available in the convenient RaySpool packaging/dispensing system for sizes:
2:1 - 2.4/1.2 up to 25.4/12.7
3:1 - 3/1 up to 24/8
Color
Standard
1-12
9-1773447-9
CIS WR 08/2011
te.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-475-6222
Mexico: 52-55-1106-0800
L. & S. America: 54-11-4733-2200
Germany: 49-6251-133-1999
China: 86-400-820-6015
Japan: 81-44-844-8013
UK: 44-800-267-666
