278071095010863 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 278071095010863

278071095010863: DescriptionBoard Connector, 95 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal; CategoryThe connector The connector; File Size118KB，1 Pages; ManufacturerAVX

Download Datasheet Parametric Compare View All

278071095010863 Overview

Board Connector, 95 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal

278071095010863 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	STANDARD: IEC 1076-4-101, SHIELDED
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	8071
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	95
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

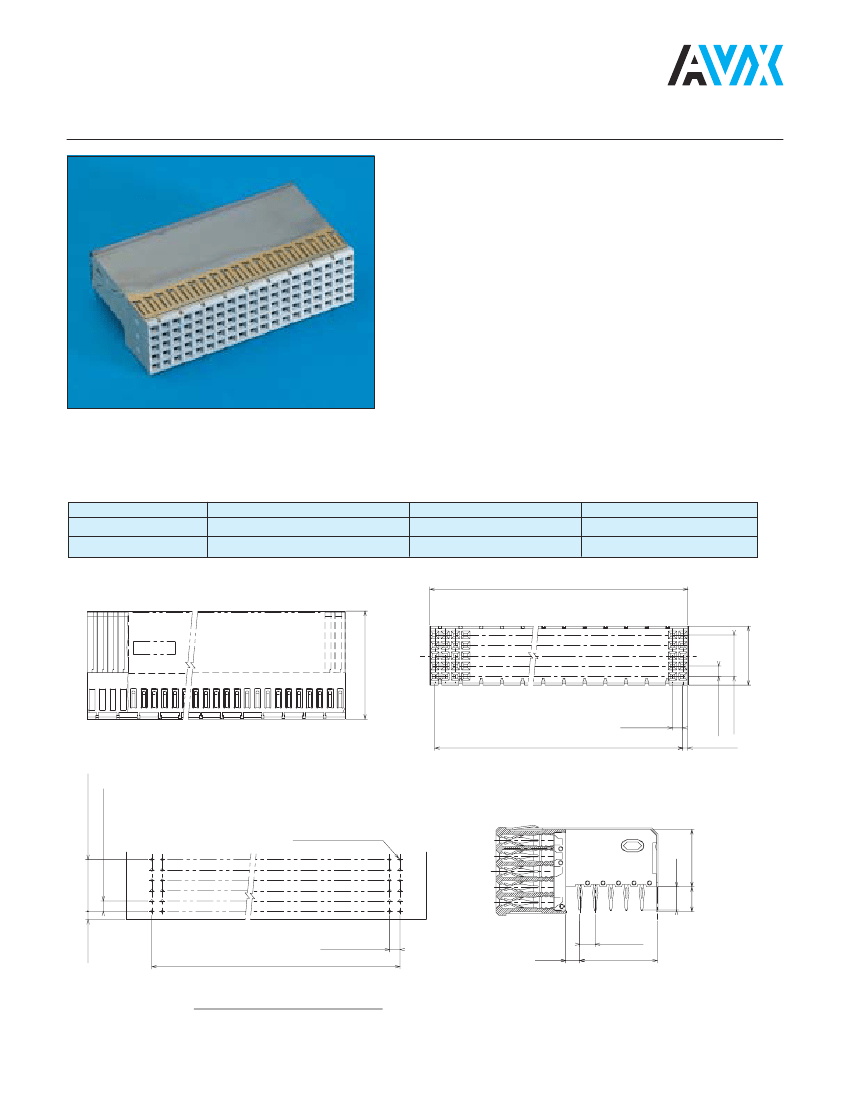

J3 Type B Right Angle Female

for Daughter Cards

Series 8071

•

95 signal contacts in a 5 x 19 configuration

Designed for gas tight press-fit installation

Supplied with or without a upper ground return shield

Daughter card applications

This connector should be used in conjunction with a Type A or AB

style to ensure proper mating alignment

• This connector fills position J3 of the CompactPCI specification

• This connector also fills position P0 of the VME64 extension

specification

• Lower ground return shield available (see page 63)

27 8071 095 000 XXX

= Type B 95 Pin Right Angle Female without upper shield

27 8071 095 010 XXX

= Type B 95 Pin Right Angle Female with upper shield

XXX =

Plating Code

833

863

Contact Area

0.1µm min. Au.65µm Pd/Ni

0.76µm min. Au

Press-fit Area

1.5-3.0µm Solder

37.9

-0.2

Under Coat

Nickel 1.2-3.0µm

9Z21XX

(20.9)

2.0

36.0

TYP.

11.4

TYP.

MAX.

2X4=8.0

0.95

2 x 5=10.0

±0.1

2.0

±0.1

TYP.

114-

0.6

±0.05

HOLES

7.4

3.2

2.0

1.8

TYP.

1.5

MAX.

2.0

±0.1

TYP.

2X (N/5-1) = A

±0.1

2X5=10.0

RECOMMENDED P.C. BOARD LAYOUT

(COMPONENT SIDE)

ELCO

3.0

2.0

278071095010863 Related Products

	278071095010863	278071095000863
Description	Board Connector, 95 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal	Board Connector, 95 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal
Reach Compliance Code	compliant	compliant
Other features	STANDARD: IEC 1076-4-101, SHIELDED	STANDARD: IEC 1076-4-101
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	FEMALE
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
MIL compliance	NO	NO
Manufacturer's serial number	8071	8071
Mixed contacts	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of rows loaded	5	5
Options	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT
Total number of contacts	95	95
UL Flammability Code	94V-0	94V-0
Base Number Matches	1	1
