881-003RA-D2W2N-MT205J5-24 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 881-003RA-D2W2N-MT205J5-24

881-003RA-D2W2N-MT205J5-24: DescriptionCircular Connector; CategoryThe connector The connector; File Size919KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

881-003RA-D2W2N-MT205J5-24 Overview

Circular Connector

881-003RA-D2W2N-MT205J5-24 Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	CIRCULAR CONNECTOR
Manufacturer's serial number	881-003
Base Number Matches	1

Preview

Download Datasheet

View All

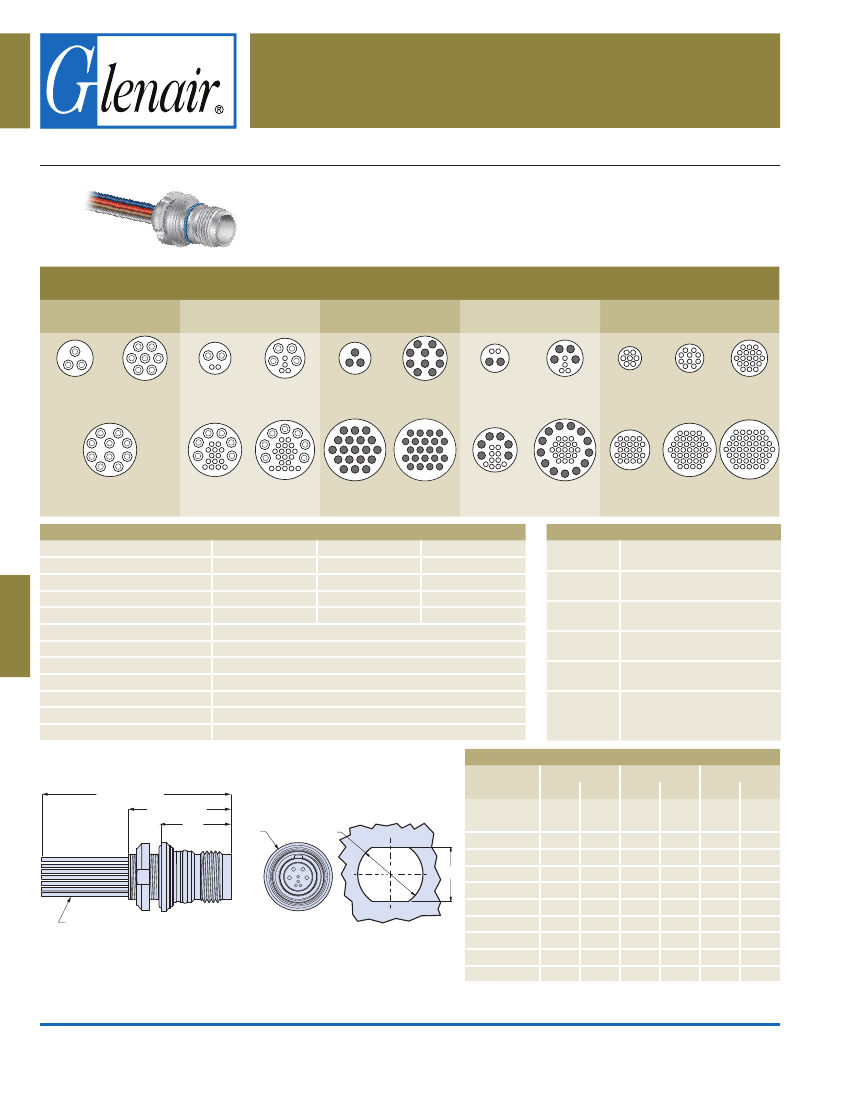

5 AMP

Series 88 SuperFly

Series 881 Threaded Coupling Connectors

881-003 Front Panel Mount Receptacles

FRONT PANEL MOUNT RECEPTACLES WITH PIGTAIL WIRES, 24 IN.

Series 881 threaded coupling receptacles are pre-wired and sealed with epoxy. Integral shield

termination platform. Three contact sizes are available, 5A, 3A and 1A. Aluminum or stainless

steel housings, thermoplastic insulator, high-strength wire with crosslinked ETFE insulation. High

performance contacts, crimp termination to wires. Ultraminiature Superfly connectors are ideal for

soldier systems and other applications where reduced size and weight are critical.

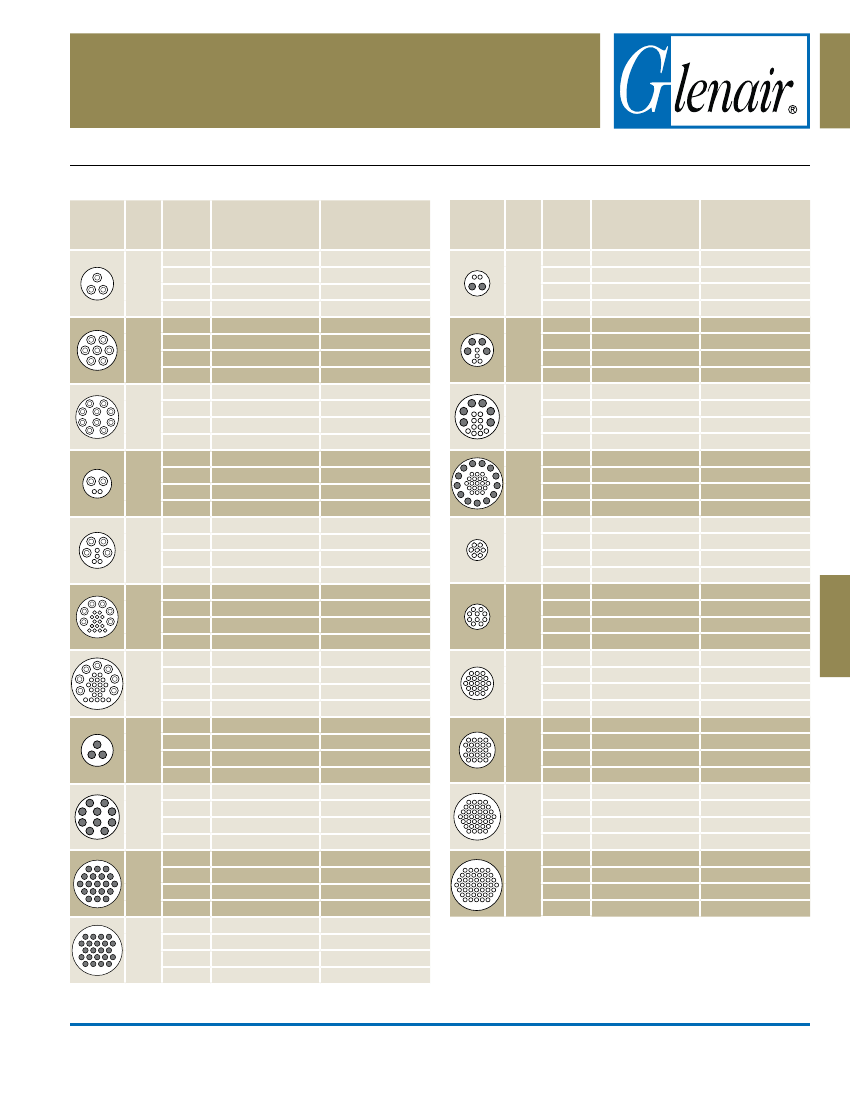

Contact Arrangements

COMBO

5 AMP & 1AMP

3 AMP

COMBO

3 AMP & 1 AMP

1 AMP

(3) 5A

E3W

(7) 5A

G7W

(2) 5A, (2) 1A (4) 5A, (4) 1A

D2W2N

F4W4N

(3) 3A

D3M

(10) 3A

G10M

(2) 3A, (2) 1A (4) 3A, (4) 1A

C2M2N

E4M4N

(7) 1A

B7N

(10) 1A

C10N

(19) 1A

E19N

(10) 5A

H10W

(6) 5A, (14) 1A (7) 5A, (19) 1A

H6W14N

J7W19N

(19) 3A

K19M

(22) 3A

L22M

(6) 3A, (10) 1A (13) 3A, (19) 1A

G6M10N

K13M19N

(22) 1A

F22N

(37) 1A

H37N

(44) 1A

J44N

Product Specifications

Description

Current Rating

Wire Size

Dielectric Withstanding Voltage

Contact Resistance

Temperature Range

Durability (mating cycles)

Corrosion (salt fog)

Water Immersion,Mated

Ingress Protection

Vibration

Shock

Materials and Finishes

1 Amp Contact

#30 AWG

250Vac

80 milliohms

Insulator

Shell

1A. Contact

3A. and 5A.

Contact

Encapsulant

Thermoplastic, glass-filled

Aluminum or stainless steel

Precious metal alloy pin, gold-

plated copper alloy socket

Copper alloy, 50 microinches

gold over nickel finish

Epoxy

High strength silver-coated

copper alloy, ETFE insulation

(M22759/33 or equiv.)

5 Amp Contact

#24 AWG

500Vac

20 milliohms

3 Amp Contact

#26 AWG

600Vac

32 milliohms

-55°C to +150°C

2000

Nickel finish 48 hours, other finishes 500 hours

MIL-STD-810 Method 512, 1 meter, 2 hours

IP 67

37g

300g

Wire

Dimensions

24.0 (610)

.705 (17.91)

.480

(12.19)

Shell Size

ØA

In.

mm.

.373

.392

.412

.432

.451

.471

.491

.530

.550

.570

.609

9.47

9.96

10.46

10.97

11.46

11.96

12.47

13.46

13.97

14.48

15.47

In.

.217

.236

.256

.276

.296

.315

.335

.374

.394

.414

.453

mm.

5.51

5.99

6.50

7.01

7.52

8.00

8.51

9.50

10.01

10.52

11.51

ØC

In.

mm.

.262

.282

.302

.321

.341

.361

.380

.420

.439

.459

.498

6.65

7.16

7.67

8.15

8.66

9.17

9.65

10.67

11.15

11.66

12.65

ØA

øC

PIGTAIL WIRES

RECOMMENDED

PANEL CUTOUT

Dimensions in inches (millimeters) and are subject to change without notice.

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

www.glenair.com

E-7

July 10 2014

E-Mail: sales@glenair.com
