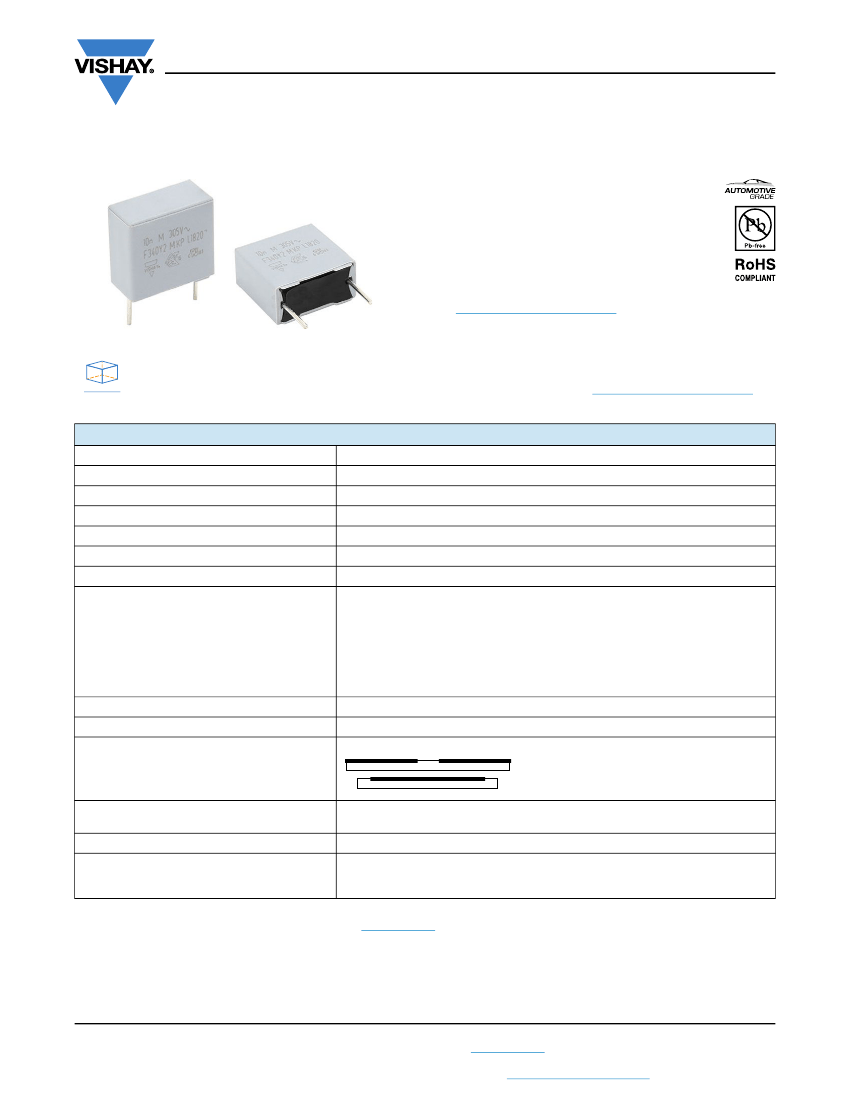

F340Y2 305VAC
www.vishay.com
Vishay BCcomponents
THB Grade IIIB Class Y2 Interference Suppression Film Capacitor
Radial MKP 305 V
AC
- Line Bypass
FEATURES
• IEC 60384-14: 2013 / AMD1: 2016 grade IIIB
certified: 85 °C, 85 % RH, 1000 h at U
RAC
• AEC-Q200 qualified
• High temperature capabilities, up to 125 °C
• Material categorization:
for definitions of compliance please see
www.vishay.com/doc?99912
LINKS TO ADDITIONAL RESOURCES
APPLICATIONS
For standard line bypass (between line and ground)
Y2 applications.
See also application note:
www.vishay.com/doc?28153
D
D
3
3
3D Models
QUICK REFERENCE DATA
Rated capacitance range
Capacitance tolerance
Climatic testing class according to IEC 60068-1
Rated DC voltage
Permissible AC voltage
Rated temperature
Maximum permissible temperature
0.01 μF to 1 μF (preferred values according to E6)
± 20 %; ± 10 %; ± 5 % (37.5 mm ± 5 % pitch values on request)
55 / 105 / 56B
1000 V
DC
at 105 °C
305 V
AC
; 50 Hz to 60 Hz
105 °C
125 °C for limited time
IEC 60384-14:2013
IEC 60384-14:2013 / AMD1:2016
EN 60384-14
IEC 60065 requires pass. flamm. class B for volume
≥
1750 mm
3
Class C for volume < 1750 mm
3
UL 60384-14 (2
nd
edition)
CSA-E60384-1:14 (3
rd
edition)
CQC
Polypropylene film
Metallized
Series construction
Construction
Reference standards
Dielectric
Electrodes
Encapsulation
Leads
Marking
Plastic case, epoxy resin sealed, flame retardant
UL-class 94 V-0
Tinned wire
C-value; tolerance; rated voltage; sub-class; manufacturer’s type;
code for dielectric material; manufacturer location, manufacturer's logo,
year and week; safety approvals
Note
• For more detailed data and test requirements, contact
rfi@vishay.com
Revision: 06-Jul-2021
Document Number: 26066
1
For technical questions, contact:
rfi@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
F340Y2 305VAC
www.vishay.com
DIMENSIONS
in millimeters
l
w
Vishay BCcomponents
h
l
t
P
Ø d
t
Notes
• Standard dimension
• Ø d
t
± 10 % of standard diameter specified
COMPOSITION OF CATALOG NUMBER
CODE
MULTIPLIER (nF)
0.1
1
10
100
2
3
4
5
310
410
510
Example:
10 nF
100 nF
1000 nF
0.01 μF
0.1 μF
1.0 μF
P
1
(mm)
15
22.5
27.5
37.5
PITCH CODE
F
I
K
P
SPECIAL
CODE FOR TERMINAL
VOLTAGE
30 = 305 V
AC
2
(#)
2 pins
Customized
1 2
3
4
F
3
4 0
5 6
Y 2
7
4
8 9
1 0
10 11
3
0
12
M
13
F
14
M
15
2
16
B
17
0
TOLERANCE
CLASS
M
K
TYPE
J
A
± 20 %
± 10 %
± 5%
Special
tolerance
SPECIAL
0 =
Standard
Other =
Special
l
t
(mm)
3.5 ± 0.3
5±1
25 ± 2
LEAD LENGTH CODE
P
M
I
0:
Space
holder
PITCH (mm)
≥ 15
All
All
PACKING CODE
B/T
R
H
W
G
PACKING
STYLE
Bulk / loose
(1)
Tape and reel (H: 16.0 mm; 500 mm)
Ammo (H: 16.0 mm)
Tape and reel (H: 18.5 mm; 500 mm)
Ammo (H: 18.5 mm)
REMARK
Not for bent back
For bent back only
For bent back only
Pitch ≤ 22.5 mm
Pitch ≤ 10 mm
Notes
• For detailed tape specifications refer to packaging information
www.vishay.com/doc?28139
(1)
Packaging will be bulk for all capacitors with pitch
≤
15 mm and such with long leads (> 5 mm).
Capacitors with short leads up to 5 mm and pitch > 15 mm will be in tray and asking code will be “T”
Revision: 06-Jul-2021
Document Number: 26066
2
For technical questions, contact:
rfi@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
