EEE-FN1K330P: Description33 µF 80 V 铝电解电容器径向，Can - SMD 1.3 欧姆 @ 100kHz 105°C 时为 2000 小时; CategoryPassive components capacitor; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric View All

EEE-FN1K330P Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	EEE-FN1K330P	-	-	View	Buy Now

EEE-FN1K330P Overview

33 µF 80 V 铝电解电容器径向，Can - SMD 1.3 欧姆 @ 100kHz 105°C 时为 2000 小时

EEE-FN1K330P Parametric

Parameter Name	Attribute value
category
Maker	Panasonic
series	FN
Package	卷带（TR）剪切带（CT）Digi-Reel® 得捷定制卷带
capacitance	33 µF
Tolerance	±20%
Voltage - Rated	80 V
ESR (equivalent series resistance)	1.3 ohms @ 100kHz
Service life at different temperatures	2000 hours at 105°C
Operating temperature	-55°C ~ 105°C
polarization	polarization
grade	AEC-Q200
application	Automotive grade
Ripple current at different low frequencies	84.5 mA @ 120 Hz
Ripple current at different high frequencies	130 mA @ 100 kHz
lead spacing	-
size/dimensions	0.315" diameter (8.00mm)
Height - Installation (maximum)	0.413"（10.50mm）
Surface mount pad dimensions	0.327" long x 0.327" wide (8.30mm x 8.30mm)
Installation type	surface mount type
Package/casing	Radial, Can - SMD

Preview

Download Datasheet

View All

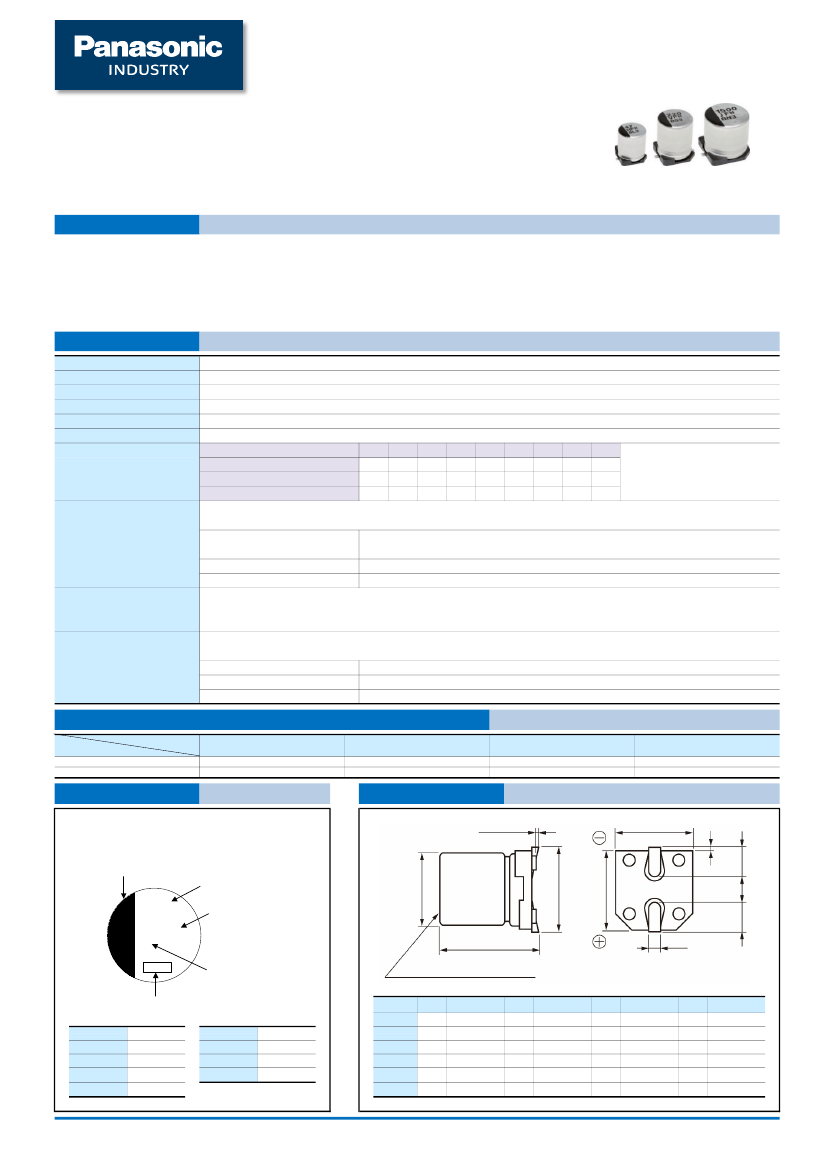

Aluminum Electrolytic Capacitors

Surface Mount Type

series

6.3 V to 50 V

63 V to 100 V

Features

●

Endurance : 105 ℃ 2000 h

Wide voltage range from 6.3 V to 100 V

High capacitance : 20 % to 80 % higher than FK series

Vibration-proof product (30G guaranteed) is available upon request (ø6.3 ≦)

AEC-Q200 compliant

RoHS compliant

: High temperature Lead-Free reflow

: Standard Lead-Free reflow

–55 ℃ to +105 ℃

6.3 V to 100 V

10 μF to 1800 μF

±20 % (120 Hz / +20℃)

I ≦ 0.01 CV or 3 (μA) After 2 minutes (Whichever is greater)

Dissipation factor (tan δ)

Please see the attached characteristics list

Rated voltage（V）

6.3 10 16 25 35 50 63 80 100

Characteristics

Z (-25 ℃) / Z (+20 ℃)

（Impedance ratio at 120 Hz）

Z (-40 ℃) / Z (+20 ℃)

at low temperature

Z (-55 ℃) / Z (+20 ℃)

After applying rated working voltage for 2000 hours at +105 ℃ ± 2 ℃ and then being

stabilized at +20 ℃, capacitors shall meet the following limits.

Within ±30 % of the initial value

Endurance

Capacitance change

(For 6.3 V, size B/C, and suffix "U" : Within ±40 %)

Dissipation factor (tan δ) ≦ 200 % of the initial limit

DC leakege current

Within the initial limit

After storage for 1000 hours at +105 ℃ ± 2 ℃ with no voltage applied and then being

Shelf life

stabilized at +20 ℃, capacitors shall meet the limits specified in endurance.

(With voltage treatment)

After reflow soldering and then being stabilized at +20 ℃, capacitors shall meet the

following limits.

Resistance to

Capacitance change

Within ±10 % of the initial value

soldering heat

Dissipation factor (tan δ) Within the initial limit

DC leakege current

Within the initial limit

Category temp. range

Rated voltage range

Capacitance range

Capacitance tolerance

Leakage current

Specifications

Frequency correction factor for ripple current

Cap.（μF）

Freq.（Hz)

10 to 470

560 to 1800

120

0.65

0.70

0.85

0.90

10 k

0.95

100 k to

1.00

Marking

Example : 6.3 V 10 μF

Marking color : BLACK

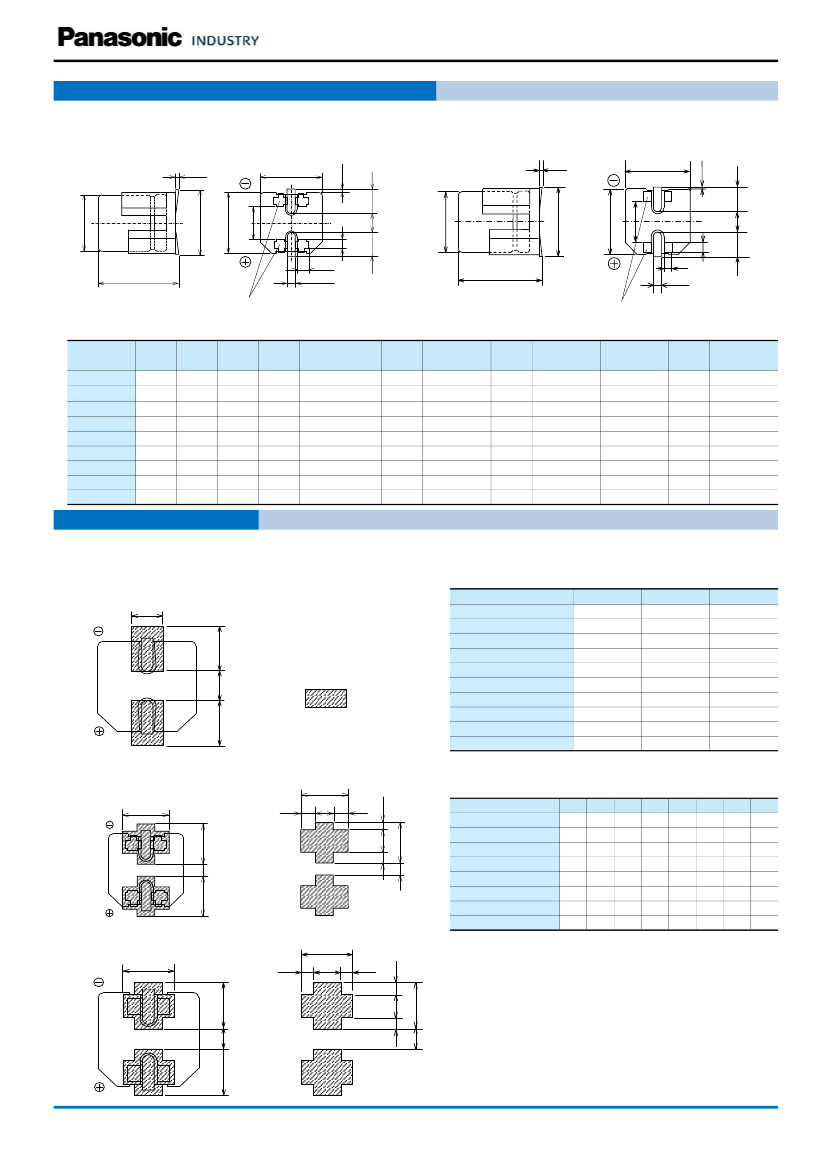

Dimensions

（I）

Unit：mm

0.3 max.

A±0.2

øD±0.5

Negative polarity marking (–)

Capacitance (μF)

Rated voltage code

Pressure Relief（ø10 and larger）

Size code

( )Reference size

R.voltage code

Lot number

6.3

100

Unit：V

øD

A, B

4.0 5.8±0.3 4.3

5.0 5.8±0.3 5.3

6.3 5.8±0.3 6.6

6.3 7.7±0.3 6.6

8.0 10.2±0.3 8.3

10.0 10.2±0.3 10

5.5 max.

6.5 max.

7.8 max.

10.0 max.

12.0 max.

1.8

2.2

2.6

3.4

3.5

0.65±0.1

0.90±0.2

1.0

1.5

1.8

3.1

4.6

0.35

+0.15

-0.20

0.35

+0.15

-0.20

0.35

+0.15

-0.20

0.35

+0.15

ー0.20

0.70±0.2

・The dimensions of the vibration-proof products, please refer to the page of the mounting specification.

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

（I）

31-Jan-20

j FN

Series identification

B±0.2

（P）
