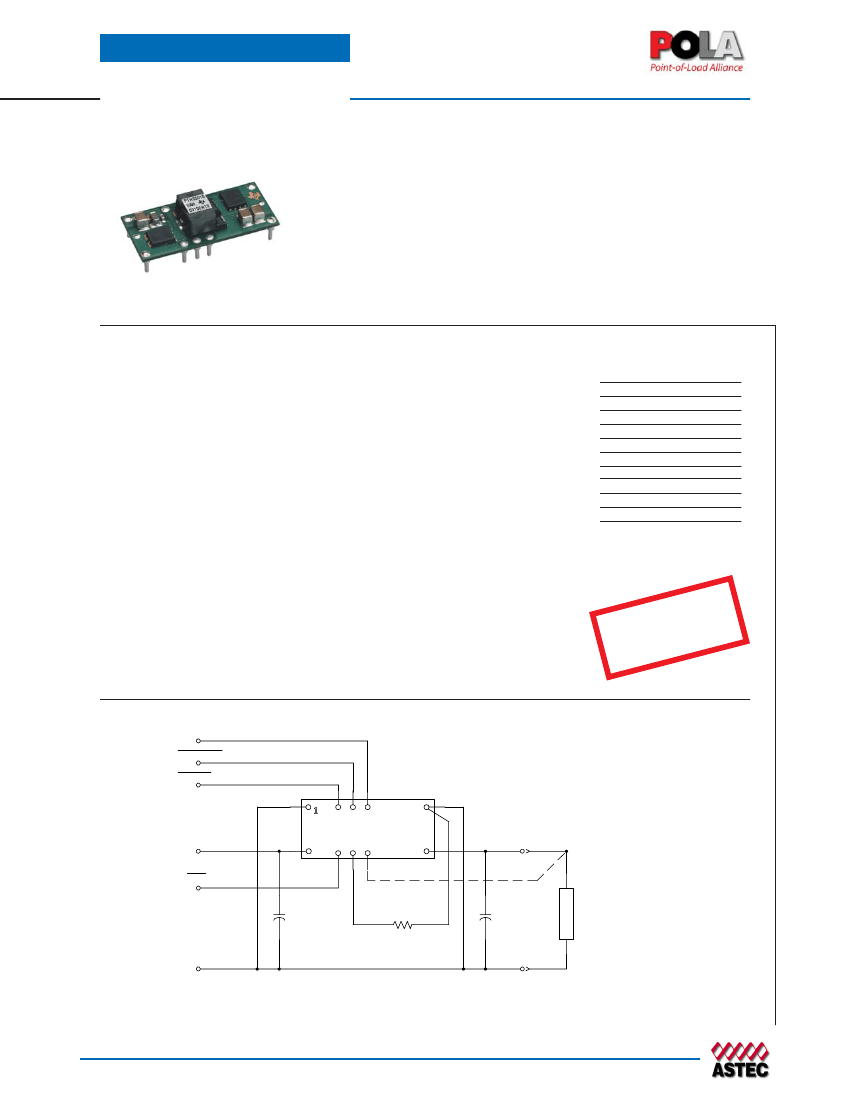

Preset output voltage is 0.8V; externally adjustable to 3.6V through the Vo,Adjust pin
Pin Descriptions
GND:
This is the common ground connection for the
Vin
and
Vout
power connections. It is also the 0 VDC
reference for the control inputs.
Vin:
The positive input voltage power node to the mod-
ule, which is referenced to common
GND.
Inhibit:
The Inhibit pin is an open-collector/drain negative
logic input that is referenced to
GND.
Applying a low-
level ground signal to this input disables the module’s
output and turns off the output voltage. When the
Inhibit
control is active, the input current drawn by the regula-
tor is significantly reduced. If the
Inhibit
pin is left
open-circuit, the module will produce an output when-
ever a valid input source is applied.
Vo Adjust:
A 0.1 W, 1 % tolerance (or better) resistor
must be directly connected between this pin and pin 7
(GND) pin to set the output voltage to the desired value.
The set point range for the output voltage is from 0.8 V
to 3.6 V. The resistor required for a given output volt-
age may be calculated from the following formula. If
left open circuit, the module output will default to its
lowest output voltage value. For further information on
output voltage adjustment consult the related application
note.
R
set
= 10 k ·
0.8 V
V
out
– 0.8 V
– 2.49 k
Vo Sense:
The sense input allows the regulation circuit to
compensate for voltage drop between the module and
the load. For optimal voltage accuracy
Vo Sense
should
be connected to
Vout.
It can also be left disconnected.
Vout:
The regulated positive power output with respect
to the
GND
node.
Track:
This is an analog control input that allows the
output voltage to follow another voltage during power-
up and power-down sequences. The pin is active from
0 V up to the nominal set-point voltage. Within this
range the module’s output will follow the voltage at the
Track
pin on a volt-for-volt basis. When the control volt-
age is raised above this range, the module regulates at its
nominal output voltage. If unused, this input may be left
unconnected. For further information consult the related
application note.
Margin Down:
When this input is asserted to
GND,
the
output voltage is decreased by 5% from the nominal. The
input requires an open-collector (open-drain) interface.
It is not TTL compatible. A lower percent change can
be accomodated with a series resistor. For further infor-
mation, consult the related application note.
Margin Up:
When this input is asserted to
GND,
the
output voltage is increased by 5%. The input requires an
open-collector (open-drain) interface. It is not TTL
compatible. The percent change can be reduced with a
series resistor. For further information, consult the
related application note.
The specification table gives the preferred resistor values
for a number of standard output voltages.
North America (USA): 1-888-41-ASTEC
Europe (UK): 44(1384)842-211
Asia (HK): 852-2437-9662
ATH15T05 Series —5-V Input
15-A, 5-V Input Non-Isolated
Wide-Output Adjust Power Module
Environmental & Absolute Maximum Ratings
Characteristics
Track Input Voltage
Operating T
emperature Range
Solder Reflow Temperature
Storage T
emperature
Mechanical Shock
Mechanical Vibration
Weight
Flammability
—
—
Symbols
V
track
T
a
T
reflow
T
s
(Voltages are with respect to GND)
Min
–0.3
–40
–40
—
—
—
—
Typ
—
—
—
500
20
15
5
Max
V
in
+ 0.3
85
215
(i)
125
—
—
—
—
Units
V
°C
°C
°C
G’s
G’s
grams
Conditions
Over V
in
Range
Surface temperature of module body or pins
—
Per Mil-STD-883D, Method 2002.3
1 msec, ½ Sine, mounted
Mil-STD-883D, Method 2007.2
Suffix H
20-2000 Hz
Suffix S
Meets UL 94V-O
Notes:
(i) During reflow of SMD package version do not elevate peak temperature of the module, pins or internal components above the stated maximum. For
further guidance refer to the application note, “Reflow Soldering Requirements for Plug-in Power Surface Mount Products.”
Specifications
Characteristics
Output Current
(Unless otherwise stated, T
a
=25 °C, V
in
=5 V, V
o
=3.3 V, C
in
=470 µF, C
out
=0 µF, and I
o
=I
o
max)
Symbols
I
o
V
in
V
o
tol
∆Reg
temp
∆Reg
line
∆Reg
load
∆Reg
tot
η
Conditions
0.8 V
≤
V
o
≤
3.6 V
Over I
o
range
–40 °C <T
a
< +85 °C
Over V
in
range
Over I
o
range
Includes set-point, line, load,
–40 °C
≤
T
a
≤
+85 °C
R
SET
= 698
Ω
V
o
=
3.3 V
I
o
=10 A
R
SET
= 2.21 kΩ V
o
=
2.5 V
R
SET
= 4.12 kΩ V
o
=
2.0 V
R
SET
= 5.49 kΩ V
o
=
1.8 V
R
SET
= 8.87 kΩ V
o
=
1.5 V
R
SET
= 17.4 kΩ V
o
=
1.2 V
R
SET
= 36.5 kΩ V
o
=
1.0 V
20 MHz bandwidth
Reset, followed by auto-recovery
1 A/µs load step, 50 to 100 % I
o
max,
C
out
=330 µF
Recovery Time
V
o
over/undershoot
Pin to GND
Pin to GND
V
track
– V
o
≤
50 mV and V
track
< V
o
(nom)
V
in
increasing
V
in
decreasing
Referenced to GND
Pin to GND
Inhibit (pin 3) to GND, Track (pin 8) open
Over V
in
and I
o
ranges
60 °C, 200 LFM airflow
25 °C, natural convection
Min
0
0
4.5
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
5
—
3.4
V
in
–0.5
–0.2
—
—
275
470
(5)
0
5.7
ATH15T05
Typ
—
—
—
—
±0.5
±10
±12
—
95
93
92
91
90
88
86
30
27.5
70
100
±5
– 8
(3)
—
—
4.3
3.7
—
—
–130
10
300
—
330
(6)
—
Max
15
15
5.5
±2
—
—
—
±3
—
—
—
—
—
—
—
—
—
—
—
—
—
–130
—
4.45
—
(1)
(1)
Units
A
V
%V
o
%V
o
mV
mV
%V
o
Input Voltage Range
Set-Point Voltage T
olerance
Temperature Variation
Line Regulation
Load Regulation
Total Output Variation
Efficiency
(2)
(2)
%
V
o
Ripple (pk-pk)
Over-Current Threshold
Transient Response
V
r
I
o
trip
t
tr
∆V
tr
∆V
o
margin
I
IL
margin
I
IL
track
dV
track
/dt
UVLO
V
IH
V
IL
I
IL
inhibit
I
in
inh
ƒ
s
C
in
C
out
MTBF
mVpp
A
µSec
mV
%
µA
µA
V/ms
V
V
µA
mA
kHz
µF
µF
10
6
Hrs
Margin Up/Down Adjust
Margin Input Current (pins 9 /10)
Track Input Current (pin 8)
Track Slew Rate Capability
Under-Voltage Lockout
Inhibit Control (pin3)
Input High Voltage
Input Low Voltage
Input Low Current
Input Standby Current
Switching Frequency
External Input Capacitance
External Output Capacitance
Reliability
(4)
Open
(4)
0.8
—
—
325
—
15,000
—
Per Bellcore TR-332
50 % stress, T
a
=40 °C, ground benign
Notes:
(1) See SOA curves or consult factory for appropriate derating.
(2) The set-point voltage tolerance is affected by the tolerance and stability ofR
SET
. The stated limit is unconditionally met if R
SET
has a tolerance of 1 %
with 200 ppm/°C or better temperature stability.
(3) A small low-leakage (<100 nA) MOSFET is recommended to control this pin. The open-circuit voltage is less than 1 Vdc.
(4) This control pin has an internal pull-up to the input voltage Vin. If it is left open-circuit the module will operate when input power is applied. A small
low-leakage (<100 nA) MOSFET is recommended for control. For further information, consult the related application note.
(5) A 470 µF electrolytic input capacitor is required for proper operation. The capacitor must be rated for a minimum of 700 mA rms of ripple current.
(6) An external output capacitor is not required for basic operation. Adding 330 µF of distributed capacitance at the load will improve the transient response.
North America (USA): 1-888-41-ASTEC
Europe (UK): 44(1384)842-211
Asia (HK): 852-2437-9662
ATH15T05 Series —5-V Input
15-A, 5-V Input Non-Isolated
Wide-Output Adjust Power Module

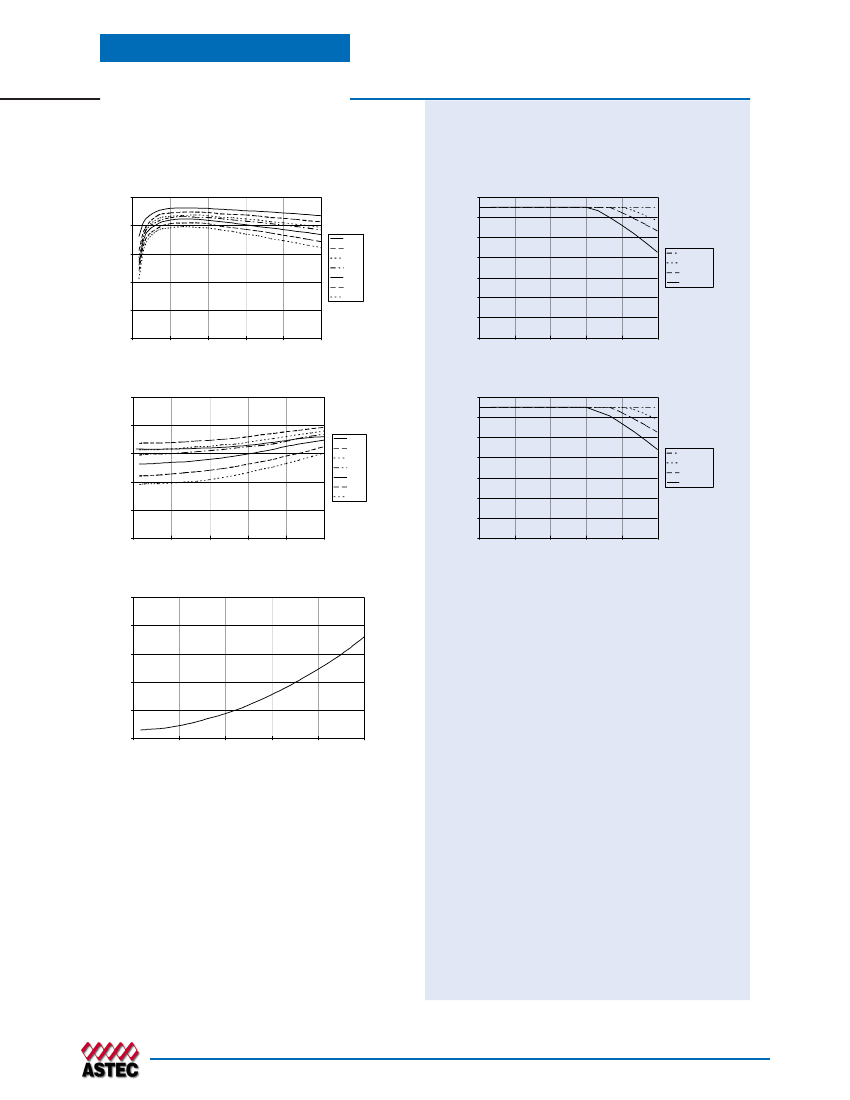

Typical Characteristics
Characteristic Data; V
in
=5 V
Efficiency vs Load Current
100
(See Note A)
Safe Operating Area; V
in
=5 V
Output Voltage =3.3 V
90
80
(See Note B)
Ambient Temperature (°C)
90
V
OUT
3.3 V
2.5 V
2.0 V
1.8 V
1.5 V
1.2 V
1.0 V
70
60
50
40
30
Airflow
400LFM
200LFM
100LFM
Nat Conv
Efficiency - %
80
70
60
50
0
3
6
9
12
15
20
0
3
6
9
12
15
Iout - Amps
Iout (A)
Output Ripple vs Load Current
50
90
80
Output Voltage =1 V
V
OUT
3.3
2.5
2.0
1.8
1.5
1.2
1.0
V
V
V
V
V
V
V
Ambient Temperature (°C)
40
70
60
50
40
30
Airflow
400LFM
200LFM
100LFM
Nat Conv
Ripple - mV
30
20
10
0
0
3
6
9
12
15
20
0
3
6
9
12
15
Iout - Amps
Iout (A)
Power Dissipation vs Load Current
5
4
Pd - Watts
3
2
1
0
0
3
6
9
12
15
Iout - Amps
Note A:
Characteristic data has been developed from actual products tested at 25°C. This data is considered typical data for the Converter.
Note B:
SOA curves represent the conditions at which internal components are at or below the manufacturer’s maximum operating temperatures. Derating limits apply to
modules soldered directly to a 4-layer PCB with 1 oz. copper.
North America (USA): 1-888-41-ASTEC
Europe (UK): 44(1384)842-211
Asia (HK): 852-2437-9662
Application Notes
ATH15T033 & ATH15T05 Series
Adjusting the Output Voltage of the ATH15T033
& ATH15T05 Wide-Output Adjust Power Modules
The
V
o
Adjust
control (pin 4) sets the output voltage of
the ATH15T033 and ATH15T05 products. The ad-
justment range of the ATH15T033 (3.3-V input) is from
0.8 V to 2.5 V
1
, and the ATH15T05 (5-V input) from
0.8 V to 3.6 V. The adjustment method requires the addi-
tion of a single external resistor, R
set
, that must be connected
directly between the
V
o
Adjust
and
GND
pins
2
. Table 1-1
gives the preferred value of the external resistor for a num-
ber of standard voltages, along with the actual output
voltage that this resistance value provides.
For other output voltages the value of the required resistor
can either be calculated using the following formula, or
simply selected from the range of values given in Table 1-2.
Figure 1-1 shows the placement of the required resistor.
R
set
= 10 kΩ ·
0.8 V
V
out
– 0.8 V
– 2.49 kΩ
Table 1-2; Output Voltage Set-Point Resistor Values
V
a
Req’d
0.800
0.825
0.850
0.875
0.900
0.925
0.950
0.975
1.000
1.025
1.050
1.075
1.100
1.125
1.150
1.175
1.200
1.225
1.250
1.275
1.300
1.325
1.350
1.375
1.400
1.425
1.450
1.475
1.50
1.55
1.60
1.65
1.70
1.75
1.80
1.85
1.90
1.95
R
set
Open
318 kΩ
158 kΩ
104 kΩ
77.5 kΩ
61.5 kΩ
50.8 kΩ
43.2 kΩ
37.5 kΩ
33.1 kΩ
29.5 kΩ
26.6 kΩ
24.2 kΩ
22.1 kΩ
20.4 kΩ
18.8 kΩ
17.5 kΩ
16.3 kΩ
15.3 kΩ
14.4 kΩ
13.5 kΩ
12.7 kΩ
12.1 kΩ
11.4 kΩ
10.8 kΩ
10.3 kΩ
9.82 kΩ
9.36 kΩ
8.94 kΩ
8.18 kΩ
7.51 kΩ
6.92 kΩ
6.4 kΩ
5.93 kΩ
5.51 kΩ
5.13 kΩ
4.78 kΩ
4.47 kΩ
V
a
Req’d
2.00
2.05
2.10
2.15
2.20
2.25
2.30
2.35
2.40
2.45
2.50
2.55
2.60
2.65
2.70
2.75
2.80
2.85
2.90
2.95
3.00
3.05
3.10
3.15
3.20
3.25
3.30
3.35
3.40
3.45
3.50
3.55
3.60
R
set
4.18 kΩ
3.91 kΩ
3.66 kΩ
3.44 kΩ
3.22 kΩ
3.03 kΩ
2.84 kΩ
2.67 kΩ
2.51 kΩ
2.36 kΩ
2.22 kΩ
2.08 kΩ
1.95 kΩ
1.83 kΩ
1.72 kΩ
1.61 kΩ
1.51 kΩ
1.41 kΩ
1.32 kΩ
1.23 kΩ
1.15 kΩ
1.07 kΩ
988
Ω
914
Ω
843
Ω
775
Ω
710
Ω
647
Ω
587
Ω
529
Ω
473
Ω
419
Ω
367
Ω
Table 1-1; Preferred Values of R
set
for Standard Output Voltages
V
out
(Standard)
3.3 V
1
2.5 V
2V
1.8 V
1.5 V
1.2 V
1V
0.8 V
R
set
(Pref’d Value)
698
Ω
2.21 kΩ
4.12 kΩ
5.49 kΩ
8.87 kΩ
17.4 kΩ
36.5 kΩ
Open
V
out
(Actual)
3.309V
2.502 V
2.010 V
1.803 V
1.504 V
1.202 V
1.005 V
0.8 V
Figure 1-1; V
o
Adjust Resistor Placement
V
O
Sense [Note 3]
10
9
8
5
V
O
Sense
ATH15T05-9J
PTH05010W
V
OUT
6
V
OUT
Notes:
1. Modules that operate from a 3.3-V input bus should
not be adjusted higher than 2.5 V.
2. Use a 0.1 W resistor. The tolerance should be 1 %, with
temperature stability of 100 ppm/°C (or better). Place
the resistor as close to the regulator as possible. Connect
the resistor directly between pins 4 and 7 using dedicated
Host platform: UBUNTU14.04[/color][/font] Hardware platform: IMX6-EK200 (the method for other platforms is the same)[/color][/font] Compiler: gcc-linaro-arm-linux-gnueabihf-4.9-2014.09_linux.tar.xz[/c...
When I use MSP430 to program the GPRS module with AT commands, the GPRS module will return a return value such as "OK". So, I want to detect "ok" in the programming before transmitting the next comman...
I would like to ask you experts, how do I control the channel selection of ADS1115? How do I learn to configure the four AIN pins? How do I use the ADDR and ALERT/RDY pins? How should I add the refere...
The instruction systems of various types of microcontrollers are not universal. They are specified by the microcontroller manufacturers, so users must follow the standards specified by the manufacture...
[i=s]This post was last edited by Baboerben on 2019-3-16 20:59[/i] [backcolor=white][color=#000000][size=3]1. The communication between I2C bus devices and single-chip microcomputers requires two wire...
As shown above, this is the example used in Lesson 5: Getting Started with BLE in the Wireless Product Development Live Broadcast. I have installed the SimpleLink SDK but have not touched any of its f...
Battery life is critical for portable applications. For applications such as smoke detectors, security devices, and thermostats, factory-installed batteries need to last for more than 10 years. The...[Details]
This paper establishes a fuel cell engine test platform based on the NI integrated hardware and software environment. This platform can realize the test and control of fuel cell engines and their a...[Details]
1. With the development of modern industry and the continuous improvement of automation, some medium and large control systems have been greatly facilitated, which not only makes control easier, bu...[Details]
1 Introduction
Intelligent control instruments are one of the most commonly used controllers in industrial control. They are mainly aimed at a specific parameter (such as pressure, tempera...[Details]
The potentiometer is an adjustable electronic component. The main functions of the potentiometer in the circuit are as follows:
1. Used as a voltage divider
A potentiometer is a continuou...[Details]
Motors are important products that convert electrical energy into mechanical energy to achieve automation, and they are widely used in industrial control, medical electronics, white a...[Details]
Abstract: With the development and construction of BeiDou II system, China will shift from the situation dominated by GPS to the situation dominated by BeiDou II global navigation system independen...[Details]
With the widespread application of new services and technologies in the communications industry, the scale and capacity of operators' network construction are getting larger and larger, and the ris...[Details]
Traditional
virtual instruments
consist of a data acquisition
board
based on PCI bus and
corresponding software. However, with
the rapid development of
computer
network techno...[Details]
0 Introduction
Ultrasonic waves
are mechanical waves with a frequency of more than 20KHz, and the propagation speed in the air is about 340 m/s (at 20°C). Ultrasonic waves can be gene...[Details]
1 Introduction to LED
With the development of science and technology, people have higher and higher requirements on automobile light sources. LED (Light Emitting Diode) has gradually attracted...[Details]
introduction
At present, the research on micron and nanotechnology is very active, which has led to the rapid development of microtechnology and micro-mechanical electronic system (MEMS) t...[Details]
1. Tips for charging UPS for the first time
After purchasing a new UPS, plug the UPS into the 220V mains power grid and charge it for at least 12 hours to ensure that the battery is fully char...[Details]
The biggest advantage of Profibus is that it is guaranteed by the stable international standard EN50170 and has been proven to be universal in practical applications. It has been widely used in man...[Details]
Some people think: as long as the program runs well, it doesn't matter how the original program is written. But this is absolutely not the case. Software is not completed in one go, and it is neces...[Details]
Integrated technical exchanges
京公网安备 11010802033920号
EEWORLD
