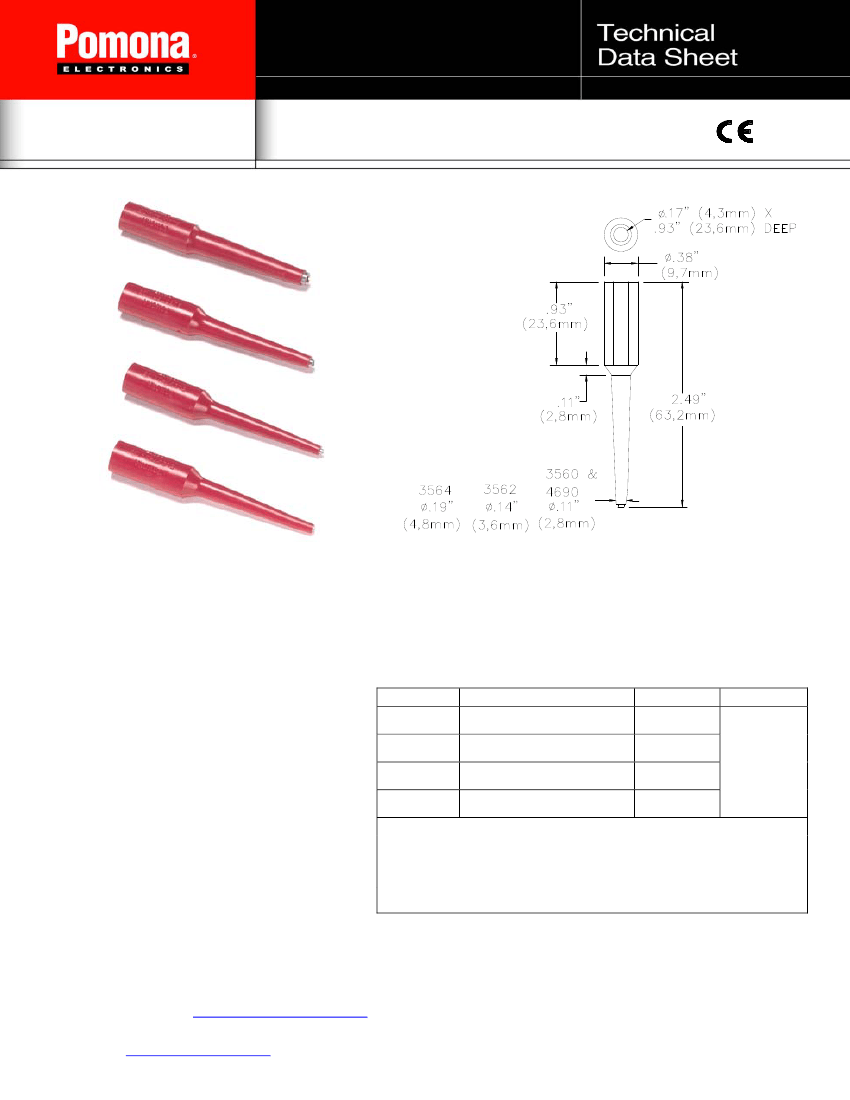

Model 3560, 3562, 3564, 4690
Banana Jack to #12, 16, 20 & 22 Pin Socket
Features
•
•
•
•
Ideal test adapters for rapid testing of the hard-to-get to pins of multi-pin connectors.
Flexible tip allows testing of adjacent contacts.
Full insulation protects against shorting or contact damage.
Model 4690 will also slip over 0.025” (0.63mm)
Materials
Insulation: Polyvinyl Chloride (PVC)
Banana Jack Body (upper connector)
Material:
Brass.
Finish:
Bright Tin Plated
Socket (lower connector)
Material:
Copper Alloy
Finish:
Gold Plated over Copper Plating
Model
4690
3560
3562
Contact Size
22 AWG .030” (.76mm)
20 AWG .040” (1.02mm)
16 AWG .063” (1.60mm)
Type
Socket
Socket
Socket
Current
3 Amps
Ordering Information
Model:
3560-*, 3562-*, 3564-*, 4690-*
* = Color: -0 Black, -2 Red
Ordering Example: 3560-2 (red adapter)
12 AWG .093” (2.36mm)
3564
Socket
Voltage Rating:
For
CE Compliance
and for personal safety, do not hold in hand
when voltages exceed 33 Vrms/70 Vdc. Maximum voltage for
hands free use:
2500 Vrms Max.
Operating Temperature: +55ºC (+131ºF) Max.
Test Kit 6481:
contains 18 pieces, one red and one black adapter of each adapter: 3560, 3561, 3562, 3563, 3564, 3565,
4690, 4691 and one set of model 6358 test leads.
For banana jack to test pins, see models:
3561, 3563, 3565, 4691
Sales: 800-490-2361
Technical Support:
technicalsupport@pomonatest.com
Fax: 425-446-5844
Europe:
31-(0) 40 2675 150
International:
425-446-5500
Where to Buy:
www.pomonaelectronics.com
USA:
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm),
.xxx = ± .005” (,127 mm). All specifications are to the latest revisions.
Specifications are subject to change without notice. Registered trademarks are
the property of their respective companies.
Copyright © 2009
D1093952 Rev. 101
Page 1 of 2

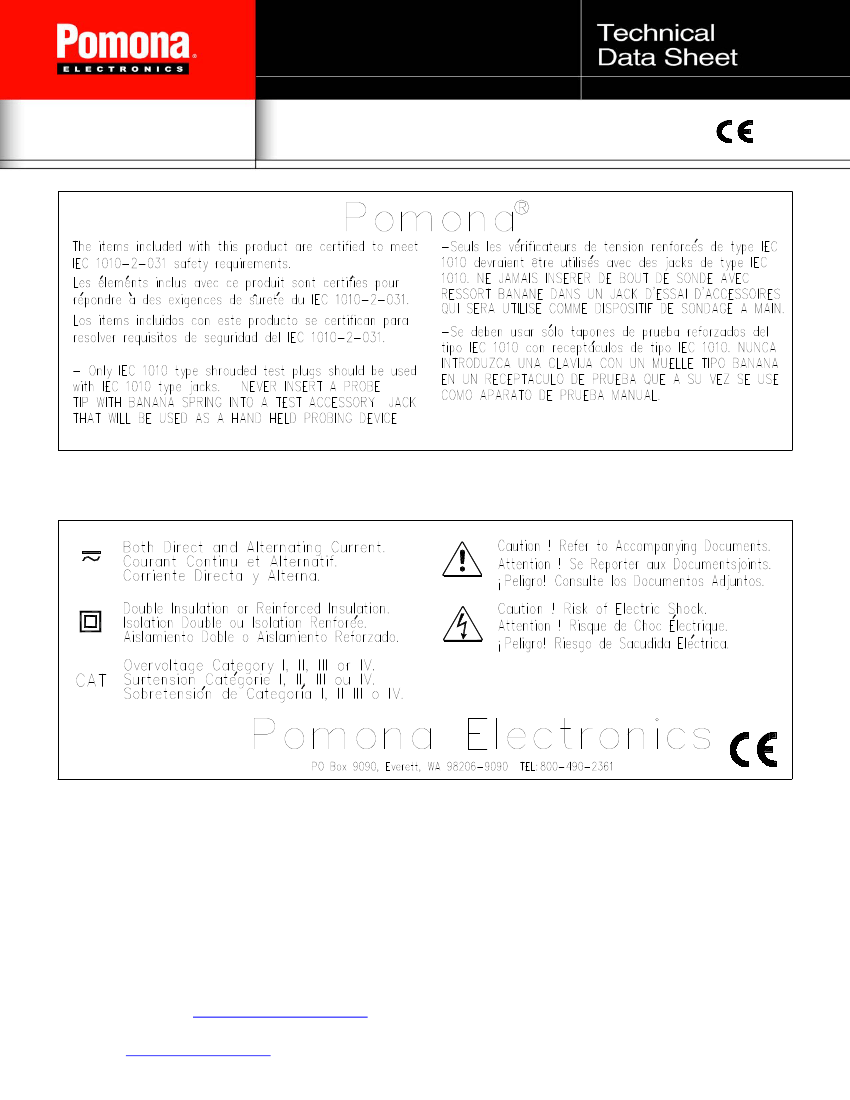

Model 3560, 3562, 3564, 4690
Banana Jack to #12, 16, 20 & 22 Pin Socket
Sales: 800-490-2361
Technical Support:
technicalsupport@pomonatest.com
Fax: 425-446-5844
Europe:
31-(0) 40 2675 150
International:
425-446-5500
Where to Buy:
www.pomonaelectronics.com
USA:
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm),
.xxx = ± .005” (,127 mm). All specifications are to the latest revisions.
Specifications are subject to change without notice. Registered trademarks are
the property of their respective companies.
Copyright © 2009
D1093952 Rev. 101
Page 2 of 2
