3283# Overview

同轴连接器（RF） - 适配器 BNC 插孔，母插口至 BNC 插孔，母插口 50 欧姆

Parameter Name	Attribute value
category
Maker	Pomona Electronics Inc.
series	-
Package	Bulk
Adapter type	jack to jack
conversion type	Same series
Adapter series	BNC to BNC
中心公母	mother form to mother form
Convert from (adapter side)	BNC jack, female jack
Convert to (adapter side)	BNC jack, female jack
impedance	50 ohms
style	Straight
Installation type	free hanging
Installation features	-
Fastening type	bayonet lock, bayonet lock
Intrusion protection	-
Center contact plating	gold plated
characteristic	-
include	-
Matrix material	brass
substrate surface	-
center contact material	copper beryllium
dielectric materials	Polytetrafluoroethylene (PTFE)
Number of patches	-
Insertion loss	-
Operating temperature	-65°C ~ 165°C
Basic product number	3283

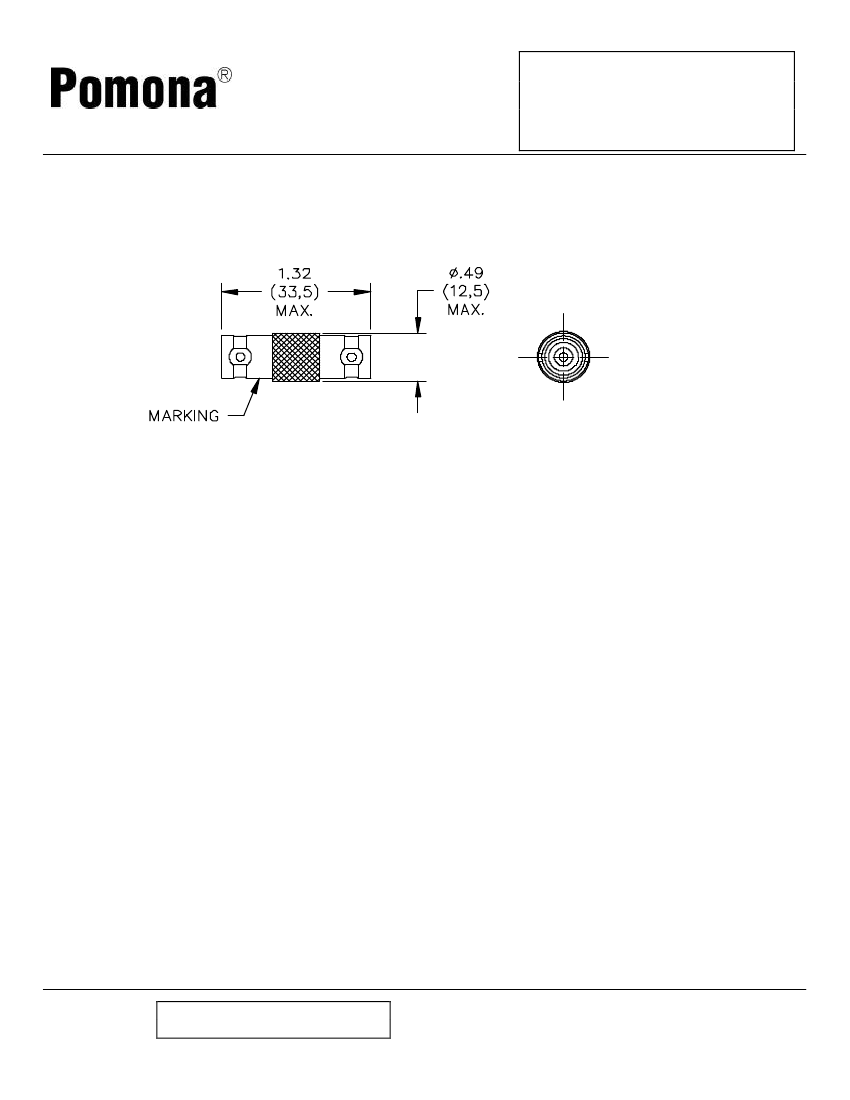

Model 3283

Adapter

BNC Female To Female

MATERIALS:

Body – Brass, Tarnish Resistant Plating, Center Contact: Gold Plated Beryllium Copper

Dielectric: PTFE

Marking: “Pomona 3283”

RATING:

Operating Voltage: Shield/Earth: 30VAC/60VDC Max.

Inner Conductor/Shield: 500VRMS Max.

Operating Temperature: -65ºC to +165ºC

Nominal Impedance: 50 Ohms

ORDERING INFORMATION:

Model 3283

All dimensions are in inches and metric. All specifications are to the latest revisions. Specifications are subject to change without notice.

Registered trademarks are the property of their respective companies. Made in USA

6/11/02 SY/EH/LS

Last saved by PN

Sales: 800-490-2361 Fax: 888-403-3360

Technical Assistance: 800-241-2060

PomonaACCESS

90179

(800) 444-6785 or (425) 446-6010

More drawings available at www.pomonaelectronics.com

Page 1 of 1
