3276# datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> Banana and pointed end connectors> 3276#

Preview

3276#: Description香蕉插头连接器微型有螺纹，外部（螺母） -; CategoryThe connector Banana and pointed end connectors; ManufacturerPomona Electronics Inc.; Websitehttps://www.pomonaelectronics.com/; Environmental Compliance

Download Datasheet Parametric View All

3276# Overview

香蕉插头连接器微型有螺纹，外部（螺母） -

3276# Parametric

Parameter Name	Attribute value
category
Maker	Pomona Electronics Inc.
series	-
Package	Bulk
type	banana plug
gender	male head
Plug/Mating Plug Diameter	miniature
Installation type	Panel mounting
Termination	Threaded, external (nut)
insulation	non-insulated
characteristic	-
color	-
Wire gauge	-
触头表面处理	gold plated
Contact material	copper beryllium
Matrix material	Brass, gold plated
Operating temperature	-
Basic product number	3276

Preview

Download Datasheet

View All

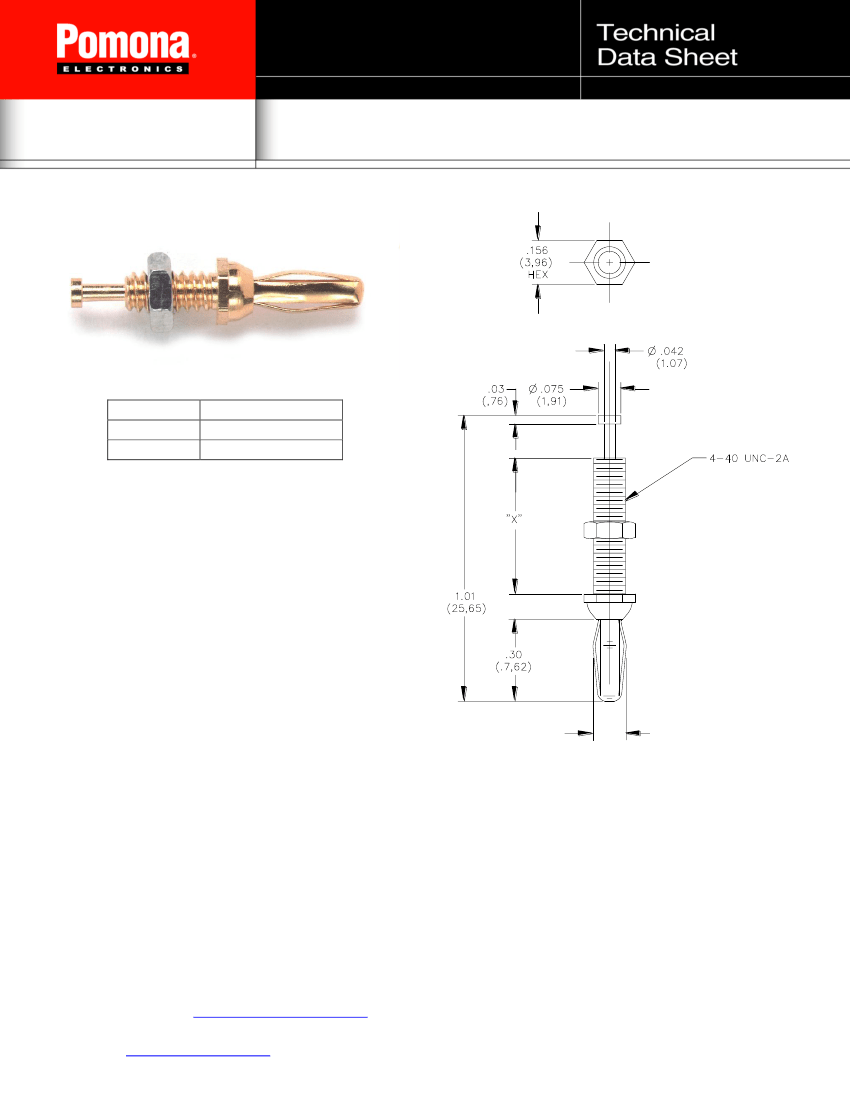

Model 3276 & 4513

Miniature Banana Plug with Threaded Stud

Model

3276

4513

"X" Dimension

.23" (5,8mm)

.48" (12,2mm)

Minimum Panel Thickness is 0.030” (0.76mm)

Features



Threaded stud enables fast and easy mounting to

panels.

Solder turret allows wire attachment.

Miniature banana plug features gold plated Beryllium

Copper for long insertion life and low contact

resistance.

Materials

Miniature Banana Plug:

Spring: Beryllium Copper, Gold Plated

Body: Brass, Gold Plated

Hex Nut: 4-40 Nut, Stainless Steel

Ø.120 +/- .010

(3,05 +/- 0,254)

Ratings

Operating Voltage: 2500 VDC

Current: 5 Amperes Max.

Ordering Information

Model 3276

Model 4513

Parts are packaged ten per bag, unassembled.

USA:

Sales: 800-490-2361

Technical Support:

technicalsupport@pomonatest.com

Fax: 425-446-5844

Europe:

31-(0) 40 2675 150

International:

425-446-5500

Where to Buy:

www.pomonaelectronics.com

All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm),

.xxx = ± .005” (,127 mm). All specifications are to the latest revisions.

Specifications are subject to change without notice. Registered trademarks are

the property of their respective companies.

D1094004 Rev. 104

Page 1 of 1
