3265# Overview

香蕉插头连接器标准香蕉式有螺纹，内部（螺钉） -

3265# Parametric

Parameter Name	Attribute value
category
Maker	Pomona Electronics Inc.
series	-
Package	Bulk
type	banana plug
gender	male head
Plug/Mating Plug Diameter	Standard banana style
Installation type	Panel mounting
Termination	Threaded, internal (screw)
insulation	non-insulated
characteristic	-
color	-
Wire gauge	-
触头表面处理	nickel
Contact material	copper beryllium
Matrix material	Brass, nickel plated
Operating temperature	-
Basic product number	3265

Preview

Download Datasheet

View All

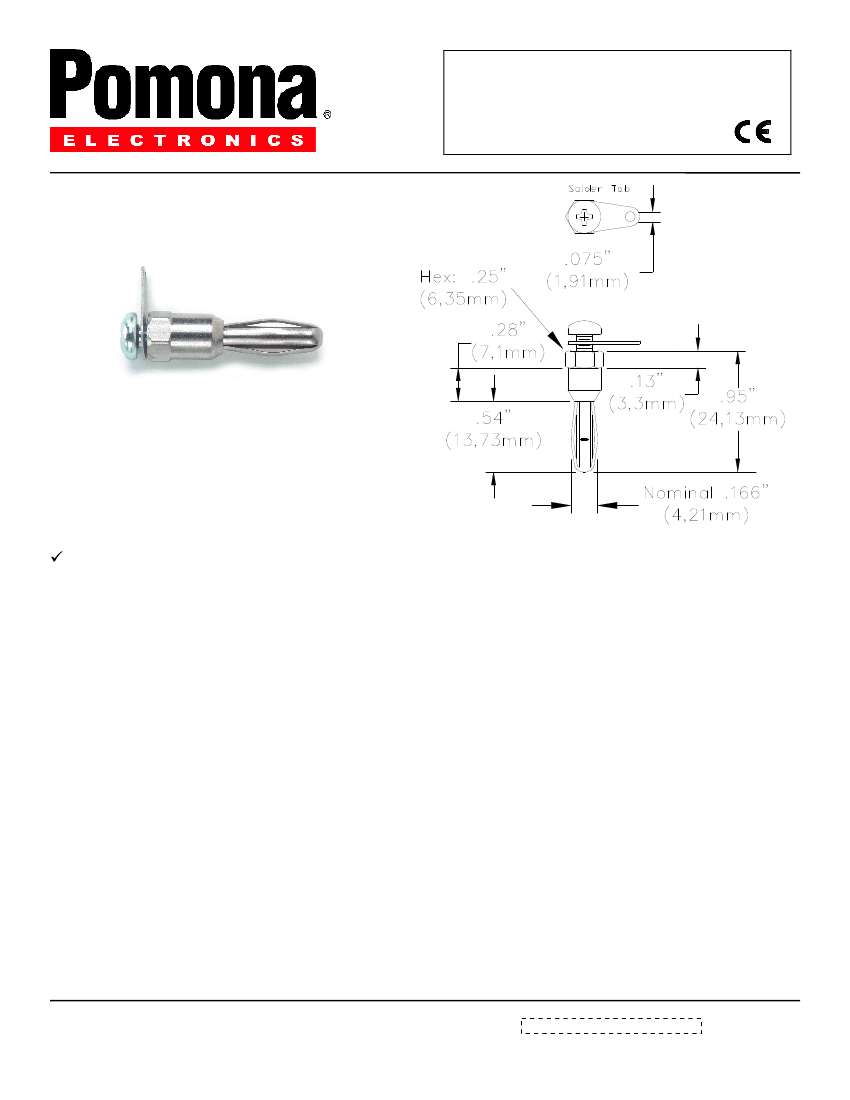

Model 3265 & 3266

Standard Banana Plug with

#6-32 or #8-32 Screw

FEATURES:

Fits standard banana jack

MATERIALS:

Banana Plug Body: Brass, Alloy 360, ½ Hard

Spring: Beryllium Copper, Berylco 25, Cond. H.T.

Finish: Nickel plated per QQ-N-290, Class 2, 200/300 microinches

Screw: Model 3265 - 6-32 x .25” (6,35mm) Pan head, Phillips, steel, nickel plated

Model 3266 – 8-32 x 25” (6,35mm) Pan head, Phillips, steel, nickel plated.

Solder Lug: Copper per QQ-C-576

Finish: Electro tin plated

RATINGS:

Voltage:

Current:

Hands free testing in controlled voltage environments: 500 Vrms Max.

For CE compliance:

not intended for

hand-held use at voltages above 33 Vrms/70 Vdc.

15 Amps

ORDERING INFORMATION:

Model with 6-32 screw: 3265

Model with 8-32 screw: 3266

Sold in package of 10

All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).

All specifications are to the latest revisions. Specifications are subject to change without notice.

Registered trademarks are the property of their respective companies.

Sales: 800-490-2361 Fax: 888-403-3360 Technical Support: 800-241-2060 (technicalsupport@pomonatest.com)

For “Where to Buy” information, visit the Pomona web site at www.pomonaelectronics.com

Rev: 100

D1093996, D1093997

Page 1 of 1
