DM74LS32 Quad 2-Input OR Gate
June 1986
Revised March 2000
DM74LS32
Quad 2-Input OR Gate
General Description
This device contains four independent gates each of which
performs the logic OR function.
Ordering Code:
Order Number
DM74LS32M
DM74LS32SJ
DM74LS32N
Package Number
M14A
M14D
N14A
Package Description
14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150 Narrow
14-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.
Connection Diagram
Function Table
Y
=
A
+
B
Inputs
A
L
L
H
H
H
=
HIGH Logic Level
L
=
LOW Logic Level
Output
B
L
H
L
H
Y
L
H
H
H
© 2000 Fairchild Semiconductor Corporation
DS006361
www.fairchildsemi.com
DM74LS32
Absolute Maximum Ratings
(Note 1)
Supply Voltage
Input Voltage
Operating Free Air Temperature Range
Storage Temperature Range
7V
7V
0°C to
+70°C
−65°C
to
+150°C
Note 1:
The “Absolute Maximum Ratings” are those values beyond which
the safety of the device cannot be guaranteed. The device should not be
operated at these limits. The parametric values defined in the Electrical
Characteristics tables are not guaranteed at the absolute maximum ratings.
The “Recommended Operating Conditions” table will define the conditions
for actual device operation.
Recommended Operating Conditions
Symbol
V
CC
V
IH
V
IL
I
OH
I
OL
T
A
Supply Voltage
HIGH Level Input Voltage
LOW Level Input Voltage
HIGH Level Output Current
LOW Level Output Current
Free Air Operating Temperature
0
Parameter
Min
4.75
2
0.8
−0.4
8
70
Nom
5
Max
5.25
Units
V
V
V
mA
mA
°C
Electrical Characteristics
over recommended operating free air temperature range (unless otherwise noted)
Symbol
V
I
V
OH
V
OL
Parameter
Input Clamp Voltage
HIGH Level
Output Voltage
LOW Level
Output Voltage
I
I
I
IH
I
IL
I
OS
I
CCH
I
CCL
Input Current @ Max Input Voltage
HIGH Level Input Current
LOW Level Input Current
Short Circuit Output Current
Supply Current with Outputs HIGH
Supply Current with Outputs LOW
Conditions
V
CC
=
Min, I
I
= −18
mA
V
CC
=
Min, I
OH
=
Max
V
IH
=
Min
V
CC
=
Min, I
OL
=
Max
V
IL
=
Max
I
OL
=
4 mA, V
CC
=
Min
V
CC
=
Max, V
I
=
7V
V
CC
=
Max, V
I
=
2.7V
V
CC
=
Max, V
I
=
0.4V
V
CC
=
Max (Note 3)
V
CC
=
Max
V
CC
=
Max
−20
3.1
4.9
2.7
3.4
0.35
0.25
0.5
0.4
0.1
20
−0.36
−100
6.2
9.8
mA
µA
mA
mA
mA
mA
Min
Typ
(Note 2)
Max
−1.5
Units
V
V
V
Note 2:
All typicals are at V
CC
=
5V, T
A
=
25°C.
Note 3:
Not more than one output should be shorted at a time, and the duration should not exceed one second.
Switching Characteristics
at V
CC
=
5V and T
A
=
25°C
R
L
=
2 kΩ
Symbol
t
PLH
t
PHL
Parameter
Min
Propagation Delay Time
LOW-to-HIGH Level Output
Propagation Delay Time
HIGH-to-LOW Level Output
3
3
C
L
=
15 pF
Max
11
11
Min
4
4
C
L
=
50 pF
Max
15
15
ns
ns
Units
www.fairchildsemi.com
2
DM74LS32
Physical Dimensions
inches (millimeters) unless otherwise noted

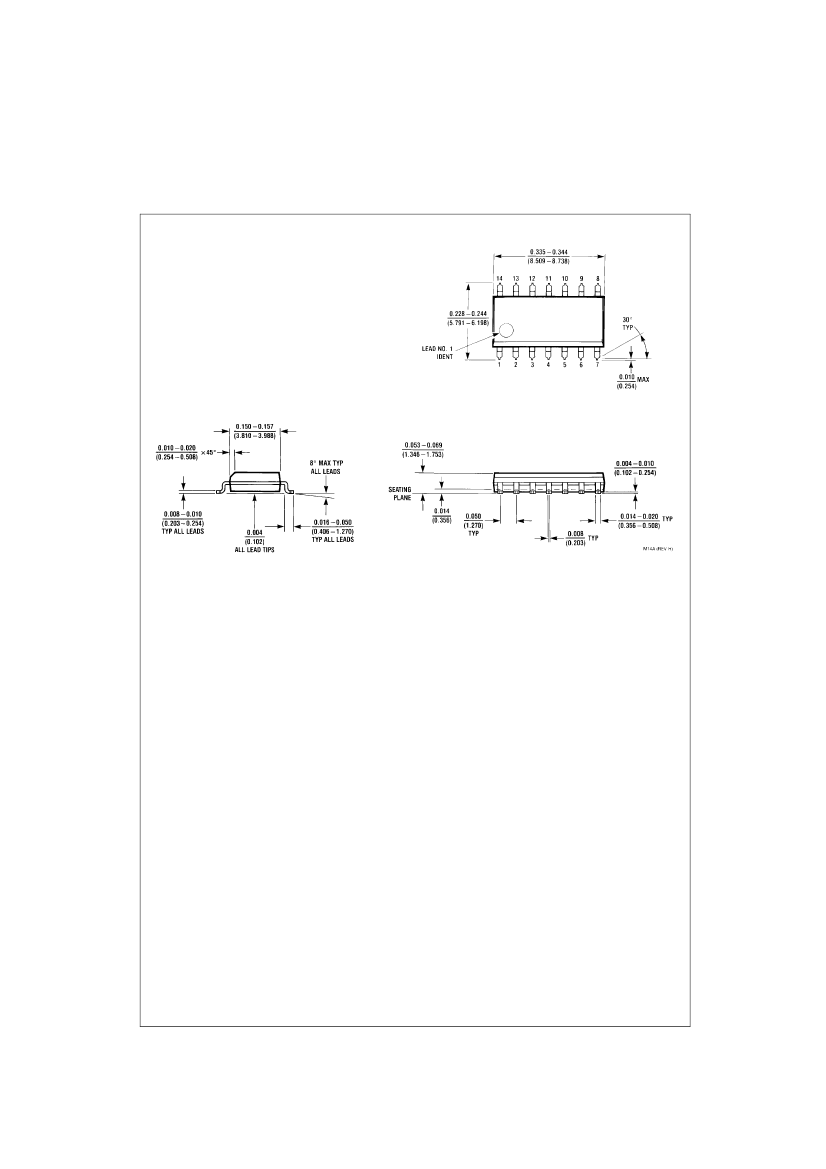

14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150 Narrow
Package Number M14A
3
www.fairchildsemi.com
DM74LS32
Physical Dimensions
inches (millimeters) unless otherwise noted (Continued)

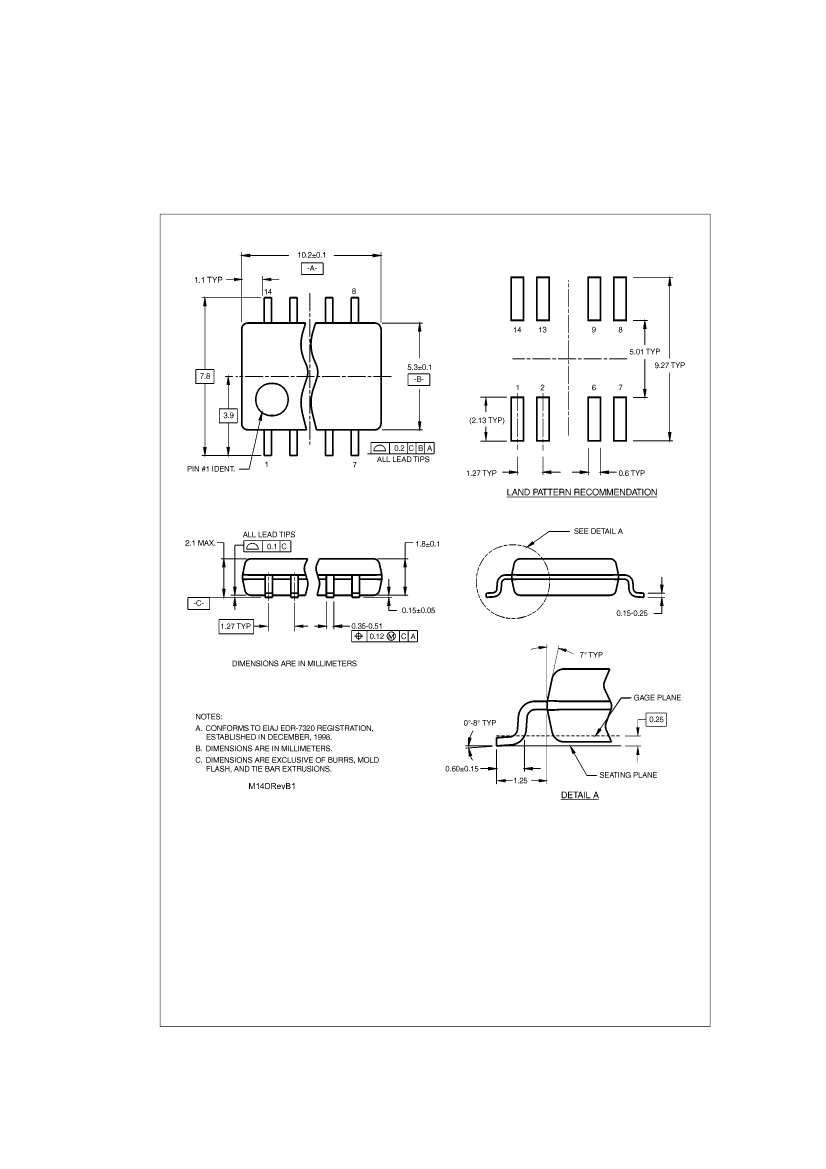

14-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
Package Number M14D
www.fairchildsemi.com
4
DM74LS32 Quad 2-Input OR Gate
Physical Dimensions
inches (millimeters) unless otherwise noted (Continued)
14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Package Number N14A
