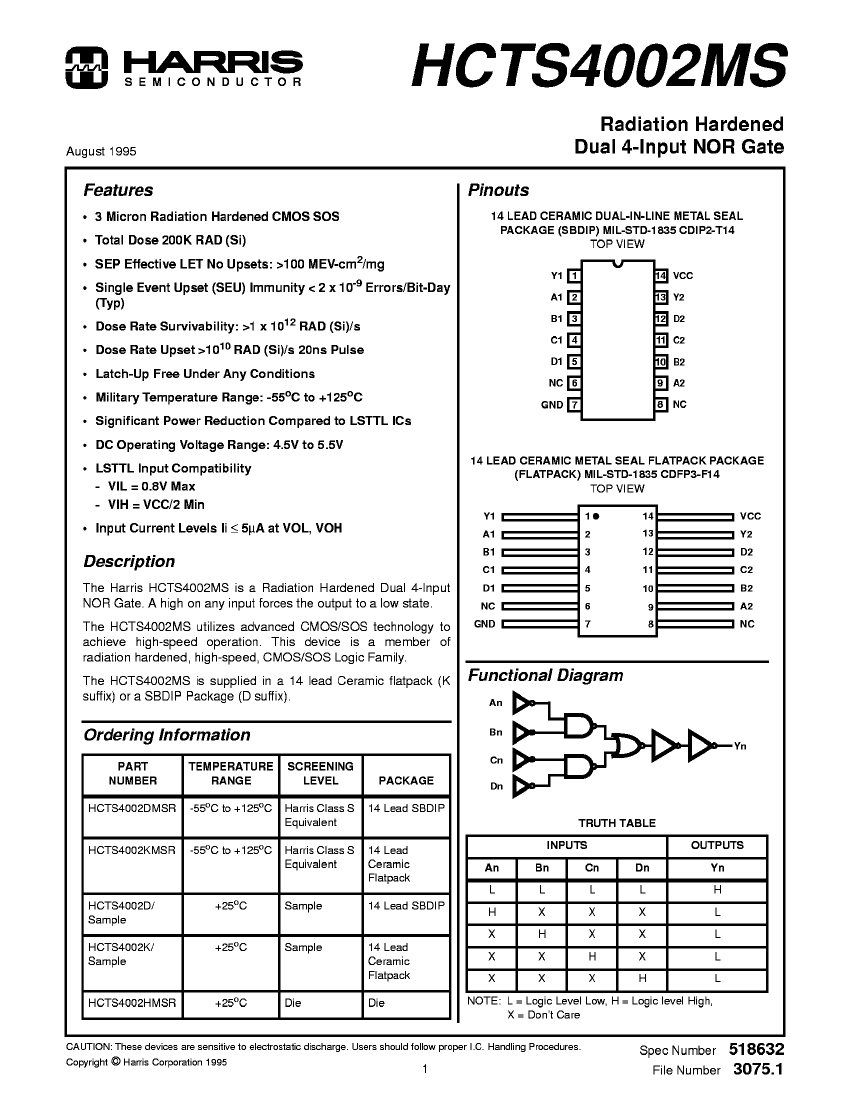

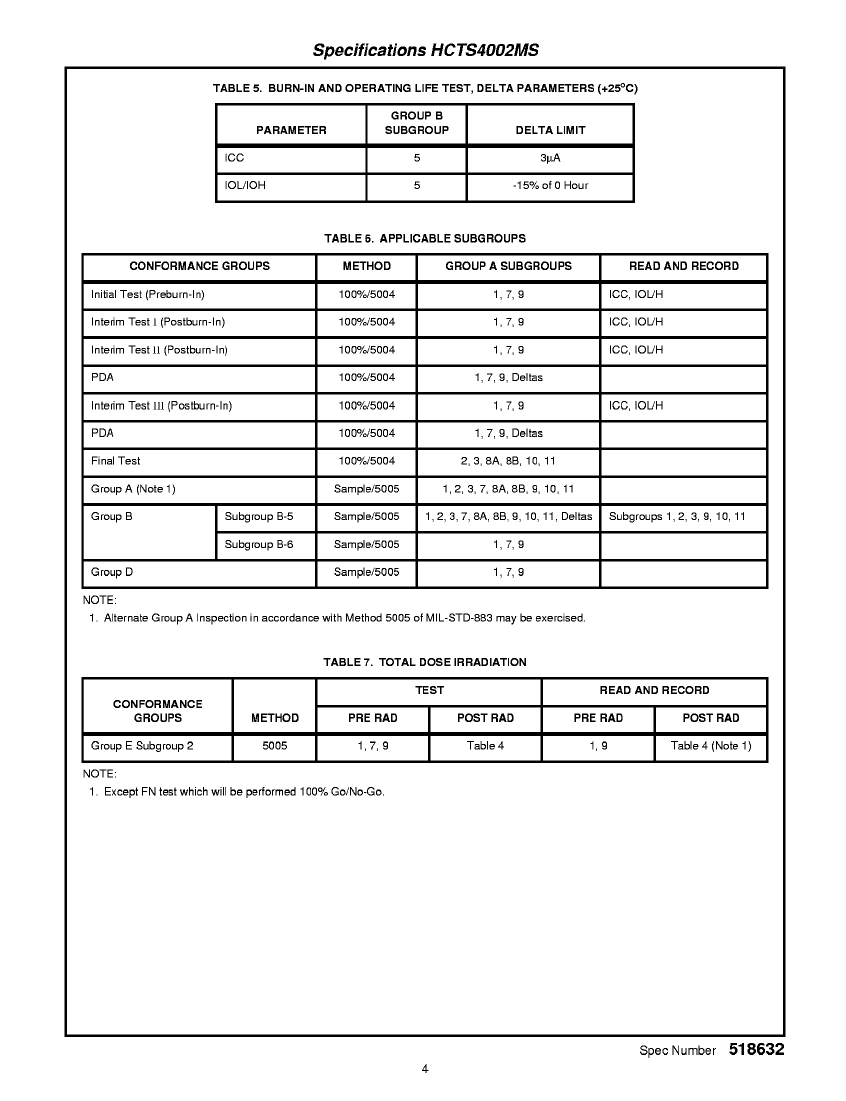

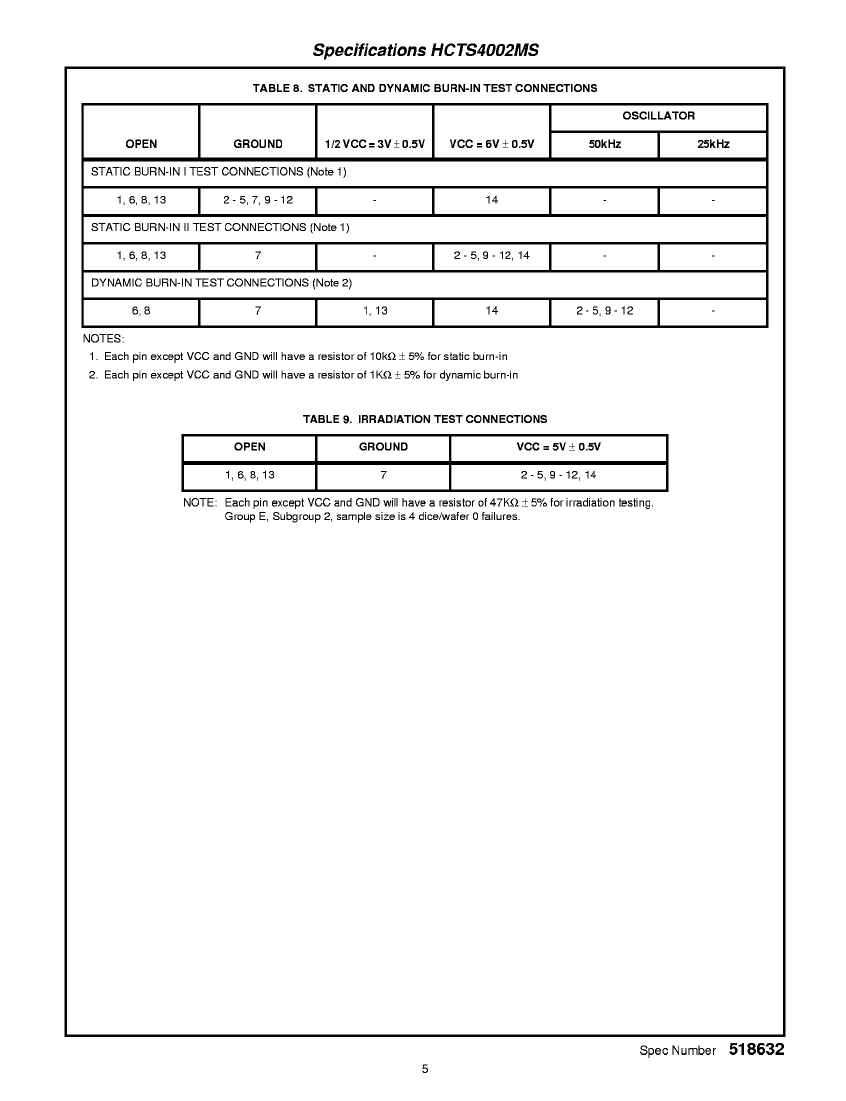

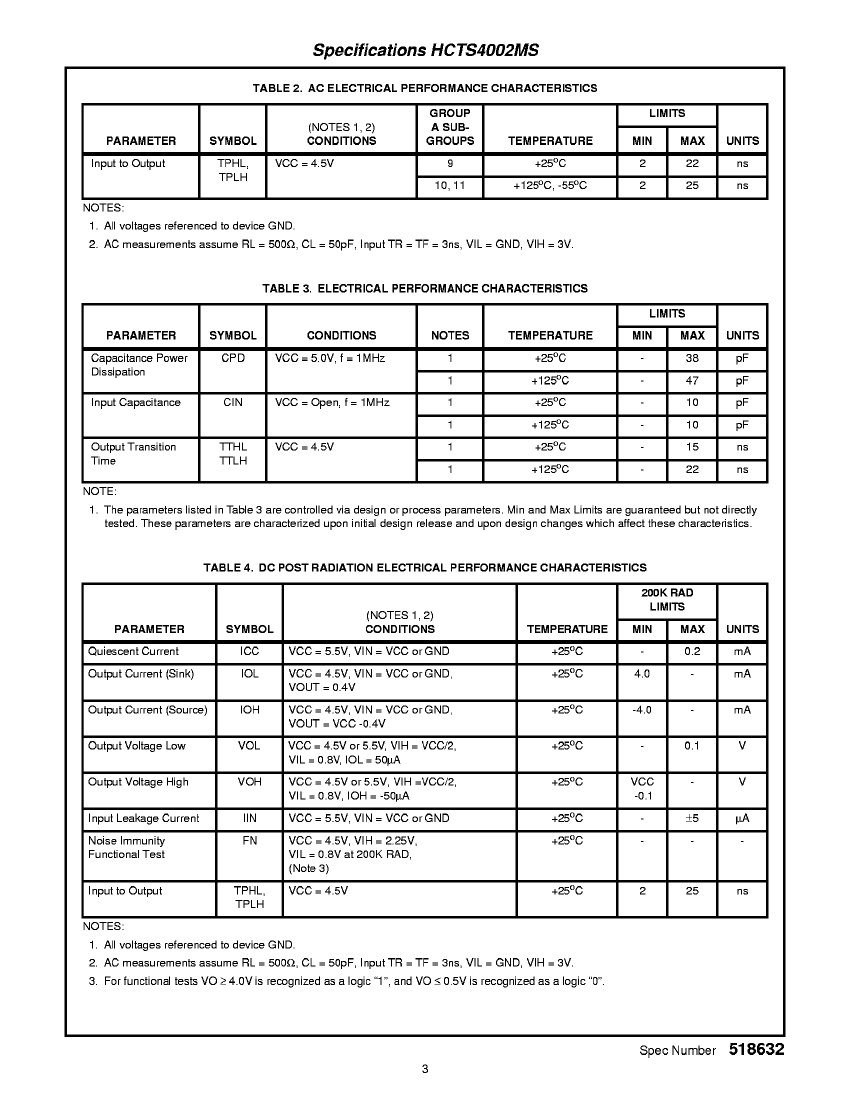

NOR Gate, HCT Series, 2-Func, 4-Input, CMOS, CDFP14
| Parameter Name | Attribute value |
| package instruction | , |
| Reach Compliance Code | unknown |
| series | HCT |
| JESD-30 code | R-CDFP-F14 |
| JESD-609 code | e4 |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | NOR GATE |
| Number of functions | 2 |
| Number of entries | 4 |
| Number of terminals | 14 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| Package shape | RECTANGULAR |
| Package form | FLATPACK |
| propagation delay (tpd) | 25 ns |
| Certification status | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | MILITARY |
| Terminal surface | GOLD |
| Terminal form | FLAT |
| Terminal location | DUAL |
| total dose | 100k Rad(Si) V |
| Base Number Matches | 1 |
| 5962R9576001VXC | 5962R9576001V9A | HCTS4002DMSR | HCTS4002K/SAMPLE | HCTS4002D/SAMPLE | HCTS4002HMSR | |
|---|---|---|---|---|---|---|
| Description | NOR Gate, HCT Series, 2-Func, 4-Input, CMOS, CDFP14 | NOR Gate, HCT Series, 2-Func, 4-Input, CMOS | NOR Gate, HCT Series, 2-Func, 4-Input, CMOS, CDIP14 | NOR Gate, HCT Series, 2-Func, 4-Input, CMOS, CDFP14 | NOR Gate, HCT Series, 2-Func, 4-Input, CMOS, CDIP14 | NOR Gate, HCT Series, 2-Func, 4-Input, CMOS |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| series | HCT | HCT | HCT | HCT | HCT | HCT |
| JESD-30 code | R-CDFP-F14 | X-XUUC-N12 | R-CDIP-T14 | R-CDFP-F14 | R-CDIP-T14 | X-XUUC-N12 |
| Load capacitance (CL) | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF |
| Logic integrated circuit type | NOR GATE | NOR GATE | NOR GATE | NOR GATE | NOR GATE | NOR GATE |
| Number of functions | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of entries | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of terminals | 14 | 12 | 14 | 14 | 14 | 12 |
| Package body material | CERAMIC, METAL-SEALED COFIRED | UNSPECIFIED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | UNSPECIFIED |
| Package shape | RECTANGULAR | UNSPECIFIED | RECTANGULAR | RECTANGULAR | RECTANGULAR | UNSPECIFIED |
| Package form | FLATPACK | UNCASED CHIP | IN-LINE | FLATPACK | IN-LINE | UNCASED CHIP |
| propagation delay (tpd) | 25 ns | 25 ns | 25 ns | 25 ns | 25 ns | 25 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | NO | YES | NO | YES |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Terminal form | FLAT | NO LEAD | THROUGH-HOLE | FLAT | THROUGH-HOLE | NO LEAD |
| Terminal location | DUAL | UPPER | DUAL | DUAL | DUAL | UPPER |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | - | - | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | - | - | -55 °C |
| Temperature level | MILITARY | MILITARY | MILITARY | - | - | MILITARY |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | - |
