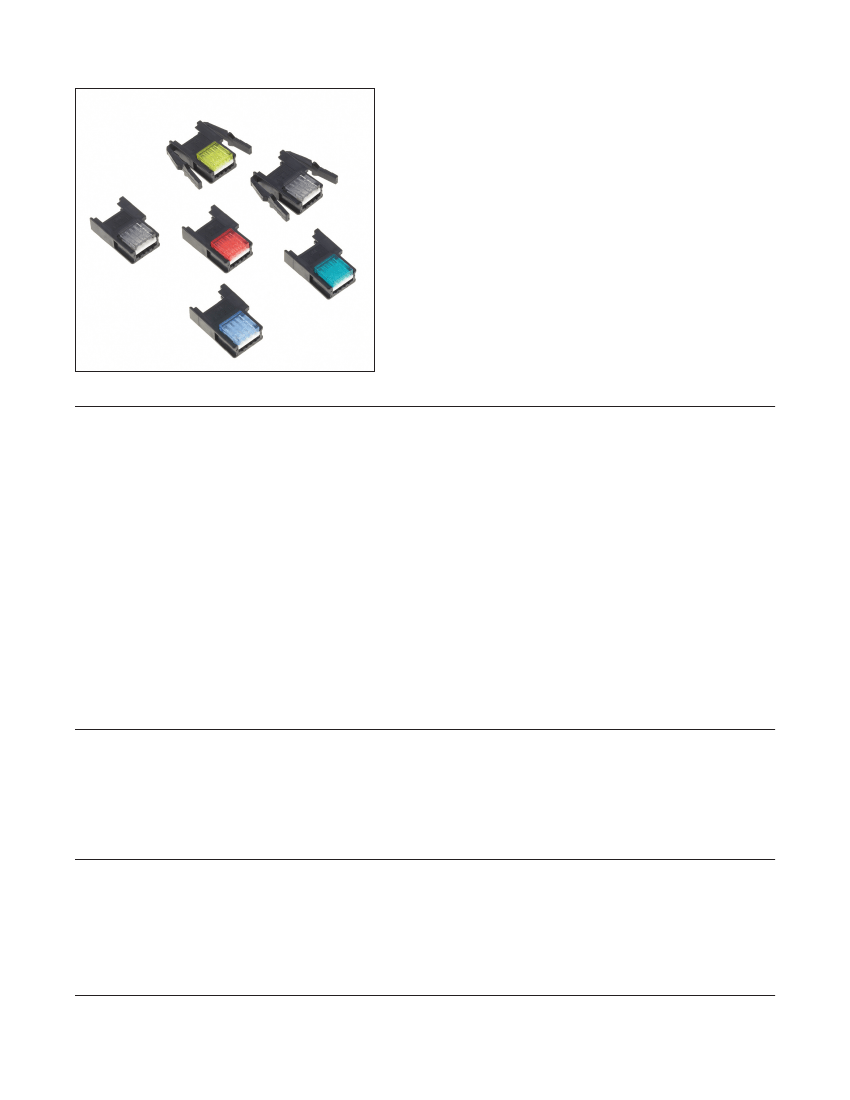

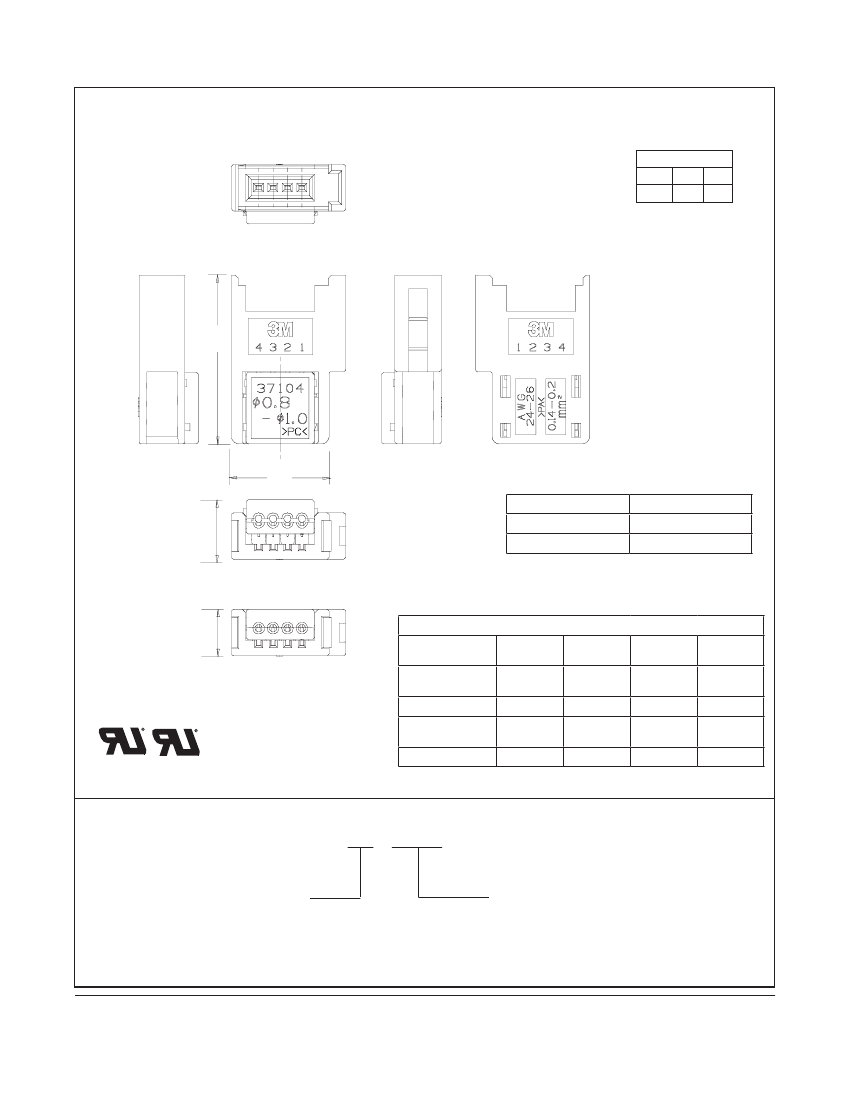

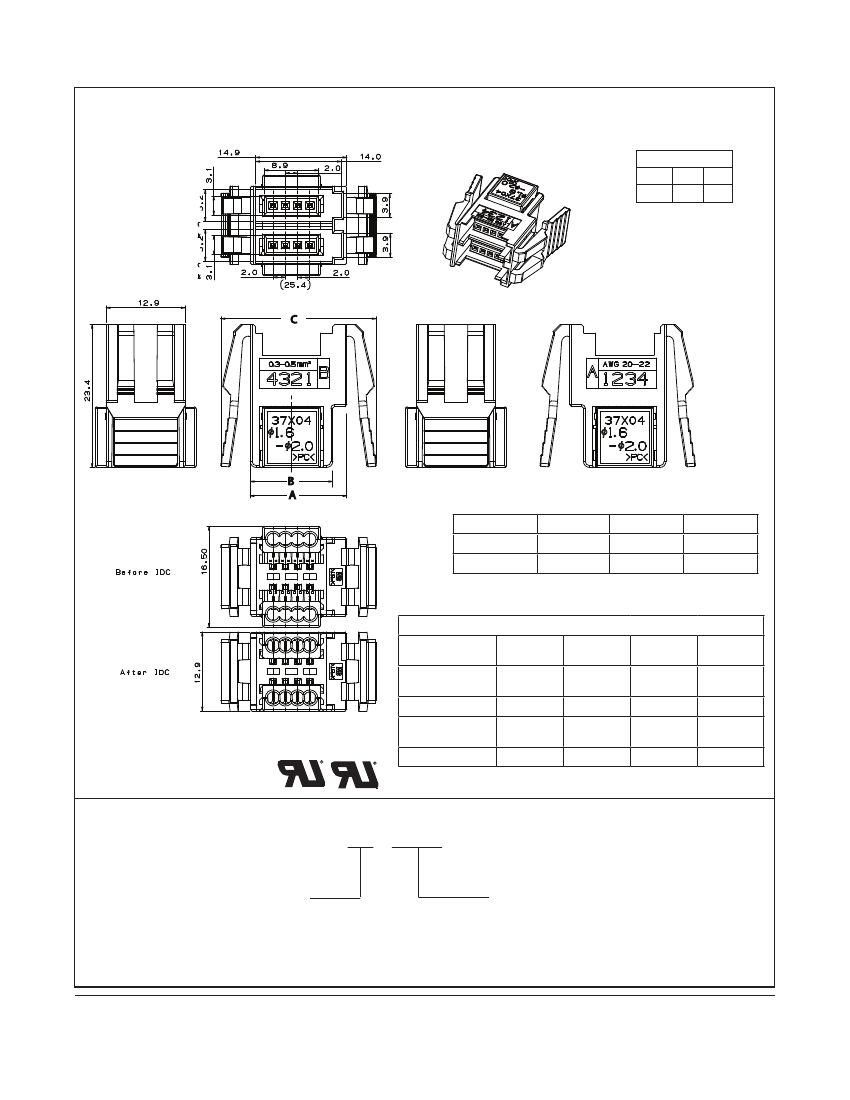

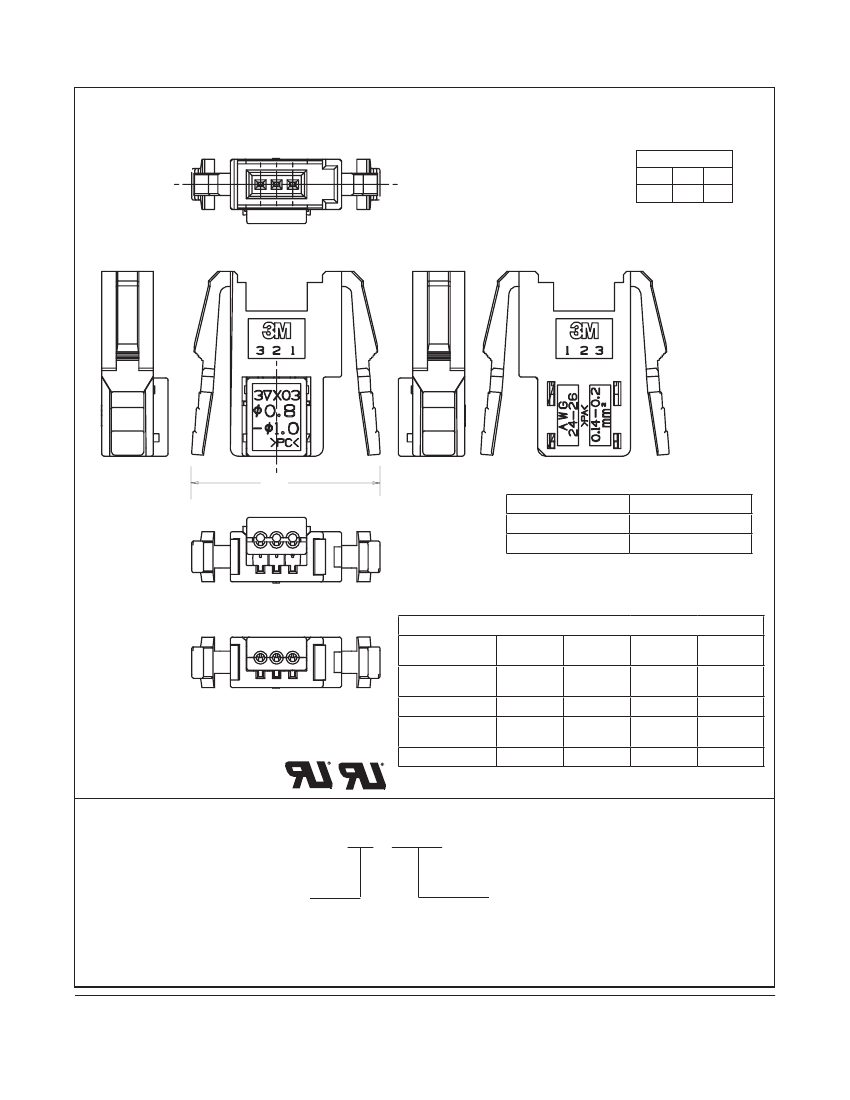

3M
™

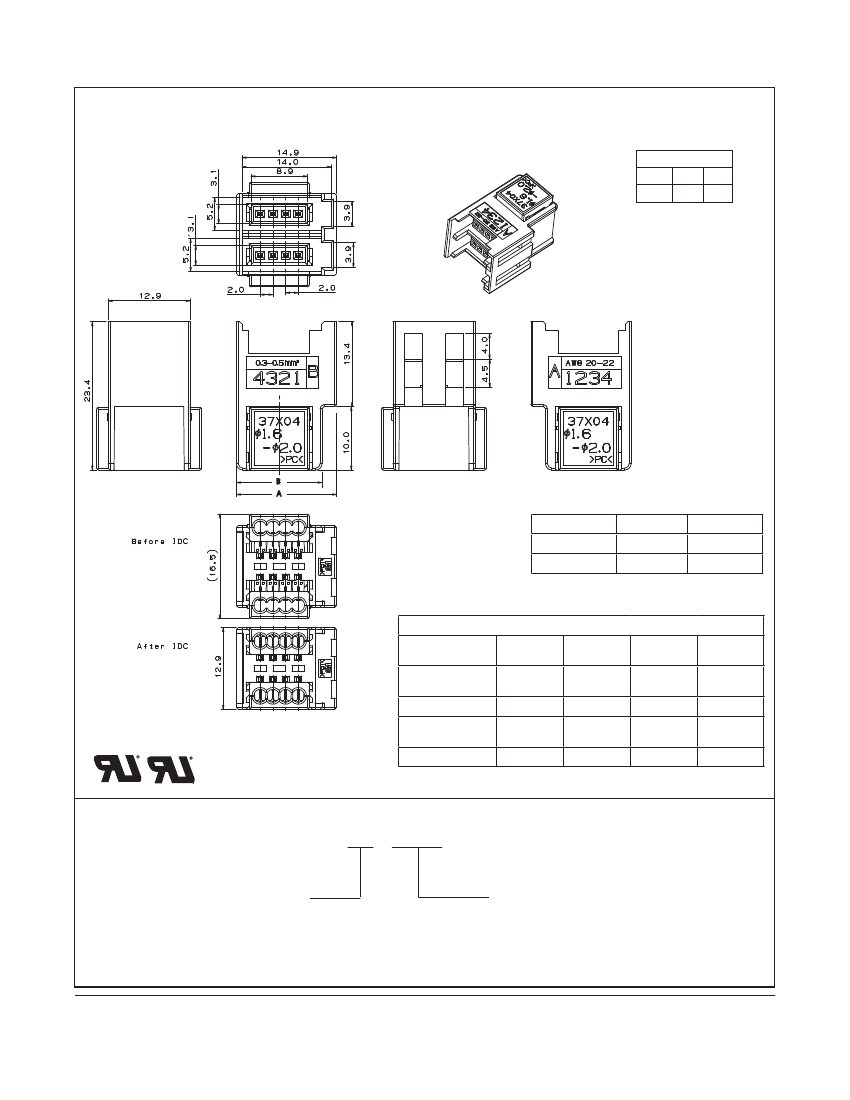

Mini-Clamp Socket
Designed for Wiring Supplied from Japan and Asia, 2 mm, IDC, Wiremount, Panel Mount
373 Series
• Designed to accommodate typical wiring specifications per
Japanese and Asian suppliers
• Latches available for Panel Mount applications
• No special wire preparation
• Integrated cable retention
• Design accepts multiple wire size diameters
• Easy, quick, and reliable IDC termination using a standard pliers
• Debris free wire termination
• Accepts plug latches for a reliable interconnection in demanding
applications
• High number of mating cycles
• Compact design saves board and panel space
• Reduces maintenance work by providing higher connection
reliability
• See Regulatory Information Appendix (RIA) for chemical
compliance information
Date Modified: April 2, 2008
TS-2094-C
Sheet 1 of 6
Physical
Insulation:
Material: Glass reinforced thermoplastic body and lower cover, transparent thermoplastic cover
Flammability: UL 94V-0
Color: Black body, cover—white and color (see Table 1)
Contact Material:
Copper Alloy
Plating:
Underplating: 2.54 µm [100 µ”] minimum Nickel
Wiping Area: 0.2 µm [8 µ”] minimum Gold with Lubricant
IDC: Nickel
Accommodation: Annealed Copper, high-strength Copper or Copper Alloy. Bare, tinned, or tin
overcoated, 20 ~ 26 AWG [ 0.14 ~ 0.5 ] stranded
Wire Insulation: Flexible vinyl, semi-rigid vinyl, x-linked polyethylene, or ETFE (see Table 1)
Marking:
3M Logo, Position Indicator, Wire Gauge, Insulator Material
Electrical
Current Rating:
Voltage Rating:
Insulation Resistance:
Withstanding Voltage:
3.0 Amps
32 Volts
>1 x 10
6
Ω
at 600 V
DC
1,000 V
RMS
at sea level
Environmental
Temperature Rating:
20°C to +85°C ambient (1.0 A max.)
-20°C to +75°C ambient (2.0 A max.)
-20°C to +60°C ambient (3.0 A max.)
(Note: UL rating is 65°C at 3.0A, 32V)
UL File No.: E68080
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Mini-Clamp Socket
Designed for Wiring Supplied from Japan and Asia, 2 mm, IDC, Wiremount, Panel Mount
3 or 4 Position
No Latch
373 Series
mm
[Inch]
Tolerance Unless Noted
0.0
mm
±.1
0.00
±.10
[ ] Dimensions for
Reference only
15.6
[.61]
Dim
A
Before
Termination
8.2
[.32]
# Postions
3
4
Dim A
13.8 [.54]
15.8 [.62]
After Termination
6.4
[.25]
Table 1
Wire Insulation
OD
Part #
20-22 AWG
Cover Color
Part #
24-26 AWG
Cover Color
1.6 ~ 2.0
[.063 ~ .079]
2206
Gray
1.2 ~ 1.6
[.047 ~ .063]
2165
Blue
3163
Orange
1.0 ~ 1.62
[.039 ~ .064]
2124
Green
3122
Yellow
3101
Red
0.8 ~ 1.0
[.031 ~ .039]
C
Ordering Information
373XX - XXXX - 000 FL
Positions
03 or 04
(RIA E1 & C1 apply)
Wire AWG & OD:
2XXX = 20-22 AWG
3XXX = 24-26 AWG
OD - (see Table 1)
TS-2094-C
Sheet 2 of 6
Note: Terminate using common pliers or 3M™ Sctochlok™ Crimping Tools E-9BM or E-9E
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Mini-Clamp Socket
Designed for Wiring Supplied from Japan and Asia, 2 mm, IDC, Wiremount, Panel Mount
3 or 4 Position
with Latch for Panel Mount
373 Series
mm
[Inch]
Tolerance Unless Noted
0.0
mm
±.1
0.00
±.10
[ ] Dimensions for
Reference only
Dim
A
# Postions
3
4
[Dim A]
23.4 [.92]
25.4 [1.0]
Table 1
Wire Insulation
OD
Part #
20-22 AWG
Cover Color
Part #
24-26 AWG
Cover Color
C
1.6 ~ 2.0
[.063 ~ .079]
2206
Gray
1.2 ~ 1.6
[.047 ~ .063]
2165
Blue
3163
Orange
1.0 ~ 1.62
[.039 ~ .064]
2124
Green
3122
Yellow
3101
Red
0.8 ~ 1.0
[.031 ~ .039]
Note: See page 4 for panel cutout.
Ordering Information
373XX - XXXX - 0P0 FL
Positions
03 or 04
(RIA E1 & C1 apply)
Wire AWG & OD:
2XXX = 20-22 AWG
3XXX = 24-26 AWG
OD - (see Table 1)
TS-2094-C
Sheet 3 of 6
Note: Terminate using common pliers or 3M™ Sctochlok™ Crimping Tools E-9BM or E-9E
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Mini-Clamp Socket
Designed for Wiring Supplied from Japan and Asia, 2 mm, IDC, Wiremount, Panel Mount
6 or 8 Position
No Latch
373 Series
mm
[Inch]
Tolerance Unless Noted
0.0
mm
±.1
0.00
±.10
[ ] Dimensions for
Reference only
B
A
# Postions
6 (3x2)
8 (4x2)
Dim A
13.8 [.54]
15.8 [.62]
Dim B
11.5 [.45]
13.5 [.53]
Table 1
Wire Insulation
OD
Part #
20-22 AWG
Cover Color
Part #
24-26 AWG
Cover Color
C
1.6 ~ 2.0
[.063 ~ .079]
2206
Gray
1.2 ~ 1.6
[.047 ~ .063]
2165
Blue
3163
Orange
1.0 ~ 1.62
[.039 ~ .064]
2124
Green
3122
Yellow
3101
Red
0.8 ~ 1.0
[.031 ~ .039]
Ordering Information
373XX - XXXX - 0W0 FL
Positions
06 or 08
(RIA E1 & C1 apply)
Wire AWG & OD:
2XXX = 20-22 AWG
3XXX = 24-26 AWG
OD - (see Table 1)
TS-2094-C
Sheet 4 of 6
Note: Terminate using common pliers or 3M™ Sctochlok™ Crimping Tools E-9BM or E-9E
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Mini-Clamp Socket
Designed for Wiring Supplied from Japan and Asia, 2 mm, IDC, Wiremount, Panel Mount
6 or 8 Position
with Latch for Panel Mount
373 Series
mm
[Inch]
Tolerance Unless Noted
0.0
mm
±.1
0.00
±.10
[ ] Dimensions for
Reference only
C
B
A
# Postions
6 (3x2)
8 (4x2)
Dim A
13.8 [.54]
15.8 [.62]
Dim B
11.5 [.45]
13.5 [.53]
Dim C
23.4 Ref.
25.4 Ref.
Table 1
Wire Insulation
OD
Part #
20-22 AWG
Cover Color
Part #
24-26 AWG
Cover Color
C
1.6 ~ 2.0
[.063 ~ .079]
2206
Gray
1.2 ~ 1.6
[.047 ~ .063]
2165
Blue
3163
Orange
1.0 ~ 1.62
[.039 ~ .064]
2124
Green
3122
Yellow
3101
Red
0.8 ~ 1.0
[.031 ~ .039]
Note: See page 4 for panel cutout.
Ordering Information
373XX - XXXX - 0M0 FL
Positions
06 or 08
(RIA E1 & C1 apply)
Wire AWG & OD:
2XXX = 20-22 AWG
3XXX = 24-26 AWG
OD - (see Table 1)
TS-2094-C
Sheet 5 of 6
Note: Terminate using common pliers or 3M™ Sctochlok™ Crimping Tools E-9BM or E-9E
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
