Board Connector, 18 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle

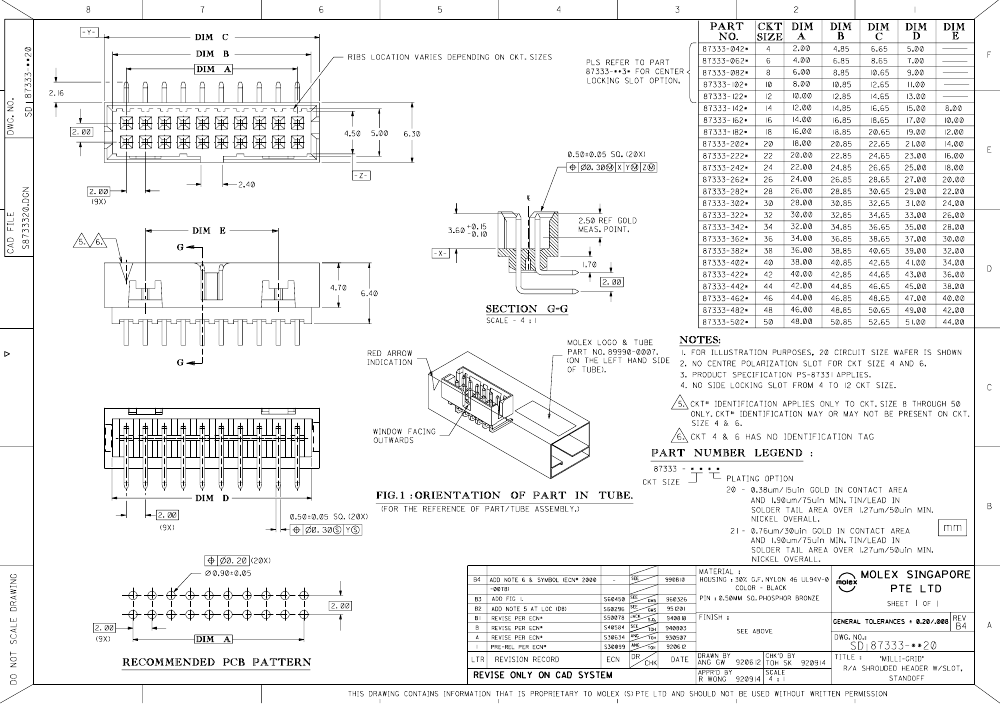

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Molex |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | MILLI-GRID, POLARIZED |
| body width | 0.248 inch |
| subject depth | 0.331 inch |
| body length | 0.813 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | TIN LEAD OVER NICKEL |
| Contact completed and terminated | Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier |
| Contact point gender | MALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 1000VAC V |
| Filter function | NO |
| IEC compliance | NO |
| Insulation resistance | 1000000000 Ω |
| Insulator color | BLACK |
| insulator material | NYLON |
| JESD-609 code | e0 |
| MIL compliance | NO |
| Manufacturer's serial number | 87333 |
| Plug contact pitch | 0.079 inch |
| Match contact row spacing | 0.079 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.0066 mm |
| Plating thickness | 15u inch |
| polarization key | CTR W/GUIDE SLOTS |
| Rated current (signal) | 2 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal length | 0.085 inch |
| Terminal pitch | 2 mm |
| Termination type | SOLDER |
| Total number of contacts | 18 |
| UL Flammability Code | 94V-0 |
| Base Number Matches | 1 |
| 87333-1820 | 87333-2620 | 87333-1220 | |
|---|---|---|---|
| Description | Board Connector, 18 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle | Board Connector, 26 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Guide Slot, Black Insulator, Receptacle, | Board Connector, 12 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle, |
| Is it Rohs certified? | incompatible | incompatible | incompatible |
| Maker | Molex | Molex | Molex |
| Reach Compliance Code | unknown | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 |
| Other features | MILLI-GRID, POLARIZED | MILLI-GRID, POLARIZED | MILLI-GRID, POLARIZED |
| body width | 0.248 inch | 0.248 inch | 0.248 inch |
| subject depth | 0.331 inch | 0.331 inch | 0.331 inch |
| body length | 0.813 inch | 1.128 inch | 0.577 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | TIN LEAD OVER NICKEL | TIN LEAD OVER NICKEL | TIN LEAD OVER NICKEL |
| Contact completed and terminated | Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier | Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier | Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier |
| Contact point gender | MALE | MALE | MALE |
| Contact material | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| DIN compliance | NO | NO | NO |
| Dielectric withstand voltage | 1000VAC V | 1000VAC V | 1000VAC V |
| Filter function | NO | NO | NO |
| IEC compliance | NO | NO | NO |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω |
| Insulator color | BLACK | BLACK | BLACK |
| insulator material | NYLON | NYLON | NYLON |
| JESD-609 code | e0 | e0 | e0 |
| MIL compliance | NO | NO | NO |
| Manufacturer's serial number | 87333 | 87333 | 87333 |
| Plug contact pitch | 0.079 inch | 0.079 inch | 0.079 inch |
| Match contact row spacing | 0.079 inch | 0.079 inch | 0.079 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO | NO | NO |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE |
| PCB row number | 2 | 2 | 2 |
| Number of rows loaded | 2 | 2 | 2 |
| Maximum operating temperature | 105 °C | 105 °C | 105 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 2.0066 mm | 2.0066 mm | 2.0066 mm |
| Plating thickness | 15u inch | 15u inch | 15u inch |
| polarization key | CTR W/GUIDE SLOTS | POLARIZED HOUSING | CTR W/GUIDE SLOTS |
| Rated current (signal) | 2 A | 2 A | 2 A |
| Guideline | UL, CSA | UL, CSA | UL, CSA |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.085 inch | 0.085 inch | 0.085 inch |
| Terminal pitch | 2 mm | 2 mm | 2 mm |
| Termination type | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 18 | 26 | 12 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 |
| Base Number Matches | 1 | 1 | 1 |
