FEATURES AND SPECIFICATIONS
Features and Benefits
2 to 12 circuits
Compatible with convection
or vapor phase soldering
Threaded retention inserts
Industry-standard interface
High flammability rating
Electrical
Voltage: 300 V
Maximum Current: 15 Amp
Insulation Resistance: >5,000 Megaohms
5.08mm (.200”) Pitch
Beau Eurostyle®
High Temperature
Header
39860, 39861
SMC w/Threaded Retention Inserts
Mechanical
Operating Temperature:
140 C
o
Reference Information
UL :
CSA:
File No. E48521
Guide No. XCFR2
File No. 025562
Physical
Housing: Nylon 4/6, UL94 V-0, black
Terminal: Brass
Terminal Plating:Tin
Retnetion Inserts: 2.5mm Brass
86 Series
A

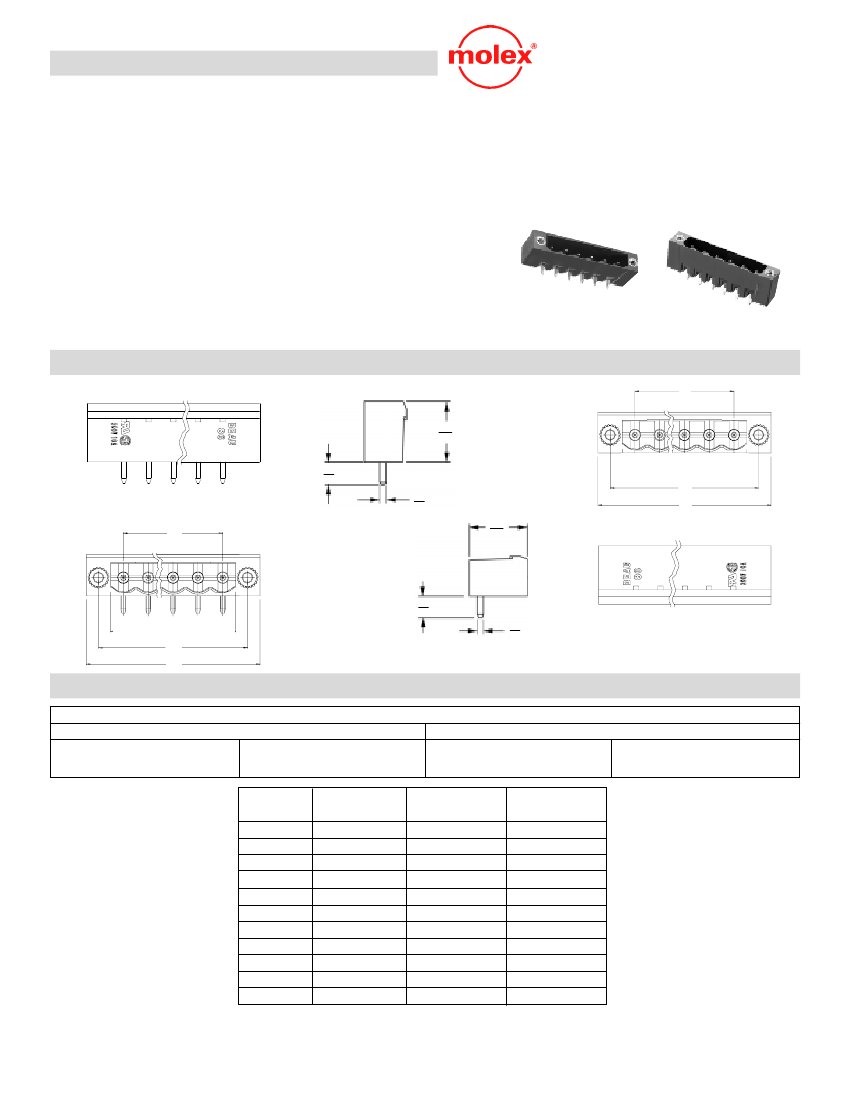

CATALOG DRAWING (FOR REFERENCE ONLY)
3986X-15XX
11.94
.47”
4.32
.17”
B
1.00
.039”
11.94
.47”
C
A
3986X-16XX
13.97
.55”
3.30
.13”
1.00
.039”
B
C
ORDERING INFORMATION AND DIMENSIONS
Order # (Engineering #)
Replace XX with # of circuits, 02-24
Vertical
Tin Plated
39860-15XX (8696XX)
Gold Plated
39861-15XX (8696XX-G30)
# of
Circuits
2
3
4
5
6
7
8
9
10
11
12
A
in
.20
.40
.60
.80
1.00
1.20
1.40
1.60
1.80
2.00
2.20
mm
5.1
10.2
15.2
20.3
25.4
30.5
35.6
40.6
45.7
50.8
55.9
in
.60
.80
1.00
1.20
1.40
1.60
1.80
2.00
2.20
2.40
2.60
B
mm
15.2
20.3
25.4
30.5
35.6
40.6
45.7
50.8
55.9
61.0
66.0
in
.80
1.00
1.20
1.40
1.60
1.80
2.00
2.20
2.40
2.60
2.80
Tin Plated
39860-16XX (8699XX)
C
mm
20.3
25.4
30.5
35.6
40.6
45.7
50.8
55.9
61.0
66.0
71.1
Right Angle
Gold Plated
39861-16XX (8699XX-G30)
*Consult factory for imprinting and other options
