26-20-2176: DescriptionBoard Connector, 17 Contact(s), 1 Row(s), Male, Straight, Solder Terminal; CategoryThe connector The connector; File Size522KB，5 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

26-20-2176 Overview

Board Connector, 17 Contact(s), 1 Row(s), Male, Straight, Solder Terminal

26-20-2176 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	3192
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	3.96 mm
Termination type	SOLDER
Total number of contacts	17
UL Flammability Code	94V-2
Base Number Matches	1

Preview

Download Datasheet

View All

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Sizes 2 to 18 circuits

End-to-end stackable

Reference Information

Product Speciﬁcation: PS-08-50

Packaging: Bag

UL File No.: E29179

CSA File No.: LR19980

Mates With: Molex 3.96mm (.156") pitch connectors

Designed In: Inches

Electrical

Voltage: 250V

Current: 7.0A

Contact Resistance: 20m

Ω

max.

Dielectric Withstanding Voltage: 1500V

Insulation Resistance: 500K M

Ω

min.

Mechanical

Mating Force: 24 oz max.

Unmating Force: 4 oz min.

Normal Force: 350g

Durability: 25 cycles Tin

Physical

Housing: Nylon, UL 94V-2

Contact: Brass, 1.14mm (.045") round

Plating: 5

m Tin and 0.51

m Gold

Operating Temperature: 0 to +75˚C

3.96mm (.156") Pitch

Header

3192

Vertical

Round Pin

3.00 to 7.92mm (.118 to .312") Pitch

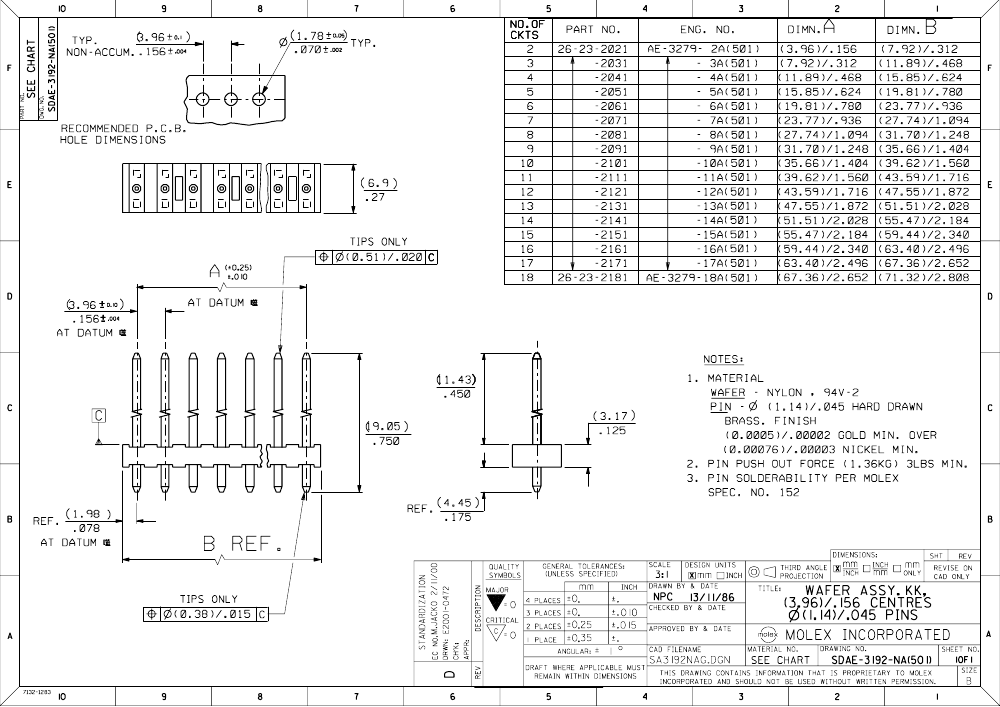

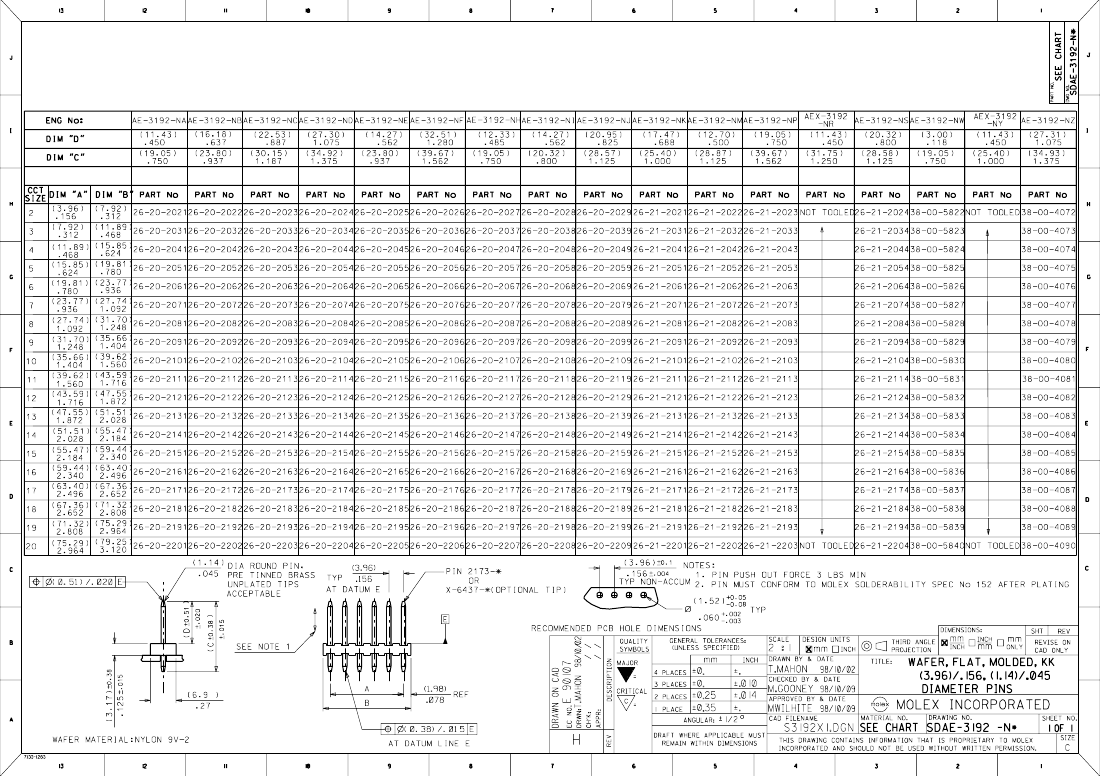

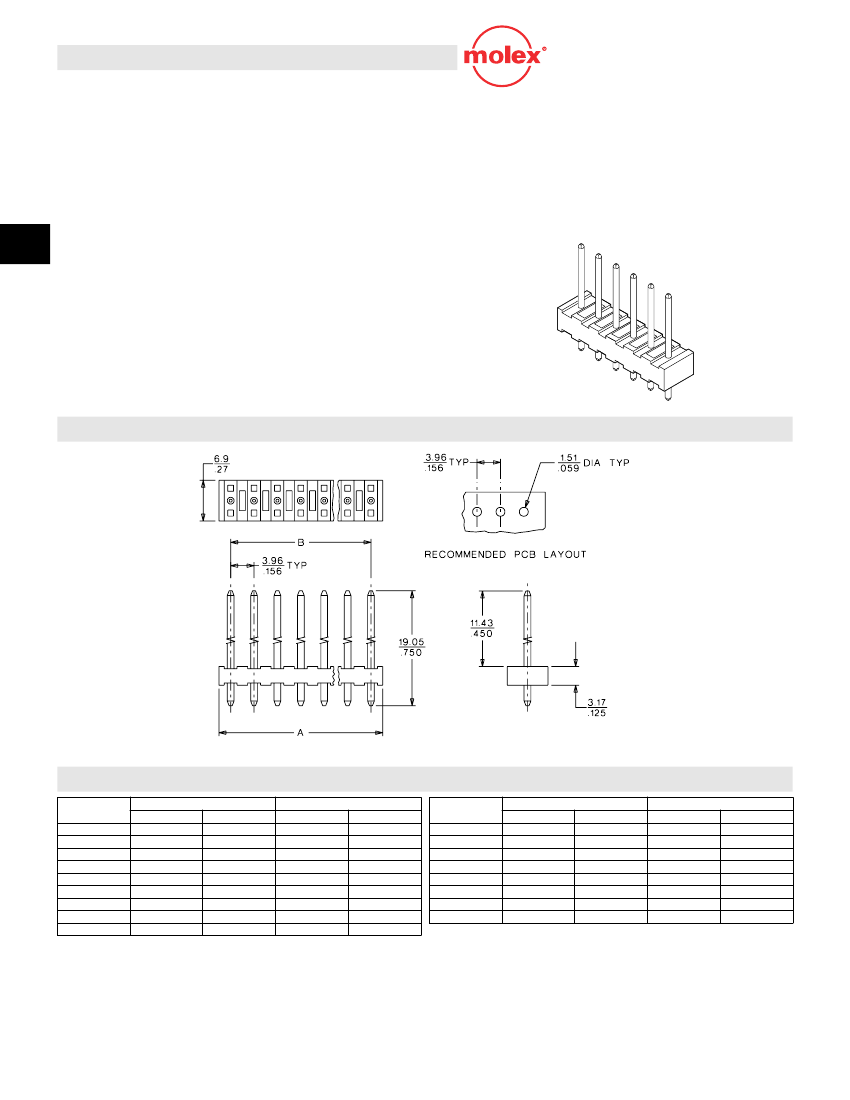

CATALOG DRAWING (FOR REFERENCE ONLY)

ORDERING INFORMATION AND DIMENSIONS

Circuits

Order No.

Tin

26-20-2021

26-20-2031

26-20-2041

26-20-2051

26-20-2061

26-20-2071

26-20-2081

26-20-2091

26-20-2101

Gold

26-23-2021

26-23-2031

26-23-2041

26-23-2051

26-23-2061

26-23-2071

26-23-2081

26-23-2091

26-23-2101

7.92

11.89

15.85

19.81

23.77

27.74

31.70

35.66

39.62

Dimension

(.312)

(.468)

(.624)

(.780)

(.936)

(1.092)

(1.248)

(1.404)

(1.560)

3.96

7.92

11.89

15.85

19.81

23.77

27.74

31.70

35.66

(.156)

(.312)

(.468)

(.624)

(.780)

(.936)

(1.092)

(1.248)

(1.404)

Circuits

Order No.

Tin

26-20-2111

26-20-2121

26-20-2131

26-20-2141

26-20-2151

26-20-2161

26-20-2171

26-20-2181

Gold

26-23-2111

26-23-2121

26-23-2131

26-23-2141

26-23-2151

26-23-2161

26-23-2171

26-23-2181

43.59

47.55

51.51

55.47

59.44

63.40

67.36

71.32

Dimension

(1.716)

(1.872)

(2.028)

(2.184)

(2.340)

(2.496)

(2.652)

(2.808)

39.62

43.59

47.55

51.51

55.47

59.44

63.40

67.36

(1.560)

(1.716)

(1.872)

(2.028)

(2.184)

(2.340)

(2.496)

(2.652)

D-26
