3P-CSNPBT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3P-CSNPBT

3P-CSNPBT: DescriptionCombination Line Connector, 3 Contact(s), Female, Crimp Terminal, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size120KB，2 Pages; ManufacturerJST; Environmental Compliance

Download Datasheet Parametric Compare View All

3P-CSNPBT Overview

Combination Line Connector, 3 Contact(s), Female, Crimp Terminal, Socket, ROHS COMPLIANT

3P-CSNPBT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	JST
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Other features	COMPACTABLE CONTACTS: SCSN-41T-P2.3
Body/casing type	SOCKET
Connector type	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	3P-CSNPBT
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	POLYBUTYLENE TEREPHTHALATE
Termination type	CRIMP
Total number of contacts	3
UL Flammability Code	94-HB
Base Number Matches	1

Preview

Download Datasheet

View All

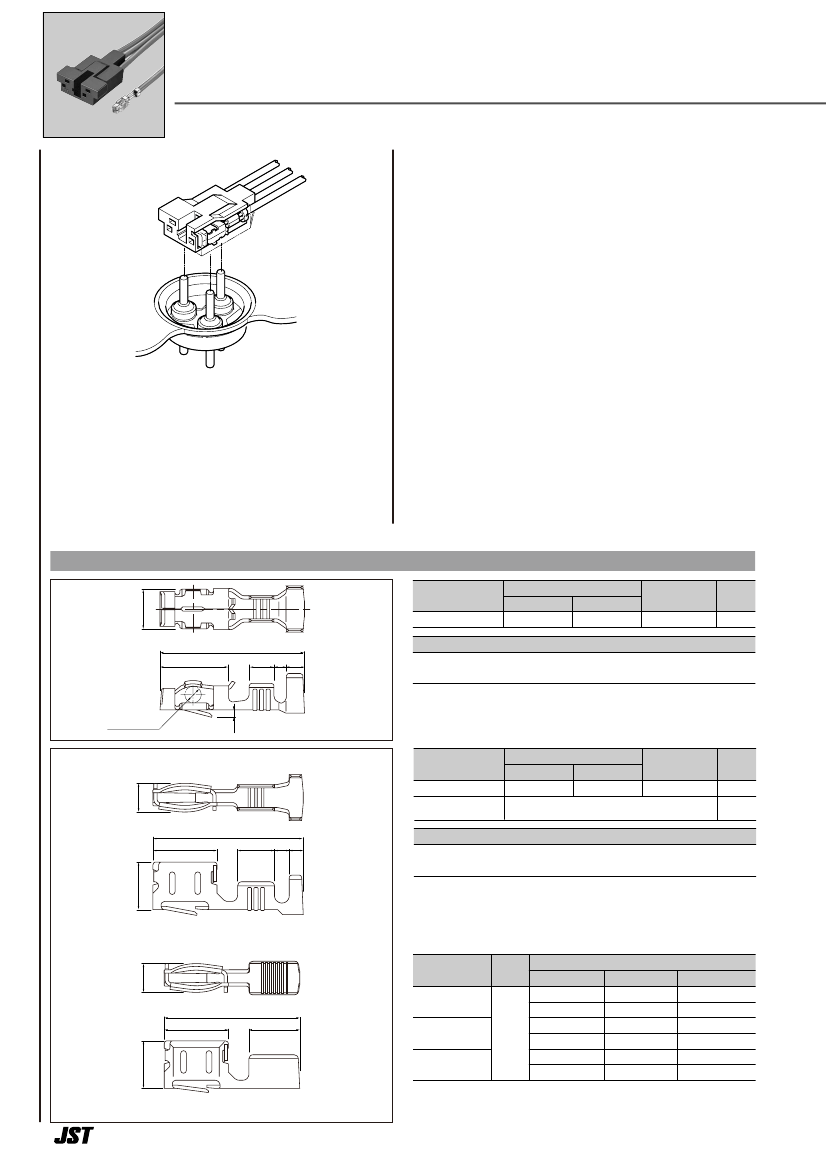

Three-pole socket for connecting cluster pins

CLUSTER SOCKET

This three circuit connector is used to

connect cluster pins (2.3mm in diameter) to

the leads of a motor hermetically sealed in

a compressor of a refrigerator or a freezer.

The contacts and housing are especially

designed and made of high-quality

materials for high heat resistance and

superior durability.

Contact

Standards ––––––––––––––––––––––

Certified LR20812

Recognized E60389

* Compliant with RoHS.

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

Model No.

5.0

Applicable wire

0.5∼1.25

AWG #

20∼16

Insulation O.D.

(mm)

1.9∼3.4

Q´ty /

reel

5,000

SCS-41T-2.3

18.0

8.3

3.0

1.5 2.2

Material and Finish

Phosphor bronze, tin-plated (reflow treatment)

RoHS compliance

0.9

Forφ2.3mm pin

Model No.

3.5

Applicable wire

0.5∼1.25

AWG #

20∼16

Insulation O.D.

(mm)

1.9∼3.2

Q´ty /

reel

3,000

SCSN-41T-P2.3

SCSN-60T-P2.3

18.3

7.8

4.5

1.8 1.7

0.7 mm +0.7 mm∼1.05 mm +1.05 mm

Material and Finish

Phosphor bronze, tin-plated

5.8

One wire crimping

3.5

RoHS compliance

Note: 1. SCSN-60T-P2.3 is for the use of one wire crimping. Contact JST for

details of regarding applicable wires.

2. Before use, the performance of this socket must be tested with the

wire that is to be used.

Applicator

Dies

MK/SCS-41-23

−

MK/SCSN-41-23

−

MK/SCSN-60-23

−

Contact

SCS-41T-2.3

16.5

7.8

6.2

Crimping

machine Crimp applicator

MK-L

−

MKS-L

−

MKS-L

−

Crimp applicator with dies

APLMK SCS41-23

−

APLMK SCSN41-23

−

APLMK SCSN60-23

−

SCSN-41T-P2.3

AP-K2N

5.8

SCSN-60T-P2.3

3P-CSNPBT Related Products

	3P-CSNPBT	3P-CSNMMC	3P-SCS-SP	3P-SCS-RPBT
Description	Combination Line Connector, 3 Contact(s), Female, Crimp Terminal, Socket, ROHS COMPLIANT	Combination Line Connector, 3 Contact(s), Female, Crimp Terminal, Socket, ROHS COMPLIANT	Combination Line Connector, 3 Contact(s), Female, Crimp Terminal, Socket, ROHS COMPLIANT	Combination Line Connector, 3 Contact(s), Female, Crimp Terminal, Socket, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	JST	JST	JST	JST
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	COMPACTABLE CONTACTS: SCSN-41T-P2.3	COMPACTABLE CONTACTS: SCSN-60T-P2.3	COMPACTABLE CONTACTS: SCS-41T-2.3	COMPACTABLE CONTACTS: SCS-41T-2.3
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO
empty shell	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	3P-CSNPBT	3P-CSNMMC	3P-SCS-SP	3P-SCS-RPBT
Mixed contacts	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	POLYBUTYLENE TEREPHTHALATE	PHENOLIC	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Termination type	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	3	3	3	3
UL Flammability Code	94-HB	94V-0	94-HB	94-HB
Base Number Matches	1	1	1	1
