0050290042 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Rectangular connection> 0050290042

0050290042: Description11 位置插座连接器 0.156"（3.96mm）板边缘，通孔，直角锡; CategoryThe connector Rectangular connection; File Size141KB，5 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

0050290042 Overview

11 位置插座连接器 0.156"（3.96mm）板边缘，通孔，直角锡

0050290042 Parametric

Parameter Name	Attribute value
category
Maker	Molex
series	KK396, 2145
Package	tray
Connector type	socket
Contact type	female socket
style	Board to Board or Cable
Number of needles	11
加载的针位数	all
Spacing - Mating	0.156"（3.96mm）
Number of rows	1
排距 - 配接	-
Installation type	Board edge, through hole, right angle
Termination	welding
Fastening type	Lock pin slide
Contact surface treatment - mating	tin
Contact Surface Treatment Thickness - Mating	60.0µin（1.52µm）
Insulation color	White
Insulation height	0.308"（7.82mm）
接触长度 - 柱	0.145"（3.68mm）
Operating temperature	-40°C ~ 105°C
Material flammability rating	UL94 V-2
Contact Surface Preparation - Column	tin
Joint stack height	-
Intrusion protection	-
characteristic	Plate hook
Rated current (amps)	5A
Rated voltage	600V
application	Automotive, general, medical, telecommunications
Insulation Materials	Polyamide (PA), nylon
Contact shape	Square
Contact material	Phosphor bronze
Contact Surface Treatment Thickness - Column	60.0µin（1.52µm）
Basic product number	005029

Preview

Download Datasheet

View All

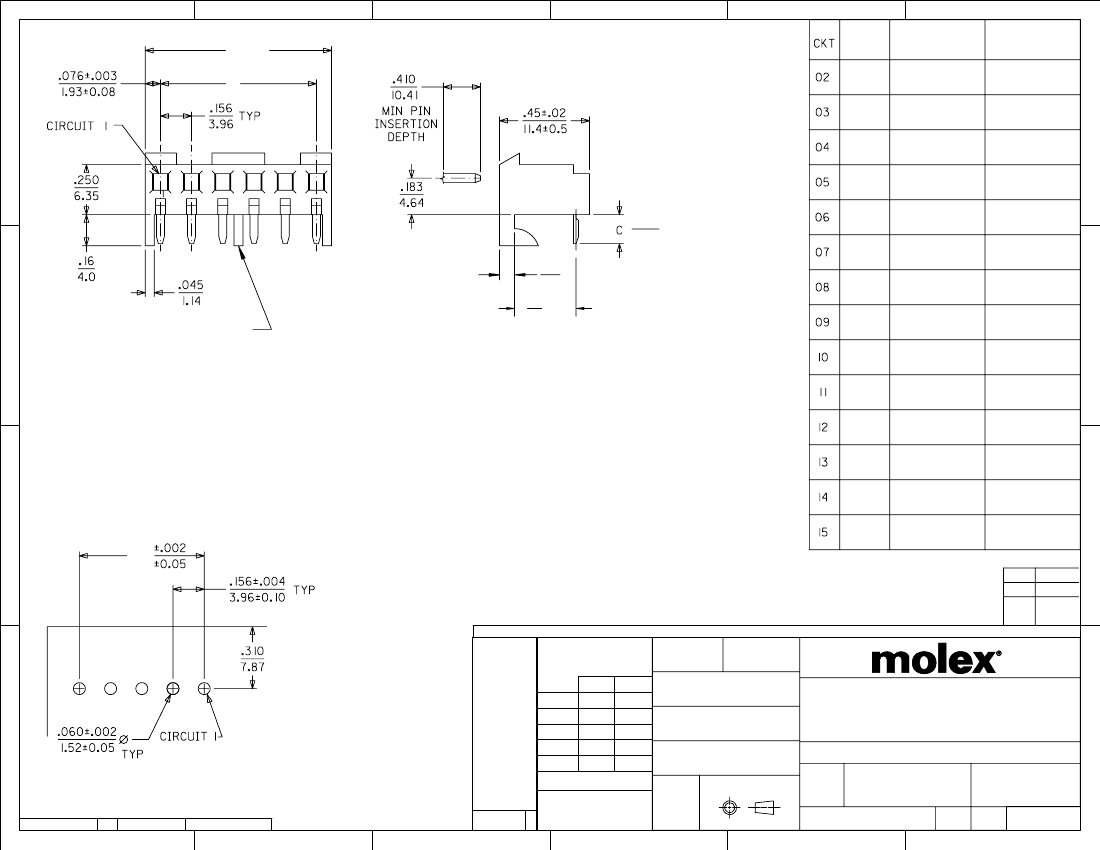

A REF

.308

7.82

.464

11.79

.620

15.75

CENTER HOOK(S)

LOCATED BETWEEN

CIRCUITS

.156

.005

3.96

0.13

.312

.005

7.92

0.13

.468

.005

11.89

0.13

.624

.005

15.85

0.13

.780

.005

19.81

0.13

.936

.010

23.77

0.25

1.092

.010

27.74

0.25

1.248

.010

31.70

0.25

1.404

.010

35.66

0.25

1.560

.010

39.62

0.25

1.716

.010

43.59

0.25

1.872

.010

47.55

0.25

2.028

.014

51.51

0.36

2.184

.014

55.47

0.36

NONE

4&5

5&6

4 & 5,

8&9

6 & 7,

11 & 12

5 & 6,

9 & 10

5 & 6,

10 & 11

REF

.776

19.71

+.038

-.000

+0.97

-0.00

.075

1.91

.932

23.67

1.088

27.64

1.244

31.60

1.400

35.56

1.556

39.52

1.712

43.48

1.868

47.45

2.024

51.41

2.180

55.37

2.336

59.33

SEE NOTE 8

CENTER HOOK(S)

SEE CHART FOR LOCATION(S)

.31

7.9

REF

NOTES:

1. HOUSING MATERIAL: NYLON, UL 94V-2

2. FINISH:

(197) OVERALL REFLOWED MATTE TIN: 0.00152/.000060 MIN.

OVER 0.00127/.000050 MIN. NICKEL OVERALL.

(208) SELECT GOLD: .000015/0.00038 MIN.

SELECT TIN: .000100/0.00254 MIN.

OVERALL NICKEL UNDERPLATE: .000050/0.00127 MIN.

(909) OVERALL HOT TIN DIP: .000100/0.00254 MIN.

3. PRODUCT SPECIFICATION: PS-08-50

4. PACKAGING INFO: SEE CHARTS.

5. SOLDERABILITY SPECIFICATION: SMES-152.

6. TOP ENTRY OPTIONS: SEE DRAWING SDA-2145-002.

7. BOTTOM ENTRY OPTIONS: SEE DRAWING SDA-2145-003

8. .183/4.64 DIMENSION IS BOTTOM OF HOUSING TO CENTER OF MATING PIN AND

DOES NOT REFLECT CENTER OF THE CONNECTOR HOUSING WINDOW DIMENSION.

9. THIS PART CONFORMS TO CLASS B REQUIREMENTS OF COSMETIC SPECIFICATION

PS-45499-002.

2016/08/22

2016/08/24

2016/08/26

DIMENSION UNITS

REV.

SHT

THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

GENERAL TOLERANCES

(UNLESS SPECIFIED)

SCALE

INCH/MM

DRWN BY

DATE

NTS

DIM C TOLERANCE

INCH

0.01

0.015

4 PLACES

3 PLACES

2 PLACES

0.25

107740

MKIPPER

JBELL

FSMITH

SAMIEC

CHK'D BY

DATE

1998/10/09

DATE

PCB LAYOUT: COMPONENT SIDE

RECOMMENDED PCB THICKNESS: .062/1.57

RELEASE STATUS

FORMAT: Eng-lega-master-tb-prod-A

REVISION: C

DATE: 2016/02/04

SAMIEC

APPR BY

KK 156 PCB ASSY

RIGHT ANGLE ENTRY

PRODUCT CUSTOMER DRAWING

SERIES

MATERIAL NUMBER

CUSTOMER

1 PLACES

0.38

0 PLACES

ANGULAR TOL

SAMIEC

DRAWING SIZE

1998/10/09

THIRD ANGLE PROJECTION

EC NO:

DRWN:

CHK'D:

APPR:

RELEASE DATE

DRAFT WHERE APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

REV

2145

DOCUMENT NUMBER

SEE CHART

GENERAL MARKET

DOC TYPE DOC PART

SHEET NUMBER

SDA-2145-001

PSD

000

1 OF *
