2-1478915-1 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 2-1478915-1

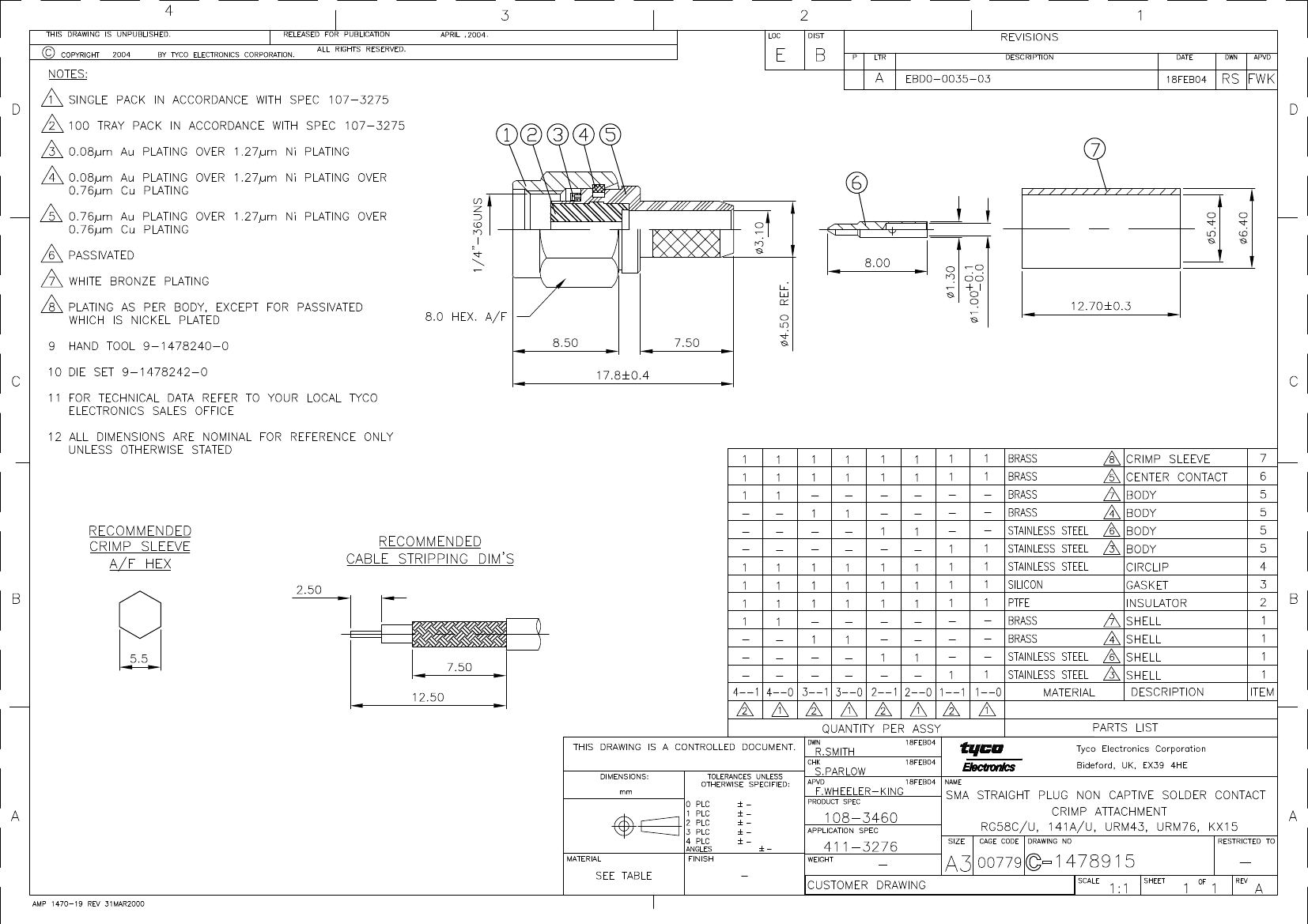

Preview

2-1478915-1: DescriptionSMA CONNECTOR, PLUG; CategoryThe connector The connector; File Size92KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

2-1478915-1 Overview

SMA CONNECTOR, PLUG

2-1478915-1 Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
ECCN code	EAR99
subject depth	0.7 inch
Body/casing type	PLUG
Cable type	RG-58C/U
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	GOLD (30) OVER NICKEL
Contact point gender	MALE
Contact style	COAX
DIN compliance	NO
IEC compliance	NO
insulator material	POLYTETRAFLUOROETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	1478915
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	PANEL
Number of ports	1
Maximum operating temperature	165 °C
Options	GENERAL PURPOSE
reliability	COMMERCIAL
Shell material	STAINLESS STEEL
Termination type	SOLDER LUG
Total number of contacts	1
Base Number Matches	1

Preview

Download Datasheet

View All

2-1478915-1 Related Products

	2-1478915-1	1-1478915-1	3-1478915-1	4-1478915-1
Description	SMA CONNECTOR, PLUG	SMA CONNECTOR, PLUG	SMA CONNECTOR, PLUG	SMA CONNECTOR, PLUG
Reach Compliance Code	unknown	unknow	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
subject depth	0.7 inch	0.7 inch	0.7 inch	0.7 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG
Cable type	RG-58C/U	RG-58C/U	RG-58C/U	RG-58C/U
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL
Contact completed and terminated	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE
Contact style	COAX	COAX	COAX	COAX
DIN compliance	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
insulator material	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUOROETHYLENE
JESD-609 code	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	1478915	1478915	1478915	1478915
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	PANEL	PANEL	PANEL	PANEL
Number of ports	1	1	1	1
Maximum operating temperature	165 °C	165 °C	165 °C	165 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell material	STAINLESS STEEL	BRASS	STAINLESS STEEL	STAINLESS STEEL
Termination type	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Total number of contacts	1	1	1	1
Base Number Matches	1	1	1	-
