KISSLING
SINGLE POLE BI-STABLE RELAYS
Series 30 / 300A - from TE Connectivity (TE)

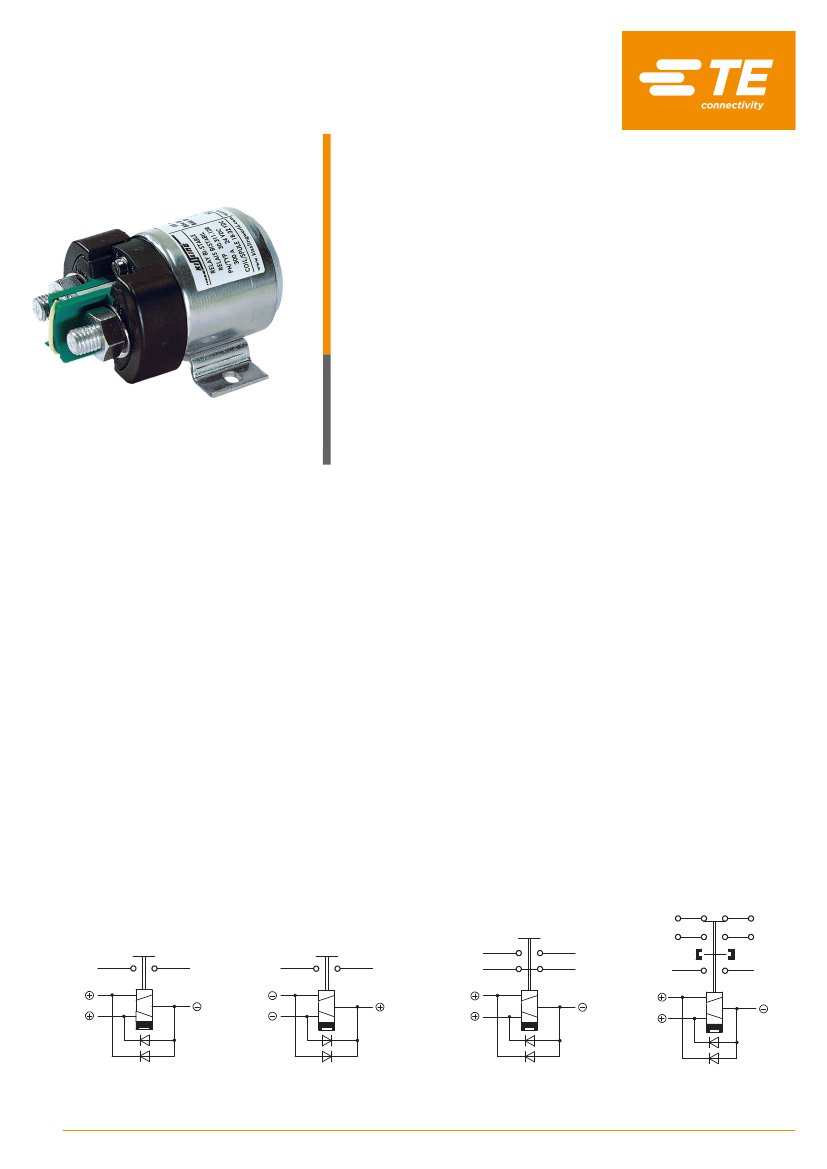

The series 30 bi-stable relay meets even the most difficult operating
requirements and is suited for various applications in severe conditions
on commercial vehicles, buses, construction & agricultural vehicles,
ground support equipment and fork lifts.
These relays are available with a wide variety of configuration options
including different contact configurations and coil voltages to have the
right product for your needs.
Other important advantages are low heat generation in the contact
area based on low contact voltage drop, a compact design, silver alloy
contact material and the use of mechanical and high thermal stability
insulating compounds. Both the terminals and the housing are protect-
ed against corrosion. Furthermore, our relays are characterized by high
shock and vibration characteristics and a low voltage drop.
By equipping the relays with blow-out magnets, contact voltages up to
250VDC are possible. The use of blow-out magnets is recommended
for contact voltages over 40VDC and blow-out magnets are also rec-
ommended for inductive load applications to maintain long contact life
at all voltages.
Features
• Sealed housing conforms to IP6K9K
• Robust design
• Variety of configuration options
• 6G shock and 4G vibration resistant
• Main contact current rated for continu-
ous current and 100% duty cycle
Applications
• Commercial vehicles
• Bus
• Lift truck
• Ground support equipment
• Construction and agricultural vehicles
Circuits
NO-Contact
Standard type
common -
NO-Contact
Special type reversed polarity
common +
NO/NC-Contact
NO-Contact
Auxiliary contact
/ Magnetic blowout
87y
88y
88
88
86a
86b
85
88a
85a
85b
86
88
88a
86a
86b
85
87
88a
87a
86a
86b
85
88
88a
87b
88b
Suppression diode
30-200-50
Suppression diode
30-200-59
Suppression diode
30-200-50
Suppression diode
30-200-50
Industrial & Commercial Transportation
/ Series 30 - 300A
Page 1
SERIES 30
300A
Specification
Technical Data
Temperature range
Protection
Shock
Vibration
Thread sizes / Torque
Electrical Characteristics
Min. Insulation resistance
After live or environment
Dielectric withstanding voltage
Max. Contact drop, initial
Contact drop after life test
Continuous current
Overload
Rated contact load
Resistive load
Mechanical life
Coil Data
Voltage range
Nominal voltage
Pick up voltage
Drop out voltage min.
Pull in coil resistance
Pull in current approx.
Drop out coil resistance
Drop out current approx.
Pick up impulse time approx.*
Drop out impulse time approx.*
* (continuous impulse max.1 min)
-40°C to +85°C
IEC 60529 / DIN 40050-9 / IP67 (0,2bar; 1min) and IP6K9K
6g / 11msec
4g / 50 - 2000Hz
M4 = 2.0 - 2.2Nm
|
M10 = 15 - 20Nm
100MΩ
50MΩ
1050VAC / 1min at 50Hz
150mV
175mV
300A
2400A - 1sec / 600A - 20sec
12 and 24 / 28VDC
50.000 cycles 300A
100.000 cycles
12VDC
9-16VDC
12VDC
≥
9VDC
≥
7VDC
1.8Ω ± 20%
6.6A
2.0Ω ± 20%
6.0A
50ms
50ms
24 / 28VDC
18-32VDC
28VDC
≥
13VDC
≥
10VDC
7.8Ω ± 20%
3.0A
8.4Ω ± 20%
2.8A
50ms
50ms
24VDC NO/NC
18-32VDC
28VDC
≥
13VDC
≥
10VDC
4.1Ω ± 20%
6.8A
6.4Ω ± 20%
4.4A
50ms
50ms
36VDC
27-48VDC
36VDC
≥
20VDC
≥
15VDC
18Ω ± 20%
approx. 1.9A
21.8Ω ± 20%
approx. 1.6A
50ms
50ms
Operating times
Operate
Bounce
Release
Wire Section
Mounting position
NO-Contact
Changeover NO-Contact
Changeover NC-Contact
max. 15msec
max. 5msec
max. 10msec
max. 25msec
max. 5msec
max. 20msec
max. 30msec
max. 8msec
max. 35msec
min. 95mm
2
/ 0.147 sq.inch / AWG 4-0
optional
Industrial & Commercial Transportation
/ Series 30 - 300A
Page 2
SERIES 30
300A

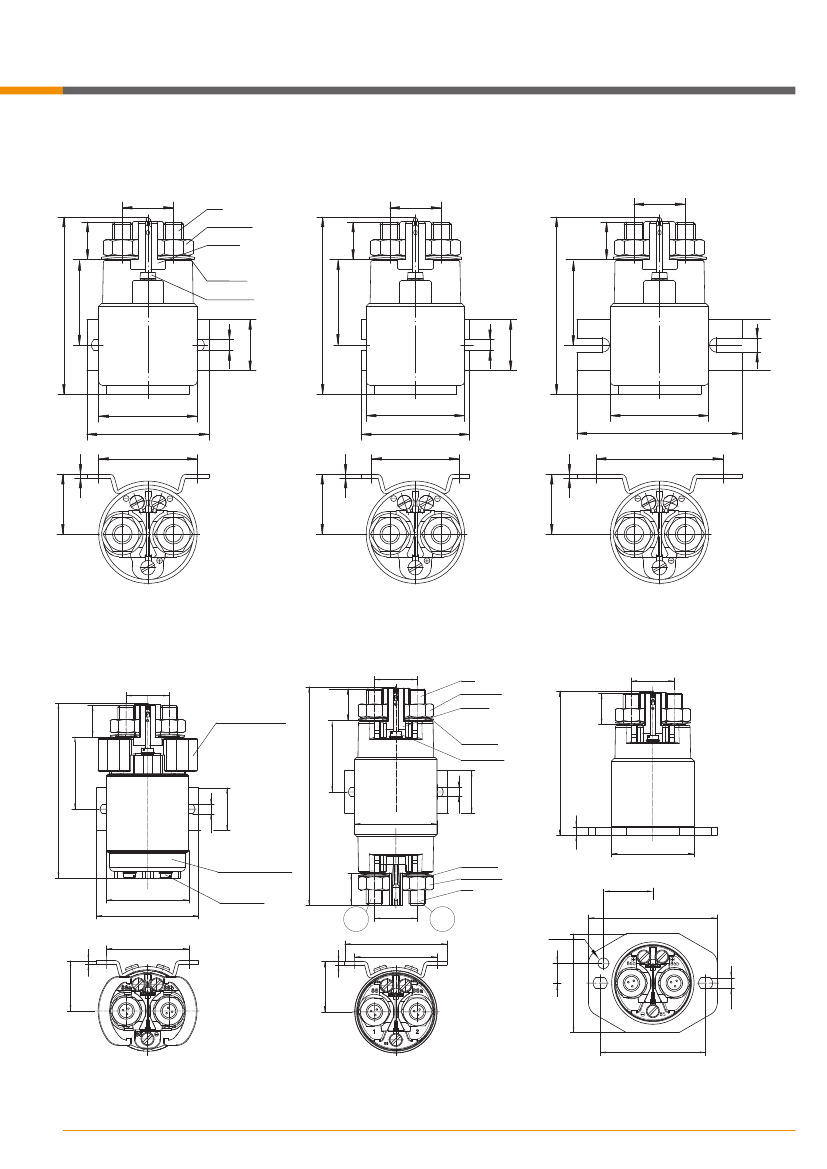

Technical drawings
Standard side mounting
26
M10
M10 DIN 934
OPTIONAL
REPLACEABLE BARRIER
B10 DIN 137
43.5
±
0.5
43.5
±
0.5
90
90
90
M4x6 ISO 1207
43.5
±
0.5
19
19
19
Short form side mounting
26
Long form side mounting
26
26
26
5.5
5.5
Ø 50
62
50
Ø 50
55
40
Ø 50
84
58
30.5
±
0.5
30.5
±
0.5
30.5
±
0.5
2
2
2
85a
85b
85a
85b
85a
85b
86
86
86
Options:
Auxiliary contacts, magnetic blowouts
26
Change-over NO/NC
26
26
Bottom mounting
26
M10
M10 DIN 934
Optional
REPLACEABLE
BARRIER
B10 DIN 137
M4x6 ISO 1207
90
90
±
1
19
26
19
MAGNETIC
BLASMAGNET
BLOWOUTS
MAGNETIC BLOWOUTS
19
19
43,5
±
0.5
106
±
1
106±1
133 ± 1
64
±
0.5
64
26
5.5
5.5
Ø 50
5.5
26
26
19
AUXILIARY
CONTACT
Ø 50
50
30
78
HILFSKONTAKTEINHEIT
AUXILIARY CONTACT
19
Ø 50
62
62
50
M4 ISO 1580
M4x6 ISO 1207
B10 DIN 137
M10 DIN 934
M10
26
62
50
87
87a
Ø 6.5
5
5
78
50
30,5
2
30.5
±
0.5
30.5
±
0.5
12
2
2
86a
86b
62
60
50
85a
85b
60
86
85
64
64
Industrial & Commercial Transportation
/ Series 30 - 300A
6.5
6.5
7.2
Page 3
26
SERIES 30
300A
Ordering Information
Part Number
example: 30.311.02
30.3_ _._ _ _
Current
2
Current 300A
Options
A
B
Auxiliary contacts*
Make and Break = 2A
Continuous current = 2AMP
Contacts
1
2
Make contact NO
Change over NO/NC*
Magnetic blowout
(required over 40VDC)
* Not possible for bottom mounting
Coil voltage
1
2
0
1
12V
24 / 28V
* Only mounting type 1 possible
Mounting
1
2
3
4
Standard side mounting
Short form side
Bottom mounting
Long form side
Suppression
Without suppression
With suppression
