304233K000-21

Description
Board Connector, 423 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Hole .099-.111, Black Insulator, Receptacle
CategoryThe connector    The connector
File Size62KB,1 Pages
ManufacturerThomas & Betts Corporation
Websitehttp://www.tnb.com/
Download Datasheet Parametric View All

304233K000-21 Overview

Board Connector, 423 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Hole .099-.111, Black Insulator, Receptacle

304233K000-21 Parametric

Parameter NameAttribute value
MakerThomas & Betts Corporation
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresXD/P
Board mount optionsHOLE .099-.111
body width0.485 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedTIN OVER NICKEL
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage1000VDC V
Filter functionNO
IEC complianceNO
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED THERMOPLASTIC
MIL complianceNO
Manufacturer's serial number30
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Mixed contactsNO
Installation option 1HOLE .099-.111
Installation option 2NON-THREADED
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number3
Number of rows loaded3
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
Plating thickness30u inch
polarization keyENDS
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts423
UL Flammability Code94V-0
Base Number Matches1

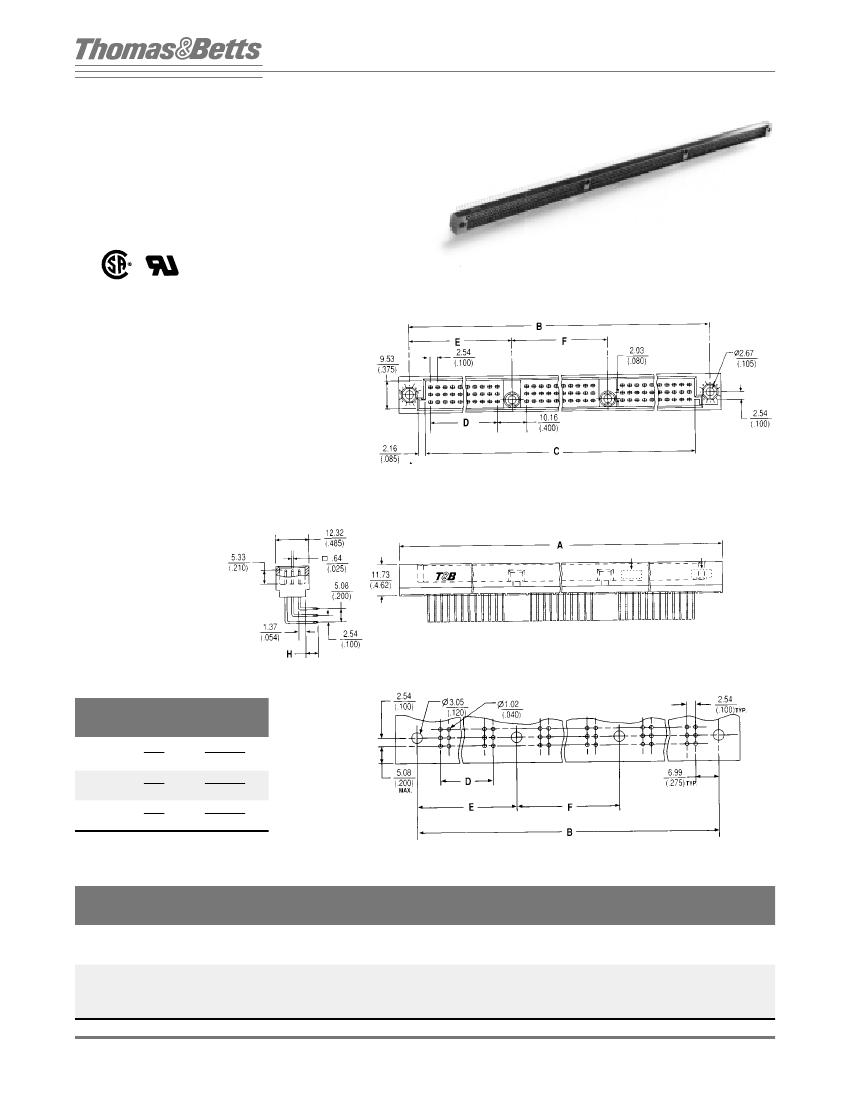

Two–Piece Connectors
XD/P System
THREE ROW, THREE CELL
RIGHT ANGLE MALE
XD/P
CONNECTORS
378-450 POSITIONS
TWO CENTER MOUNTING
FEATURES
LR49571
E60980
P
HYSICAL
P
ROPERTIES
Insulation Material: Glass filled thermoplastic
rated UL 94V-0
Color: Black
Contacts: Copper alloy, nickel plate overall, 30
microinches gold plating in contact zone, tin/lead
or gold on posts
E
LECTRICAL
P
ROPERTIES
Current Rating: 2 amps/pin
Insulation Resistance: >1 x 10
9
0hms
Dielectric Strength: > 1000 VDC at sea level
E
NVIRONMENTAL
P
ROPERTIES
Temperature Rating: -55˚C TO 125°C
M
OUNTING
H
ARDWARE
See pages 310-314
S
ELECTIVE
L
OADING
/
S
EQUENTIAL
M
ATING
See pages 308-309
Recommended Printed Circuit Board Layout
X
J
K
L
H
TAIL LENGTH
3.05
(.120)
3.81
(.150)
4.57
(.180)
RECOMMENDED
PCB THICKNESS
RANGE
1.2 - 2.0
(.047 - .077)
2.0 - 2.8
(.078 - .109)
2.8 - 3.6
(.110 - .140)
Ordering Information
NO.
OF
POS.
378
387
405
423
450
PART NUMBER
SPECIFY X
A
B
346.71 (13.650)
354.33 (13.950)
369.57 (14.550)
384.81 (15.150)
407.67 (16.050)
C
336.55 (13.250)
344.17 (13.550)
359.41 (14.150)
374.65 (14750)
397.51 (15.650)
D
104.14 (4.100)
106.68 (4.200)
111.76 (4.400)
116.84 (4.600)
124.46 (4900)
E
116.21 (4 575)
118.75 (4.675)
123.83 (4.875)
128.91 (5.075)
136.53 (5.375)
F
114.30 (4.500)
116.84 (4.600)
121.92 (4.800)
127.00 (5.000)
134.62 (5.300)
303783X000-21 354.33 (13.950)
303873X000-21 361.95 (14.250)
304053X000-21 377.19 (14.850)
304233X000-21 392.43 (15.450)
304503X000-21 415.29 (16.350)
eg. 304503A000-21
Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312
Dimensions shown are for reference only. Dimensions are in millimeters (inches).
