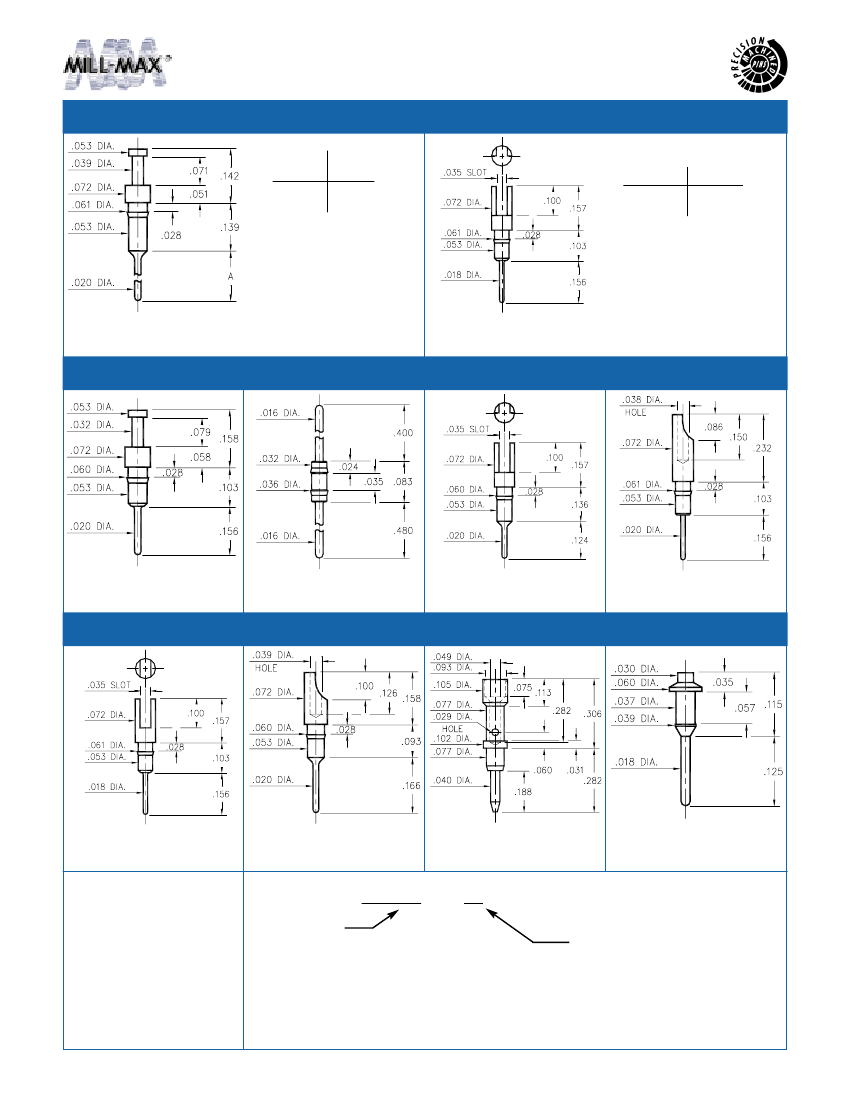

PRINTED CIRCUIT PINS
3408
Basic Part
Number
Pin Length
A
0270/0282
3408-1
3408-2
.121
.181
Basic Part
Number
0270-0
0282-0
Pin
Material
Ph Br 544 (B2)
Brass 360
3408-X-00-XX-00-00-03-0
Press-fit in .057 mounting hole
02XX-0-01-XX-00-00-03-0
Press-fit in .057 mounting hole
0700
8006
0265
0275
0700-0-00-XX-00-00-03-0
Press-fit in .057 mounting hole
8006-0-00-XX-00-00-03-0
Press-fit in .034 mounting hole
0265-0-01-XX-00-00-03-0
Press-fit in .057 mounting hole
0275-0-01-XX-00-00-03-0
Press-fit in .057 mounting hole
Pin material is Ph. Br. 544 (B2)
0272
8000
3603
9976
0272-0-01-XX-00-00-03-0
Press-fit in .057 mounting hole
8000-0-01-XX-00-00-03-0
Press-fit in .057 mounting hole
3603-0-07-XX-00-00-08-0
Annealed
#20 Crimp barrel
9976-0-00-XX-00-00-03-0
Press-fit in .038 mounting hole
SPECIFICATIONS
PIN MATERIAL:
Brass Alloy 360, 1/2 Hard
(Except where noted)
DIMENSION IN INCHES
TOLERANCES ON:
LENGTHS:
±.005
DIAMETERS: ±.002
ANGLES:
± 2°
ORDER CODE: XXXX - X - 0X - XX - 00 - 00 - 0X - 0
BASIC PART #
SPECIFY PIN FINISH:
01
200µ"
TIN/LEAD OVER
NICKEL
15
10µ"
GOLD OVER
NICKEL
21
20µ"
GOLD OVER
NICKEL
34
50µ"
GOLD OVER
NICKEL
