3,96U6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3,96U6

3,96U6: DescriptionBoard Connector, 6 Contact(s), 1 Row(s), Male, Straight, Solder Terminal; CategoryThe connector The connector; File Size162KB，1 Pages; ManufacturerLumberg; Websitehttp://www.lumberg.com/zh/

Download Datasheet Parametric View All

3,96U6 Overview

Board Connector, 6 Contact(s), 1 Row(s), Male, Straight, Solder Terminal

3,96U6 Parametric

Parameter Name	Attribute value
Maker	Lumberg
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	3,96U
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	3.96 mm
Termination type	SOLDER
Total number of contacts	6
Base Number Matches	1

Preview

Download Datasheet

View All

3,96 R

3,96 RF

3,96 RFL

3,96 U

3,96 UF

3,96 UFL

3,96 R

3,96 U

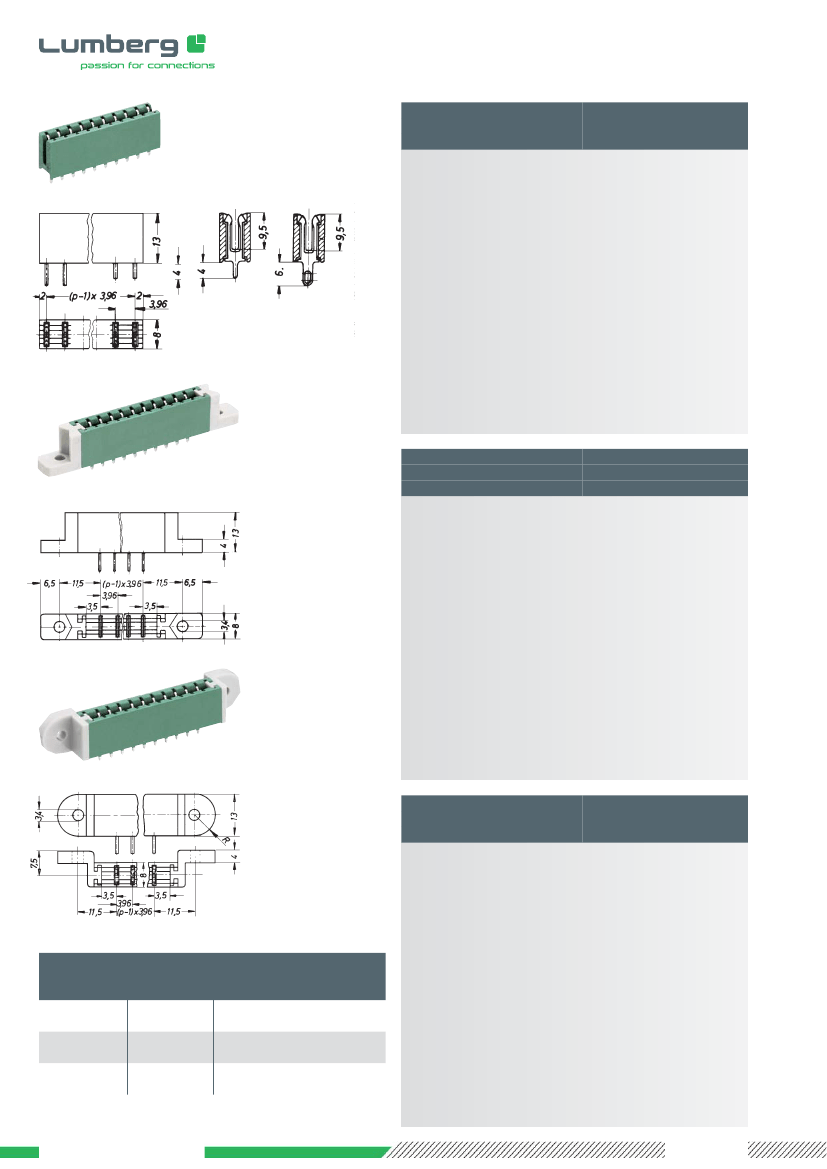

Buchsenleiste für direktes Stecken, mit und ohne vormon-

tiertem Flanschpaar F/FL

3,96 R(...): mit Lötstiften

3,96 U(...): mit Lötösen

1. Temperaturbereich

2. Werkstoffe

Kontaktträger

Flansch

Kontaktfeder

3. Mechanische Daten

Kontaktierung mit

4. Elektrische Daten

Durchgangswiderstand

Bemessungsstrom

Bemessungsspannung

Prüfspannung

nach DIN EN 60664/IEC 60664

≤

3 mΩ

250 V AC

≥

2,5 kV eff.

Leiterplatte 1,5 ± 0,14 mm

-25 °C/+100 °C

PPO

CuSn, vernickelt und verzinnt

3,96 RF

3,96 R

3,96 RF

3,96 RFL

3,96 U

3,96 UF

3,96 UFL

Socket board for direct mating, with and without mount-

ed pair of flanges F/FL

3,96 R(...): with solder pins

3,96 U(...): with solder eyes

1. Temperature range

2. Materials

Insulating body

Flange

Contact spring

3. Mechanical data

-25 °C/+100 °C

PPO

CuSn, nickeled and tinned

3,96 RFL

Mating with

4. Electrical data

printed circuit board 1.5 ± 0.14 mm

Contact resistance

≤

3 mΩ

Rated current

250 V AC

Rated voltage

Test voltage

≥

2.5 kV eff.

according to DIN EN 60664/IEC 60664

3,96 R

3,96 RF

3,96 RFL

3,96 U

3,96 UF

3,96 UFL

Réglette à prises femelles pour enfichage direct, avec et

sans collets F/FL attachés

3,96 R(...): avec plots à souder

3,96 U(...): avec cosses à souder

1. Température d’utilisation

Bestellbezeichnung

Designation

Désignation

Polzahl

poles

pôles

Verpackungseinheit

Package unit

Unité d’emballage

2. Matériaux

Corps isolant

Collet

Ressort de contact

3. Caractéristiques mécaniques

Raccordement avec

4. Caractéristiques électriques

Résistance de contact

Courant assigné

Tension assignée

Tension d’essai

suivant DIN EN 60664/CEI 60664

≤

3 mΩ

250 V AC

≥

2,5 kV eff.

carte imprimée 1,5 ± 0,14 mm

-25 °C/+100 °C

PPO

CuSn, nickelé et étamé

3,96

RFL

UFL

3–42

3–40

200

Verpackung: lose im Karton

Packaging: in bulk, in a cardboard box

Emballage: en vrac, dans un carton

www.lumberg.com

11/2012
