5962-8753501XA datasheet, PDF - EEWORLD Datasheet

5962-8753501XA: DescriptionMil-Std-1553 Controller, 2 Channel(s), CMOS; CategoryThe embedded processor and controller Microcontrollers and processors; File Size96KB，2 Pages; ManufacturerData Device Corporation

Download Datasheet Parametric Compare View All

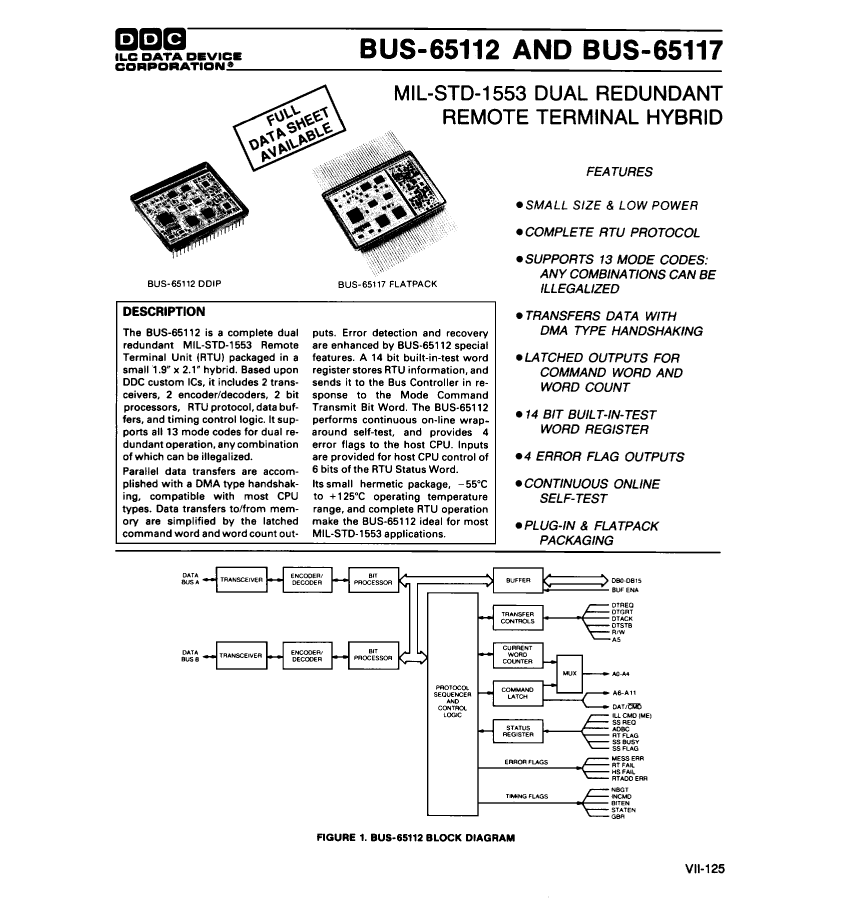

5962-8753501XA Overview

Mil-Std-1553 Controller, 2 Channel(s), CMOS

Parameter Name	Attribute value
package instruction	QIP,
Reach Compliance Code	unknown
Address bus width	12
boundary scan	NO
maximum clock frequency	12 MHz
letter of agreement	MIL-STD-1553
External data bus width	16
JESD-30 code	R-XQIP-P78
JESD-609 code	e0
length	53.34 mm
low power mode	NO
Number of serial I/Os	2
Number of terminals	78
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	UNSPECIFIED
encapsulated code	QIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	6.4 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	QUAD
width	41.91 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553
Base Number Matches	1

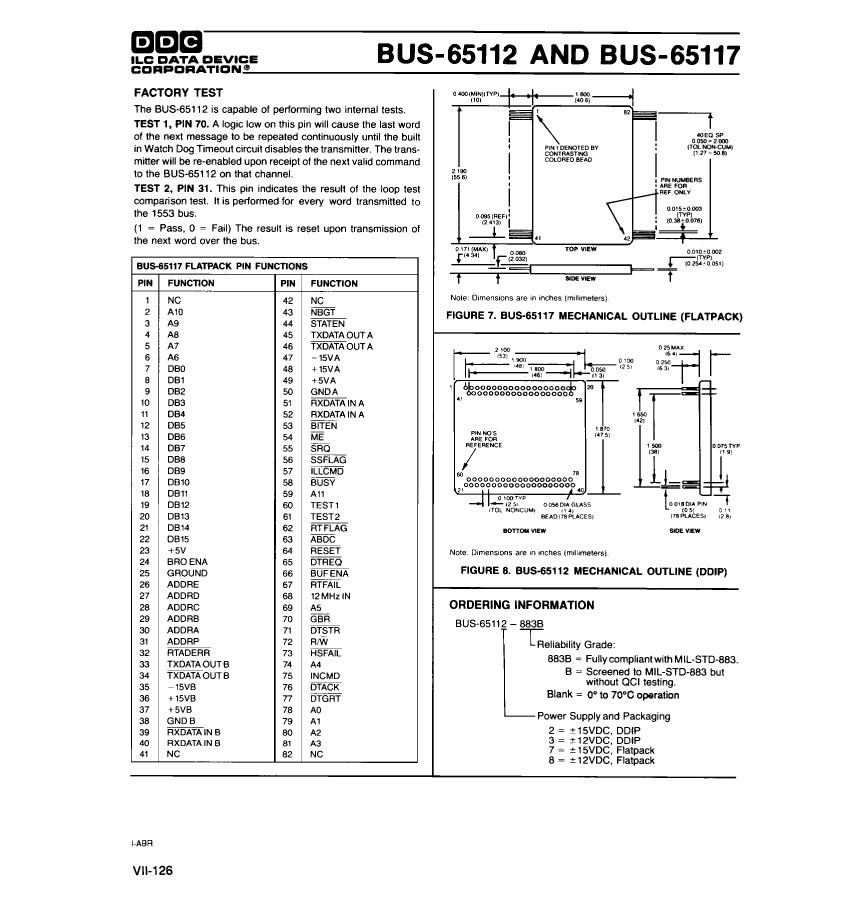

	5962-8753501XA	5962-8753501YA
Description	Mil-Std-1553 Controller, 2 Channel(s), CMOS	Mil-Std-1553 Controller, 2 Channel(s), CMOS
package instruction	QIP,	DFP,
Reach Compliance Code	unknown	unknown
Address bus width	12	12
boundary scan	NO	NO
maximum clock frequency	12 MHz	12 MHz
letter of agreement	MIL-STD-1553	MIL-STD-1553
External data bus width	16	16
JESD-30 code	R-XQIP-P78	R-XDFP-F82
JESD-609 code	e0	e0
length	53.34 mm	55.62 mm
low power mode	NO	NO
Number of serial I/Os	2	2
Number of terminals	78	82
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	UNSPECIFIED	UNSPECIFIED
encapsulated code	QIP	DFP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK
Certification status	Not Qualified	Not Qualified
Maximum seat height	6.4 mm	4.34 mm
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	NO	YES
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal surface	TIN LEAD	TIN LEAD
Terminal form	PIN/PEG	FLAT
Terminal pitch	2.54 mm	1.27 mm
Terminal location	QUAD	DUAL
width	41.91 mm	40.64 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553
Base Number Matches	1	1
