34S110-341H3

Description
RF Connector, Male, Panel Mount, Cable Mount, Crimp Terminal, Plug,
CategoryThe connector    The connector
File Size109KB,2 Pages
ManufacturerRosenberger
Websitehttps://www.rosenberger.com/
Download Datasheet Parametric View All

34S110-341H3 Overview

RF Connector, Male, Panel Mount, Cable Mount, Crimp Terminal, Plug,

34S110-341H3 Parametric

Parameter NameAttribute value
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresSTANDARD: DIN 47297, INSERTION LOSS MAX AT 1GHZ
Body/casing typePLUG
Characteristic impedance50 Ω
Connector typeRF CONNECTOR
Contact to complete cooperationGOLD (50) OVER NICKEL
Contact completed and terminatedGOLD (50) OVER NICKEL
Contact point genderMALE
Coupling typeSLIDE ON
DIN complianceYES
Filter functionNO
IEC complianceNO
Insertion loss0.1 dB
insulator materialPOLYTETRAFLUORO ETHYLENE
JESD-609 codee4
MIL complianceNO
Manufacturer's serial number1.0/2.3
Installation methodSTRAIGHT
Installation typeCABLE
Maximum operating frequency30 GHz
OptionsGENERAL PURPOSE
Panel mountingYES
Termination typeCRIMP
voltage standing wave ratio1.23
Base Number Matches1

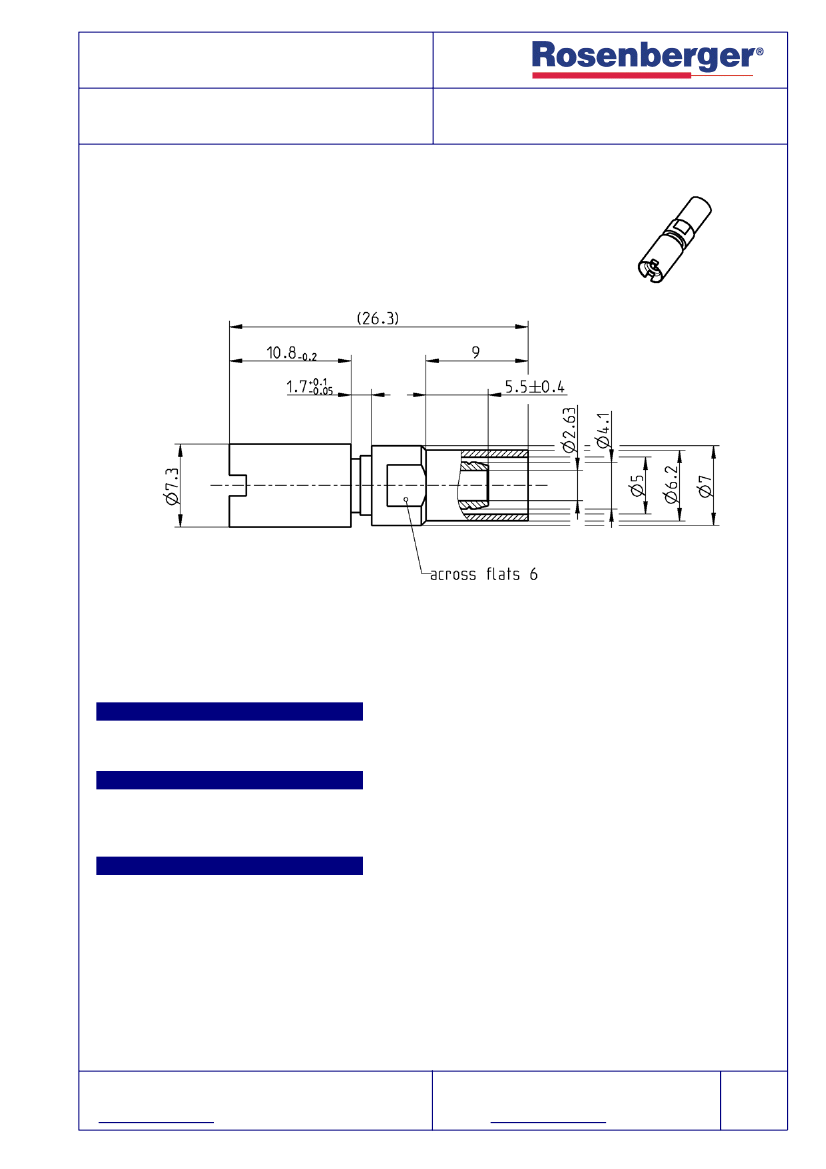

TECHNICAL DATA SHEET
1.0/2.3
STRAIGHT PLUG
SLIDE-ON, FOR 75
CABLE
34S110-341H3
All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
CECC 22 230, DIN 47297
Documents
Assembly instruction
Panel piercing
34 A
B 26
Material and plating
Connector parts
Center contact
Outer contact
Body
Centering sleeve
Dielectric
Crimping ferrule
Material
Beryllium copper
Beryllium copper
Brass
Brass
PTFE
Copper
Plating
Gold, min. 1.27 µm, over chemical nickel
Gold, min. 1.27 µm, over nickel
Silver, 3-6 µm
Nickel, 2.5-5 µm
Nickel, 2.5-5 µm
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
