SMD Professional Trimmers
Type 3240 Series
Key Features
I
I
I
I
I
I
I
I
Full Ten Turns
Fully Sealed
Wave and Reflow
Solder
Only 4mm Square
Flush Adjustment
Screws
Top or Low Profile
Styles
Tape and Reeled
(EIJ Std Reels)
Smooth Top - Good
Pickup

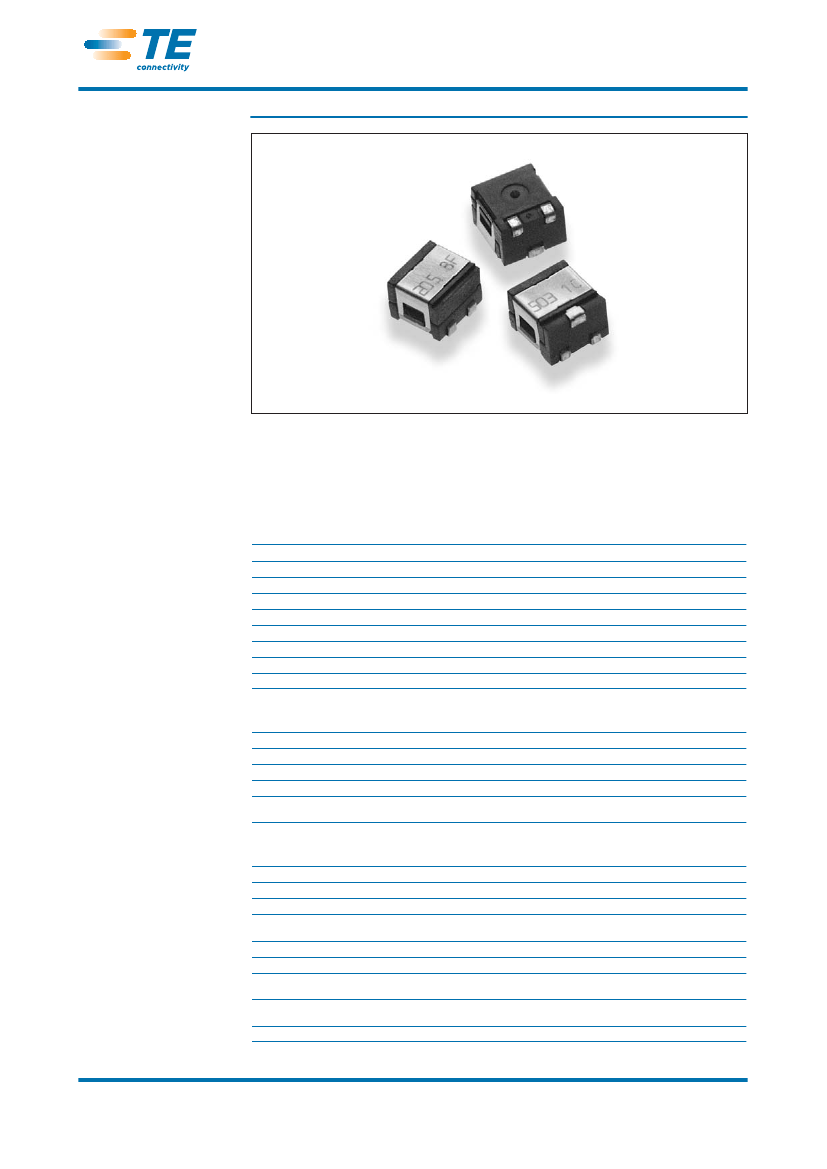

TE Connectivity (TE) are pleased to introduce this tiny (4mm square) multiturn trimmer
potentiometer. The 3240 Series is designed with a footprint meeting EIA and other
international board layout standards. It is also compatible with all surface mount
manufacturing processes. It is ideally suited to small sensors where its 10 turn setability
and small size enables it to stand out from most other competitors.
Characteristics - Electrical
Resistance Range:
Resistance Tolerance:
Power Rating (300 volts maximum):
Absolute Minimum Resistance:
Contact Resistance Variation:
Resolution:
Insulation Resistance:
Dielectric Strength (Sea Level):
Electrical Angle:
10R to 2M 1, 2, 5 in each decade
±10%
0.25Watts at 85°C, derating to 0 at 150°C
1% or 2 ohms, (whichever is greater)
1% or 3 ohms, (whichever is greater)
Essentially infinite
1000 Meg ohms minimum at 500V DC
600 V AC (1 minute)
10 turns nominal
Characteristics - Mechanical
Mechanical Angle:
Operating Torque:
Mechanical Stop:
Weight:
Packaging:
12 turns nominal
20 mNm maximum
Wiper Idles
0.2 gram approximately
500 pieces on 7" Reel (P Style)
250 pieces on 7" Reel (W Style)
Characteristics - Environmental
Soldering Heat:
Temperature Range:
Temperature Coefficient:
Humidity:
Vibration:
Shock:
Load Life:
Rotational Life:
Thermal Shock:
260°C for 5 - 6 seconds, ΔR<±1%
-65°C to +150°C
±100ppm/°C
-10°C – +65°C, 80 - 98% RH 10 cycles,
240 hours ΔR<±2%
20G ΔR<1%
100G ΔR<±1%
@ 85°C rated power 1000 hours TRS 2 ohms
or 2% (whichever is greater)
200 cycles ΔR<±3% or 3 ohms
(whichever is greater)
5 cycles, -65°C to +150°C, ΔR<±2%
1773136 CIS BI 06/2011
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
For email, phone or live chat, go to:
te.com/help
SMD Professional Trimmers
Type 3240 Series
Derating Curve
100
80
Rated Power (%)
60
40
20
0
0
25
50
75 85 100
125
150
175
Ambient Temperature (°C)

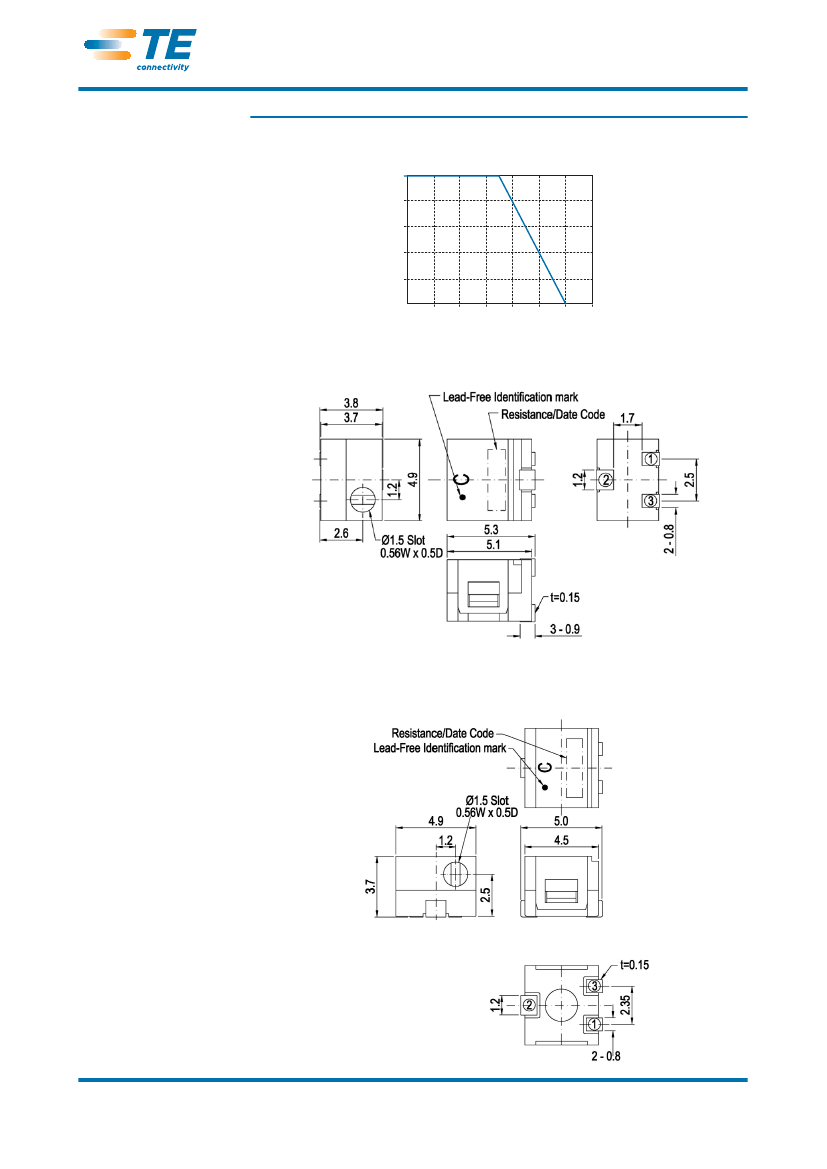

Dimensions -
3240W
3240P
1773136 CIS BI 06/2011
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
For email, phone or live chat, go to:
te.com/help
SMD Professional Trimmers
Type 3240 Series
Schematic Diagram
Substrate Layout -
3240P
3240W
Application Notes - Pick Up Nozzle
The nozzle inside diameter should not exceed 4.27mm to assure adequate suction and part alignment.
Cleaning Conditions
After soldering use cleaning solvents such as water or alcohol, but not solvents such containing CFC’s.
Storage
To prevent damage to the electrode, be sure to observe the following conditions for storage.
1 Store in 25°C maximum ambient temperature, and 75% maximum ambient RH.
2 For maximum possible shelf life do not disturb polythene sleeve until you are ready to use potentiometers
– recommend use within one year of delivery.
2 Store where there are no harmful gasses containing sulphur or chlorine.
3 Do not expose to direct sunlight and dust.
How to Order
3240
Common Part
W
Orientation
102
Resistance Value
The first two digits are
significant figures of
resistance value and the
third denotes the num-
ber of zeros following.
e.g. 100R: 101
1K: 102
10K: 103
100K: 104
TE Connectivity, TE connectivity (logo) and TE (logo) are trademarks.
Other logos, product and Company names mentioned herein may be trademarks of their respective owners.
While TE has made every reasonable effort to ensure the accuracy of the information in this datasheet, TE does not guarantee that it is error-free, nor does TE make any other
representation, warranty or guarantee that the information is accurate, correct, reliable or current. TE reserves the right to make any adjustments to the information contained herein
at any time without notice. TE expressly disclaims all implied warranties regarding the information contained herein, including, but not limited to, any implied warranties of merchantabili-
ty or fitness for a particular purpose. The dimensions in this datasheet are for reference purposes only and are subject to change without notice. Specifications are subject to change
without notice. Consult TE for the latest dimensions and design specifications.
K
Tolerance
3240 – 4mm Multiturn
Trimmer
W – Top Adjustment
P – Side Adjustment
K - 10 %
