Circuit Protectors
NC1V

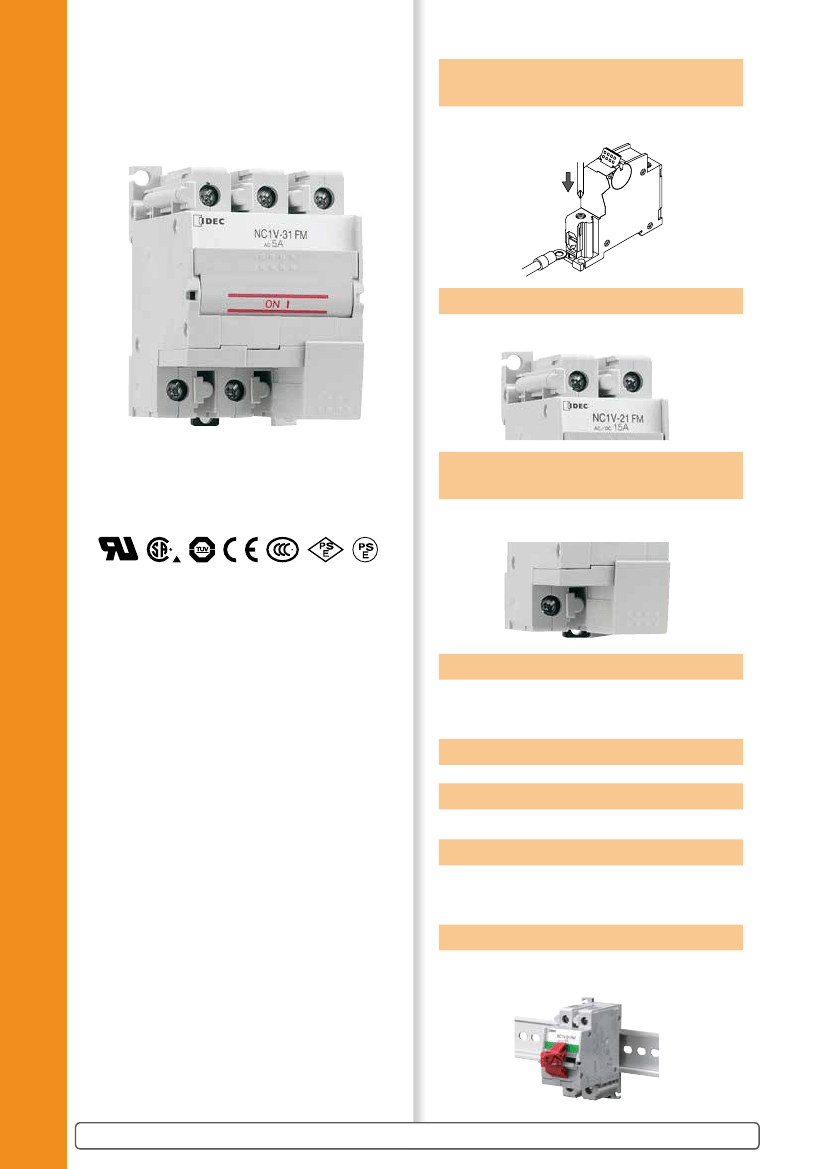

Finger-safe, spring-up terminal
reduces wiring time.
Ring terminal tabs can be installed easily, and screws are held
captive.
Main Circuit Terminals are Fingersafe (IP20)
Spring-up, fingersafe structure requires no terminal cover.
IDEC's original Spring-up Terminals and
Cover.
Provide IP20 Finger-safe Protection.
Auxiliary/Alarm Contact Terminals are
Equipped with a Terminal Cover
Voltage coil terminals on the relay trip version are also equipped
with a terminal cover as standard.
• Note:
TÜV, CE, and CCC marks are applicable for series trip type only.
• See
website for details on approvals and standards.
Retractable Actuator
The actuator is retracted while the circuit protector is turned
on. Inadvertent operation, due to touching the actuator, can be
prevented.
Rated Short-circuit Capacity 2500A
Available with Inertial Delay
Allows for use with large inrush currents such as motors
Safe Trip-free Mechanism
The circuit remains open even when the operator is turned on
after tripping (unit must be manually reset after removing the
cause of the tripping).
Padlock Attachment
Locks the retractable actuator in the off position to prevent NC1V
from being switched on inadvertently.
I-005
For more information, visit http://asia.idec.com
For more information, visit http://eu.idec.com
NC1V
Circuit Protectors
IDEC’s original spring-up, fingersafe terminals enhance reliability and safety.

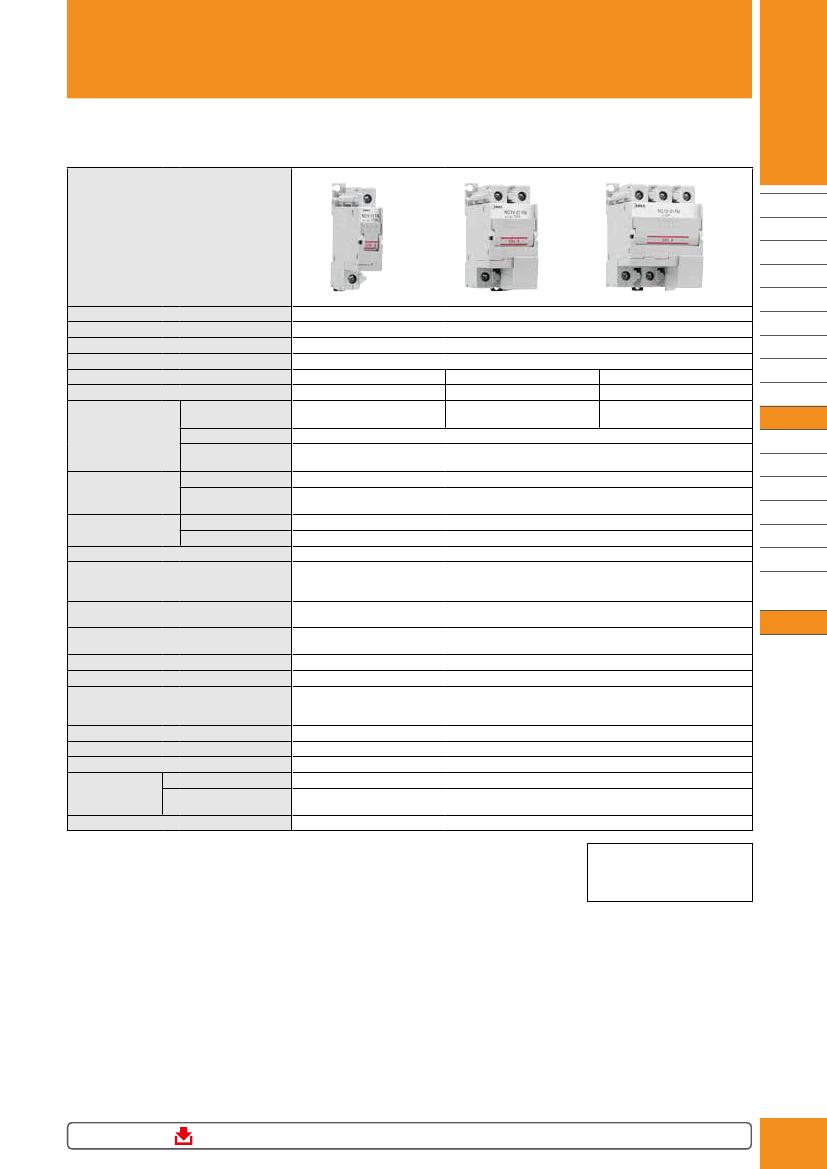

Specifications
APEM
Shape
Switches &
Pilot Lights
Control Boxes
Emergency
Stop Switches
Enabling
Switches
Safety Products
Explosion Proof
Terminal Blocks
Relays & Sockets
Circuit
Protectors
Power Supplies
LED Illumination
Controllers
Operator
Interfaces
Sensors
AUTO-ID
Circuit Protectors
1-pole
Part No.
Operator Style
Internal Circuit
Protection Method
No. of Poles
Rated Voltage (AC/DC) (*1)
Rated Short-circuit
Capacity
Series Trip
Rated Current
(Current Trip)
Trip Characteristics
(*2)
Rated Current
Relay Trip (Voltage Trip)
(*3)
Trip Voltage
Auxiliary Contact/Alarm
Contact
Insulation Resistance
Dielectric Strength
Vibration Resistance
(with rated current applied)
Shock Resistance (S time delay curve: 80% rated
current, A, M time delay curve: 100% rated current)
Electrical Life
Reference Temperature
Operating Tempperature
Storage Temperature
Operating Humidity
Storage Humidity
Terminal Style
Weight (approx.)
Main Circuit Terminal
Auxiliary/Alarm Contacts,
Voltage Coil Terminal
Contact Rating
Minimum Applicable Load
2-pole
3-pole
NC1V
Retractable actuator
Series trip (current trip), Relay trip (voltage trip)
Hydraulic magnetic tripping system, Magnetic tripping system (voltage trip)
1-pole
2-pole
3-pole
250V AC 50/60Hz, 65V DC
250V AC 50/60Hz, 125V DC
250V AC, 50/60Hz
250V AC, 2500A
250V AC, 2500A
250V AC, 2500A
65V DC, 2500A
125V DC, 2500A
0.1A, 0.3A, 0.5A, 1A, 2A, 3A, 5A, 7A, 10A, 15A, 20A, 25A, 30A
Time delay curve curve M (slow), curve A (medium), S (instantaneous)
Curves M and A are avilable with inertial delay.
30A
24 to 48V DC (at 25°C)
Voltage application duration 10 sec maximum, tripping time 0.1 sec maximum (at rated voltage)
125V AC 3A (resistive load), 30V DC 2A (resistive load)
24V DC 1mA (resistive load, reference value)
100 MΩ minimum (500V DC megger)
2000V AC, 1 minute (between terminals when main contacts are open, between live parts of different poles,
between live and dead parts)
600V AC (between terminals when auxiliary circuits are open)
Damage limits:
147 m/s
2
(10 to 55 Hz) (1-pole, 2-pole), 78 m/s
2
(3-pole)
Operating extremes: 98 m/s
2
(1-pole, 2-pole), 78 m/s
2
(3-pole)
Damage limits:
490 m/s
2
(1-pole, 2-pole), 297 m/s
2
(3-pole)
Operating extremes: 196 m/s
2
10,000 cyles minimum (at rated curent), 10 operations per minute
40°C
−10 to +60°C (no freezing)
Rated current is based on an ambient temperature of 40°C. When the operating temperature exceeds 40°C,
derate the rated current by using the factors shown below.
−40 to +60°C (no freezing)
45 to 85% RH (no condensation)
45 to 85% RH (no condensation)
Spring-up, fingersafe terminal: M4 screw (up to 20A), M5 screw (25A and 30A)
M3.5 screw
1-pole: 90g, 2-pole: 170g, 3-pole: 260g
Operating Temp.
50°C
55°C
60°C
NC1V
*1) 3-pole type is for AC voltage only.
*2) For S (instantaneous) tripping curve, humming sound may be caused when used in an AC sinusoidal-wave current circuit
around 80% of the rated current, however, the performance of the circuit protector will not be affected.
To avoid unnecessary tripping, do not use in circuits where inrush currents may be present.
*3) Relay trip (voltage trip) type is not equipped with an overcurrent trip function.
• Do
not use the NC1V circuit protectors in environments where they are exposed to extreme temperature, humidity, dust,
corrosive gases, vibration, shock, or in a circuit where inrush current may be present, otherwise unnecessary operations
and damage may occur.
Derating Factor
0.9
0.8
0.7
Download catalogs and CAD from http://asia.idec.com/downloads
Download catalogs and CAD from http://eu.idec.com/downloads
I-006
NC1V Circuit Protectors
Circuit Protectors
APEM
Switches &
Pilot Lights
Control Boxes
Emergency
Stop Switches
Enabling
Switches
Safety Products
Explosion Proof
Terminal Blocks
Relays & Sockets
Circuit
Protectors
Power Supplies
LED Illumination
Controllers
Operator
Interfaces
Sensors
AUTO-ID
NC1V
Part No. Development
NC1V - 2 1 00 F - 30A A DC24V
8
Voltage Trip Coil Voltage
1
Model
NC1V: Flap actuator type
DIN rail and panel mounting
No. of Poles
2
1: 1-pole
2: 2-pole
3: 3-pole
3
Internal Circuit
1: Series trip (current trip)
5: Relay trip (voltage trip)
4
Auxiliary/Alarm Contacts
00: None
11: With one auxiliary contact
12: With two auxiliary contacts
13: With three auxiliary contacts
21: With one alarm contact
31: With one auxiliary contact and one alarm contact
32: With two auxiliary contacts and one alarm contact
DC24V: 24-48V DC
*
Specified for relay trip only.
7
Time Delay Curve
M: Slow
A: Medium
S: Instantaneous
*
For both AC/DC.
*
Specified for series trip only.
6
Rated Current
0.1A, 0.3A, 0.5A, 1A, 2A, 3A, 5A, 7A, 10A 15A, 20A, 25A, 30A
*
Specified for series trip only.
5
Inertial Delay
Blank: Without
F:
With
*
Inertial delay is for AC voltage only.
*
Available with medium and slow types
(not applicable with relay trip).
• Specity
rated current, time delay curve, or voltage trip coil voltage in place of
6 7 8
in the Part No.
Internal
Circuit
No. of
Poles
Inertial
Delay
Auxiliary Contact
Alarm Contact
—
—
1-pole
With
One Auxiliary Contact
One Alarm Contact
—
One Auxiliary Contact
One Alarm Contact
—
One Auxiliary Contact
—
Two Auxiliary Contacts
One Alarm Contact
One Auxiliary Contact and
One Alarm Contact
—
One Auxiliary Contact
With
Series Trip
(Current Trip)
Two Auxiliary Contacts
One Alarm Contact
One Auxiliary Contact and
One Alarm Contact
—
One Auxiliary Contact
Two Auxiliary Contacts
—
Three Auxiliary Contacts
One Alarm Contact
One Auxiliary Contact and
One Alarm Contact
Two Auxiliary Contacts and
One Alarm Contact
—
One Auxiliary Contact
Two Auxiliary Contacts
With
Three Auxiliary Contacts
One Alarm Contact
One Auxiliary Contact and
One Alarm Contact
Two Auxiliary Contacts and
One Alarm Contact
—
Part No.
NC1V-1100-
NC1V-1111-
NC1V-1121-
6 7
6 7
6 7
6 7
6 7
6 7
Code
6
Rated Current
7
Time Delay Curve
8
Voltage Trip Coil Voltage
NC1V-1100F-
NC1V-1111F-
NC1V-1121F-
NC1V-2100-
NC1V-2111-
NC1V-2112-
NC1V-2121-
NC1V-2131-
6 7
6 7
6 7
6 7
6 7
6 7
6 7
6 7
6 7
6 7
2-pole
NC1V-2100F-
NC1V-2111F-
NC1V-2112F-
NC1V-2121F-
NC1V-2131F-
NC1V-3100-
NC1V-3111-
NC1V-3112-
NC1V-3113-
NC1V-3121-
NC1V-3131-
NC1V-3132-
6 7
6 7
6 7
6 7
6 7
6 7
6 7
6 7
6 7
6 7
6 7
6 7
6 7
6 7
0.1A
0.3A
0.5A
1A
2A
3A
5A
7A
10A
15A
20A
25A
30A
M (slow)
A (medium)
S (instantaneous)
—
3-pole
NC1V-3100F-
NC1V-3111F-
NC1V-3112F-
NC1V-3113F-
NC1V-3121F-
NC1V-3131F-
NC1V-3132F-
NC1V-1500-
8
8
8
Relay Trip
(Voltage Trip)
1-pole
2-pole
3-pole
—
NC1V-2500-
NC1V-3500-
—
—
24V DC
Note: Inertial delay is for AC circuit. Also, time delay curve of S (instantaneous) is not available with inertial delay.
I-007
For more information, visit http://asia.idec.com
For more information, visit http://eu.idec.com
NC1V Circuit Protectors
Circuit Protectors
Internal Circuit
1-pole
NC1V-1100
(Without auxiliary/alarm contacts)
LINE
NC1V-1111
(With auxiliary contact)
LINE
NC1V-1121
(With alarm contact)
LINE
NC1V-1500
(Relay Trip)
A
One auxiliary contact.
One alarm contact.
APEM
B
C
Switches &
Pilot Lights
Control Boxes
LOAD
LOAD
C
N
O
N
C
LOAD
C
N
O
N
C
D
Emergency
Stop Switches
Enabling
Switches
Safety Products
2-pole
NC1V-2100
(Without auxiliary/alarm contacts)
LINE
LINE
LINE
NC1V-2111
(With auxiliary contact)
LINE
NC1V-2121
(With alarm contact)
LINE
NC1V-2500
(Relay Trip)
A
A
Explosion Proof
Terminal Blocks
Relays & Sockets
Circuit
Protectors
One auxiliary contact.
Also available with
two auxiliary contacts.
One alarm contact.
LINE
Also available with
one auxiliary contact
and one alarm contact.
B
C
B
C
Power Supplies
LED Illumination
Controllers
D
LOAD
LOAD
LOAD
LOAD
C
N
O
N
C
D
LOAD
LOAD
C
N
O
N
C
Operator
Interfaces
Sensors
3-pole
NC1V-3100
(Without auxiliary/alarm contacts)
NC1V-3111
(With auxiliary contact)
One auxiliary contact. Also available
with two or three auxiliary contacts.
LINE
LINE
LINE
LINE
LINE
LINE
AUTO-ID
NC1V-3121
(With alarm contact)
One alarm contact. Also available with one
auxiliary and one alarm contacts, and two
auxiliary and one alarm contacts.
LINE
LINE
LINE
A
NC1V-3500
(Relay Trip)
NC1V
A
A
B
C
B
C
B
C
LOAD
LOAD
LOAD
LOAD
LOAD
LOAD
C
N
O
N
C
LOAD
LOAD
LOAD
C
N
O
N
C
D
D
D

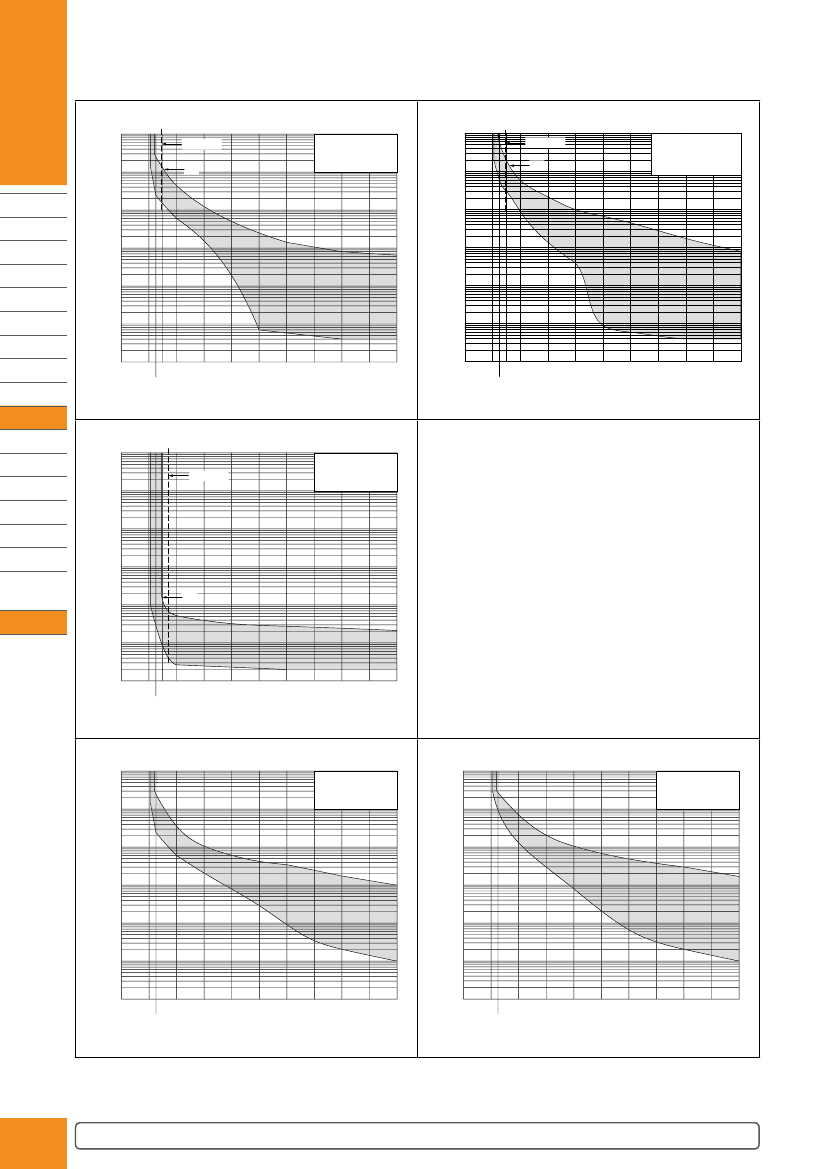

Overcurrent-Time Delay Characteristics (sec at 40°C) [vertical mounting]
Item
Time Delay Curve
S (instantaneous)
AC (50/60 Hz)/DC
A (medium)
M (slow)
With Inertial Delay
A (medium)
With Inertial Delay
M (slow)
100%
NO TRIP
NO TRIP
NO TRIP
NO TRIP
NO TRIP
125%
—
*25
to 240
*60
to 600
25 to 240
60 to 600
150%
*0.005
to 0.1
16 to 140
30 to 200
—
—
Percent of Rated Current
175%
200%
400%
0.003
to 0.06
—
—
—
—
0.0027
to 0.05
6 to 32
9 to 60
6 to 32
10 to 60
0.002
to 0.03
0.4 to 4
0.4 to 10
0.8 to 6
0.8 to 10
600%
0.002
to 0.028
0.0055
to 1.5
0.006
to 4.5
0.09
to 3.5
0.06
to 4.5
800%
0.002
to 0.025
0.004
to 0.8
0.004
to 1.8
0.02
to 1.8
0.02
to 3
1000%
0.002
to 0.022
0.004
to 0.65
0.004
to 0.8
0.01
to 1.0
0.01
to 1.75
AC (50/60 Hz)
*:
May trip on DC.
Download catalogs and CAD from http://asia.idec.com/downloads
Download catalogs and CAD from http://eu.idec.com/downloads
I-008
NC1V Circuit Protectors
Circuit Protectors
APEM
Switches &
Pilot Lights
Control Boxes
Emergency
Stop Switches
Enabling
Switches
Safety Products
Explosion Proof
Terminal Blocks
Relays & Sockets
Circuit
Protectors
Power Supplies
1000
100
125
200
300
400
500
600
700
800
900
1000
100
125
200
300
400
500
600
700
800
900
1000
Time Delay Curves at 40°C
1000
1000
DC (Note)
AC
Curve A
(medium)
100
DC (Note)
AC
Curve M
(slow)
100
Time in sec
Time in sec
10
10
1
1
0.1
0.1
0.01
0.01
Current (percent load of the rated current)
Current (percent load of the rated current)
LED Illumination
DC (Note)
Curve S
(instantaneous)
Note:
The entire shaded area applies to AC.
For DC, the shaded area on the right of the dashed line applies.
Controllers
Operator
Interfaces
100
AUTO-ID
Time in sec
Sensors
10
1
AC
0.1
NC1V
0.01
100
125
200
300
400
500
600
700
800
900
1000
Current (percent load of the rated current)
1000
100
Curve A
(medium)
With Inertia Delay
1000
100
Curve M
(slow)
With Inertia Delay
Time in sec
Time in sec
10
10
1
1
0.1
0.1
0.01
0.01
100
125
200
300
400
500
600
700
800
900
1000
100
125
200
300
400
500
600
700
800
900
1000
Current (percent load of the rated current)
Current (percent load of the rated current)
I-009
For more information, visit http://asia.idec.com
For more information, visit http://eu.idec.com
京公网安备 11010802033920号
EEWORLD
