Preview

DMA12: DescriptionIGBTVSTM AC LINE TRANSIENT VOLTAGE SUPPRESSOR; CategoryDiscrete semiconductor diode; File Size171KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

DMA12 Overview

IGBTVSTM AC LINE TRANSIENT VOLTAGE SUPPRESSOR

DMA12 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Microsemi
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum breakdown voltage	225 V
Minimum breakdown voltage	220 V
Maximum clamping voltage	280 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	R-PSIP-D2
JESD-609 code	e0
Maximum non-repetitive peak reverse power dissipation	60000 W
Number of components	1
Number of terminals	2
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	175 V
surface mount	NO
technology	AVALANCHE
Terminal surface	TIN LEAD
Terminal form	SOLDER LUG
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

8700 E. Thomas Road

Scottsdale, AZ 85252

(480) 941-6300

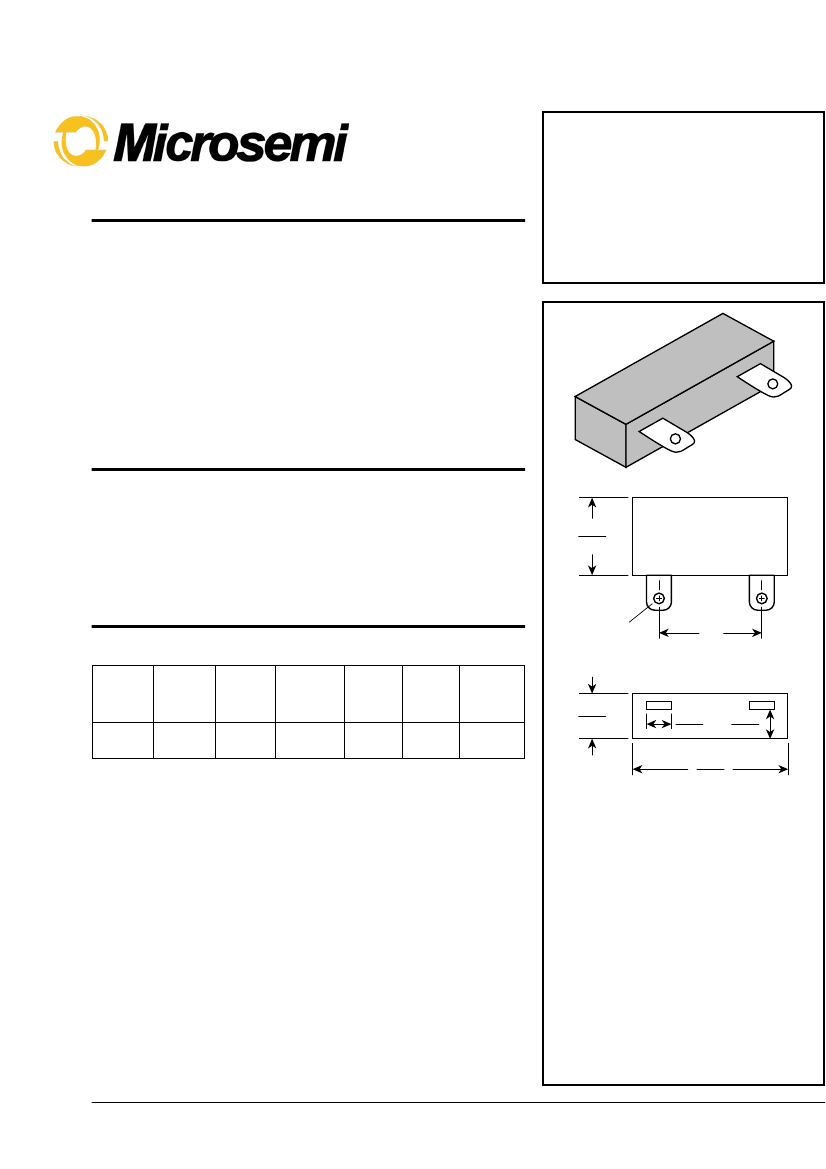

IGB

TVS

TM

Features

Switching

•

Protects From Load and 440VacIn AC Applications

Circuits

•

For 120Vac, 240Vac on Most IGBTs

•

Fits Terminal Spacing

•

Fast Clamping – Subnanosecond

These devices will protect your IGBT in applications where it is

used in overload protection or switching ac loads. Transient

voltages produced when switching occurs in the positive one-half

of the cycle are clamped below the destruct level of the IGBT.

Unique low inductance shunt path virtually eliminates L(di/dt)

effects. Available as screened device for high reliability

applications. Includes burn-in and environmental tests.

AC LINE

TRANSIENT

VOLTAGE

SUPPRESSOR

(FOR IGBT PROTECTION)

SC

M BT

IG

Maximum Ratings @ 25°C

•

60kw peak pulse power dissipation for 120V @ 1.2/50µs

•

120kw peak pulse power dissipation for 240V @ 1.2/50µs

•

240kw peak pulse power dissipation for 440V @ 1.2/50µs

•

Operating and storage -55°C to +150°C

path

•

Shuntcycle –inductance < 20nH

.01% max.

•

Duty

Electrical Characteristics @ 25°C

MICROSEMI

PART NO.

AC rms

OPERATING

VOLTAGE

NOMINAL

Vac

120

240

440

REVERSE

STAND-OFF

NOTE 1

(V

WM

)

Vdc

175

350

640

BREAKDOWN

VOLTAGE

MIN / MAX

(V

BR

) NOTE 2

V

200 / 225

400 / 450

735 / 900

MAXIMUM

REVERSE

LEAKAGE

(I

D

)

µA

5

MAXIMUM

CLAMPING

VOLTAGE

(V

C

)

V

280

560

1120

MAXIMUM

PEAK PULSE

CURRENT

(I

PP

) NOTE 3

A

200

1.00

2.54

+

Hole to

fit 8mm

dia. stud

d

DMA12

DMA24

DMA44

0.5

1.25

0.5

1.25

2.00

5.08

.375

.952

Notes:

1.Will withstand high-line conditions of 15% above nominal

voltage.

2.Test current @ 10 mA.

3.Pulse waveform – 1.2 / 50 µs.

Dimensions: inches/centimeters

d – Terminals accommodate

23 -28 mm spacing

CASE:

Molded plastic, meets UL 94V-O

POLARITY:

Cathode marked with +

INDUCTANCE:

Less than 20 nH

TERMINALS:

Corrosion resistant with hole spacings

to accommodate most high power IGBTs

Santa Ana: (714) 979-8220

Scottscale: (602) 941-6300

Sertech Labs: (617) 924-9280

Ireland: (353) 65-40044

Data Sheet MSC0294A 6/3/97

Colorado: (303) 469-2161

Bombay: (91) 22-832-002

Watertown: (617) 926-0404

Hong Kong: (852) 2692-1202

Chatsworth: (818) 701-4933
