FLLE2
–
R
Overview
Single phase EMI Filter
Single phase EMC Filter
General purpose, single phase filter series with high attenuation. Chassis
mount for fast mounting, metal case filled with self-extinguishing resin.
Fast-on or screw terminals available and options with flexible wire
connections. Medical versions available without y-capacitors for no
leakage current.
RoHS
Compliant
Technical specifications
Item
Rated Voltage
Rated Frequency
Rated Current
Rated Temperature
Temperature range
Climate Category
Voltage Test

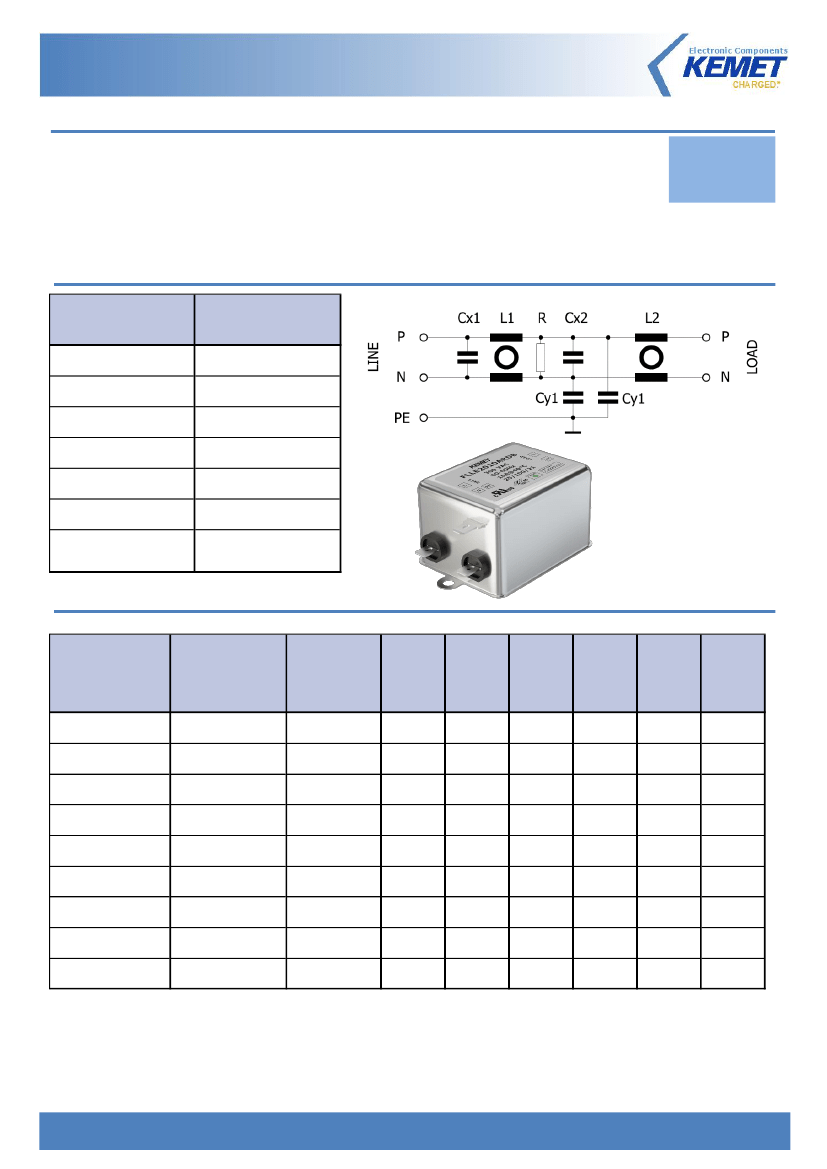

Typical electrial schematics
Parameters/
Characteristics
300 VAC/VDC
50 - 60 Hz
1 - 32 A
40°C
-25°C to 100°C
25/100/21
P -> N 1300 VDC
P/N -> E 2250 VDC
Components
Rated Current
@ 40°C
(A)
FLLE2001AR(1)(2)
FLLE2003AR(1)(2)
FLLE2006AR(1)(2)
FLLE2010AR(1)(2)
FLLE2013AR(1)(2)
FLLE2016AR(1)(2)
FLLE2020AR(1)(2)
FLLE2025AR(1)(2)
FLLE2032AR(1)(2)
1
3
6
10
13
16
20
25
32
Part Number
Leakage
Current *)
(mA)
0.37
0.37
0.37
0.37
0.37
0.37
0.37
0.37
0.79
C
X
1
(µF)
0.22
0.22
0.22
0.47
0.47
0.47
1
1
1
R
(MΩ)
1
1
1
0.47
0.47
0.47
0.22
0.22
0.22
L1
(mH)
12
2.5
1
1
0.6
0.6
0.8
0.8
0.8
C
Y
1
(nF)
4.7
4.7
4.7
4.7
4.7
4.7
4.7
4.7
10
C
X
2
(µF)
0.22
0.22
0.22
0.47
0.47
0.47
1
1
1
L2
(mH)
12
2.5
1
1
0.6
0.6
0.8
0.8
0.8
(1) D = Standard, M = Medical
(2) B = Fast-on (1-16A), I = Threaded (20-32A), D = Wire (1-32A)
*) Leakage current @250 VAC / 50 Hz acc. to IEC60939-3. Medical version without C
Y
-capacitors, no leakage current.
May 2020
KEMET EMC Filters
1
FLLE2
–
R

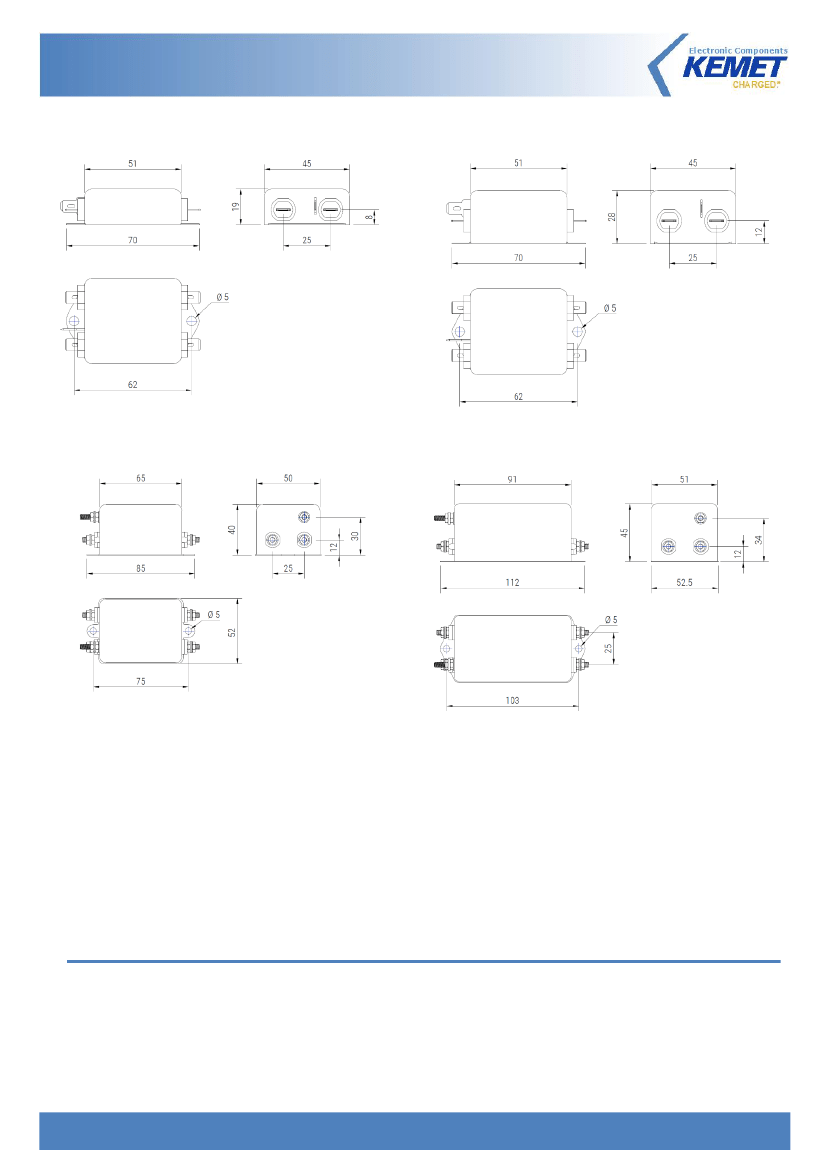

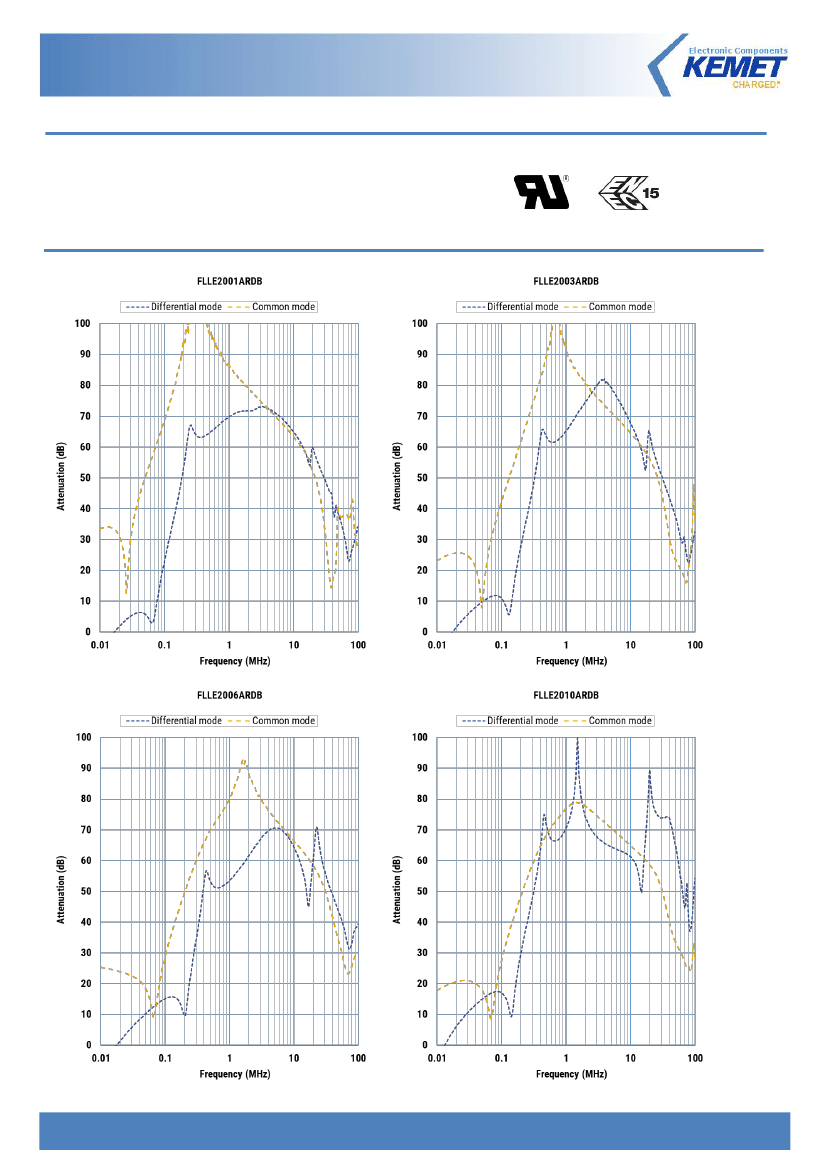

1A, 3A and 6A
Single phase EMI Filter

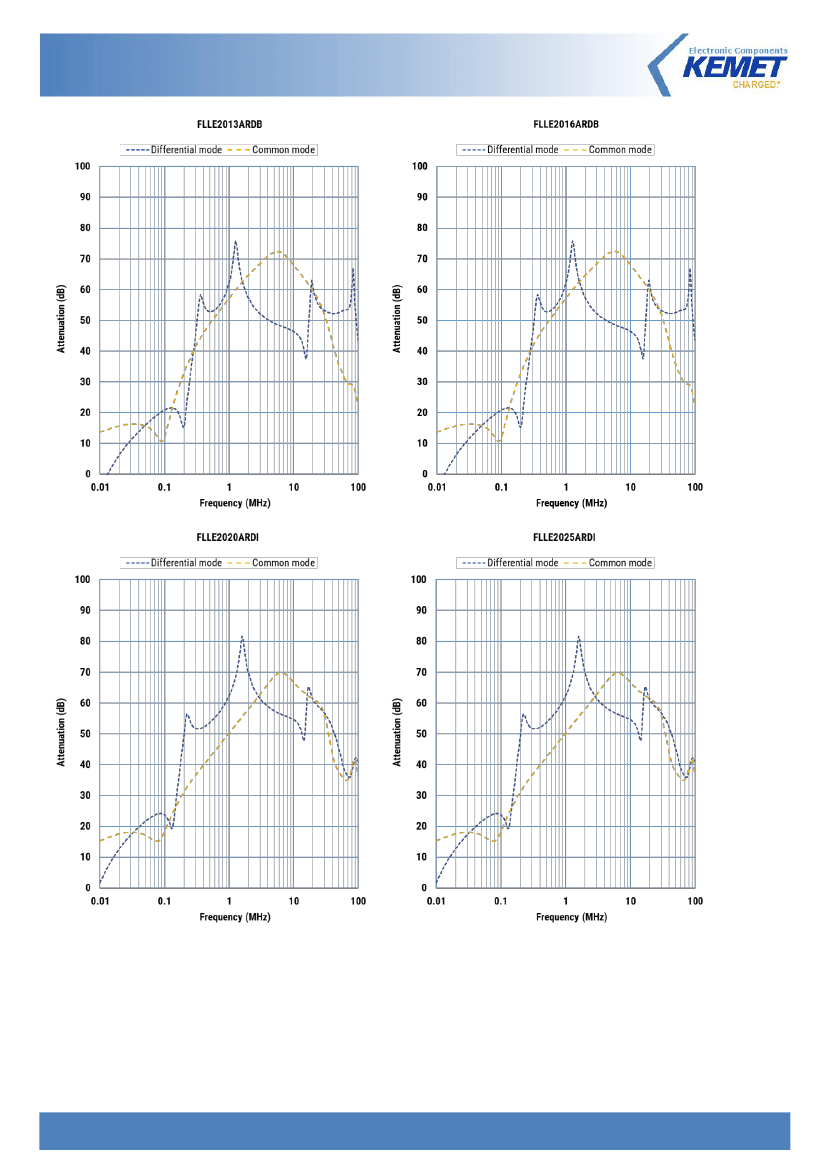

10A, 13A and 16A
Single phase EMC Filter
20A and 25A

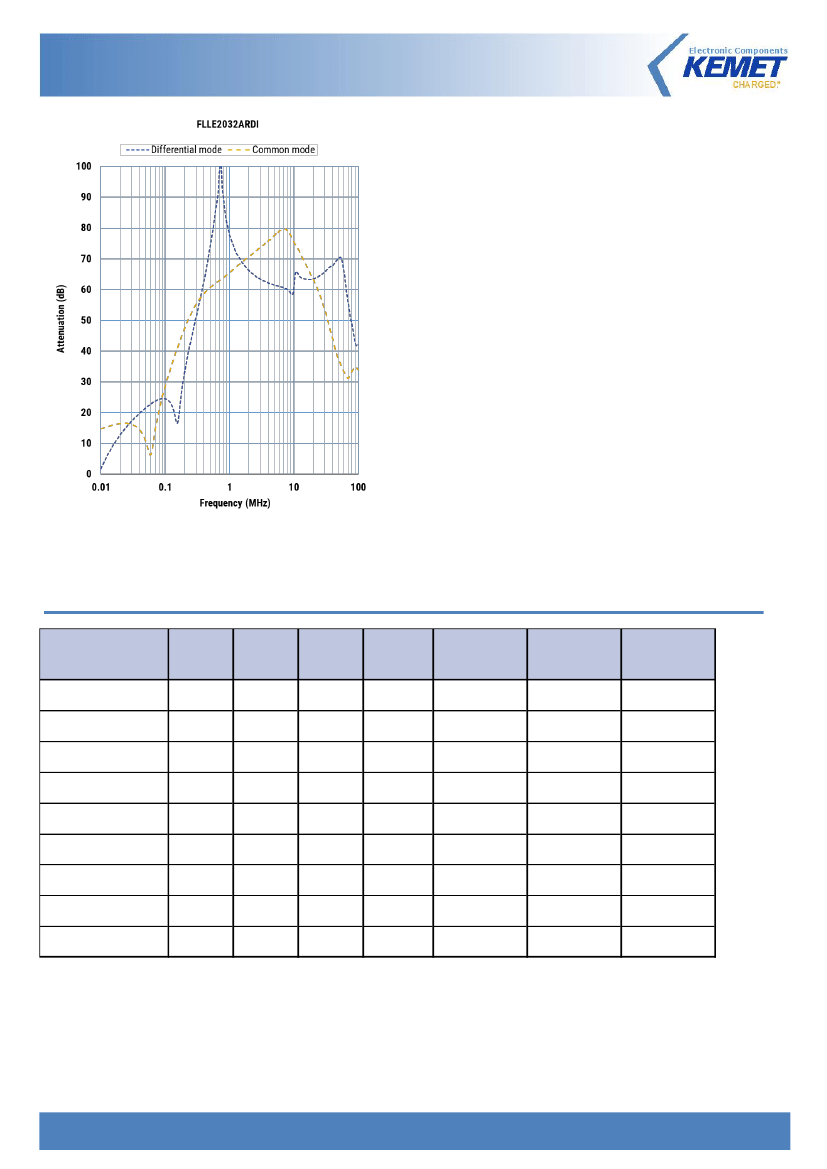

32A
Legal disclaimer notice
All product specifications,
statements, information and data (collectively, the “information”)
are subject to change without notice.
All information given herein is believed to be accurate and reliable, but is presented
without guarantee, warranty, or responsibility of any kind, expressed or implied.
Statements of suitability for certain applications are based on our knowledge of typical
operating conditions for such applications, but are not intended to constitute
–
and we
specifically disclaim
–
any warranty concerning suitability for a specific customer application
or use.
This information is intended for use only by customers who have the requisite experience
and capability to determine the correct products for their applications. Any technical advice
inferred from this information or otherwise provided by us with reference to the use of our
products is given gratis, and we assume no obligation or liability for the advice given or
results obtained.
Although we design and manufacture our products to the most stringent quality and
safety standards, given the current state of the art, isolated component failures may still
occur. Accordingly, customer applications which require a high degree of reliability or
safety should employ suitable designs or other safeguards (such as installation of
protective circuitry or redundancies) in order to ensure that failure of an electrical
component does not result in a risk of personal injury or property damage.
Although all product-related warnings, cautions and notes must be observed, the
customer should not assume that all safety measures are indicated or that other
measures may not required
May 2020
KEMET EMC Filters
5
