FLLE2
–
U
Overview
Single phase EMI Filter
General purpose, single phase filter series with very high attenuation.
Chassis mount for fast mounting, metal case filled with self-extinguishing
resin. Fast-on or screw terminals available and options with flexible wire
connections. Medical versions available without y-capacitors for no
leakage current.
RoHS
Compliant
Technical specifications
Item
Rated Voltage
Rated Frequency
Rated Current
Rated Temperature
Temperature range
Climate Category
Voltage Test

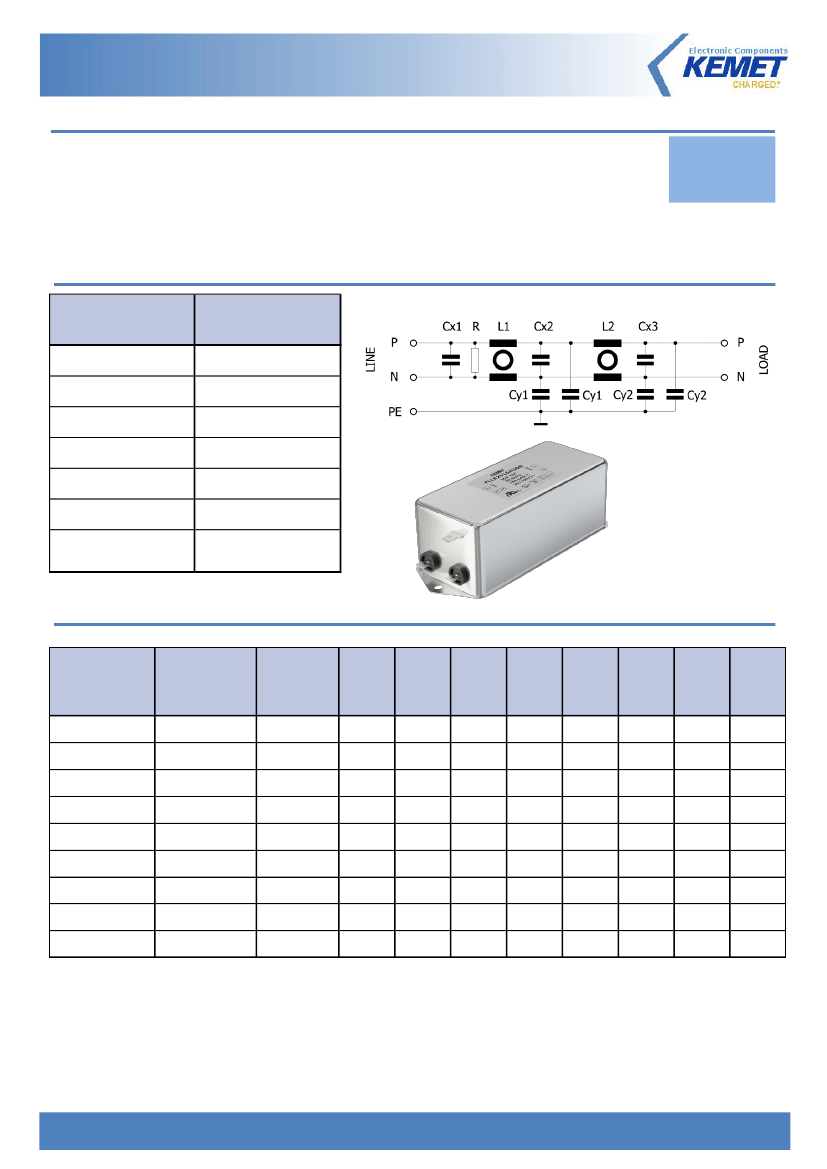

Typical electrial schematics
Parameters/
Characteristics
300 VAC/VDC
50 - 60 Hz
1 - 32 A
40°C
-25°C to 100°C
25/100/21
P -> N 1300 VDC
P/N -> E 2250 VDC
Components
Rated Current
@ 40°C
(A)
FLLE2001AU(1)(2)
FLLE2003AU(1)(2)
FLLE2006AU(1)(2)
FLLE2010AU(1)(2)
FLLE2013AU(1)(2)
FLLE2016AU(1)(2)
FLLE2020AU(1)(2)
FLLE2025AU(1)(2)
FLLE2032AU(1)(2)
1
3
6
10
13
16
20
25
32
Part Number
Leakage
Current *)
(mA)
0.25
0.25
0.25
0.34
0.86
0.86
0.86
0.86
0.86
C
X
1
(µF)
0.22
0.33
0.47
0.47
1
1
1
1
1
R
(MΩ)
0.68
0.47
0.33
0.33
0.15
0.15
0.15
0.15
0.15
L1
(mH)
22
14
8
8
4
4
2.7
2.7
1.3
C
Y
1
(nF)
2.2
2.2
2.2
3.3
10
10
10
10
10
C
X
2
(µF)
0.22
0.33
0.47
0.47
1
1
1
1
1
L2
(mH)
22
14
8
8
4
4
2.7
2.7
1.3
C
X
3
(µF)
0.22
0.33
0.47
0.47
1
1
1
1
1
C
Y
2
(nF)
1
1
1
1
1
1
1
1
1
(1) D = Standard, M = Medical
(2) B = Fast-on (1-16A), I = Threaded (20-32A), D = Wire (1-32A)
*) Leakage current @250 VAC / 50 Hz acc. to IEC60939-3. Medical version without C
Y
-capacitors, no leakage current.
May 2020
KEMET EMC Filters
1
FLLE2
–
U

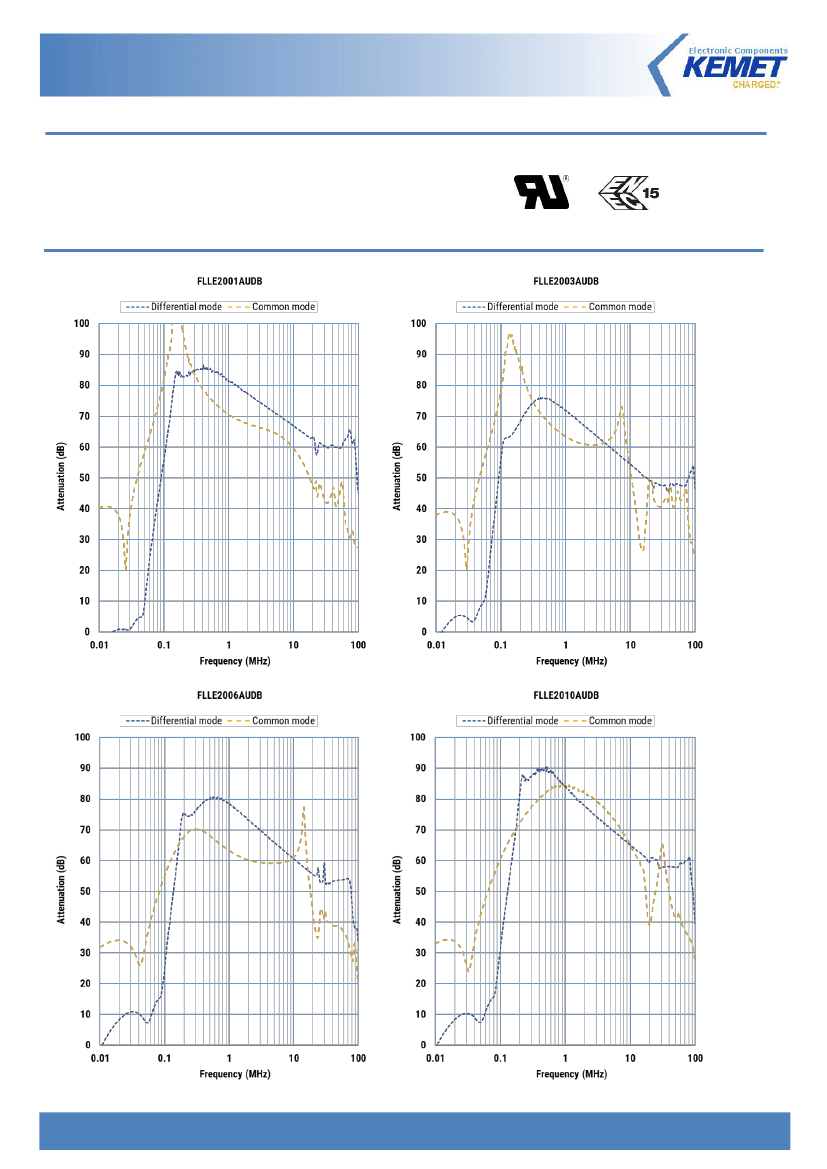

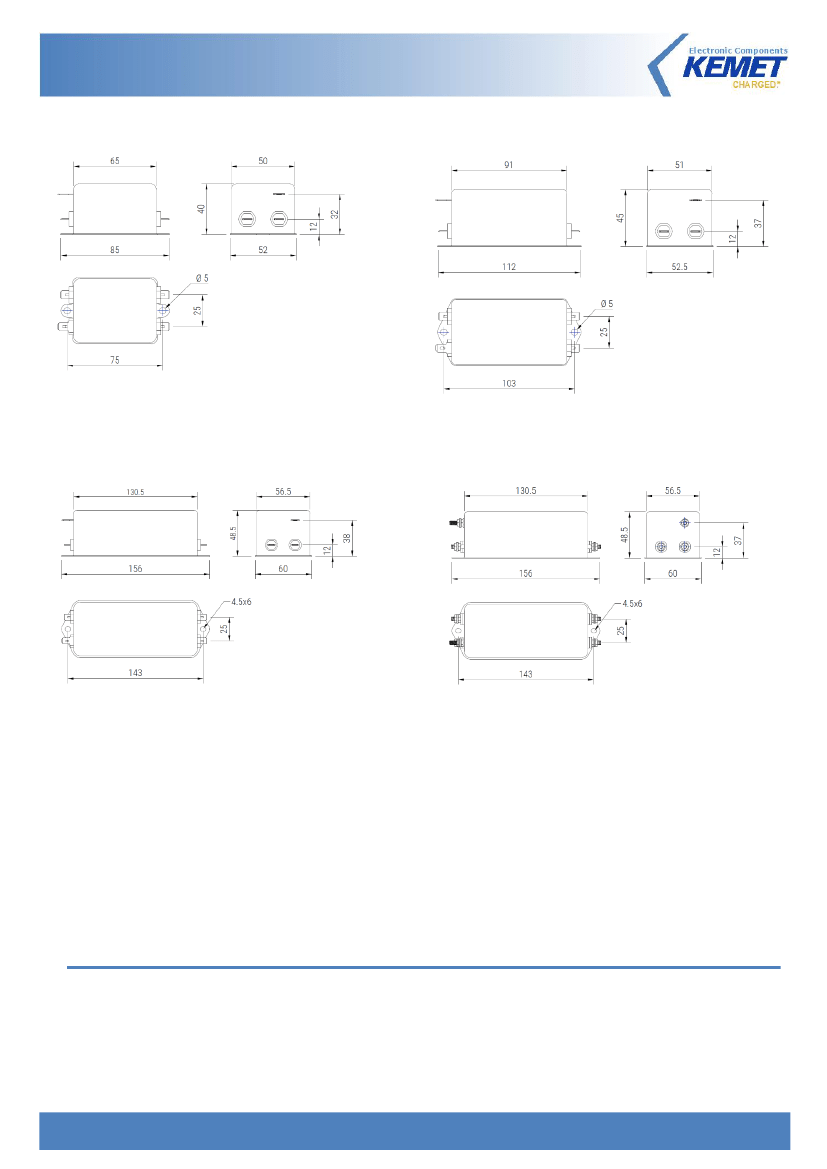

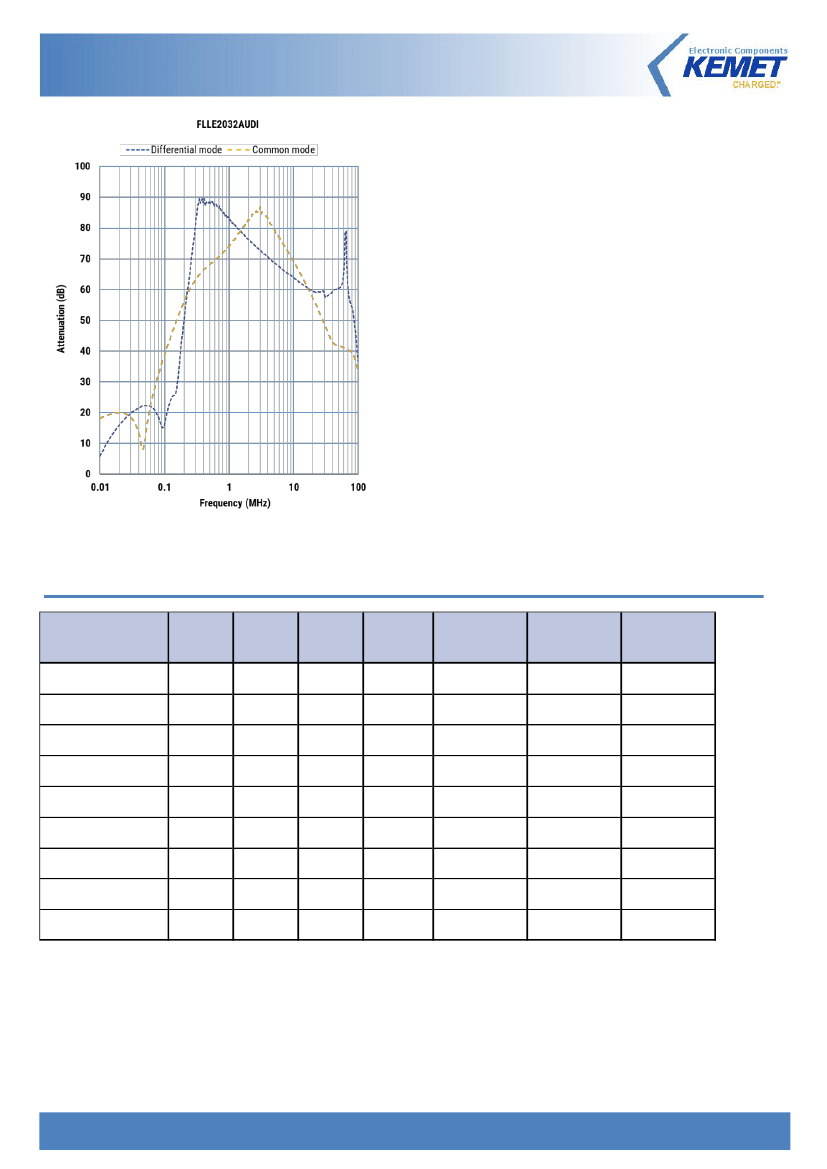

1A and 3A
Single phase EMI Filter
6A

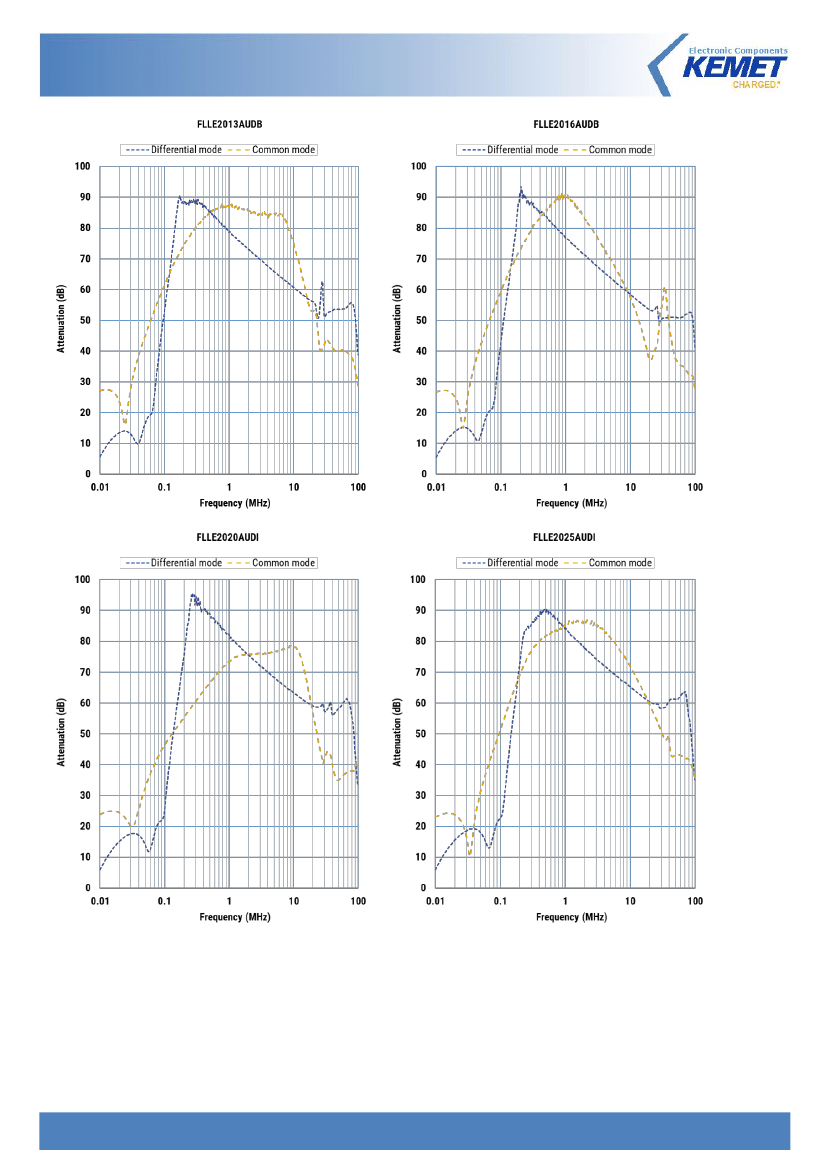

10A, 13A and 16A
20A, 25A and 32A
