95102600HT00: DescriptionBoard Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size205KB，2 Pages; ManufacturerW+P Products GmbH

Download Datasheet Parametric Compare View All

95102600HT00 Overview

Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Receptacle

95102600HT00 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
body width	0.173 inch
subject depth	0.264 inch
body length	1.307 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VDC V
Insulation resistance	500000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	9510
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.4102 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	26
Base Number Matches	1

Preview

Download Datasheet

View All

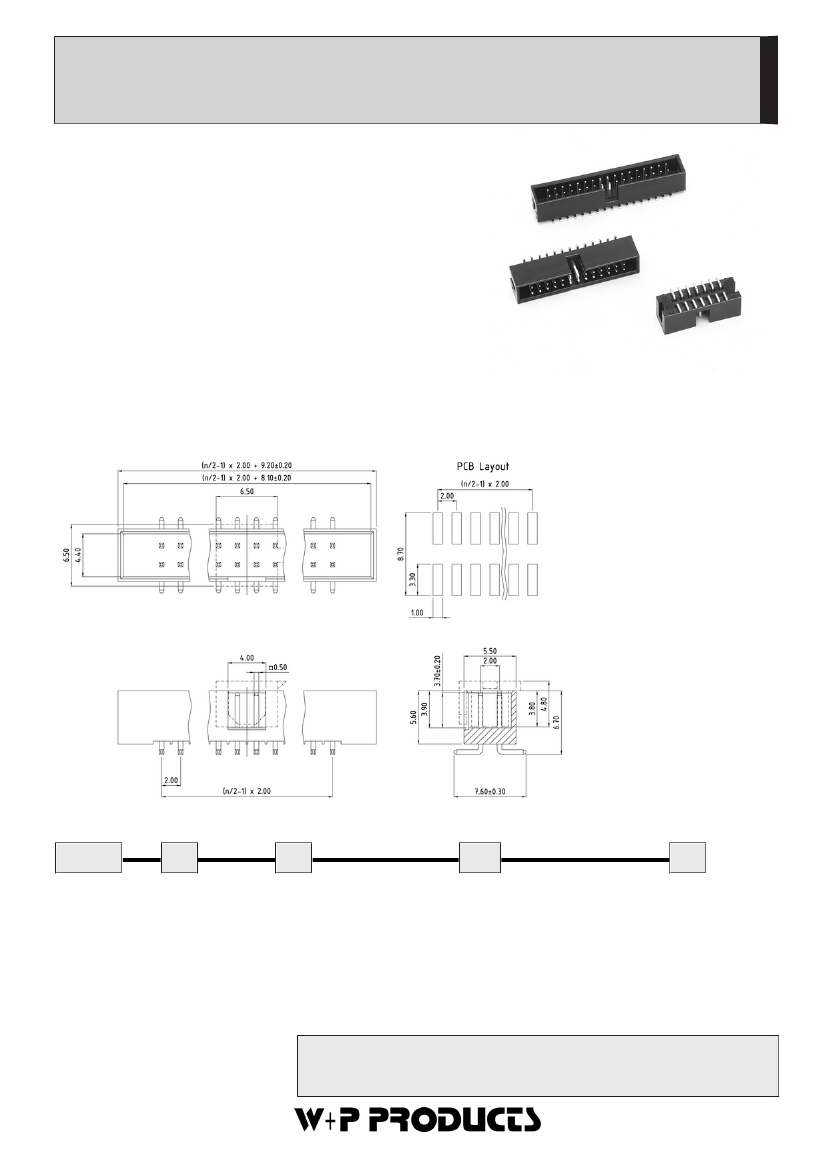

9510

SMT-Wannenstecker - RM 2,00mm

SMT- Box Header - Pitch 2,00mm

Technische Daten /Technical

Data

Isolierkörper

Thermoplastischer Kunststoff, nach UL94 V-0

Insulator

Thermoplastic, rated UL94 V-0

Kontaktmaterial

Vierkantstift 0,50mm, CuZn30

Contact Material

Square pin 0,50mm, CuZn30

Kontaktoberfläche

Lt. Oberflächenoptionen, über Ni (1,3 ... 2,5µm)

Contact Surface

Acc. to options (see below), over Ni (1,3 ... 2,5µm)

Lötbarkeit

IEC512-12A

Solderability

IEC512-12A

Durchgangswiderstand

< 30mΩ

Contact Resistance

< 30mΩ

Isolationswiderstand

> 5x10

Ω

Insulation Resistance

> 5x10

Ω

Spannungsfestigkeit

1000V

Test Voltage

1000V

Nennspannung

250V

Voltage Rating

250V

Nennstrom

Current Rating

Temperaturbereich

-40°C ... +105°C

Temperature Range

-40°C ... +105°C

Verarbeitung

Reflow-Lötverfahren; weitere Informationen in Kapitel T

Processing

Reflow-soldering, detailed information in ch. T

Passender Gegenstecker Serie:

Mates with Connector Series:

343

Series

Contacts

Plating

Insulator

Packing

9510

High Temp. Isolierkörper

High temp. insulator

PPTR

PPST

06/08/10/12/14/16/20/ 00

Vergoldet

22/24/26/30/32/34/36/

Gold plated

40/44/50/60/64/68

Sel. Au/Sn

Duplex Plating Au/Sn

(

Bestellbeispiel - Bitte durch Ihre

Spezifikationen ersetzen.

Order example - To be replaced by your

specifications.)

TEL.: +49 5223 98507-0

FAX.: +49 5223 98507-50

Lieferformen /

Packing Options:

= Schüttgut ohne PP-Pad /

Bulk good w/o PP-Pad

PPTR

= Tape & Reel mit PP-Pad /

Tape & Reel packing with PP-Pad

PPST

= In Stangen mit PP-Pad /

In tubes with PP-Pad

E-MAIL: sales@wppro.com

INTERNET: www.wppro.com
