comprising a beam lead silicon step recovery diode,
beam lead DC blocking capacitors and a beam lead
series-tee pair of low-barrier silicon Schottky diodes
mounted on a ceramic substrate. The
semiconductors and chip capacitors are protected
with an epoxy encapsulation on the top side of the
ceramic substrate. These products are
manufactured using a proven diode fabrication and
assembly processes which optimize diode
characteristics for optimal electrical performance and
excellent reliability.
These low profile, compact surface mount
components offer RF and microwave signal
performance superior to comparable chip-and-wire
discrete devices in leaded packages. These rugged
devices are capable of reliable operation in all
military, commercial and industrial applications.

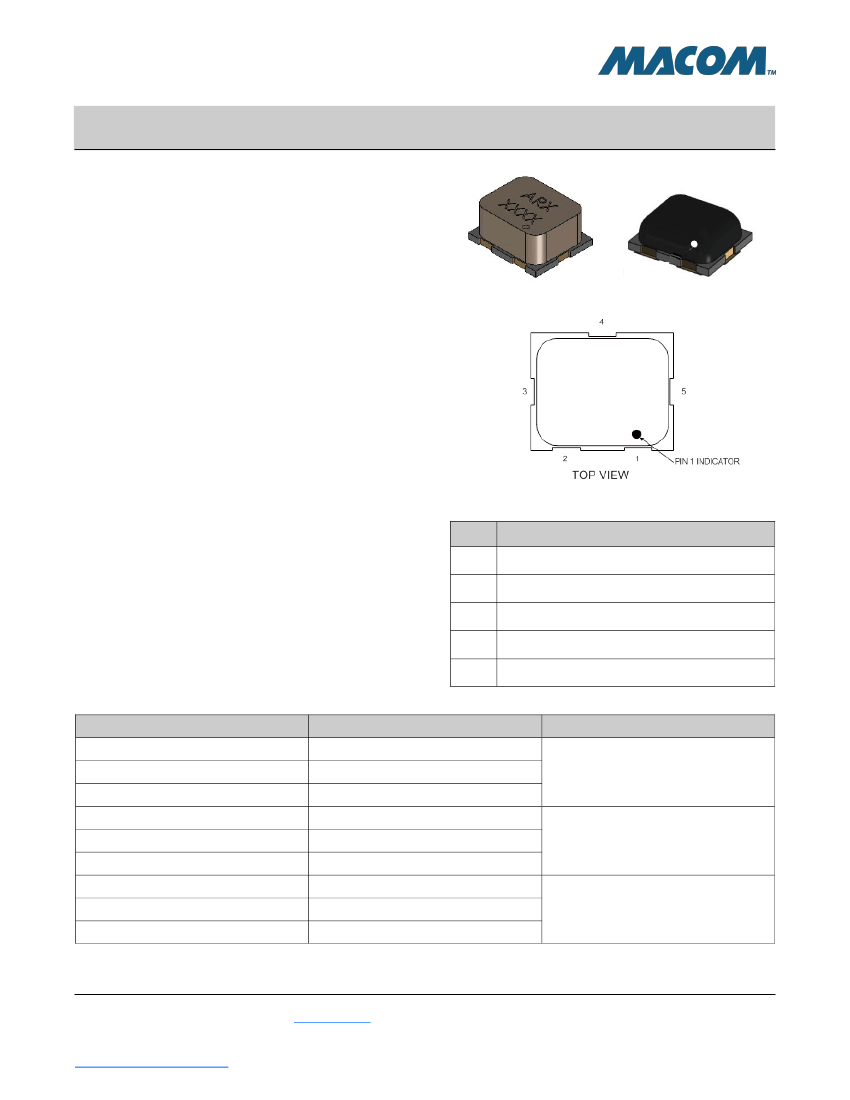

Pin Configuration
Pin #
1
2
3
4
5
Description
Cathode terminal of step recovery diode
Anode terminal of step recovery diode
Cathode connection of Schottky diode series tee
Center node of Schottky diode series tee
Anode connection of Schottky diode series tee
Ordering Information
Part #
MSPD1011-xxx
1
-T
MSPD1012-xxx
1
-T
MSPD1013-xxx
1
-T
MSPD1011-xxx
1
-R
MSPD1012-xxx
1
-R
MSPD1013-xxx
1
-R
MSPD1011-xxx
1
-W
MSPD1012-xxx
1
-W
MSPD1013-xxx
1
-W
1. Insert 121 for ceramic or 122 for epoxy.
1
* Restrictions on Hazardous Substances, European Union Directive 2011/65/EU.
MACOM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
DC-0012374
Description
Low Barrier
Medium Barrier
High Barrier
Low Barrier
Medium Barrier
High Barrier
Low Barrier
Medium Barrier
High Barrier
Packaging
Tube
250 or 500 piece reel
Waffle Pack
MSPD101x-xxx Series
Sampling Phase Detectors
10 MHz - 20 GHz
Electrical Specifications: T
A
= +25°C
Parameter
Microwave Signal Level
Schottky Diode
Barrier Height
Forward Voltage
Junction Capacitance
Total Resistance
Step Recovery Diode
Breakdown Voltage
Carrier Lifetime
Transition Time
Junction Capacitance
DC Block Capacitance
Capacitance
1 MHz
—
0.5
1.0
—
0.5
1.0
—
0.5
1.0
pF
I
R
= 10 µA
I
F
= 10 mA, I
R
= 6 mA
I
F
= 10 mA, V
R
= 10V
V
R
= 0 V, 1 MHz
—
—
—
—
20
10
70
—
30
—
—
0.25
—
—
—
—
20
10
70
—
30
—
—
0.25
—
—
—
—
20
10
70
—
—
0.25
30
V
ns
ps
pF
I
F
= 1 mA
V
R
= 0 V, 1 MHz
I
F
= 5 mA
270
—
—
Low
—
—
—
350
0.1
24
370
—
—
Medium
—
—
—
550
0.1
24
600
—
—
High
—
—
—
700
0.1
24
mV
pF
Ω
Conditions
—
MSPD1011
Min.
Typ.
-3 to 0
Max.
MSPD1012
Min.
Typ.
0 to 3
Max.
MSPD1013
Min.
Typ.
0 to 13
Max.
Units
dBm
Rev. V1
Absolute Maximum Ratings @ T
A
= 25°C (Unless otherwise noted)
Parameter
RF Incident Power
Total Dissipated Power
Junction Temperature
Operating Temperature
Storage Temperature
Conditions
Applied to step recovery diode (pin 1 to pin2)
Applied to microwave input (pin 4)
Infinite heat sink, T
C
= 25°C.
Derate power linearty from 100 mW @ 85°C to 0 W @ 125°C
—
—
—
Absolute Maximum
27 dBm
20 dBm
100 mW
150°C
-55°C to +125°C
-65°C to +150°C
2
MACOM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
DC-0012374
MSPD101x-xxx Series
Sampling Phase Detectors
10 MHz - 20 GHz
Handling Procedures
Please observe the following precautions to avoid
damage:
Rev. V1
Typical Performance:
T
A
= +25°C, Z
0
= 50 Ω
Static Sensitivity
These electronic devices are sensitive to
electrostatic discharge (ESD) and can be damaged
by static electricity. Proper ESD control techniques
should be used when handling these devices. The
moisture sensitivity level (MSL) rating is 1.
Environmental Capabilities
The MSPD101x-121 sampling phase detectors are
capable of meeting the environmental requirements
of MIL-STD-750 and MIL-STD-883.

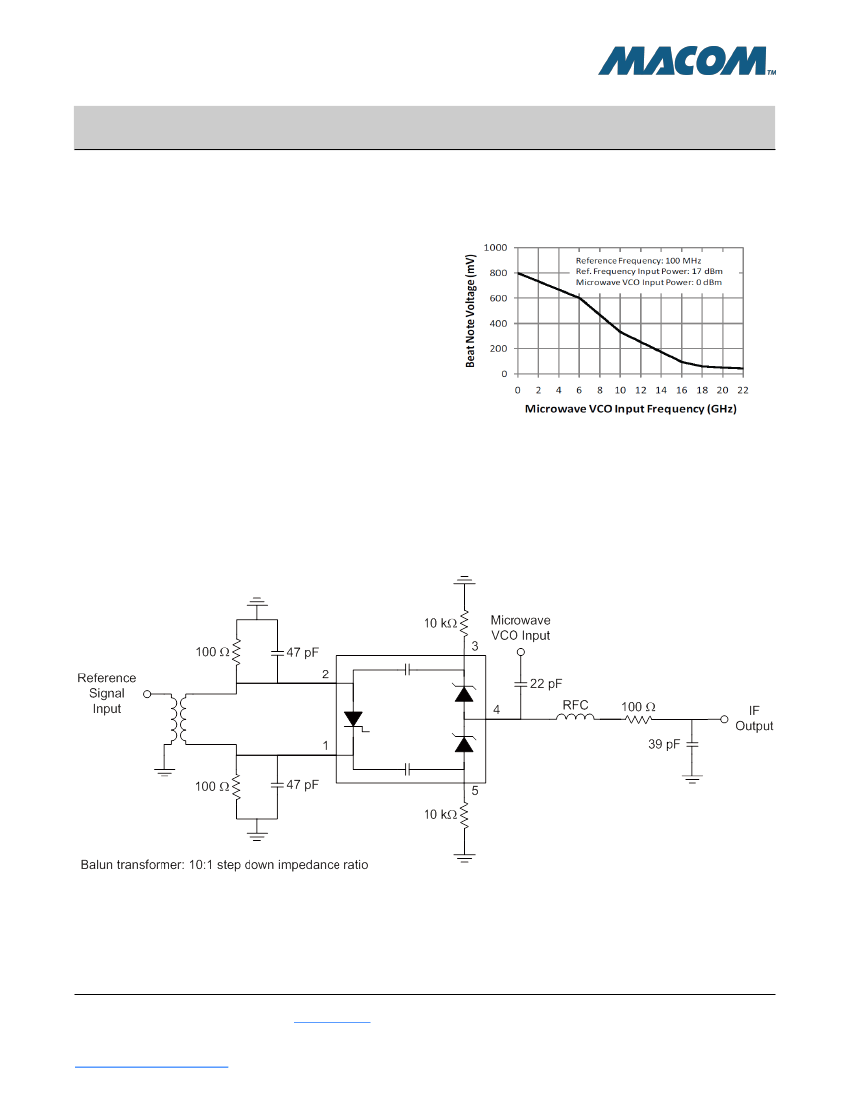

Recommended Circuit
3
MACOM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
DC-0012374
MSPD101x-xxx Series
Sampling Phase Detectors
10 MHz - 20 GHz
Assembly Instructions

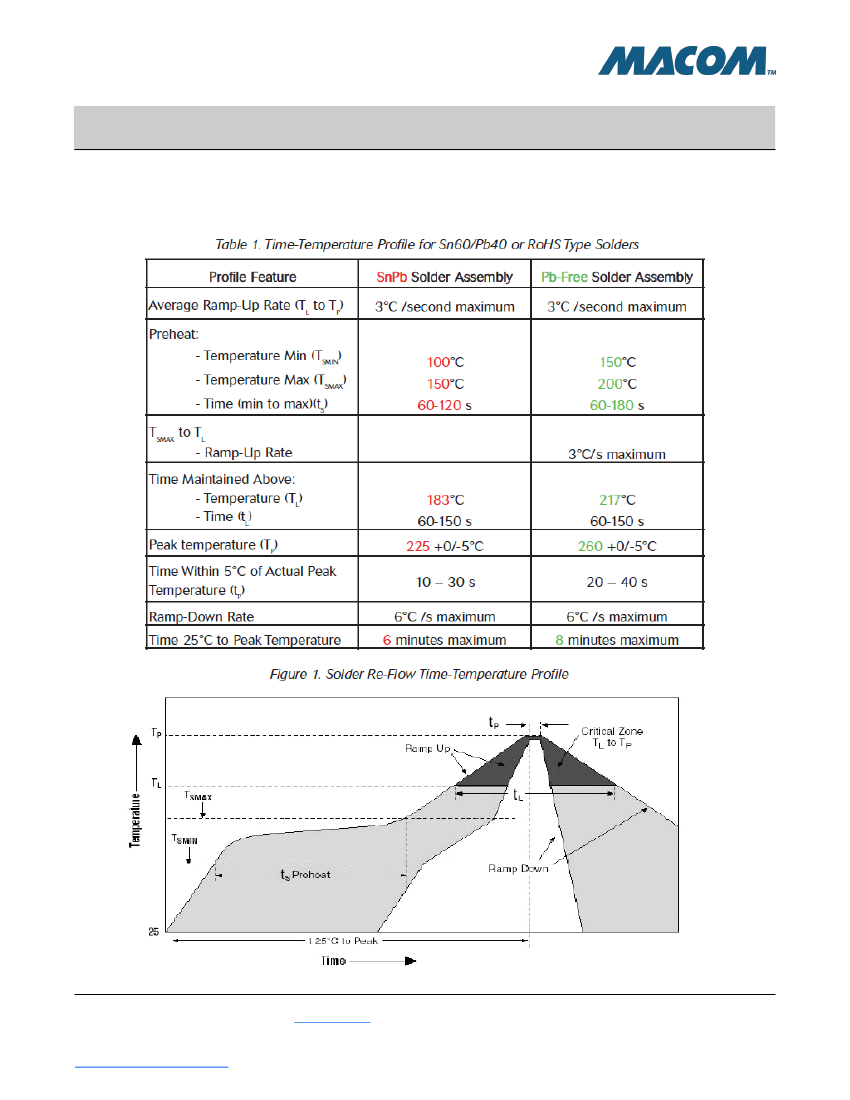

The MSPD101x family of sampling phase detectors may be soldered to a printed circuit using conventional
solder reflow or wave soldering procedures with RoHS type or Sn60/Pb40 type solders per the recommended
time temperature profile described in Table I and Figure I.
Rev. V1
4
MACOM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
DC-0012374
MSPD101x-xxx Series
Sampling Phase Detectors
10 MHz - 20 GHz

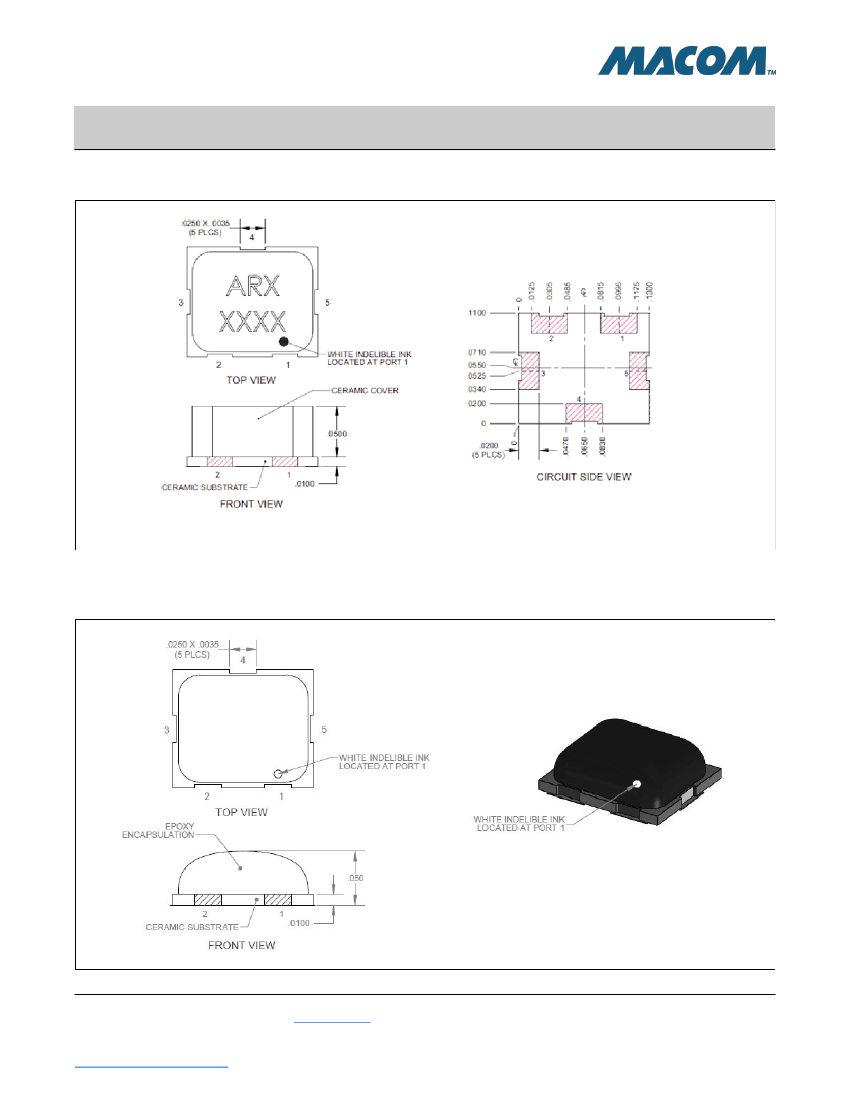

Outline Drawing (CS121)
Rev. V1
Outline Drawing (CS122)
5
MACOM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
