SM30SRL W/30 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The sensor> Optical sensors> SM30SRL W/30

SM30SRL W/30: Description穿透光束光学传感器 492.13'（150m） NPN/PNP - 暗光/亮光 - 可选; CategoryThe sensor Optical sensors; ManufacturerBanner Engineering

Download Datasheet Parametric View All

SM30SRL W/30 Overview

穿透光束光学传感器 492.13'（150m） NPN/PNP - 暗光/亮光 - 可选

SM30SRL W/30 Parametric

Parameter Name	Attribute value
category
Maker	Banner Engineering
series	SM30
Package	box
Sensing method	penetrating beam
Sensing distance	492.13'（150m）
Voltage - Power supply	10V ~ 30V
Response time	10ms
Output configuration	NPN/PNP - Dark light/Bright light - optional
light source	infrared
connection method	cable
Intrusion protection	NEMA 6P，IEC IP67
cable length	78.74"（2m）
Adjustment type	-
Operating temperature	-40°C ~ 70°C
Basic product number	SM30S

Preview

Download Datasheet

View All

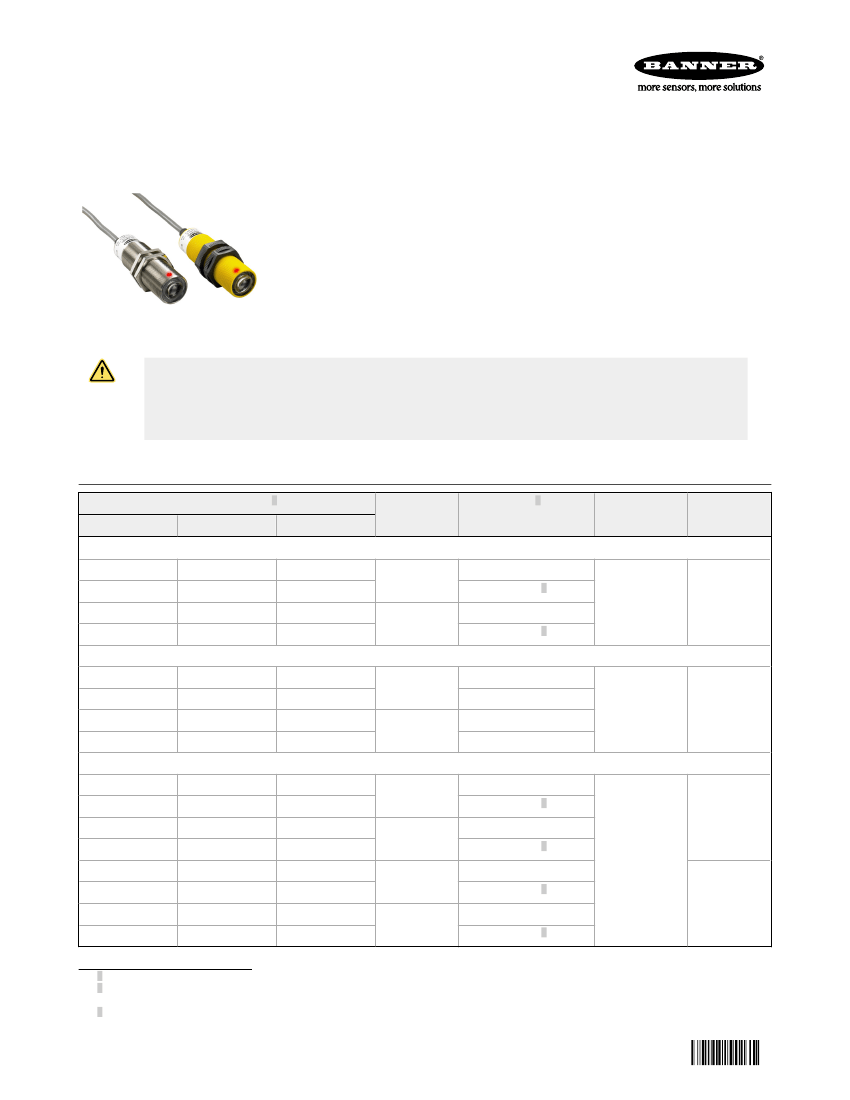

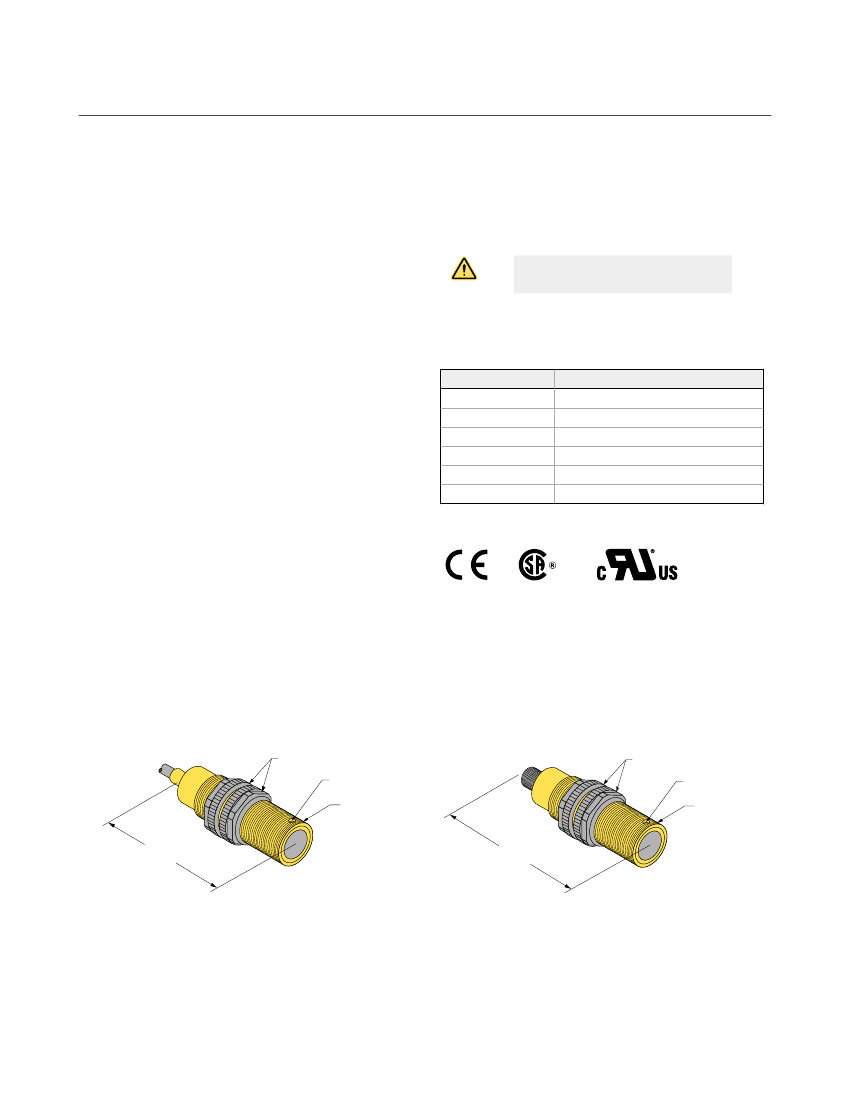

SM30 Series 30 mm Barrel Sensors

Datasheet

Opposed-Mode Infrared Photoelectric Sensors for Especially Demanding

Applications

•

Stainless steel or

plastic

barrel models

Very high excess gain; 150 m (500

ft)

sensing range; 880 nm Infrared LED

Positive

sealing eliminates even capillary leakage; lens is quad-ring sealed; exceeds NEMA

6P (IP67)

ratings

– ideal for equipment wash-down environments

EZ-BEAM

technology provides reliable sensing without the need for adjustment

Modulation

frequency “A” is standard; frequencies “B” and “C” also available for

preventing

crosstalk in

multiple-sensor applications (emitter

and opposed receiver

frequencies must match)

AC- and DC-operated receiver models available;

emitters

feature Universal voltage

Range for all models: 150 m (500

ft)

WARNING: Not To Be Used for Personnel

Protection

Never use this device as a sensing device for personnel

protection.

Doing so could lead to serious injury or death.

This device does not include the self-checking redundant circuitry necessary to allow its use in personnel safety

applications.

A sensor failure or

malfunction

can cause either an energized or de-energized sensor output

condition.

Models

Modulation

Frequency

Emitter

Models

SMA30PEL

SMA30PELQD

SMA30SEL

SMA30SELQD

DC Receivers

SM30PRL

SM30PRLQD

SM30SRL

SM30SRLQD

AC Receivers

SM2A30PRL

SM2A30PRLQD

SM2A30SRL

SM2A30SRLQD

SM2A30PRLNC

SM2A30PRLNCQD

SM2A30SRLNC

SM2A30SRLNCQD

SM2A30PRLB

SM2A30PRLQDB

SM2A30SRLB

SM2A30SRLQDB

SM2A30PRLNCB

SM2A30PRLNCQDB

SM2A30SRLNCB

SM2A30SRLNCQDB

SM2A30PRLC

SM2A30PRLQDC

SM2A30SRLC

SM2A30SRLQDC

SM2A30PRLNCC

SM2A30PRLNCQDC

SM2A30SRLNCC

SM2A30SRLNCQDC

Plastic

2 m (6.5

ft)

2-wire Cable

3-pin Mini-style QD3

2 m (6.5

ft)

3-wire Cable

3-pin Mini-style QD3

2 m (6.5

ft)

2-wire Cable

3-pin Mini-style QD3

2 m (6.5

ft)

3-wire Cable

3-pin Mini-style QD3

24 to 240 V ac

SPST Solid-state,

D.O.

SPST Solid-state,

L.O.

SM30PRLB

SM30PRLQDB

SM30SRLB

SM30SRLQDB

SM30PRLC

SM30PRLQDC

SM30SRLC

SM30SRLQDC

Plastic

2 m (6.5

ft)

4-wire Cable

4-pin Mini-style QD

2 m (6.5

ft)

4-wire Cable

4-pin Mini-style QD

10 to 30 V dc

Bi-Modal

™

NPN or

PNP

SMA30PELB

SMA30PELQDB

SMA30SELB

SMA30SELQDB

SMA30PELC

SMA30PELQDC

SMA30SELC

SMA30SELQDC

Plastic

2 m (6.5

ft)

2-wire Cable

3-pin Mini-style QD3

2 m (6.5

ft)

3-wire Cable

3-pin Mini-style QD3

Universal: 12 to 240

V ac, 10 to 30 V dc

–

Housing

Cable

Power Supply

Output Type

Stainless Steel

Plastic

Stainless Steel

1 Any

emitter

and receiver shown here can be used together, if they have the same

modulation

frequency.

2 Standard 2 m (6.5

ft)

cable and integral QD models are listed. Models with a quick disconnect require a

mating

cordset. To order the 9 m (30

ft)

PVC cable model,

add the

suffix

"W/30" to the cabled model number. For example, SM30PRLBW/30.

3 AC models with QD require SM30CC model cables.

Original Document

03541 Rev. G

25 May 2017

03541
