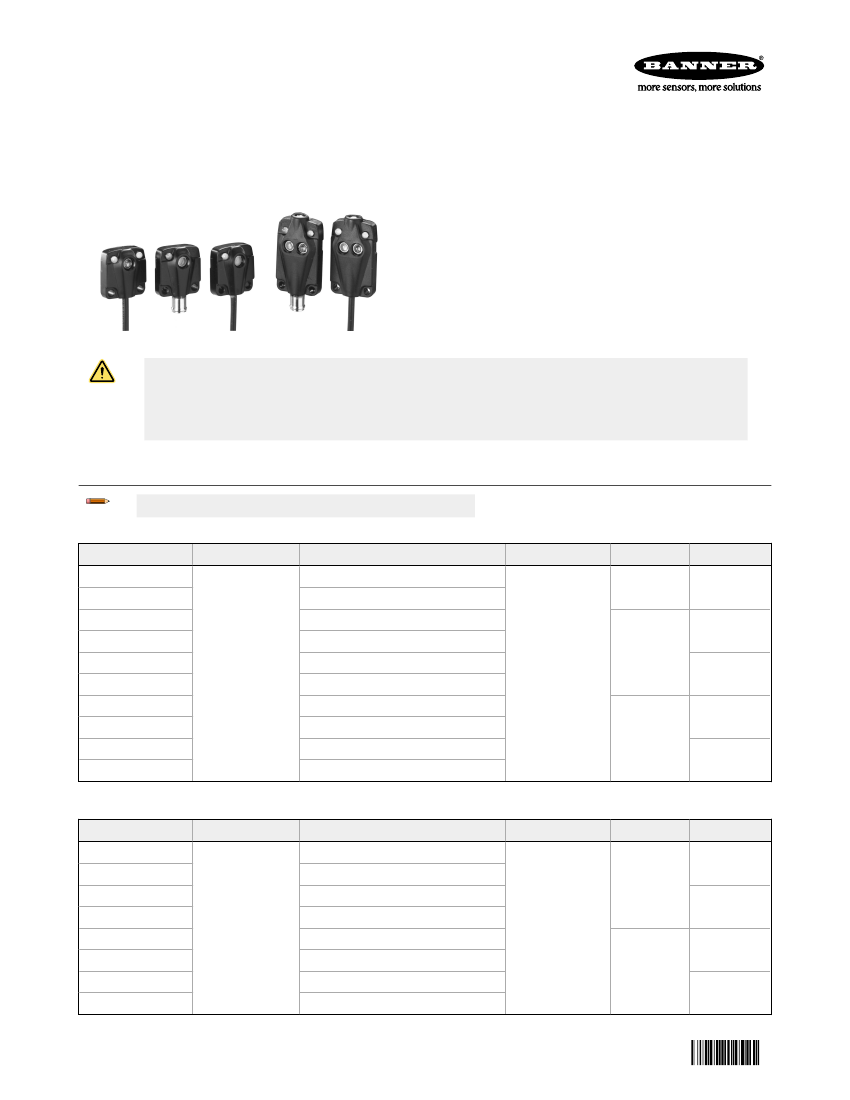

Self-contained dc sensors in miniature right-angle housings; only
11 mm (0.43 in) thick
Epoxy-encapsulated circuitry; IP54 (NEMA5)
construction;
hermetically-sealed optics
1.8 m (70 in) opposed range or 0.5 m (20 in)
diffuse
range
Diffuse
models have
sensitivity
adjustment
Choose models for light operate or dark operate; choose either
NPN (sinking) or PNP (sourcing) output models
WARNING: Not To Be Used for Personnel
Protection
Never use this device as a sensing device for personnel
protection.
Doing so could lead to serious injury or death.
This device does not include the self-checking redundant circuitry necessary to allow its use in personnel safety
applications.
A sensor failure or
malfunction
can cause either an energized or de-energized sensor output
condition.
Models
Note:
Models with a quick disconnect require a
mating
cordset.
Table 1: Q10 Opposed Mode
Emitter
(E) and Receiver (R)
Models
Q106E
Q106EQ
Q10AN6R
Q10AN6RQ
Q10RN6R
Q10RN6RQ
Q10AP6R
Q10AP6RQ
Q10RP6R
Q10RP6RQ
Table 2: Q10
Diffuse
Mode
Models
Q10AN6D
Q10AN6DQ
Q10RN6D
Q10RN6DQ
Q10AP6D
Q10AP6DQ
Q10RP6D
Q10RP6DQ
0.5 m (20 in)
Range
Cable
2 m (6.5 in)
3-Pin Pico-style 150 mm (6 in) QD
2 m (6.5 in)
3-Pin Pico-style 150 mm (6 in) QD
2 m (6.5 in)
3-Pin Pico-style 150 mm (6 in) QD
2 m (6.5 in)
3-Pin Pico-style 150 mm (6 in) QD
10 V dc to 30 V dc
L.O.
PNP
D.O.
NPN
D.O.
Supply Voltage
NPN/ PNP
L.O./ D.O.
L.O.
1.8 m (70 in)
Range
Cable
2 m (6.5 in)
3-Pin Pico-style 150 mm (6 in) QD
2 m (6.5 in)
3-Pin Pico-style 150 mm (6 in) QD
2 m (6.5 in)
3-Pin Pico-style 150 mm (6 in) QD
2 m (6.5 in)
3-Pin Pico-style 150 mm (6 in) QD
2 m (6.5 in)
3-Pin Pico-style 150 mm (6 in) QD
PNP
D.O.
10 V dc to 30 V dc
NPN
D.O.
L.O.
Supply Voltage
NPN/ PNP
-
L.O./ D.O.
-
L.O.
Original Document
45725 Rev. C
23 October 2017
45725
Q10 Series Sensors

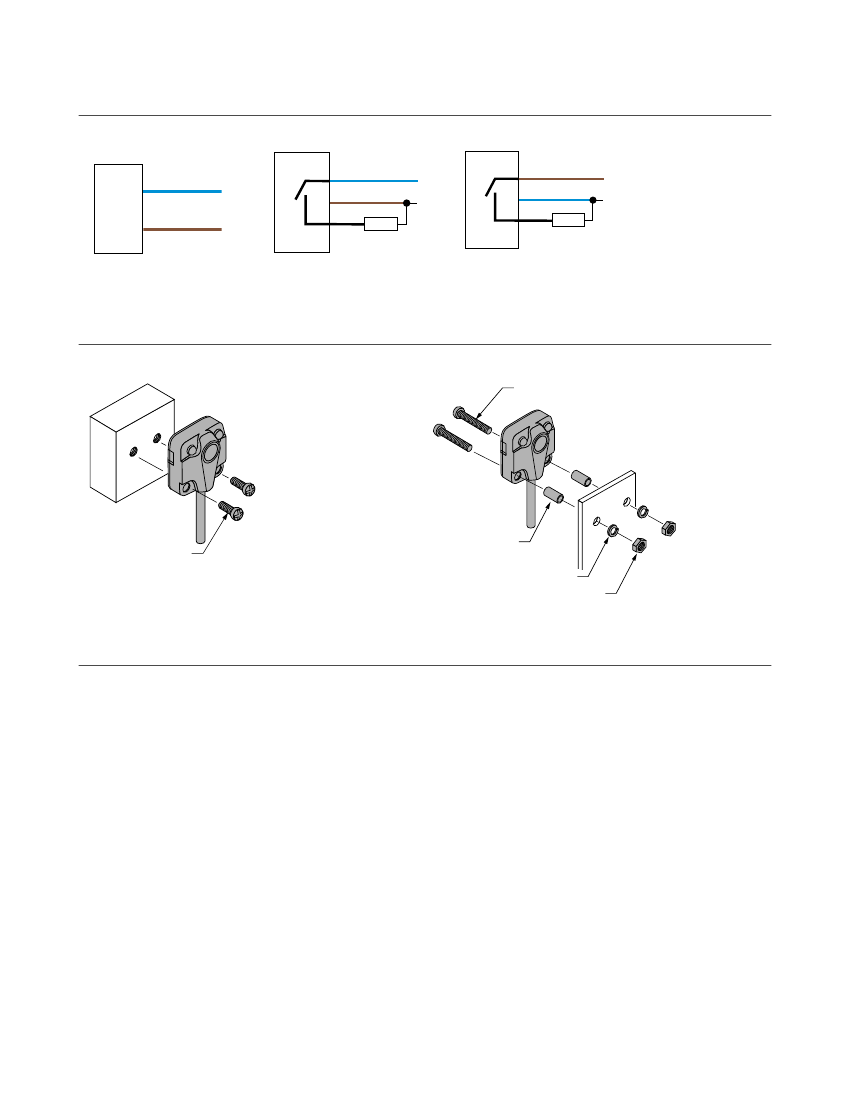

Wiring Diagrams
Emitters
NPN Receivers
3
PNP Receivers
1
3
4
Load
Key
3
1
–
10-30V dc
+
1
4
Load
–
10-30 V dc
+
+
10-30 V dc
–
1 = Brown
3 = Blue
4 = Black
Quick disconnect (QD) wiring diagrams are
functionally identical.
Mounting Specifications
Flat
Mounting
Stand-Off Mounting
M2.5 x 0.45 Machine Screw
25 mm (1.0 in) long
M2.5 x 0.45
Machine Screw
12mm Long
Nylon Spacer
Split Lockwasher
Hex Nut
Specifications
Sensing Beam
Infrared, 880 nm
Supply Voltage and Current
10 V dc to 30 V dc (10% maximum ripple)
Emitter
or receiver: 15 mA
Diffuse
models: 20 mA (exclusive of load)
Supply
Protection
Circuitry
Protected against reverse polarity
Output
Configuration
SPST solid-state dc switch
Choose NPN (current sinking) or PNP (current sourcing) models
Choose light operate (N.O.) or dark operate (N.C.) models
Output
Rating
150 mA maximum
Off-state
leakage current: < 10 microamps at 30 V dc
On-state
saturation
voltage: < 0.5 V at 10 mA dc; < 1.5 V at 150 mA dc
Output
Protection
Circuitry
Protected against output short-circuit,
continuous
overload, and false pulse on
power-up
Overload trip point
≥
220 mA, typical, at 20 °C
Output Response Time
Opposed mode: 8 ms On, 4 ms
Off
Diffuse
mode: 3 ms On and
Off
Repeatability
Opposed mode: 1.0 ms
Diffuse
mode: 0.75 ms
Adjustments
Diffuse
models (only); single-turn, top-mounted
sensitivity
control for
adjustment of system gain (turn clockwise to increase)
Indicators
Opposed mode receivers and
diffuse
mode sensors have two LEDs: Green and
Amber
Green on = power to the sensor is On
Green
flashing
= output is overloaded
Amber on = light is sensed
Amber
flashing
= marginal excess gain (1 to 1.5×) in light
condition
Emitters
have one Green LED; Green on = power to the sensor is On
Construction
Housings are black ABS; Rated UL 94V0
Lenses are
hermetically-sealed
glass; lens covers are clear acrylic
Circuitry is epoxy-encapsulated and completely sealed
Stainless steel M2.5
mounting
hardware is included
Connections
2 m (6.5
ft) attached
cable, or 3-pin pico-style quick-disconnect
fitting
Cables for QD models are purchased separately
Environmental
Rating
IEC IP54 (NEMA 5)
Operating Conditions
–40 °C to +70 °C (–40 °F to +158 °F)
90% at +50 °C maximum
relative
humidity (non-condensing)
2
www.bannerengineering.com - Tel: +1-763-544-3164
P/N 45725 Rev. C
Q10 Series Sensors

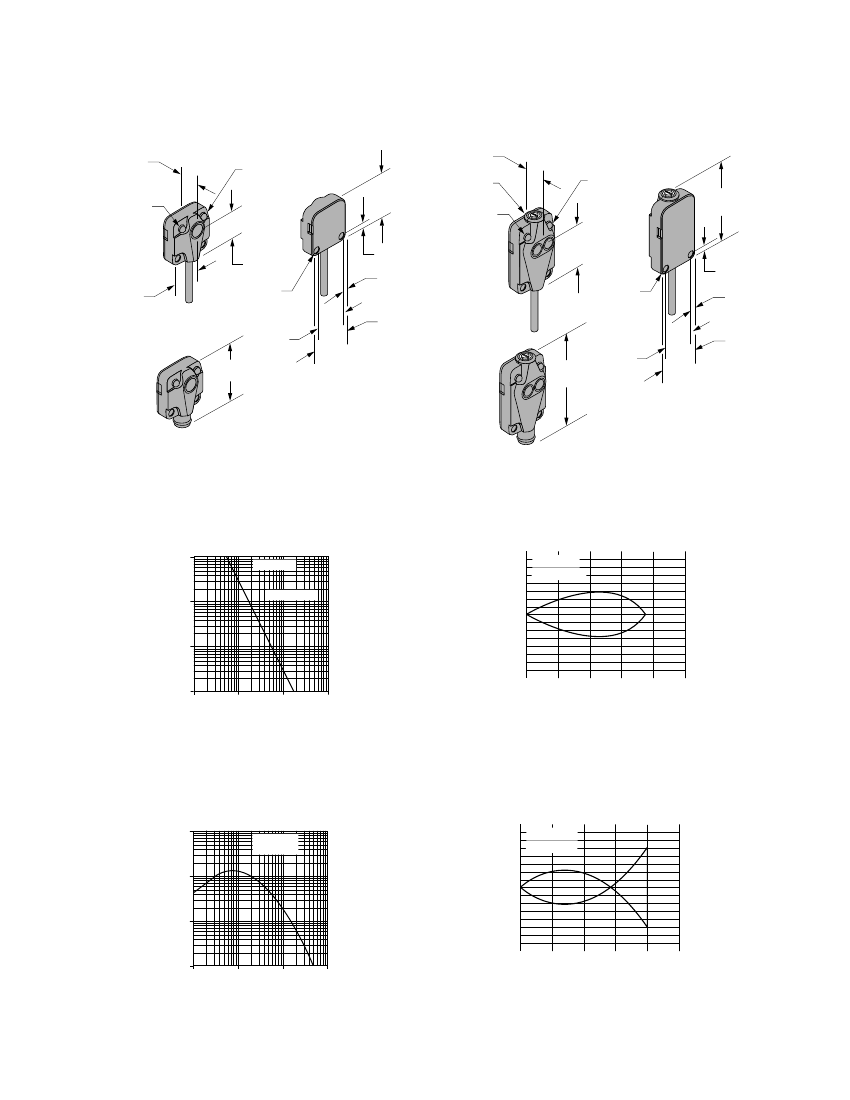

Dimensions
Opposed Mode Models
Cabled Models
11.0 mm
(0.43 in)
Yellow LED
Signal Indicator
(Receiver, Only)
Diffuse
Mode Models
Cabled Models
11.0 mm
(0.43 in)
21.6 mm
(0.85 in)
Green LED
Power Indicator
Gain
(Sensitivity)
Adjustment
Green LED
Power Indicator
Yellow LED
Signal Indicator
(Receiver, Only)
35.0 mm
(1.38 in)
15.2 mm
(0.60 in)
10.0 mm
(0.39 in)
2X Clearance
for M2.5 Screw
2.8 mm
(0.11 in)
2.8 mm
(0.11 in)
18.0 mm
(0.70 in)
2.8 mm
(0.11 in)
2X Clearance
for M2.5 Screw
2.8 mm
(0.11 in)
QD Models
28.9 mm
(1.14 in)
14.5 mm
(0.57 in)
20.0 mm
(0.79 in)
QD Models
42.4 mm
(1.67 in)
14.5 mm
(0.57 in)
20.0 mm
(0.79 in)
Performance Curves
Opposed Mode
1000
E
X
C
E
S
S
G
A
I
N
Q10 Series
Opposed Mode
300 mm
200 mm
Q10 Series
Opposed Mode
12 in
8 in
4 in
0
4 in
8 in
12 in
100
100 mm
0
100 mm
10
200 mm
300 mm
0
.1 m
.33 ft
1m
3.3 ft
10 m
33 ft
1
.01 m
.033 ft
.5 m
20 in
1.0 m
40 in
1.5 m
60 in
2.0 m
80 in
2.5 m
100 in
DISTANCE
DISTANCE
Effective
Beam: 5 mm
Diffuse
Mode
Performance based on a 90%
reflectance
white test card.
1000
E
X
C
E
S
S
G
A
I
N
Q10 Series
Diffuse mode
60 mm
40 mm
20 mm
0
20 mm
Q10 Series
Diffuse Mode
2.4 in
1.6 in
0.8 in
0
0.8 in
1.6 in
2.4 in
100
10
40 mm
60 mm
0
10 mm
.4 in
100 mm
4 in
1000 mm
40 in
1
1 mm
.04 in
125 mm
5 in
250 mm
10 in
375 mm
15 in
500 mm 625 mm
20 in
25 in
DISTANCE
DISTANCE
P/N 45725 Rev. C
www.bannerengineering.com - Tel: +1-763-544-3164
3
Q10 Series Sensors
Cordsets
3-Pin Threaded M8/Pico-Style Cordsets
Model
PKG3M-2
PKG3M-5
PKG3M-7
PKG3M-9
PKG3M-10
PKW3M-2
PKW3M-5
Length
2 m (6.56
ft)
5 m (16.40
ft)
7 m (22.97
ft)
9 m (29.53
ft)
10 m (32.81
ft)
2 m (6.56
ft)
5 m (16.40
ft)
Right-Angle
PKW3M-9
9 m (29.53
ft)
Straight
35 Typ.
ø 9.5
M8 x 1
Style
Dimensions
Pinout (Female)
4
3
1
1 = Brown
3 = Blue
4 = Black
28 Typ.
20 Typ.
M8 x 1
ø 9.5
Banner Engineering Corp. Limited Warranty
Banner Engineering Corp. warrants its products to be free from defects in material and workmanship for one year following the date of shipment. Banner Engineering Corp. will repair or
replace, free of charge, any product of its manufacture which, at the
time
it is returned to the factory, is found to have been
defective
during the warranty period. This warranty does not cover
damage or liability for misuse, abuse, or the improper
application
or
installation
of the Banner product.
THIS LIMITED WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES WHETHER EXPRESS OR IMPLIED (INCLUDING, WITHOUT LIMITATION, ANY WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE), AND WHETHER ARISING UNDER COURSE OF PERFORMANCE, COURSE OF DEALING OR TRADE USAGE.
This Warranty is exclusive and limited to repair or, at the
discretion
of Banner Engineering Corp., replacement.
IN NO EVENT SHALL BANNER ENGINEERING CORP. BE LIABLE TO BUYER OR ANY
OTHER PERSON OR ENTITY FOR ANY EXTRA COSTS, EXPENSES, LOSSES, LOSS OF PROFITS, OR ANY INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES RESULTING FROM ANY PRODUCT
DEFECT OR FROM THE USE OR INABILITY TO USE THE PRODUCT, WHETHER ARISING IN CONTRACT OR WARRANTY, STATUTE, TORT, STRICT LIABILITY, NEGLIGENCE, OR OTHERWISE.
Banner Engineering Corp. reserves the right to change, modify or improve the design of the product without assuming any
obligations
or
liabilities relating
to any product previously
manufactured by Banner Engineering Corp. Any misuse, abuse, or improper
application
or
installation
of this product or use of the product for personal
protection applications
when the
product is
identified
as not intended for such purposes will void the product warranty. Any
modifications
to this product without prior express approval by Banner Engineering Corp will void the
product
warranties.
All
specifications
published in this document are subject to change; Banner reserves the right to modify product
specifications
or update
documentation
at any
time.
Specifications
and product
information
in English supersede that which is provided in any other language. For the most recent version of any
