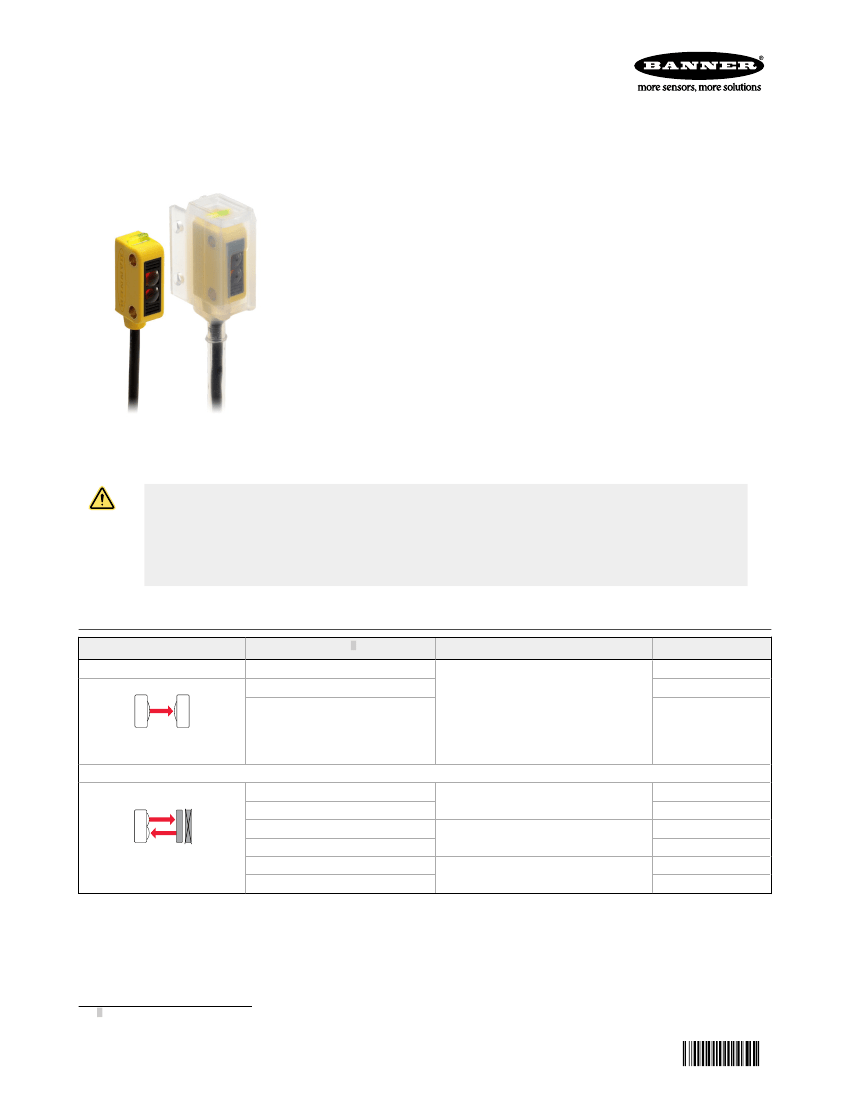

Miniature self-contained photoelectric sensors in universal housing
•
•
•
•
•
•
•
•
•
•
Standard Model
Chemical-Resistant
Model
Bright, visible red (640 nm) light source
Standard models available with 4-wire 2 m (6.5 ft) or 9 m (30 ft) cable or 3 or 4-
wire 150 mm (6 in) pigtail with Pico-style M8 threaded connector
Solid-state, bipolar outputs: one current sourcing (PNP) and one current sinking
(NPN) standard on 4-wire models
Single output solid-state PNP or NPN standard on Q3 models
Light Operate (LO) or Dark Operate (DO), depending on model
Models available with PFA chemical-resistant jacket (1200 psi washdown rated)
for use in harsh environments
Compact 8 mm (0.31 in) housing mounts almost anywhere
Crosstalk avoidance circuitry for applications with multiple sensors
LED status indicators for Power ON, Output Overload, Signal Received, and
Marginal Signal
Advanced ASIC technology makes sensor resistant to optical and electrical noise
source
WARNING:
• Do not use this device for personnel protection
• Using this device for personnel protection could result in serious injury or death.
• This device does not include the self-checking redundant circuitry necessary to allow its use in
personnel safety applications. A device failure or malfunction can cause either an energized (on) or de-
energized (off) output condition.
Chemical-Resistant Models
Sensing Mode
640 nm Visible Red
Q126ECR
Q12AB6RCR
1.5 m (4.9 ft)
OPPOSED
Model1
Range
Output
N/A
Bipolar LO
Q12RB6RCR
Bipolar DO
Effective Beam: 5.7 mm (0.22 in)
Performance based on use of 90% reflectance white test card.
Q12AB6FF15CR
Q12RB6FF15CR
Q12AB6FF30CR
FIXED-FIELD
VISIBLE RED
13 mm (0.5 in) cutoff;
8 mm (0.3 in) focus
28 mm (1.1 in) cutoff;
14 mm (0.6 in) focus
48 mm (1.9 in) cutoff;
14 mm (0.6 in) focus
Bipolar LO
Bipolar DO
Bipolar LO
Bipolar DO
Bipolar LO
Bipolar DO
Q12RB6FF30CR
Q12AB6FF50CR
Q12RB6FF50CR
640 nm Visible Red
1 Only standard 2 m (6.5 ft) cables are available for chemical-resistant models.
Original Document
119223 Rev. M
7 April 2020
119223
WORLD-BEAM
®
Q12 Series Sensor
Standard Models
Sensing Mode
Model2
Q126E (emitter)
640 nm Visible Red
Q126EQ3 (emitter)
Q12AB6R
Q12RB6R
Q12AP6RQ3
OPPOSED
Range
2m
(6.5 ft)
Connection
2 m (6.5 ft) cable
150 mm (6 in) cable with a 3-pin M8/
Pico-style QD
2 m (6.5 ft) cable
Output
N/A
N/A
Bipolar LO
Bipolar DO
1 PNP LO
Q12RP6RQ3
Q12AN6RQ3
Q12RN6RQ3
Q12AB6LP
Q12RB6LP
2m
(6.5 ft)
Effective Beam: 5.7 mm (0.22 in)
150 mm (6 in) cable with a 3-pin M8/
Pico-style QD
1 PNP DO
1 NPN LO
1 NPN DO
2 m (6.5 ft) cable
1 m (40 in) 3
150 mm (6 in) cable with a 3-pin M8/
Pico-style QD
Bipolar LO
Bipolar DO
1 PNP LO
1 PNP DO
1 NPN LO
1 NPN DO
P
POLAR RETRO
Q12AP6LPQ3
Q12RP6LPQ3
Q12AN6LPQ3
Q12RN6LPQ3
Q12AB6LV
Q12RB6LV
Q12AP6LVQ3
RETRO
640 nm Visible Red
2 m (6.5 ft) cable
1.5 m
(59 in) 3
Bipolar LO
Bipolar DO
1 PNP LO
Q12RP6LVQ3
Q12AN6LVQ3
Q12RN6LVQ3
640 nm Visible Red
150 mm (6 in) cable with a 3-pin M8/
Pico-style QD
1 PNP DO
1 NPN LO
1 NPN DO
Performance based on use of 90% reflectance white test card.
Q12AB6FF15
Q12RB6FF15
Q12AP6FF15Q3
Q12RP6FF15Q3
Q12AN6FF15Q3
Q12RN6FF15Q3
Q12AB6FF30
Q12RB6FF30
Q12AP6FF30Q3
FIXED-FIELD
VISIBLE RED
2 m (6.5 ft) cable
15 mm (0.6 in)
cutoff;
10 mm (0.4 in)
focus
Bipolar LO
Bipolar DO
1 PNP LO
150 mm (6 in) cable with a 3-pin M8/
Pico-style QD
1 PNP DO
1 NPN LO
1 NPN DO
2 m (6.5 ft) cable
30 mm (1.2 in)
cutoff;
16 mm (0.63 in) focus
Bipolar LO
Bipolar DO
1 PNP LO
Q12RP6FF30Q3
Q12AN6FF30Q3
Q12RN6FF30Q3
Q12AB6FF50
Q12RB6FF50
Q12AP6FF50Q3
Q12RP6FF50Q3
Q12AN6FF50Q3
Q12RN6FF50Q3
640 nm Visible Red
150 mm (6 in) cable with a 3-pin M8/
Pico-style QD
1 PNP DO
1 NPN LO
1 NPN DO
2 m (6.5 ft) cable
50 mm (2 in)
cutoff; 16 mm (0.63 in)
focus
Bipolar LO
Bipolar DO
1 PNP LO
150 mm (6 in) cable with a 3-pin M8/
Pico-style QD
1 PNP DO
1 NPN LO
1 NPN DO
2
To order the 9 m (30 ft) cable model, add the suffix W/30 to the model number. For example, Q126E W/30.
To order the 150 mm (6 in) cable with a 4-pin M8/Pico-style (M8 threaded) QD model, add the suffix Q to the model number. For example,
Q126EQ.
•
To order the 150 mm (6 in) cable with a 4-pin M12/Euro-style QD model, add the suffix Q5 to the model number. For example Q126EQ5.
3 Retroreflective range is specified using one model BRT-60X40C retroreflector. Actual sensing range may be more or less than specified, depending upon
efficiency and reflective area of the retroreflector(s) used.
•
•
2
www.bannerengineering.com - Tel: + 1 888 373 6767
P/N 119223 Rev. M
WORLD-BEAM
®
Q12 Series Sensor
Indicator Features
1
1 - Amber and green LEDs
• Green on: power to sensor is on
• Amber on: received signal
• Amber flashing: marginal signal
Chemical-Resistant models: LEDs are visible through translucent PFA jacket. Rated to 1200 psi
washdown.
Wiring
Emitters have no connection to black and white.
CAUTION: Observe proper ESD precautions (grounding) when connecting QD models.
Emitters
Bipolar Models, Light Operate
bn (1)
+
10–30 V dc
–
Load
Load
PNP Models, Light Operate
NPN Models, Light Operate
brown
+
10–30 V DC
bu (3)
wh (2)
bk (4)
bn (1)
bu (3)
bk (4)
Load
+
10–30 V dc
–
bu (3)
bn (1)
bk (4)
Load
–
10–30 V dc
+
blue
–
Bipolar Models, Dark Operate
bn (1)
bu (3)
wh (2)
bk (4)
Load
Load
+
10–30 V dc
–
PNP Models, Dark Operate
NPN Models, Dark Operate
bn (1)
bu (3)
bk (4)
Load
+
10–30 V dc
–
bu (3)
bn (1)
bk (4)
Load
–
10–30 V dc
+
Key
1 = Brown
2 = White
3 = Blue
4 = Black
3-pin M8/Pico-style Male QD
4-pin M8/Pico-style Male QD
4-pin M12/Euro-style Male QD
4
1
3
2
1
4
3
2
3
1
4
Specifications
Supply Voltage and Current
10 to 30 V dc (10% maximum ripple) at 20 mA maximum current
Sensing Beam
640 nm visible red
Supply Protection Circuitry
Protected against reverse polarity and transient voltages
Output Configuration
Bipolar (1 NPN and 1 PNP) solid-state output or Single output (PNP or
NPN), LO or DO, depending on model
Repeatability
125 microseconds
Switching Frequency
Opposed Mode: 385 Hz
LP/LV Mode: 715 Hz
FF Mode: 590 Hz
P/N 119223 Rev. M
www.bannerengineering.com - Tel: + 1 888 373 6767
3
WORLD-BEAM
®
Q12 Series Sensor
Output Protection Circuitry
Protected against false pulse on power-up, short-circuit protected
Output Response Time
Opposed Mode: 1.3 ms ON; 900 µs OFF
LP/LV Mode: 700 µs ON/OFF
FF Mode: 850 µs ON/OFF
NOTE: 120 ms delay on power-up; outputs do not conduct during this time.
Indicators
One Yellow and one Green LED (see Figure 1)
Construction
Polarized Retro Models: Thermoplastic elastomer housing with glass lens
All Other Standard Models: Thermoplastic elastomer housing with
polycarbonate lens
Chemical-Resistant Models: Housing encased in PFA jacket; cable encased
in 3/16 in O.D. PFA tubing
Connections
Standard Models: 2 m (6.5 ft) or 9 m (30 ft) attached PVC cable, or 150 mm
(6 in) pigtail with M8 or M12 threaded connection, depending on the model
ordered
Chemical-Resistant Models: 2 m (6.5 ft) cable encased in 3/16 in O.D. PFA
tubing
Environmental Rating
Standard Models: IEC IP67
Chemical-Resistant Models: IEC IP67 (NEMA6) and PW12 1200 psi
washdown per NEMA ICS5, Annex F-2002
Conditions
Operating Temperature: –20 °C to +55 °C (–4 °F to +131°F)
Storage Temperature: –30 °C to +75 °C (–22 °F to +167 °F)
95% at +50 °C maximum relative humidity (non-condensing)
Certifications
(Chemical-resistant models are
not UR/UL approved.)
Output Ratings
OFF-state leakage current:
NPN: 10 µA
PNP: 10 µA
ON-state saturation voltage:
NPN: 2 V at 50 mA
PNP: 2 V at 50 mA
Vibration and Mechanical Shock
All models meet MIL-STD-202F, Method 201A (Vibration: 10 Hz to 60 Hz
maximum, 0.06 inch (1.52 mm) double amplitude, 10G maximum
acceleration) requirements. Also meets IEC 60947-5-2 (Shock: 30G 11 ms
duration, half sine wave) requirements.
Required Overcurrent Protection
WARNING: Electrical connections must be
made by qualified personnel in accordance with
local and national electrical codes and
regulations.
Overcurrent protection is required to be provided by end product
application per the supplied table.
Overcurrent protection may be provided with external fusing or via Current
Limiting, Class 2 Power Supply.
Supply wiring leads < 24 AWG shall not be spliced.
For additional product support, go to
www.bannerengineering.com.
Supply Wiring (AWG)
20
22
24
26
28
30
Required Overcurrent Protection (Amps)
5.0
3.0
2.0
1.0
0.8
0.5
Dimensions
12.4 mm
(0.49")
M3 mounting
screws included
8.0 mm
(0.31")
15.0 mm
(0.59")
23.1 mm
(0.91") 22 mm
(0.86")
5.1 mm
(0.20")
Polarized Retro
Models
4.7 mm
(0.19")
Emitter (opposed mode models)
3.5 mm
(0.14")
3.4 mm
(0.13")
Emitter (all other models)
Ø 3 mm (0.12")
max. torque
0.9 Nm (8 in-lbf)
Figure 1. Standard Models
4
www.bannerengineering.com - Tel: + 1 888 373 6767
P/N 119223 Rev. M
WORLD-BEAM
®
Q12 Series Sensor
22.6 mm
(0.89")
8.1 mm (0.32")
12.5 mm (0.49")
Mounting hardware
not included
5.9 mm (0.23")
6.2 mm
(0.25")
Ø 3.4 mm (0.13")
max. torque*
0.9 Nm (8 in-lbf)
3.2 mm (0.13")
* When mounting by running a screw through
both flanges without support between the flanges,
the max. torque applied should be 0.1 Nm (1 in-lbf).
Emitter (opposed mode models)
28.8 mm (1.13")
10.7 mm (0.42")
8.6 mm (0.34")
4.7 mm
(0.18")
Emitter (all other models)
15.0 mm (0.59")
5.5 mm (0.22")
Ø12.5 mm (0.49")
4.8 mm (0.19") O.D.
PFA Tube
2 m (6.5')
Figure 2. Chemical-Resistant Models
Performance Curves - Opposed Mode
Excess Gain
1000
Beam Pattern
Q12..
Opposed Mode
30 mm
20 mm
10 mm
0
10 mm
20 mm
30 mm
Q12..
Opposed Mode
1.2"
0.8"
0.4"
0
EXCESS GAIN
100
Standard
10
Chemical-Resistant
1
0.01 m
0.033'
Chemical-Resistant
0.4"
0.8"
Standard
0
0.5 m
20"
1m
40"
1.5 m
60"
2m
80"
1.2"
2.5 m
100"
0.1 m
0.33'
1m
3.3'
10 m
33'
DISTANCE
DISTANCE
Performance Curves - Retroreflective Mode
Performance is based on the use of a model BRT-60X40C retroreflector.
