FCZ-024-H058-99/R datasheet, PDF

Datasheet> All Categories > The connector> The connector> FCZ-024-H058-99/R

FCZ-024-H058-99/R: DescriptionCard Edge Connector, 24 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking; CategoryThe connector The connector; File Size205KB，1 Pages; ManufacturerE-tec Interconnect Ltd.; Environmental Compliance

Download Datasheet Parametric Compare View All

FCZ-024-H058-99/R Overview

Card Edge Connector, 24 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking

FCZ-024-H058-99/R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	E-tec Interconnect Ltd.
Reach Compliance Code	compliant
body width	0.079 inch
subject depth	0.292 inch
body length	0.646 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	Tin (Sn)
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	250VAC V
maximum insertion force	ZIF N
Insulation resistance	50000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
Plug contact pitch	0.02 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	0.4 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	24
Base Number Matches	1

Preview

Download Datasheet

View All

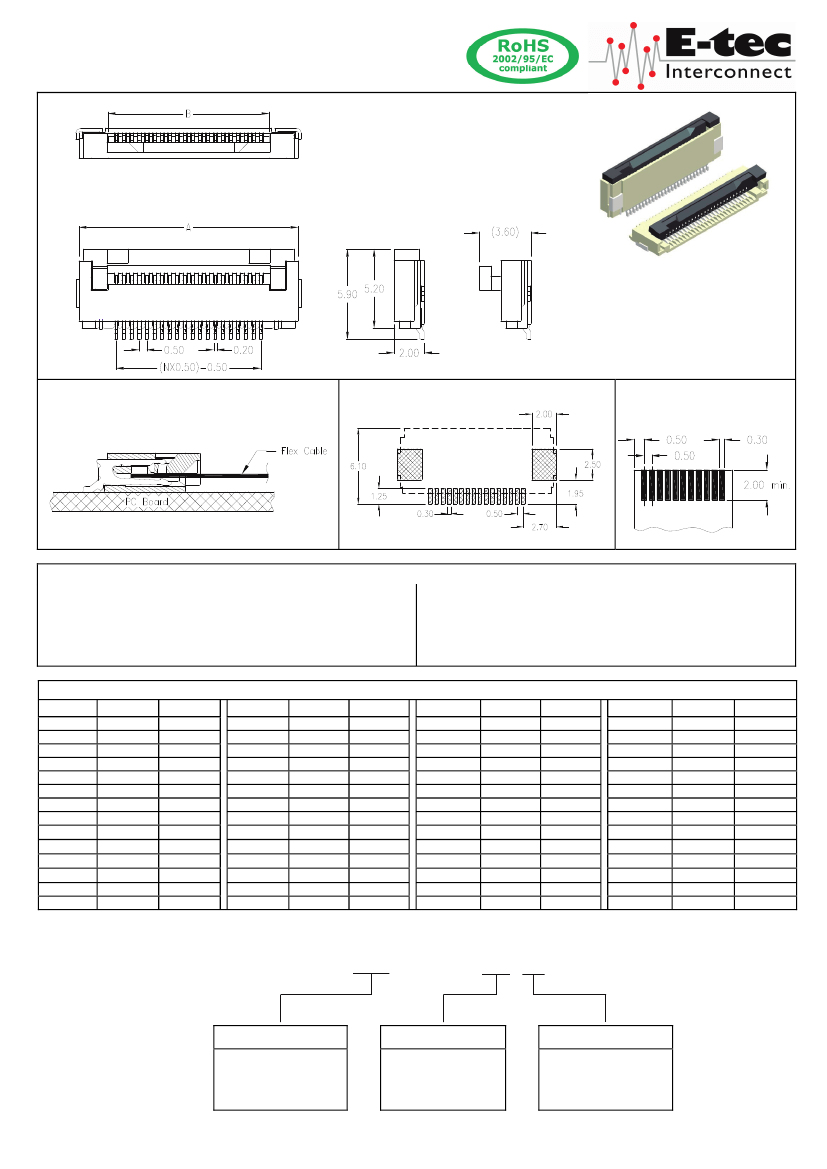

FPC/FFC Connector

ZIF “Easy-on” Type

- SMT -

0.50mm pitch horizontal

PCB Surface Mount Layout

Recommended

FPC/FFC dimensions

thickness 0.30mm±0.05

SPECIFICATIONS

Current rating

Insulator resistance

Contact resistance

Withstanding voltage

0.4 A max.

50 MΩ min.

30 mΩ max.

250 V AC/1 Min.

Operating temperature

Processing temperature

Contact material

(RoHS compliant)

Contact plating

(RoHS compliant)

Insulator material

Actuator material

(RoHS compliant)

Dimensions

(mm)

Contacts

006

007

008

009

010

011

012

013

014

015

016

017

018

019

- 20°C to +85°C

+250°C

+0/-5°C

for 3sec.

Phosphor Bronze

Tin

(leadfree)

LCP

UL 94 V-0

PPA

UL 94 V-0

DIM “A”

7.40

7.90

8.40

8.90

9.40

9.90

10.40

10.90

11.40

11.90

12.40

12.90

13.40

13.90

DIM “B”

3.60

4.10

4.60

5.10

5.60

6.10

6.60

7.10

7.60

8.10

8.60

9.10

9.60

10.10

Contacts

020

021

022

023

024

025

026

027

028

029

030

031

032

033

DIM “A”

14.40

14.90

15.40

15.90

16.40

16.90

17.40

17.90

18.40

18.90

19.40

19.90

20.40

20.90

DIM “B”

10.60

11.10

11.60

12.10

12.60

13.10

13.60

14.10

14.60

15.10

15.60

16.10

16.60

17.10

Contacts

034

035

036

037

038

039

040

041

042

043

044

045

046

047

DIM “A”

21.40

21.90

22.40

22.90

23.40

23.90

24.40

24.90

25.40

25.90

26.40

26.90

27.40

27.90

DIM “B”

17.60

18.10

18.60

19.10

19.60

20.10

20.60

21.10

21.60

22.10

22.60

23.10

23.60

24.10

Contacts

048

049

050

051

052

053

054

055

056

057

058

059

060

DIM “A”

28.40

28.90

29.40

29.90

30.40

30.90

31.40

31.90

32.40

32.90

33.40

33.90

34.40

DIM “B”

24.60

25.10

25.60

26.10

26.60

27.10

27.60

28.10

28.60

29.10

29.60

30.10

30.60

How to order

FCZ - xxx - H 058 -

/ X

Nbr of contacts

006

060

Plating

(leadfree)

Option

tin

If reel packing

(reel packing QTY. on request)

FCZ-024-H058-99/R Related Products

	FCZ-024-H058-99/R	FCZ-014-H058-99/R	FCZ-034-H058-99/R	FCZ-044-H058-99/R	FCZ-054-H058-99/R
Description	Card Edge Connector, 24 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking	Card Edge Connector, 14 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking	Card Edge Connector, 34 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking	Card Edge Connector, 44 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking	Card Edge Connector, 54 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
body width	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
subject depth	0.292 inch	0.292 inch	0.292 inch	0.292 inch	0.292 inch
body length	0.646 inch	0.449 inch	0.843 inch	1.039 inch	1.236 inch
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	SN	SN	SN	SN	SN
Contact completed and terminated	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V
maximum insertion force	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N
Insulation resistance	50000000 Ω	50000000 Ω	50000000 Ω	50000000 Ω	50000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3	e3	e3	e3	e3
Plug contact pitch	0.02 inch	0.02 inch	0.02 inch	0.02 inch	0.02 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	1	1	1	1	1
Number of rows loaded	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Rated current (signal)	0.4 A	0.4 A	0.4 A	0.4 A	0.4 A
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.508 mm	0.508 mm	0.508 mm	0.508 mm	0.508 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	24	14	34	44	54
Maker	E-tec Interconnect Ltd.	E-tec Interconnect Ltd.	E-tec Interconnect Ltd.	E-tec Interconnect Ltd.	-
Base Number Matches	1	1	1	1	-
