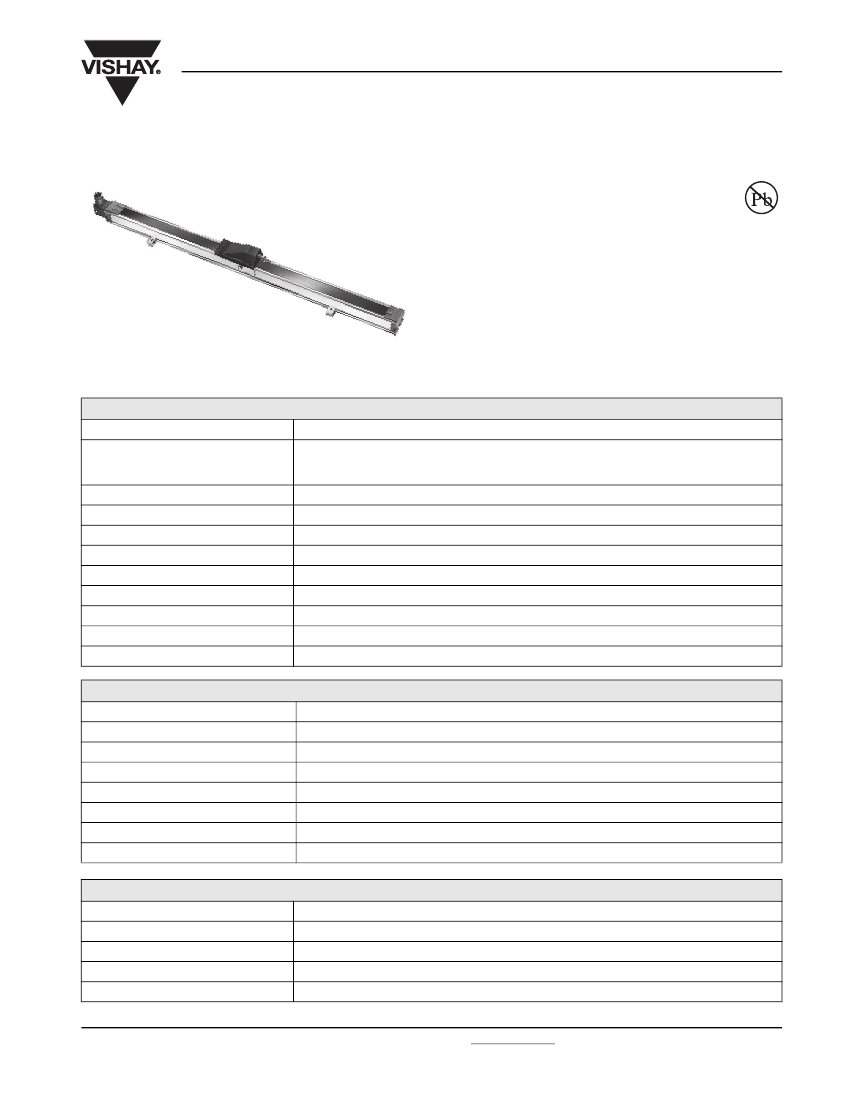

Series REC 139 L
Vishay Sfernice
Precision Linear Transducers, Conductive Plastic,
up to 3000 mm
FEATURES
•
Measurement range 25 mm to 3000 mm
•
High accuracy ± 1 % down to ± 0.025 %
•
Excellent repeatability
•
Essentially infinite resolution
•
Simple mounting
•
Actuation tolerant to some misalignment
•
Reduced bulk
The 139 L is a robust industrial linear motion transducer with
a side actuation, ideally suited for applications with very long
travels.
RoHS
COMPLIANT
ELECTRICAL SPECIFICATIONS
Theoretical Electrical Travel (TET) = E
Independent Linearity (over TET)
On Request
Actual Electrical Travel (AET)
Ohmic Value (R
T
)
Resistance Tolerance at 20 °C
Repeatability
Maximum Power Rating
Wiper Current
Load Resistance
Insulation Resistance
Dielectric Strength
From 25 mm to 3000 mm in increments of 25 mm
≤
± 1 %;
≤
± 0.1 %
≤
± 0.05 % for E
≥
100 mm
≤
± 0.025 % for E
≥
200 mm
AET = E + 1.5 mm min.
400
Ω/cm
to 2 kΩ/cm
± 20 %
≤
0.01 %
0.05 W/cm at 70 °C, 0 W at 125 °C
Recommended: a few µA - 1 mA max. (continuous)
Minimum 10
3
x R
T
≥
1000 MΩ, 500 V
DC
≥
1000 V
RMS
, 50 Hz
MECHANICAL SPECIFICATIONS
Mechanical Rravel (MT)
Housing
Operating Force
Coupling
Termination
Wiper
Sealed to
Mounting
See dimensions table 1
Anodized aluminum
2.5 N typical
Self alignment
Hydraulic type connector DIN 43650
Precious metal multifinger
IP53
Movable brackets
PERFORMANCE
Operating Life
Temperature Range
Sine Vibration on 3 Axes
Mechanical Shocks on 3 Axes
Speed (max.)
40 million cycles typical/1 Hz/T° = 20 °C ± 5 °C/80 % TET
- 55 °C to + 125 °C
1.5 mm peak to peak or 15 g - 10 Hz - 2000 Hz
50 g - 11 ms - half sine
8 m/s for f < 2 Hz; 3 m/s for f < 5 Hz
Document Number: 54015
Revision: 07-Sep-07
For technical questions, contact: sfer@vishay.com
www.vishay.com
67
