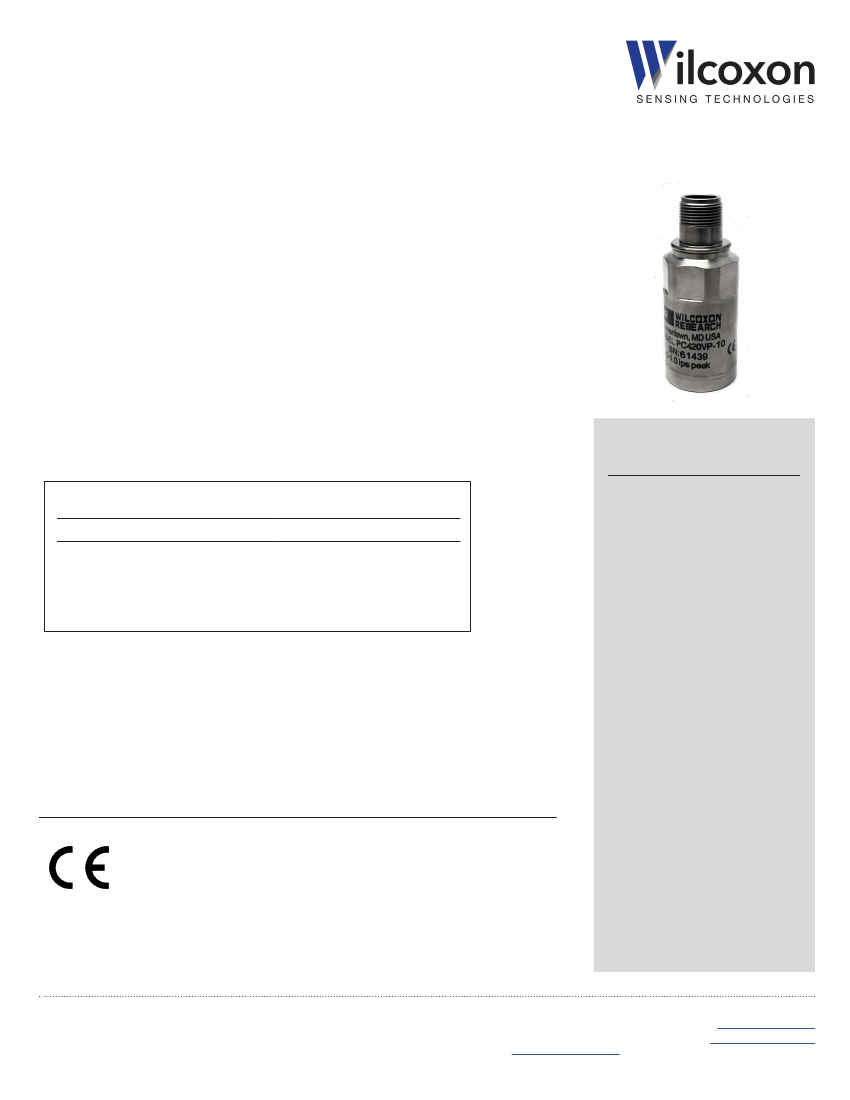

RMS and peak velocity loop
powered sensors
PC420V series
Wilcoxon’s PC420V series sensors provide a 4-20 mA output proportional to
velocity vibration, allowing for continuous trending of overall machine vibration.
This trend data alerts users to changing machine conditions and helps guide
maintenance in prioritizing the need for service. The choice of RMS or peak
output allows you to choose the sensor that best fits your requirements.
Key features
Table 1: PC420Vx-yy model selection guide
x (4-20 mA output type)
R = RMS output, velocity
P = calculated peak output, velocity
yy (4-20 mA full scale)
05 = 0.5 ips (12.8 mm/sec)
10 = 1.0 ips (25.4 mm/sec)
20 = 2.0 ips (50.8 mm/sec)
30 = 3.0 ips (76.2 mm/sec)
50 = 5.0 ips (127 mm/sec)
• True RMS or calculated
peak output
• Intrinsically safe certified
and explosion-proof
models available
• Easily integrated into
existing process control
systems
• Manufactured in an
approved ISO 9001 facility
Certifications
Note: Due to continuous process improvement, specifications are subject to change without notice.
This document is cleared for public release.
Wilcoxon Sensing Technologies
An Amphenol Company
99009 Rev.B.3 03/19
8435 Progress Drive
Frederick, MD 21701
USA
Tel: +1 (301) 330-8811
Fax: +1 (301) 330-8873
info@wilcoxon.com
buy.wilcoxon.com
www.wilcoxon.com
1
RMS and peak velocity loop
powered sensors
PC420V series
SPECIFICATIONS
Full scale, 20 mA, ± 5%
Frequency response:
Repeatability
Transverse sensitivity, max
Power requirements, 2-wire loop power:
Voltage at sensor terminals
Loop resistance
1
at 24 VDC, max
Turn on time, 4-20 mA loop
Grounding
Operating temperature range
Vibration limit
Shock limit
Sealing
Sensing element design
Weight
Case material
Mounting
Output connector
Mating connector
Recommended cabling
± 10%
± 3 dB
see Table 1 on page 1
10 Hz - 1.0 kHz
3.5 Hz - 2.0 kHz
± 2%
5%
12 - 30 VDC
700 Ω
30 seconds
case isolated, internally shielded
–40° to +105° C
250 g peak
2,500 g peak
hermetic
PZT, shear
160 grams
stainless steel
1/4-28 tapped hole
2 pin, MIL-C-5015 style
R6 type
J9T2A
Ø.94
1/4-28 MOUNTING THREADS
MIL-C-5015
2 PIN CONNECTOR
Connections
Function
loop positive (+)
loop negative (–)
ground
Connector pin
A
B
shell
2.77
2.12
Ø1.12
Accessories supplied:
SF6 mounting stud; calibration data (level 2)
Notes:
1
Maximum loop resistance (R
L
)
can be calculated by:
Typical circuit
Pin A, 4-20 plus
Pin B, 4-20 minus
R
L
Signal measuring equipment
PLC / DCS
+
DC power
–
supply
R
L
=
DC supply
voltage
12 VDC
20 VDC
24 VDC
26 VDC
30 VDC
2
V
DC power
– 10 V
20 mA
R
L
(max
resistance)
2
100 Ω
500 Ω
700 Ω
800 Ω
1,000 Ω
R
L
(minimum
wattage capability)
3
1/8 watt
1/4 watt
1/2 watt
1/2 watt
1/2 watt
Model
PC420V
Lower resistance is allowed, greater
than 10 Ω recommended.
Minimum R
L
wattage determined by:
(0.0004 x R
L
).
3
