KES SERIES
Three Phase General Purpose EMI Filter
–
Single Stage WYE Configuration
DATASHEET
Three phase General Purpose Filters designed to be used in wide range of applications.
Approvals & Compliance
UL Recognised
CSA Certified *
*30
th
June 2021
STANDARD
NEW DIN RAIL
Features

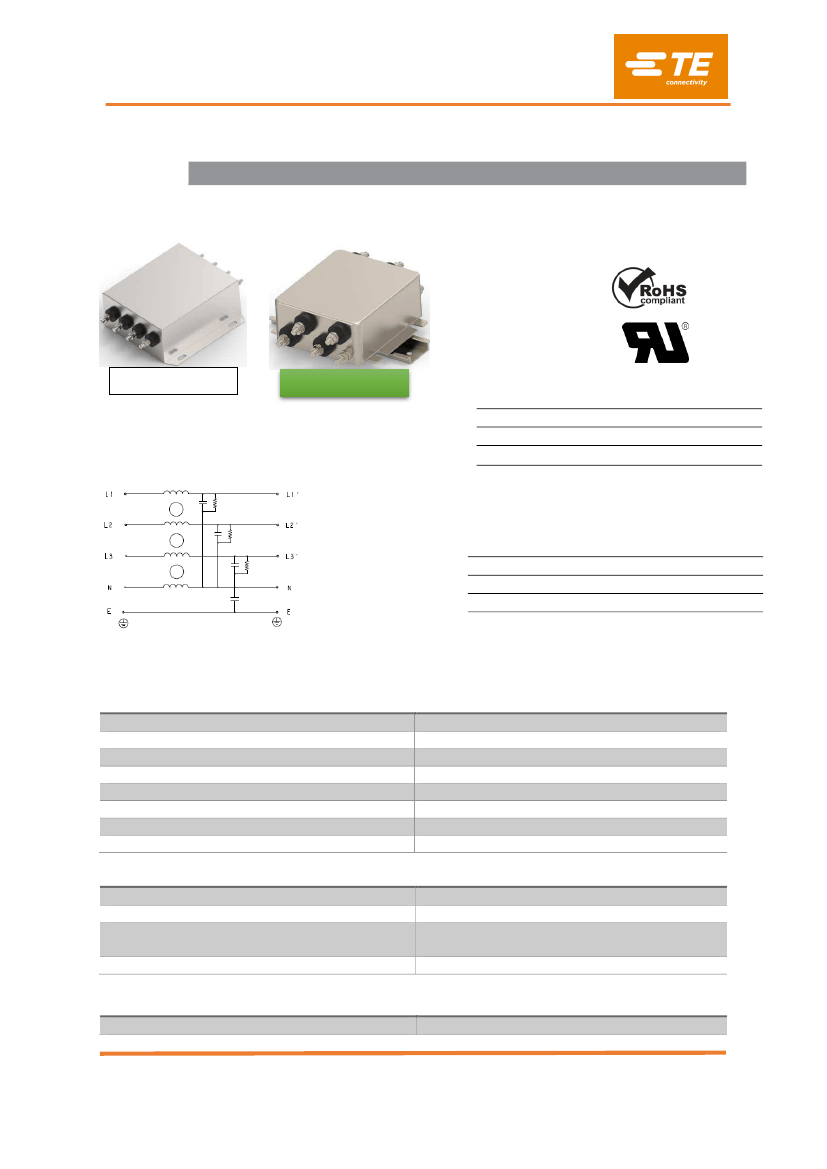

Typical Circuit Diagram
General Purpose 3 Phase with neutral
Standard Attenuation Performance
Chassis mounting, Din Rail Mount
Applications
Industrial Automation
HVAC
CNC Machines
Specifications
Electrical Characteristics
Maximum Continuous Operating Voltage
Current Ratings
Operating Frequency
High Potential Test Voltage -440VAC
High Potential Test Voltage -520VAC
Overload Capability
Functional Characteristics
Operating Temperature Range
Climatic Category
Termination ( Depends on Current Rating )
Flammability corresponding to
Reference Standards
Design Corresponding to
UL 60939-3 and CSA 22.2 No.8-13
440/520VAC
1A to 150A @40°C, Din Mount 1A to 60A @40°C
50/60Hz
Line to Ground 2632VDC for 1 Minute
Line to Line 1892VDC for 1 Minute
Line to Ground 2856VDC for 1 Minute
Line to Line 2236VDC for 1 Minute
135% of Rated current for 15 minutes
-25°C to +85ºC
25/85/21
Quick Connect (1-10A)/ Bolt & Nut (15-150A) /
Shock Proof (75-100A)
UL 94 V-0
2376450-1
Rev B
Date: 15-APR-2021
Dimensions in
millimetres
Dimensions Shown for
reference purposes only.
Specifications subject to
change
For Email, phone or live chat,
go to: www.te.com/help

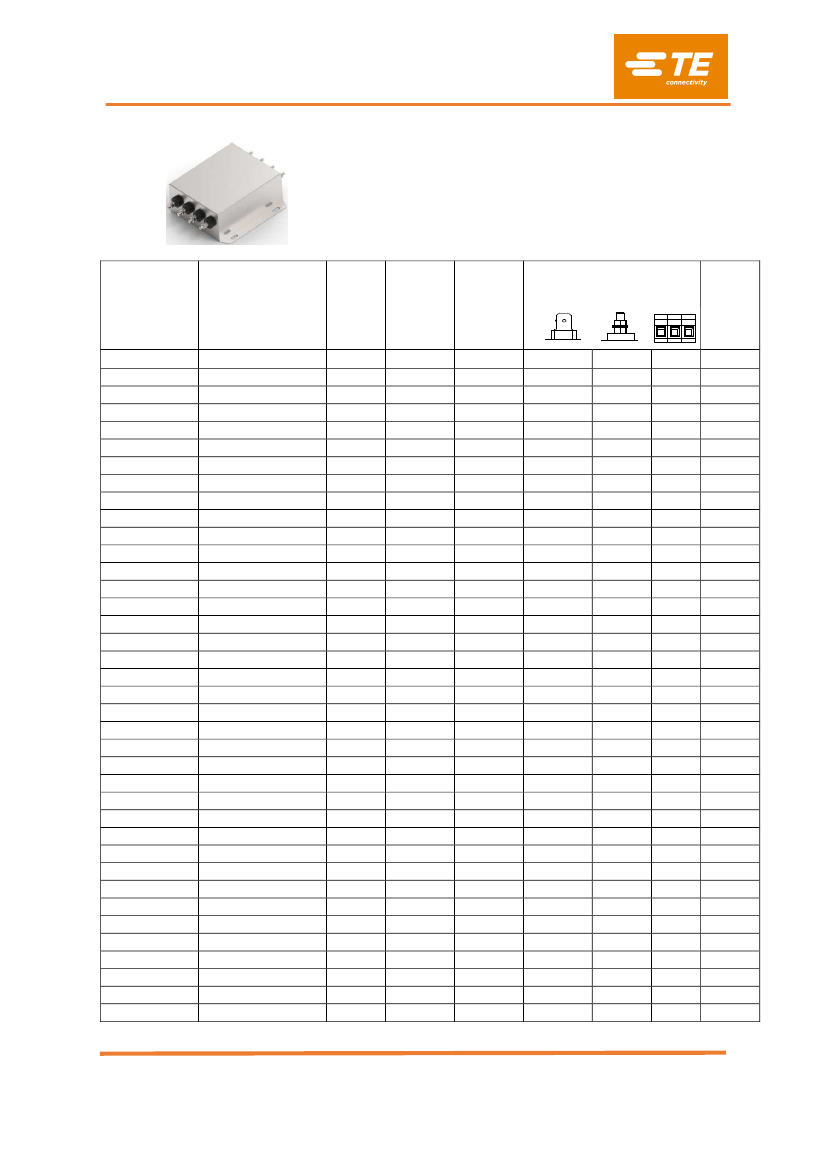

KES SERIES

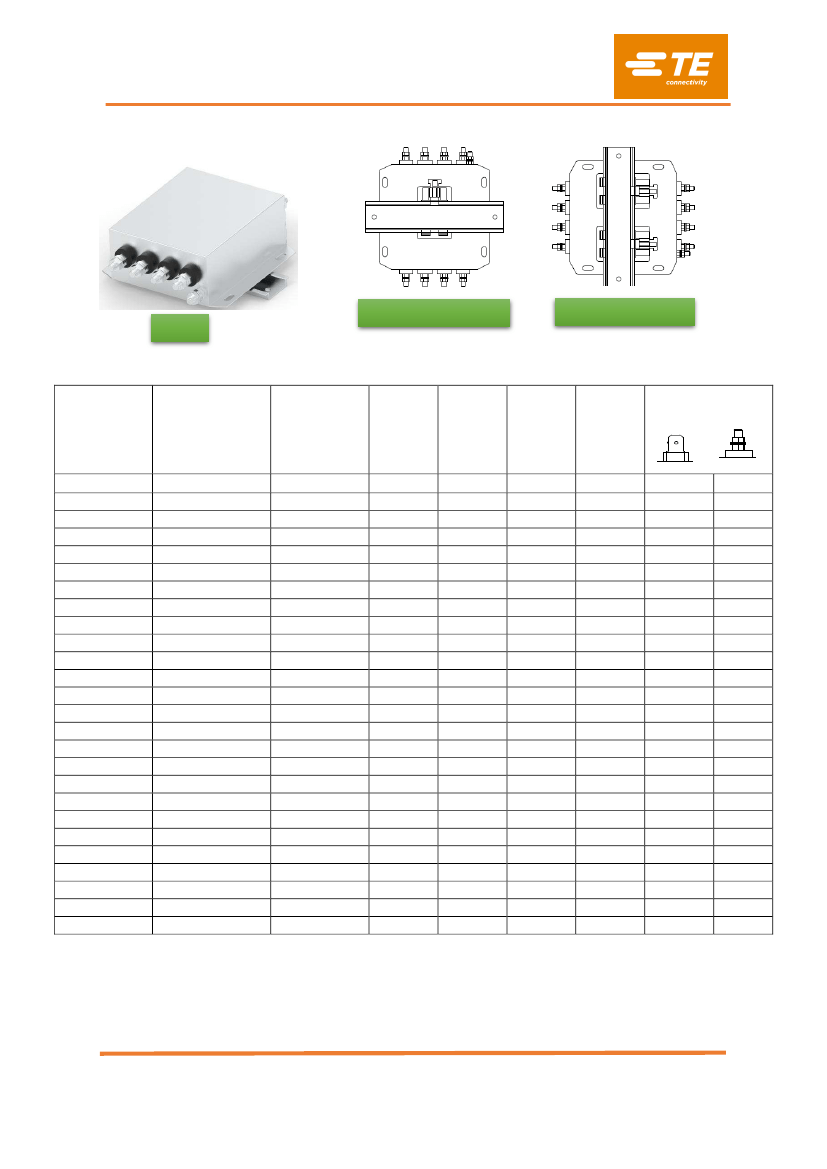

Selection Table
–
Din Rail Mount
HORIZONTAL MOUNT
NEW
Note: Din Rail not supplied
VERTICAL MOUNT
TE Ordering
Number
3-1609966-0
3-1609966-1
3-1609966-2
3-1609966-3
3-1609966-4
3-1609966-5
3-1609966-6
3-1609966-7
3-1609966-8
3-1609966-9
6-1609966-0
6-1609966-1
6-1609966-2
6-1609966-3
6-1609966-4
6-1609966-5
6-1609966-6
6-1609966-7
6-1609966-8
6-1609966-9
7-1609966-0
7-1609966-1
7-1609966-2
7-1609966-3
7-1609966-4
7-1609966-5
Catalog Number
Din Type
DUAL
DUAL
DUAL
DUAL
DUAL
DUAL
DUAL
DUAL
DUAL
HORIZONTAL
HORIZONTAL
VERTICAL
VERTICAL
DUAL
DUAL
DUAL
DUAL
DUAL
DUAL
DUAL
DUAL
DUAL
HORIZONTAL
HORIZONTAL
VERTICAL
VERTICAL
Rated
Current
@40°C
1A
3A
6A
10A
15A
20A
25A
30A
40A
50A
60A
50A
60A
1A
3A
6A
10A
15A
20A
25A
30A
40A
50A
60A
50A
60A
Rated
Voltage
@40°C
440 VAC
440 VAC
440 VAC
440 VAC
440 VAC
440 VAC
440 VAC
440 VAC
440 VAC
440 VAC
440 VAC
440 VAC
440 VAC
520 VAC
520 VAC
520 VAC
520 VAC
520 VAC
520 VAC
520 VAC
520 VAC
520 VAC
520 VAC
520 VAC
520 VAC
520 VAC
Leakage
Current
(mA)
3
3
3
3
3
3
5
5
5
5
5
5
5
3
3
3
3
3
3
5
5
5
5
5
5
5
Weight
(Kgs)
Termination
1KESS1AFPWDM
3KESS1AFPWDM
6KESS1AFPWDM
10KESS1AFPWDM
15KESS6AFPWDM
20KESS6AFPWDM
25KESS6AFPWDM
30KESS6AFPWDM
40KESS6AFPWDM
50KESS6AFPWHM
60KESS6AFPWHM
50KESS6AFPWVM
60KESS6AFPWVM
1KESS1BFPWDM
3KESS1BFPWDM
6KESS1BFPWDM
10KESS1BFPWDM
15KESS6BFPWDM
20KESS6BFPWDM
25KESS6BFPWDM
30KESS6BFPWDM
40KESS6BFPWDM
50KESS6BFPWHM
60KESS6BFPWHM
50KESS6BFPWVM
60KESS6BFPWVM
0.36
0.36
0.36
0.36
0.8
0.8
0.8
0.8
0.8
1.3
1.3
1.4
1.4
0.36
0.36
0.36
0.36
0.8
0.8
0.8
0.8
0.8
1.3
1.3
1.4
1.4
6.3 x 0.8
6.3 x 0.8
6.3 x 0.8
6.3 x 0.8
M5
M5
M5
M5
M5
M6
M6
M6
M6
6.3 x 0.8
6.3 x 0.8
6.3 x 0.8
6.3 x 0.8
M5
M5
M5
M5
M5
M6
M6
M6
M6
2376450-1
Rev B
Date: 15-APR-2021
Dimensions in
millimetres
Dimensions Shown for
reference purposes only.
Specifications subject to
change
For Email, phone or live chat,
go to: www.te.com/help
KES SERIES
Connectors Cross Section
41
Wire Section (mm
2
)
Wire Section (AWG)
Wire Stripping
Max Recommended
Torque
4mm
2
12AWG
Max 10mm
0.5 Nm / 4.5 in.lbs
10
10 mm²
8 AWG
max 13.5 mm
1.2 Nm / 10.8
in.lbs
16
16 mm²
6 AWG
max 17 mm
2÷2.2 Nm /
18÷19.8 in.lbs
25
25 mm²
4 AWG
max 17 mm
2 Nm / 18
in.lbs
50
50 mm²
1/0 AWG
max 20 mm
6 Nm / 54
in.lbs

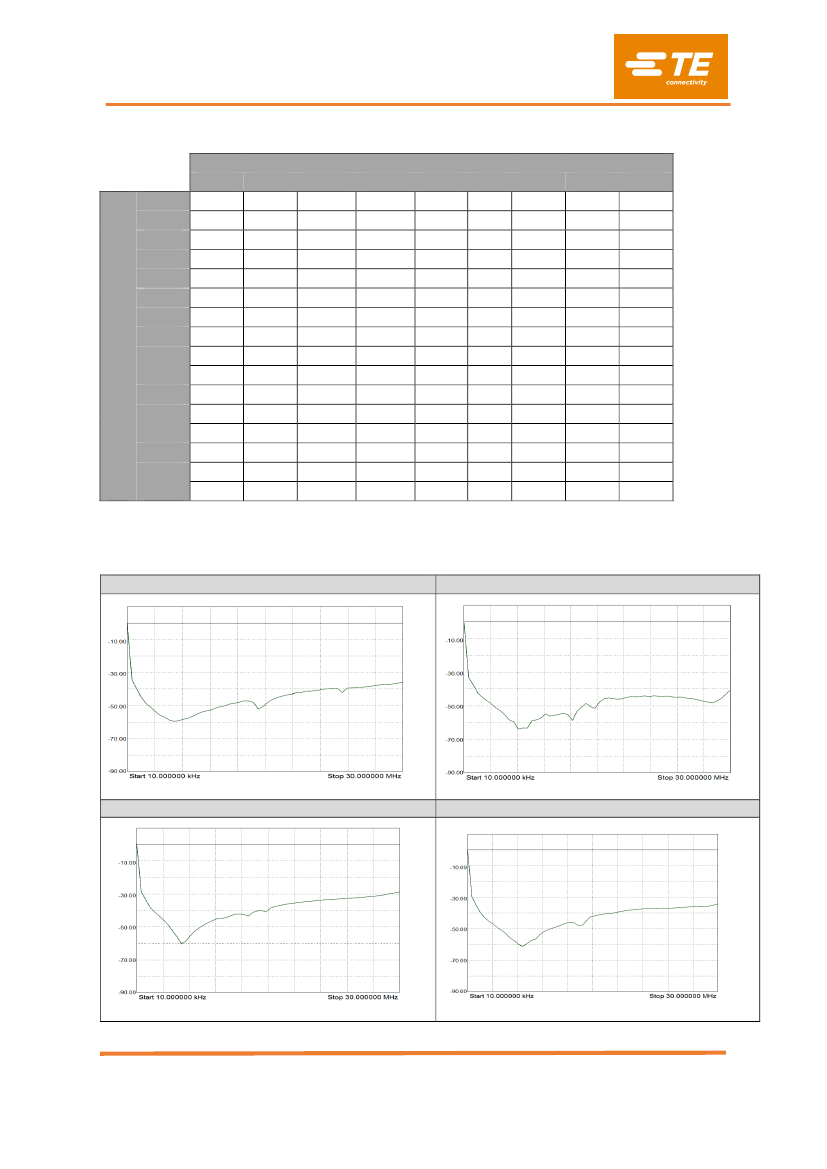

Insertion Loss (Typical)
–
Measured in Closed 50Ω System
1A
3A
6A
10A
15A
20A
25A
30A
40A
50A
60A
75A
80A
100A
125A
150A
0.01
3
2
4
3
4
4
5
4
4
4
4
2
5
3
2
3
0.05
3
2
5
4
4
5
5
4
5
4
5
3
5
4
2
4
Common Mode 50Ω
/ 50Ω
Frequency in MHz
0.15
0.5
1
3
4
11
22
40
19
22
40
38
13
19
28
35
15
25
29
32
9
20
38
36
15
25
45
48
5
18
23
35
9
21
28
42
11
29
34
42
11
24
32
42
10
25
30
39
7
22
29
44
8
15
20
22
3
17
23
25
5
15
18
25
11
25
35
34
5
35
45
40
30
46
42
40
58
56
48
50
43
35
20
30
28
10
36
47
45
35
30
40
44
39
39
34
38
30
42
32
40
22
30
43
32
31
29
23
29
24
20
23
20
24
16
45
38
46
11
Current Rating
2376450-1
Rev B
Date: 15-APR-2021
Dimensions in
millimetres
Dimensions Shown for
reference purposes only.
Specifications subject to
change
For Email, phone or live chat,
go to: www.te.com/help
KES SERIES
Differential Mode 50Ω
/ 50Ω
Frequency in MHz
0.15
0.5
1
3
6
19
27
30
26
32
29
35
15
25
30
38
17
26
30
31
12
16
30
33
10
20
28
36
19
22
26
32
22
39
46
29
21
34
43
40
28
42
50
30
22
39
45
28
46
53
41
31
10
20
24
30
14
37
40
44
9
17
19
31
57
40
33
24
1A
3A
6A
10A
15A
20A
25A
30A
40A
50A
60A
75A
80A
100A
125A
150A
0.01
3
4
4
4
6
3
4
17
17
14
11
37
5
8
3
34
0.05
4
5
3
5
8
5
4
18
18
20
18
39
6
9
3
39
5
36
37
45
32
40
29
48
26
29
26
24
27
36
35
35
20
10
38
46
51
36
38
23
50
20
19
20
17
19
38
30
42
15
30
49
44
49
40
47
19
52
16
33
22
15
17
42
40
42
10
Common Mode Insertion Loss (Typical in dB
–
refer to Table above)
1A
3A
6A
Current Rating
10A
2376450-1
Rev B
Date: 15-APR-2021
Dimensions in
millimetres
Dimensions Shown for
reference purposes only.
Specifications subject to
change
For Email, phone or live chat,
go to: www.te.com/help
