11/2020
›
GNA Series
Essential Solid State Relays
Panel Mount - AC Output Single Phase
›
Output current of 25, 40, 50 and 90 Amps
›
Output voltage of 24-280 Va and 48-660 Va
›
Control voltage of 4-32 Vc
›
Zero cross (resistive loads)
›
Integrated IP20 touch-safe removable covers
›
LED input status indicator
›
Cost-effective solution
Product Selection - Zero Cross (Resistive Loads)
Rated Load Current
Output Voltage
Control Voltage
4-32 Vc
84137910N
84137450N
25A
24-280 Va
40A
48-660 Va
Zero Cross
Version
50A
48-660 Va
84137460N
90A
48-660 Va
84137480N
PART NUMBERING SYSTEM
Series
8413:
Single Phase
Output Voltage
9:
280 Va / Zero Cross
4:
660 Va / Zero Cross
Generation
N:
New Generation
8413
7
Cover/Layout
7:
Included
9
1
Output
Current
1:
25 A
5:
40 A
6:
50 A
8:
90 A
0
Control
Voltage
0:
4-32 Vc
N
RÉFÉRENCEMENT
Série
8413:
Monophasé
Tension de sortie
9:
280 Va / Synchrone
4:
660 Va / Synchrone
Génération
N:
Nouvelle
génération
Do you need an adapted or customized solution? Contact us on
www.crouzet.com
Description:
8413
7
9
1
0
N
Crouzet Solid State Relays are designed to be used in almost any application, offering very long life expectancy and are easy to install, easy to use,
Couvercle
Courant
Tension
robust and multipurpose.
7:
Inclus
de sortie
de commande
1:
25 A
0:
4-32 Vc
For more information about Crouzet’s Solid State relays, please visit
www.crouzet.com.
5:
40 A
6:
50 A
8:
90 A
|
WWW.CROUZET.COM
|2
|
GNA Series
|
11/2020
Accessories
Type
Description
Part-Number
Heatsink
Heatsink
Heatsink
Heatsink
Heatsink
Adapter
Thermal Pad
Screws
Thermal Grease
0.9 °C/W Thermal Resistance
1.1 °C/W Thermal Resistance
1.2 °C/W Thermal Resistance
1.75 °C/W Thermal Resistance
2.2 °C/W Thermal Resistance
DIN Rail
Self-Adhesive Thermal Pad
Screw Mounting Kit
Thermal Grease for Heatsink mounting
26532752N
26532753N
26532754N
26532755N
26532756N
26532764N
26532722N
26532001
26532003
Output Specifications
(1)
Description
Maximum Load Current [Arms]
(3)
Minimum Load Current [mArms]
Min / Max Operating Voltage (47-63Hz) [Vrms]
Transient Voltage [Vpk]
(2)
Maximum Off-State Leakage Current @ Rated Voltage
[mArms]
Minimum Off-State dV/dt @ Maximum Rated Voltage [V/µsec]
1 Second Surge Current (Apk. Ta=25 °C) 50/60 Hz
Maximum 1 Cycle Surge Current (50/60Hz) [Apeak]
Typ @ 50 Hz
Maximum On-State Voltage Drop @ Rated Current [Vpeak]
Thermal Resistance Junction to Case (Rjc) [°C/W]
Maximum 1/2 Cycle I² t for Fusing @ 50 Hz (min. / typical)
[A² sec]
Minimum Heat Sink for Rated Current @ 40 °C [°C/W]
25
5
24-280 Va
600
1
500
100
270/284 (min)
340 (typ)
1.22
1.7
487
1.3
96
320/_ (min)
420 (typ)
1.23
0.7
882
1.05
165
530/_ (min)
580 (typ)
1.22
0.55
1680
0.85
347
1100/_ (min)
1200 (typ)
1.4
0.3
7200
0.33
48-660 Va
1200
25A
40
40A
50
50A
90
90A
Input Specifications
Description
Input Voltage Range
Maximum Reverse Voltage
Minimum Turn-On Voltage
Must Turn-Off Voltage
Minimum Input Current (for on-state)
Maximum Input Current [mA]
Nominal Input Impedance [Ohms]
Maximum Turn-On Time [msec]
Maximum Turn-Off Time [msec]
4-32 Vc
(4)
-32 Vc
3 Vc
1 Vc
10 mA
14 mA
Current Limited
1/2 Cycle
(5)
1/2 Cycle
(5)
3.5 Vc
2 Vc
4-32 Vc
General Specifications
Description
Dielectric Strength, Input to Output (50/60 Hz)
Dielectric Strength, Input/Output to Ground (50/60 Hz)
Minimum Insulation Resistance (@ 500 Vc)
Maximum Capacitance, Input/Output
Ambient Operating Temperature Range
Ambient Storage Temperature Range
25A
4000 Vrms
2500 Vrms
10
9
Ω
0.8 pF
-40 to 80 °C
-40 to 100 °C
4000 Vrms
40A
50A
90A
|
WWW.CROUZET.COM
|3
|
GNA Series
|
11/2020
General Specifications
Description
Weight (typical)
Housing Material
Baseplate Material
Input Terminal Screw Torque Range (in-lb/Nm)
Load Terminal Screw Torque Range (in-lb/Nm)
SSR Mounting Screw Torque Range (in-lb/Nm)
Humidity per IEC60068-2-78
LED Input Status Indicator
MTBF (Mean Time Between Failures) at 40 °C ambient
temperature (years)
(5)
MTBF (Mean Time Between Failures) at 60 °C ambient
temperature (years)
(5)
80 g
UL94 V-0
Aluminum
11-18 /1.2-2.0
18-26 / 2-3
11-16 /1.2-1.8
40-85%
Green
72
46
25A
40A
50A
90A
General Notes
(1)
All parameters at 25 °C unless otherwise specified
Output will self trigger between 450-600 Vpk not suitable for capacitive loads
Heat sinking required, see derating curves
Increase minimum voltage by 1 V for operations from -20 to -40 °C
All parameters at 50 % power rating and 100 % duty cycle (contact tech support for detailed report)
(2)
(3)
(4)
(5)
Diagrams
Wiring
GNA
AC
V
-
WIRE SIZE
SOLID
STRANDED
1
1 (a)
2 (a)
TERMINALS
Terminal Screw
Torque (N.m)
Input
Output
18..14 AWG (0.75..2.5 mm²)
2 x 18..14 AWG (0.75..2.5 mm²)
16..8 AWG (1.5..10 mm²)
2 x 16..8 AWG (1.5..10 mm²)
18..14 AWG (0.75..2.5 mm²)
2 x 18..14 AWG (0.75..2.5 mm²)
16..8 AWG (1.5..6 mm²)
2 x 16..10 AWG (1.5..6 mm²)
1.2 - 2
2-3
4 (-/a)
3 (+/a)
Recomended overvoltage external protection: TVS Diode
B
Load
|
WWW.CROUZET.COM
|4
|
GNA Series
|
11/2020
Diagrams

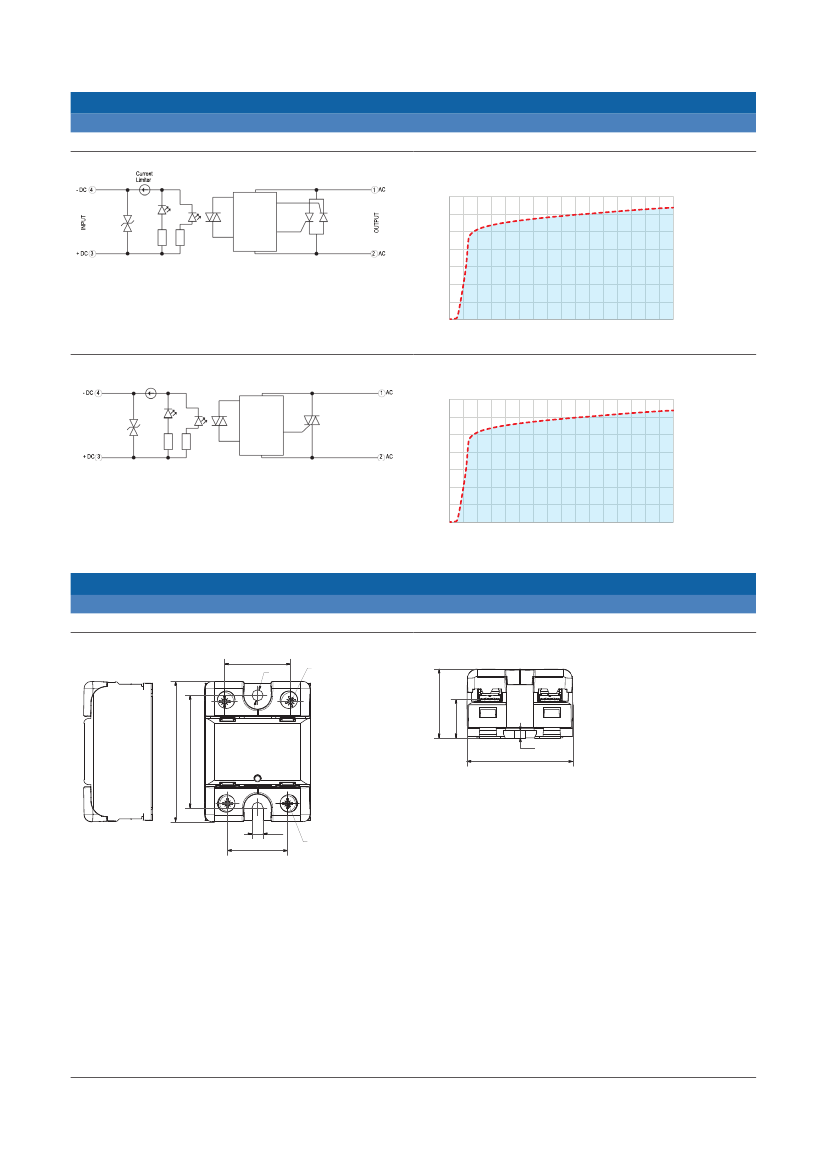

Equivalent Circuit Block
GNA Series DC control / Thyristor 40 A / 50 A / 90 A
Input current vs Input Voltage
Standard Regulated DC inputs
14
12
10
Input Current (mA)
8
6
4
2
0
0
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
Input Voltage (V)
GNA Series DC control / Triac 25 A
Current Limiter
Input current vs Input Voltage
Standard Regulated DC inputs
14
12
INPUT
OUTPUT
Input Current (mA)
10
8
6
4
2
0
0
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
Input Voltage (V)
Diagrams
Dimensions (mm)
GNA front view
28
Ø4,7
2 M5
GNA side view
29,1
16,3
59,4
47,6
3
44,5
(±0,3)
4,7
25,4
2 M4
|
WWW.CROUZET.COM
|5
|
GNA Series
|
11/2020

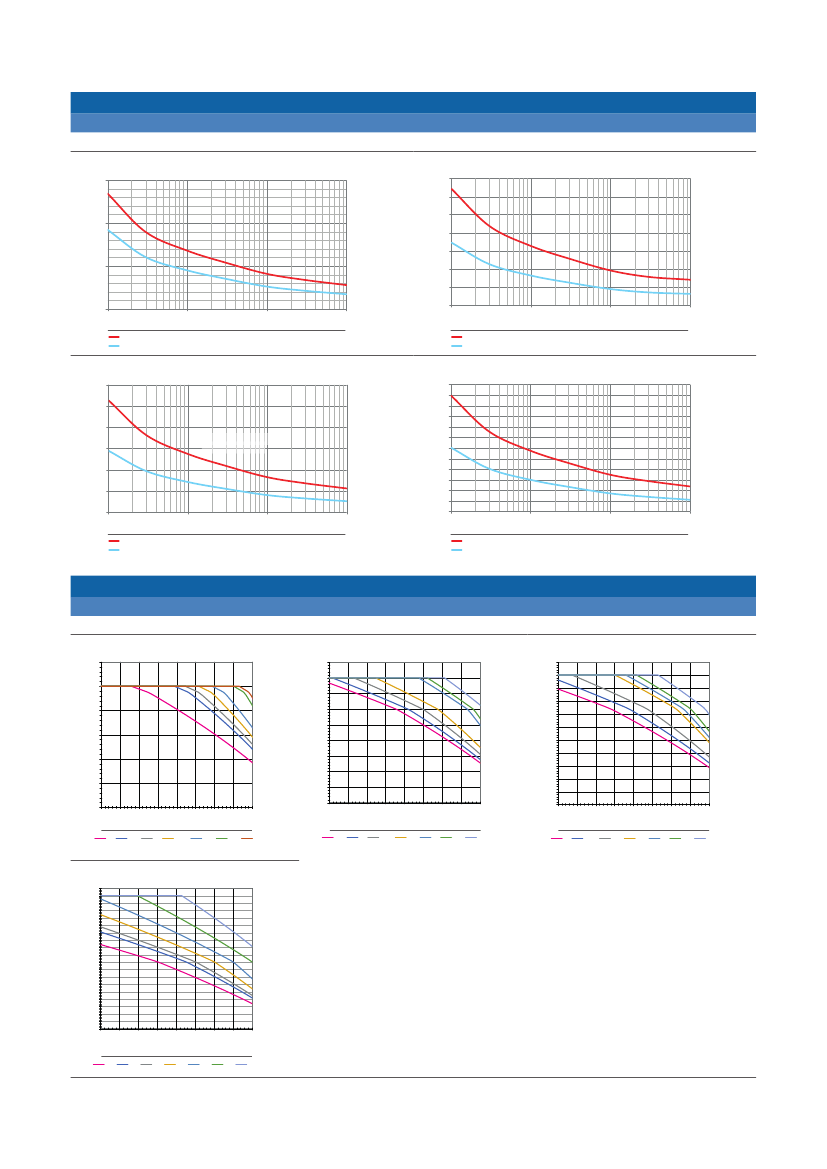

Curves
Surge Current Information
GNA - 25 A
300
GNA - 40 A
350
300
250
Itsm ( Apeak)
200
Itsm ( Apeak)
200
150
100
50
100
0
0
0,01
0,1
No Repetitive Surge Current
Repetitive Surge Current
T (s)
1
10
0,01
0,1
No Repetitive Surge Current
Repetitive Surge Current
T (s)
1
10
GNA - 50 A
600
500
GNA - 90 A
1200
1100
1000
900
Itsm ( Apeak)
Itsm ( Apeak)
400
300
200
100
0
0,01
0,1
No Repetitive Surge Current
Repetitive Surge Current
800
700
600
500
400
300
200
100
0
T (s)
1
10
0,01
0,1
No Repetitive Surge Current
Repetitive Surge Current
T (s)
1
10
Curves
Thermal Derating Curves
GNA - 25 A
30
GNA - 40 A
45
40
GNA - 50 A
55
50
45
40
25
35
20
30
25
20
15
10
5
5
0
0
10
20
30
40
50
60
70
80
35
Current (Arms)
Current (Arms)
15
Current (Arms)
0
10
20
30
40
50
60
70
80
30
25
20
15
10
5
0
0
10
20
30
40
50
60
70
80
10
0
Ambient Temperature (°C)
3
2,2
2
1,75
1,5
1,1
1
2,2
2
Ambient Temperature (°C)
1,75
1,5
1
0,9
0,7
2
1,75
Ambient Temperature (°C)
1,5
1,1
1
0,9
0,7
C°/W
C°/W
C°/W
GNA - 90 A
95
90
85
80
75
70
65
60
55
50
45
40
35
30
25
20
15
10
5
0
Current (Arms)
0
10
20
30
40
50
60
70
80
Ambient Temperature (°C)
1,5
1,2
1,1
0,9
0,7
0,5
0,3
C°/W
