57HS22-05-4-20S datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 57HS22-05-4-20S

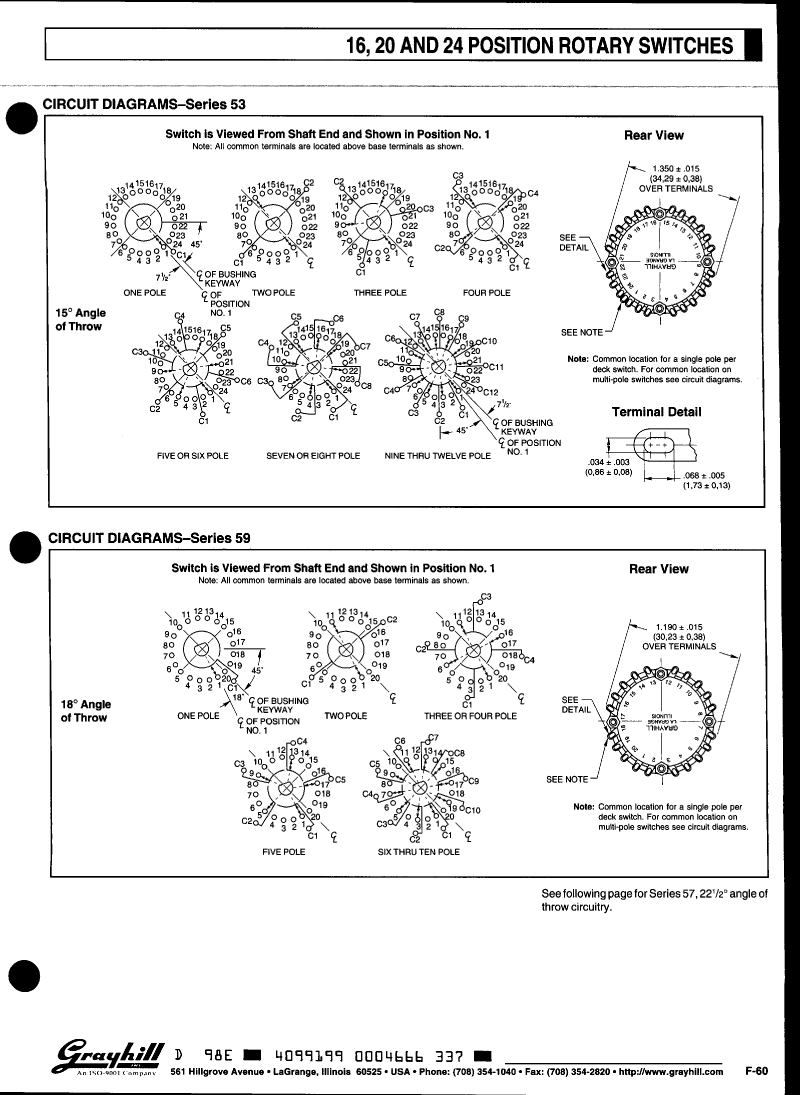

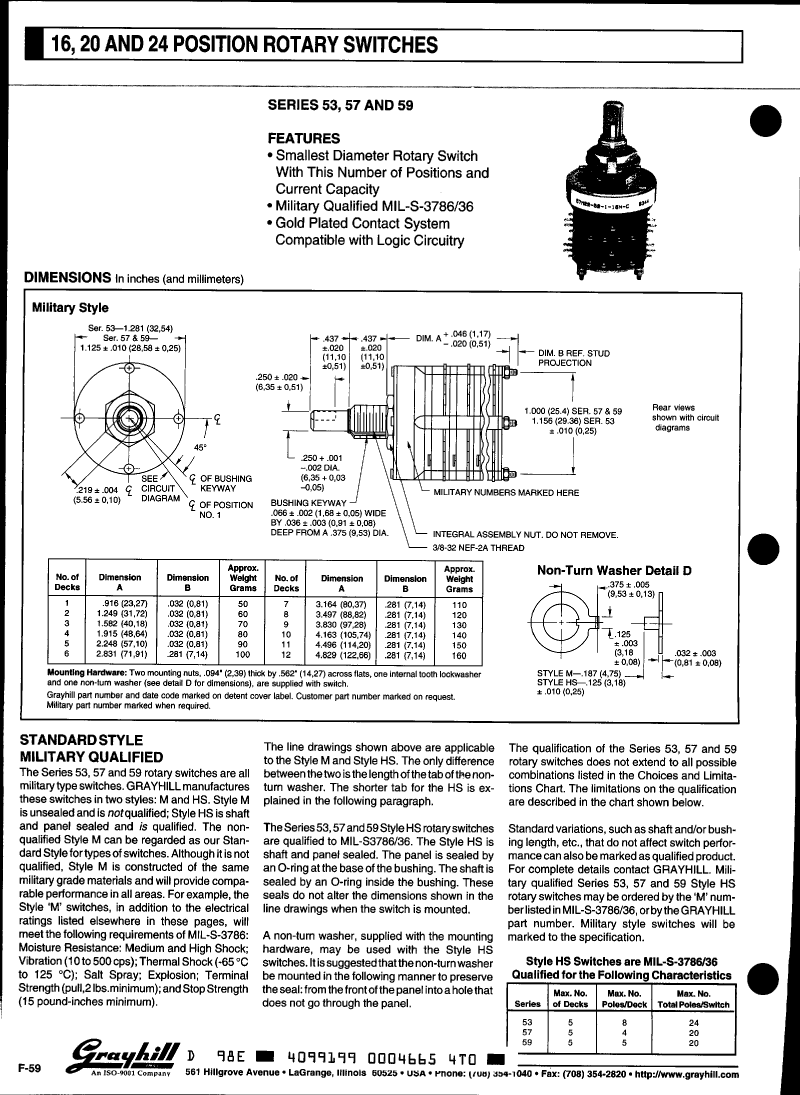

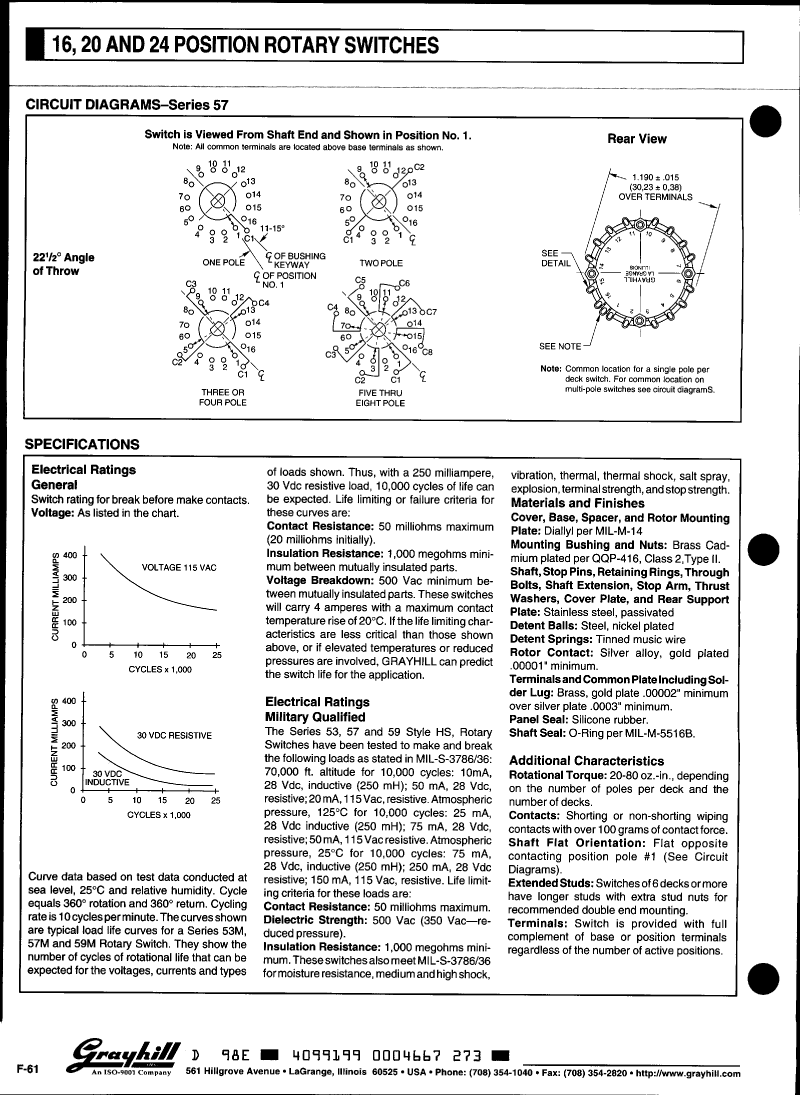

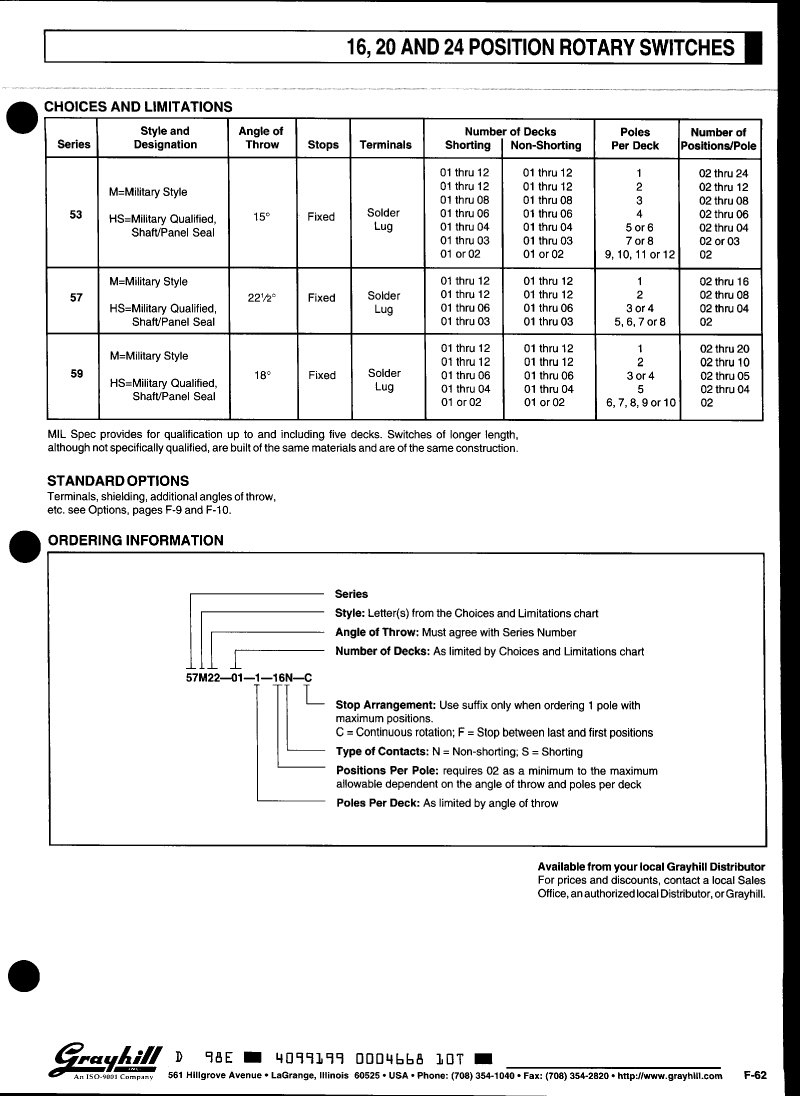

Preview

57HS22-05-4-20S: DescriptionRotary Switch, 20 Positions, 4P20T, On-on, Circular, 0.05A, 28VDC, Solder Lug Terminal, Rotary Shaft Actuator, Panel Mount; CategoryMechanical and electronic products switch; File Size472KB，4 Pages; ManufacturerGrayhill; Websitehttp://www.grayhill.com

Download Datasheet Parametric Compare View All

57HS22-05-4-20S Overview

Rotary Switch, 20 Positions, 4P20T, On-on, Circular, 0.05A, 28VDC, Solder Lug Terminal, Rotary Shaft Actuator, Panel Mount

57HS22-05-4-20S Parametric

Parameter Name	Attribute value
Maker	Grayhill
Reach Compliance Code	compliant
Actuator length	0.437 inch
Actuator material	STAINLESS STEEL
Actuator type	ROTARY SHAFT
Other features	MILITARY QUALIFIED
Body length or diameter	28.575 mm
Casing diameter	0.375 inch
Nozzle length	0.437 inch
Casing type	3/8-32
center contact material	SILVER
Center contact plating	GOLD
Contact (AC) maximum rated R load	0.02A@115VAC
Maximum contact current (AC)	0.02 A
Maximum contact current (DC)	0.05 A
Contact (DC) maximum rated R load	0.05A@28VDC
Contact function	ON-ON
Contact resistance	0.05 mΩ
contact time	MAKE-BEFORE-BREAK
Maximum contact voltage (AC)	115 V
Maximum contact voltage (DC)	28 V
Dielectric withstand voltage	500VAC V
End contact material	SILVER
End contact plating	GOLD
Graduation angle	22.5 deg
Insulation resistance	1000000000 Ω
insulator material	DIALLYL
Manufacturer's serial number	57
Installation features	PANEL MOUNT
Number of positions	20
surface mount	NO
Switch action	CIRCULAR
switch function	4P20T
Switch type	ROTARY SWITCH
Terminal material	BRASS
Termination type	SOLDER LUG
Base Number Matches	1

Preview

Download Datasheet

View All

57HS22-05-4-20S Related Products

	57HS22-05-4-20S	57HS22-05-4-20N	53HS15-05-8-24N	53HS15-05-8-24S
Description	Rotary Switch, 20 Positions, 4P20T, On-on, Circular, 0.05A, 28VDC, Solder Lug Terminal, Rotary Shaft Actuator, Panel Mount	Rotary Switch, 20 Positions, 4P20T, On-on, Circular, 0.05A, 28VDC, Solder Lug Terminal, Rotary Shaft Actuator, Panel Mount	Rotary Switch, 24 Positions, 8P24T, On-on, Circular, 0.05A, 28VDC, Solder Lug Terminal, Rotary Shaft Actuator, Panel Mount	Rotary Switch, 24 Positions, 8P24T, On-on, Circular, 0.05A, 28VDC, Solder Lug Terminal, Rotary Shaft Actuator, Panel Mount
Maker	Grayhill	Grayhill	Grayhill	Grayhill
Reach Compliance Code	compliant	compliant	compliant	compliant
Actuator length	0.437 inch	0.437 inch	0.437 inch	0.437 inch
Actuator material	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL
Actuator type	ROTARY SHAFT	ROTARY SHAFT	ROTARY SHAFT	ROTARY SHAFT
Other features	MILITARY QUALIFIED	MILITARY QUALIFIED	MILITARY QUALIFIED	MILITARY QUALIFIED
Body length or diameter	28.575 mm	28.575 mm	32.5374 mm	32.5374 mm
Casing diameter	0.375 inch	0.375 inch	0.375 inch	0.375 inch
Nozzle length	0.437 inch	0.437 inch	0.437 inch	0.437 inch
Casing type	3/8-32	3/8-32	3/8-32	3/8-32
center contact material	SILVER	SILVER	SILVER	SILVER
Center contact plating	GOLD	GOLD	GOLD	GOLD
Contact (AC) maximum rated R load	0.02A@115VAC	0.02A@115VAC	0.02A@115VAC	0.02A@115VAC
Maximum contact current (AC)	0.02 A	0.02 A	0.02 A	0.02 A
Maximum contact current (DC)	0.05 A	0.05 A	0.05 A	0.05 A
Contact (DC) maximum rated R load	0.05A@28VDC	0.05A@28VDC	0.05A@28VDC	0.05A@28VDC
Contact function	ON-ON	ON-ON	ON-ON	ON-ON
Contact resistance	0.05 mΩ	0.05 mΩ	0.05 mΩ	0.05 mΩ
contact time	MAKE-BEFORE-BREAK	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	MAKE-BEFORE-BREAK
Maximum contact voltage (AC)	115 V	115 V	115 V	115 V
Maximum contact voltage (DC)	28 V	28 V	28 V	28 V
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V
End contact material	SILVER	SILVER	SILVER	SILVER
End contact plating	GOLD	GOLD	GOLD	GOLD
Graduation angle	22.5 deg	22.5 deg	15 deg	15 deg
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	DIALLYL	DIALLYL	DIALLYL	DIALLYL
Manufacturer's serial number	57	57	53	53
Installation features	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Number of positions	20	20	24	24
surface mount	NO	NO	NO	NO
Switch action	CIRCULAR	CIRCULAR	CIRCULAR	CIRCULAR
switch function	4P20T	4P20T	8P24T	8P24T
Switch type	ROTARY SWITCH	ROTARY SWITCH	ROTARY SWITCH	ROTARY SWITCH
Terminal material	BRASS	BRASS	BRASS	BRASS
Termination type	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
