DMI-18A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> DMI-18A

DMI-18A: DescriptionFlange Mounted Double-Balanced Mixers; CategoryWireless rf/communication Radio frequency and microwave; File Size91KB，2 Pages; ManufacturerMACOM; Websitehttp://www.macom.com

Download Datasheet Parametric View All

DMI-18A Overview

Flange Mounted Double-Balanced Mixers

DMI-18A Parametric

Parameter Name	Attribute value
Maker	MACOM
Reach Compliance Code	unknow
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum frequency conversion loss	9.5 dB
Maximum operating frequency	18000 MHz
Minimum operating frequency	1000 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	DOUBLE BALANCED

Preview

Download Datasheet

View All

Flange Mounted Double-Balanced

Mixers

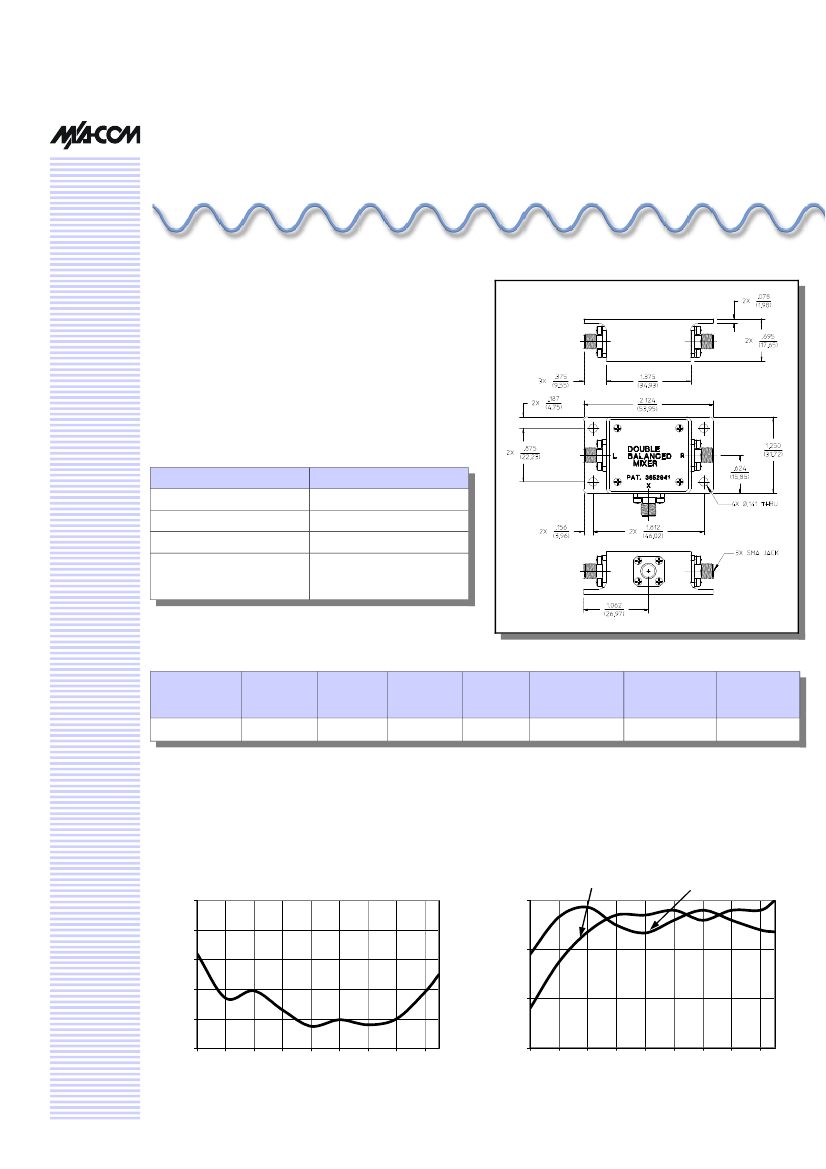

V 3.00

DMI-18A

Features

5.0 dB Midband Conversion Loss

28 dB Midband L-R Isolation

OUTLINE DRAWING

Description

This mixer is typically specified as a down converter. It

also functions well as an up converter, third harmonic mixer

or phase detector.

Environmental

Parameter

Operating Temp. Max.

Storage Temp. Max.

Humidity

Vibration

-55°C to +85°C

-65°C to +125°C

95% non-condensing

7G’s rms, 50 to 2000 cps, per

MIL-STD-810-B, Method 514,

Procedure 5

Electrical Specifications: T

= 25°C

RF Frequency

Range (GHz)

1.0 - 18.0

L-R

Isolation

(dB)

L-I

Isolation

(dB)

3 dB IF

LO Range

Bandwidth

(dBm)

(GHz)

Min/Max

DC - 0.5

7/11

Conversion

Loss (dB)

Typ/Max

6.0/9.5

Input 1dB

Compression

Point (dBm)

Noise

Figure SSB

(dB Max.)

10.0

1. Specifications apply when operated at +8 dBm available LO power with 50 ohm source and load impedance.

2. For IF Frequencies of 100 MHz and RF power of –10 dBm or lower.

Typical Performance Curves 25°

Conversion Loss

Isolation

LO-IF

LO-RF

Isolation (dB)

Loss (dB)

Frequency (GHz)
