Document 103-1
ChipInductors
–
1008LSSeries(2520)
These ferrite core surface mount inductors have lower
DCR and higher current ratings than our 1008CS Series.
They’re available with inductance values from 1.2 to 10 µH.
Coilcraft
Designer’s Kit C136
contains samples of all
5% inductance tolerance parts. To order, contact Coil-
craft or visit
http://order.coilcraft.com
to order on-line.
Part number
1
1008LS-122X_B_
1008LS-152X _B_
1008LS-182X _B_
1008LS-222X _B_
1008LS-272X_B_
1008LS-332X _B_
1008LS-392X _B_
1008LS-472X _B_
1008LS-562X _B_
1008LS-682X _B_
1008LS-822X _B_
1008LS-103X _B_
Inductance
2
(µH)
1.2 @ 7.9 MHz
1.5 @ 7.9 MHz
1.8 @ 7.9 MHz
2.2 @ 7.9 MHz
2.7 @ 7.9 MHz
3.3 @ 7.9 MHz
3.9 @ 7.9 MHz
4.7 @ 7.9 MHz
5.6 @ 7.9 MHz
6.8 @ 7.9 MHz
8.2 @ 7.9 MHz
10.0 @ 7.9 MHz
Percent
tolerance
3
10,5
10,5
10,5
10,5
10,5
10,5
10,5
10,5
10,5
10,5
10,5
10,5
Q min
4
48 @ 50 MHz
41 @ 50 MHz
39 @ 50 MHz
34 @ 50 MHz
34 @ 50 MHz
32 @ 50 MHz
32 @ 7.9 MHz
31 @ 7.9 MHz
31 @ 7.9 MHz
31 @ 7.9 MHz
23 @ 7.9 MHz
31 @ 7.9 MHz
SRF min
5
DCR max
6
Irms
max
7
(MHz)
(Ohms)
(mA)
210
0.68
650
190
0.76
630
170
0.84
600
150
1.10
520
135
1.28
490
120
1.46
450
105
1.56
420
90
1.68
400
80
1.82
380
70
2.00
360
65
2.65
330
60
2.95
300
1. Specify
tolerance, termination,
and
packaging
codes:
1008LS-103XJBC
J =
5%
K
= 10%
(Table shows stock tolerances in bold.)
Termination: B
= Ag/Pd/Pt/Pb
L
= Lead free Ag/Pd/Pt
Packaging: C
= 7″ machine-ready reel. EIA-481 embossed plastic tape
(2000 per full reel).
B
= Less than full reel. On tape, but not machine-ready. To have a
leader and trailer added ($25 charge), use code letter C instead.
D
= 13″ machine-ready reel. EIA-481 embossed plastic tape.
Factory order only, not stocked (7500 per full reel).
Tolerance:
2. Inductance measured using Coilcraft SMD-A fixture in Agilent/HP 4286A
impedance analyzer with Coilcraft-provided correlation pieces.
3. Tolerances in bold are stocked for immediate shipment.
4. Q measured using Agilent/HP 4291A with Agilent/HP 16193 test fixture.
5. SRF measured using Agilent/HP 8753D network analyzer with Coilcraft
SMD-D fixture.
6. DCR measured on Cambridge Technology Micro-ohmmeter.
7. Average current for 15°C temperature rise from 25°C.
8. Operating temperature range
−40°C
to +85°C.
9. Electrical specifications at 25°C.
See Qualification Standards section for environmental and test data.
For part marking data see Color Coding section.
Specifications subject to change without notice. Document 103-1 Revised 11/20/02
Document 103-2

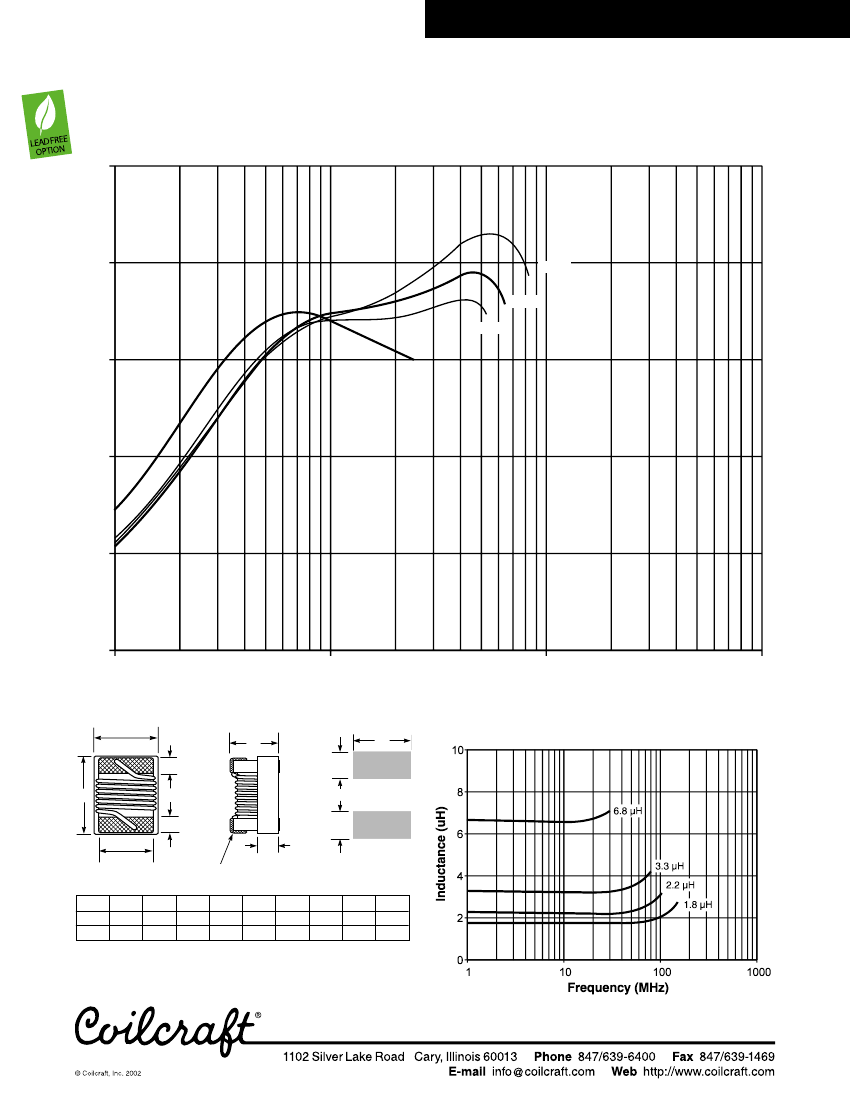

1008LS Series (2520)
Typical Q vs Frequency
50
S-Parameter files
ON OUR WEB SITE OR CD
ON OUR WEB SITE OR CD
SPICE models
40
1.8 µH
2.2 µH
3.3 µH
30
Q Factor
6.8 µH
20
10
0
1
10
100
1000
Frequency (MHz)
B
overall
F
A
G
F
E
terminal
C
I
J
I
D
Terminal wraparound:
approx 0.015/0,38 both ends
H
Typical L vs Frequency
Land
Pattern
A max B max C max D ref
E
F
G
H
I
J
0.115 0.110 0.080 0.020 0.080 0.020 0.060 0.100 0.040 0.050
2,92 2,79 2,03 0,51 2,03 0,51 1,52 2,54 1,02 1,27
Parts/reel: 7″ 2,000; 13″ 7,500 Tape width: 8 mm
For packaging data see Tape and Reel Specifications section.
Specifications subject to change without notice. Document 103-2 Revised 11/20/02
